cellophane overwrapping machine suppliers in China
- Category: >>>
- Supplier: Ruian Yongxin Machinery Co. ltd.
Share on (62399784401):
Product Overview
Description

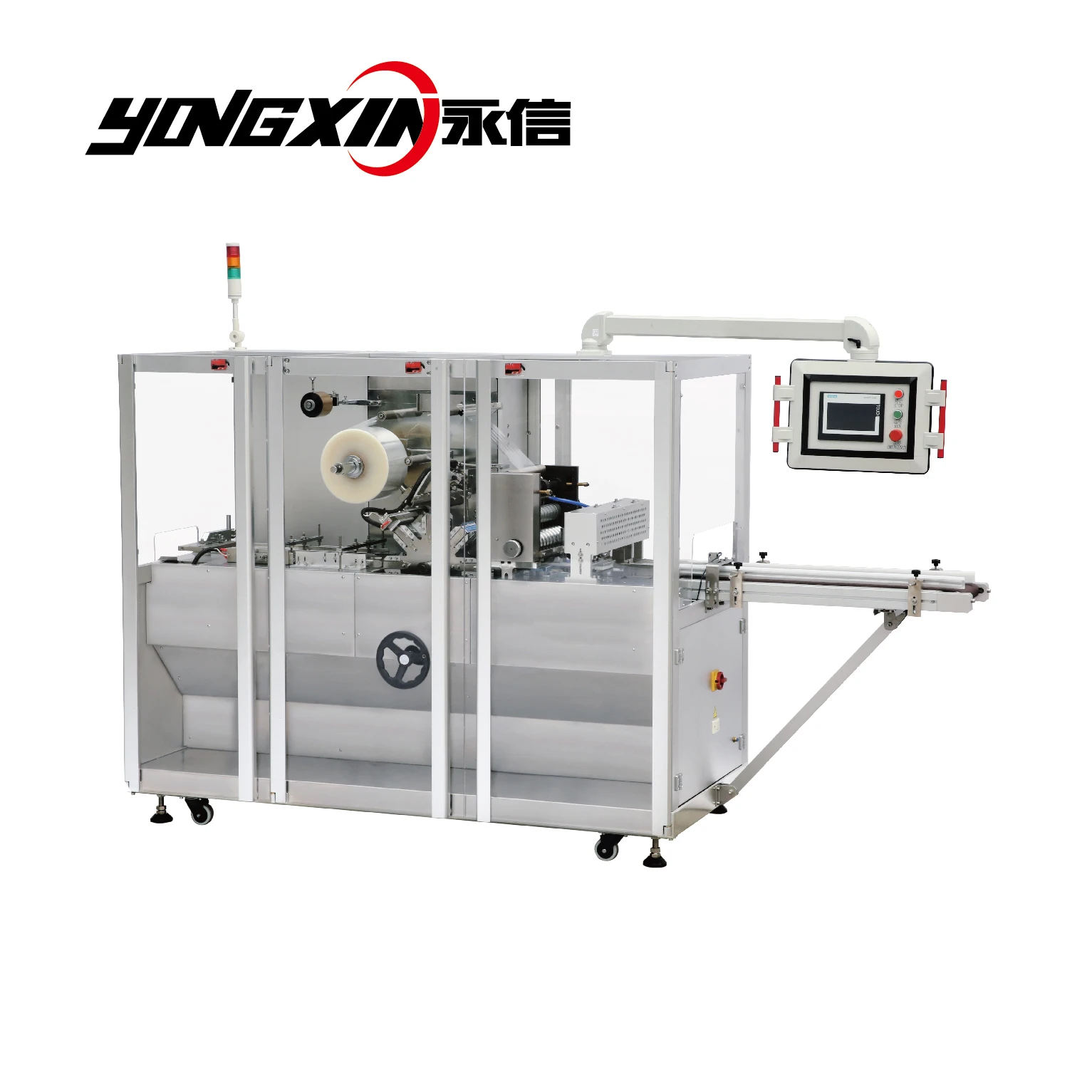

cellophane overwrapping machine suppliers
Product introduction

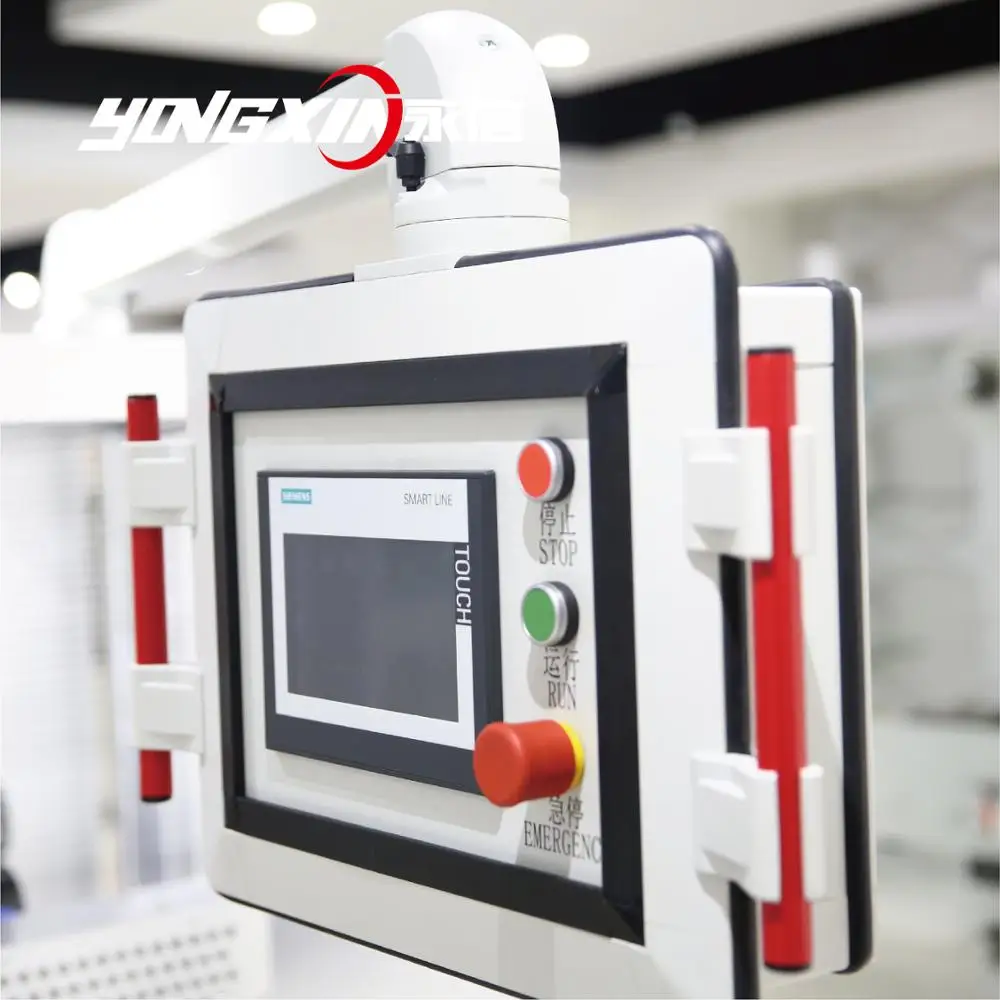

This machine is suitable for automatic packaging of single box items in various industries (with gold tear tape). Using the most advanced PLC programmable controller, it has the safety door protection and alarm device to ensure the stability of the machine at high speed. All kinds of operation can be done easily on the touch screen. There is no need to adjust the height of work table on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.

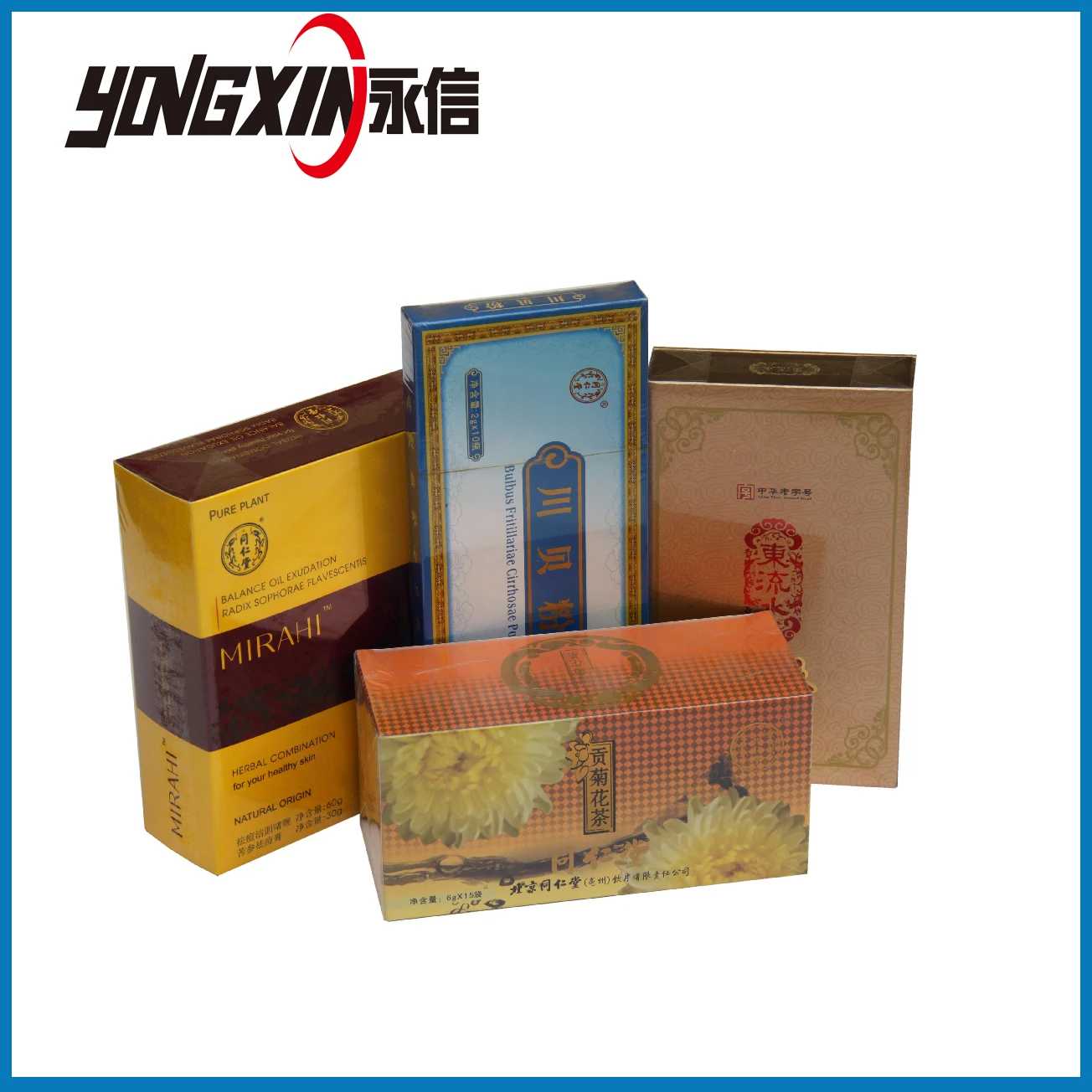

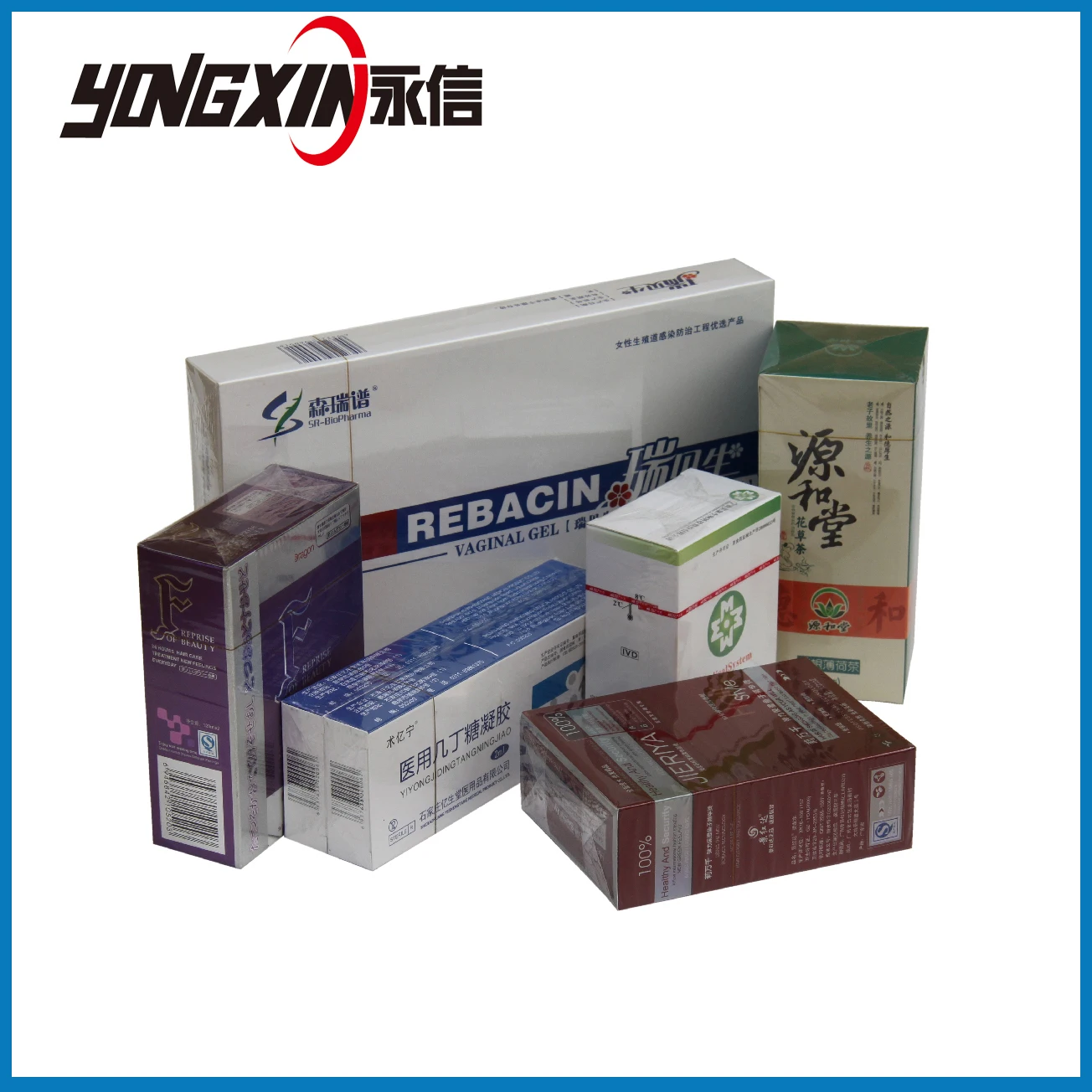

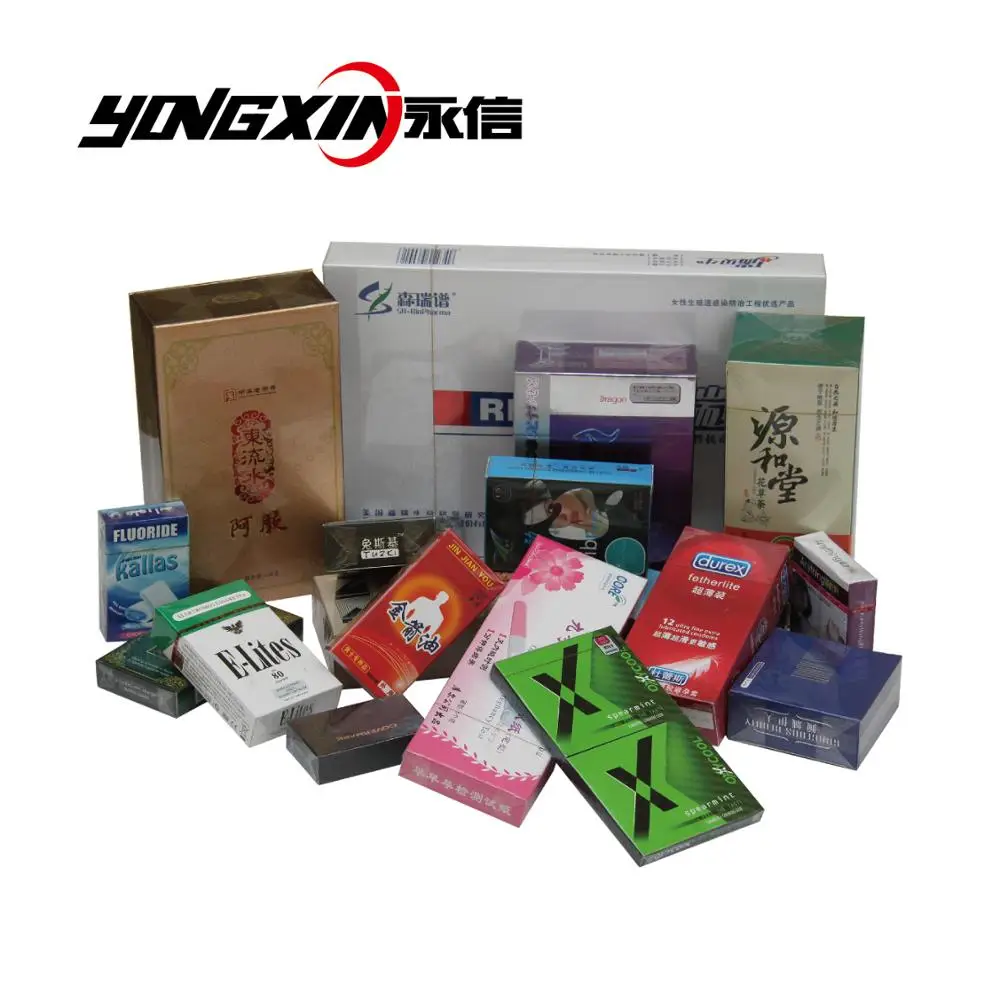

Sample
Technical Data

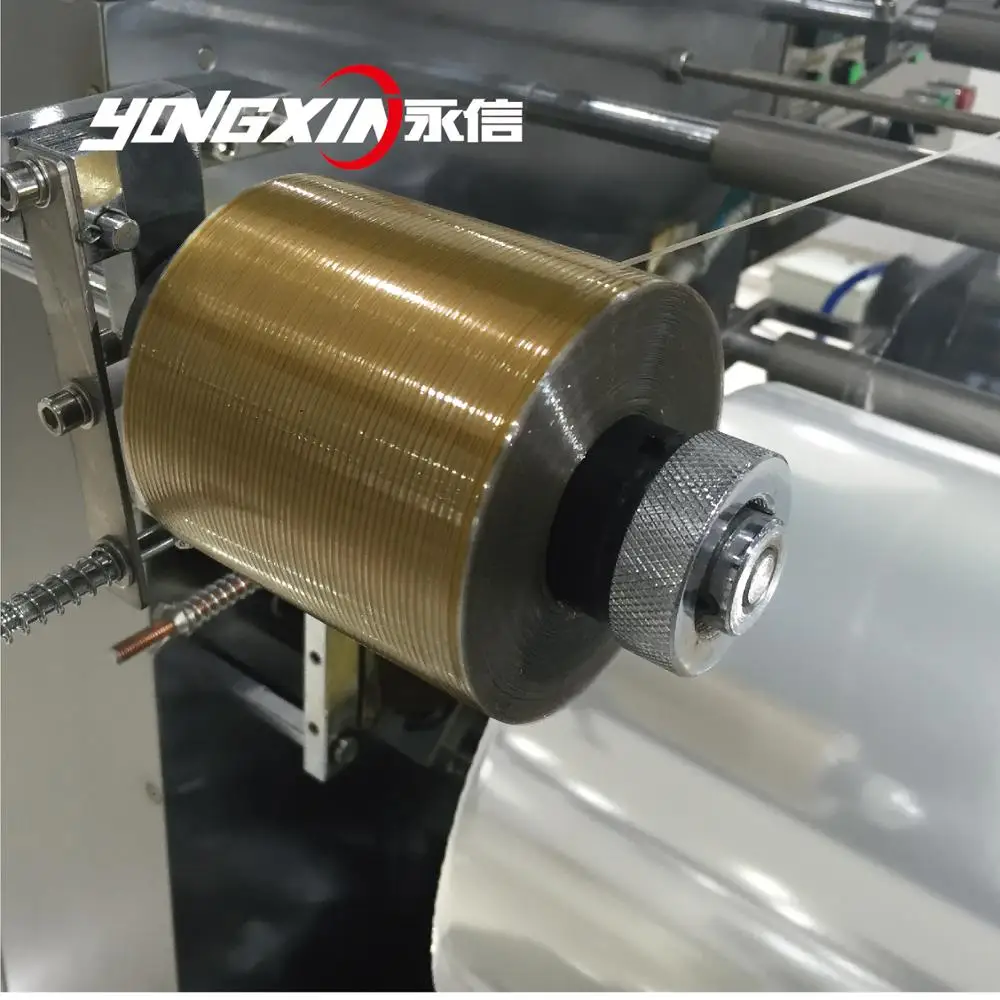

Packing Material | BOPP film and gold tear tape |
Packing Speed | 40-80 packs/Min |
Max Packing Size | (L)240×(W)120×(H)60mm |
Electric Supply & Power | 220V 50Hz 5kw |
Weight | 760kg |
Overall Dimensions | (L)2001×(W)923×(H)1779mm |
Component list
No. | Item | Qty | Brand |
1 | Touch screen | 1 | SIEMENS |
2 | PLC | 1 | Omron (Japan) |
3 | Temperature block | 2 | Omron (Japan) |
4 | IO extends | 1 | Omron (Japan) |
5 | Power switch | 1 | Omron (Japan) |
6 | Safety door switch | 2 | Schneider |
7 | Circuit breaker | 3 | Schneider |
8 | Intermediate relay | 3 | Omron (Japan) |
9 | Solid state relay | 6 | Omron (Japan) |
10 | Frequency converter | 1 | Taida |
11 | Emergency stop button | 1 | Muller( German) |
12 | Button | 2 | Tianyi |
13 | Close switch | 2 | Omron (Japan) |
14 | Transmission motors | 1 | SESAME |
15 | Conveying motor | 1 | Taibang |
16 | Fuse | 2 | Zhengtai |

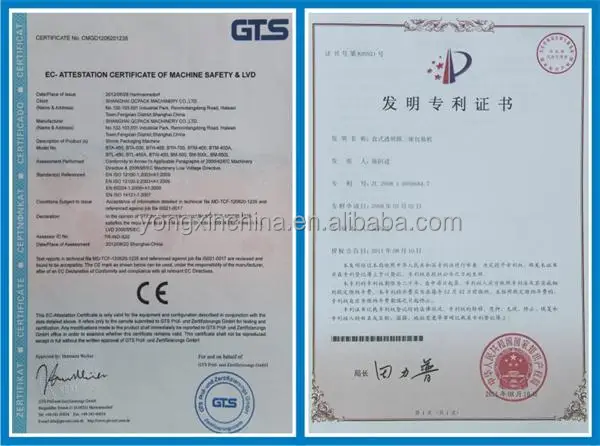

CE Certificate
Shippment and factory
