Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
PET stretch blow moulding machine for edible oil bottle
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou,Huangyan,Ouge,Machine,Mould,Co.,Ltd.
Share on:
Product Overview
Description
Product Application

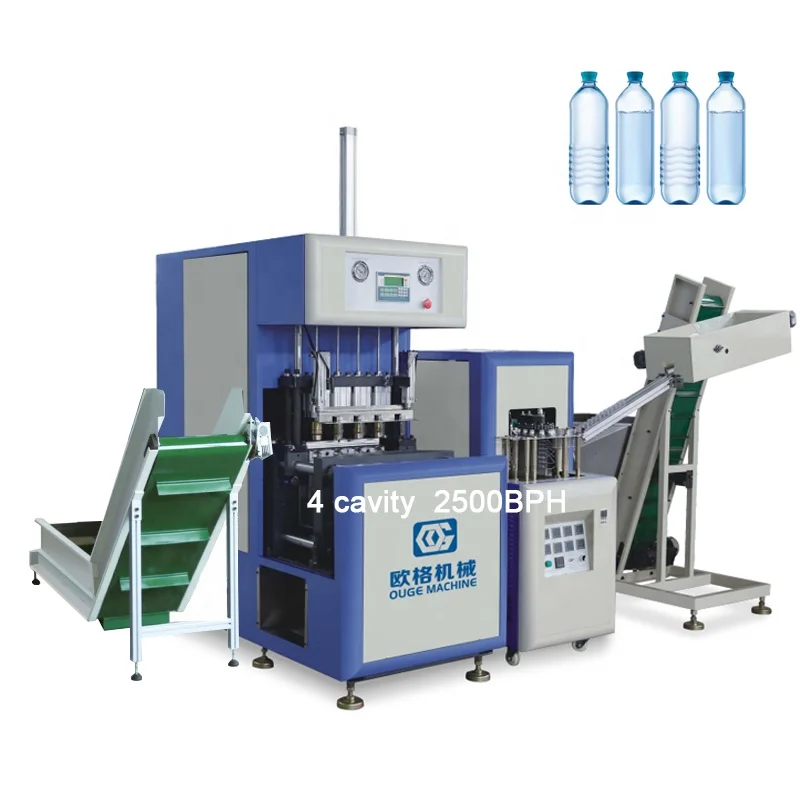

Full-automatic Servo Moter Blow Moulding Machine is suitable for producing PET bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle, hot fill bottle etc. Beverage bottle, medicine bottle etc.
ITEM | 单位 | OGMS-4 | |||
瓶型规格 PRODUCT | 理论产量 | Theoretical output | Pcs/h | 2500 | |
容积 | Max.volume | L | 1.5 | ||
最大高度 | Max. height | mm | 360 | ||
最大直径 | Max. diameter | mm | 105 | ||
成型组规格 MOULD | 模穴数 | Number of cavities | / | 4 | |
模板尺寸 | Mould plate dimension(LxH) | mm | 700x420 | ||
模厚 | Mould thickness | mm | 240 | ||
开模行程 | Mould opening stroke | mm | 200 | ||
电力规格 ELECTRICAL | 电源 | Power | / | 220-380v/50-60hz | |
总功率 | Total power | KW | 21 | ||
加热功率 | Heating power | KW | 20 | ||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 1.9x0.85x2.25 | |
吹瓶机主机重量 | Main body weight | KG | 750 | ||
加热烘箱尺寸 | Pre-heater dimension | M | 1.8x0.6x1.4 | ||
加热烘箱重量 | Pre-heater weight | KG | 350 | ||
瓶子输送带尺寸 | Bottle conveyor dimension | M | 2.0x0.6x1.1 | ||
瓶子输送带重量 | Bottle conveyor weight | KG | 80 | ||

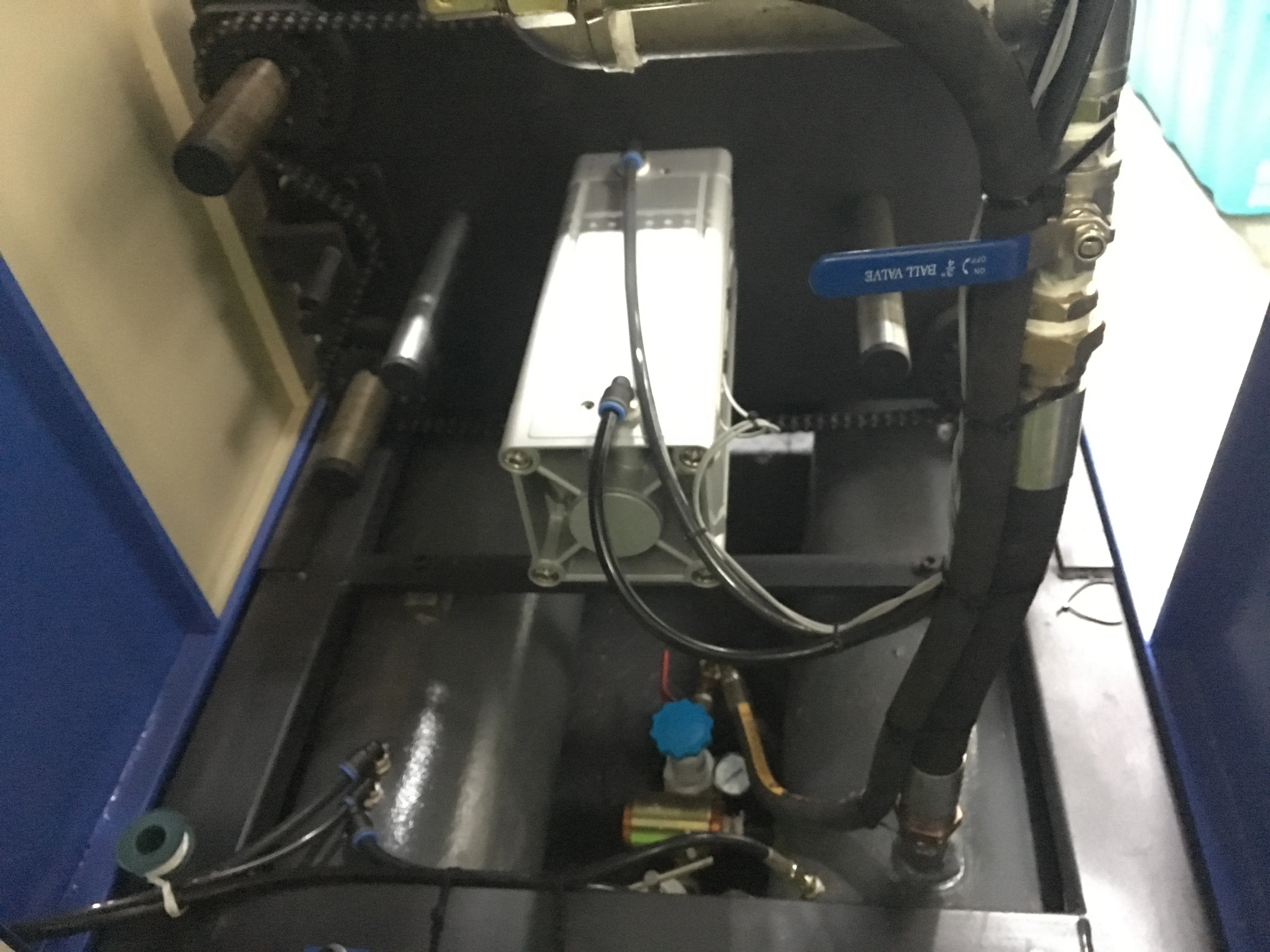

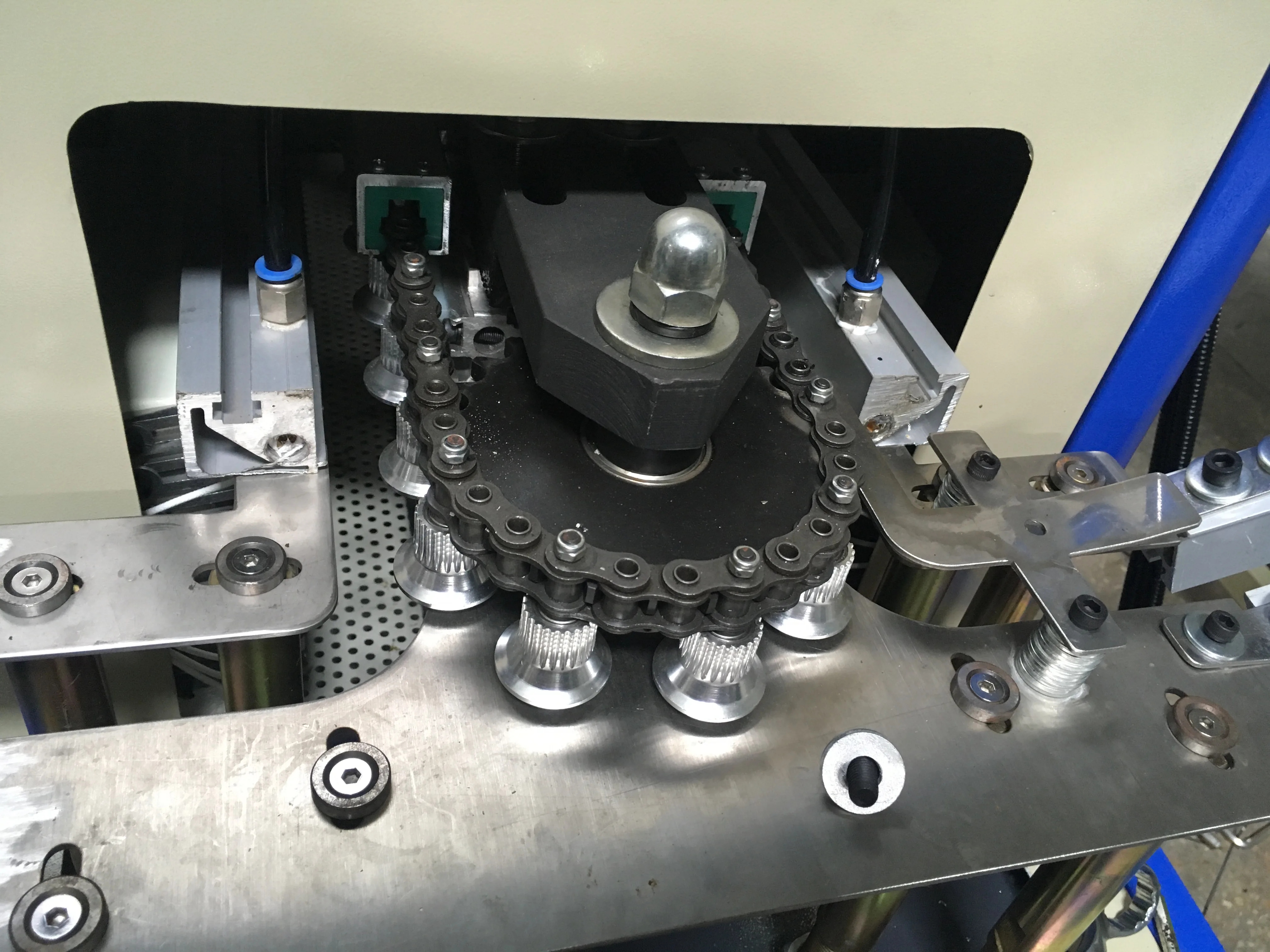

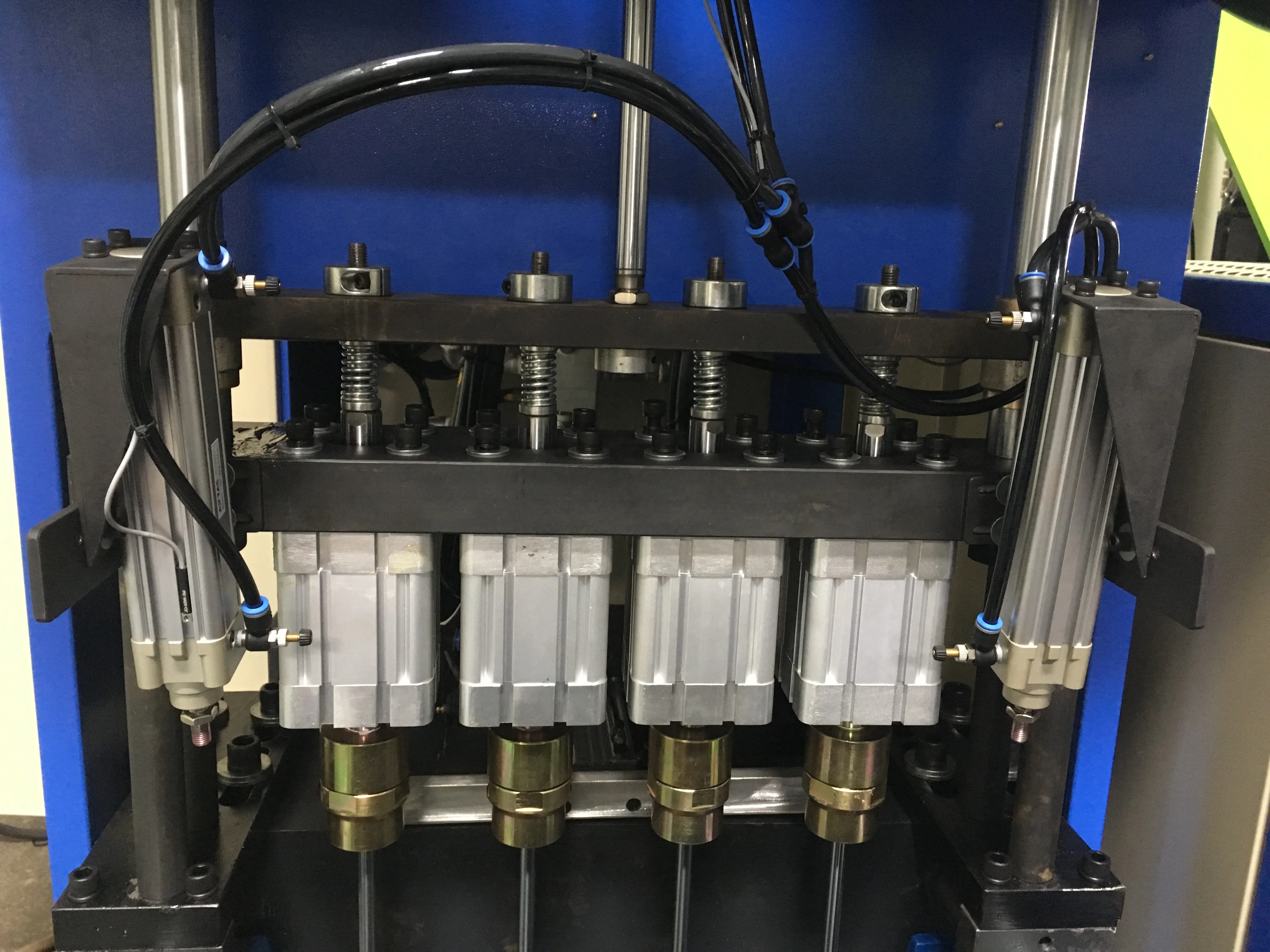

Products Show
Our Company
About us
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
Packing & Delivery
Packing Details : wooden case &plastic packaging
Delivery Details : 45 days after receive the deposit
