vinyl cutter machine cutting plotter
US $258.00-$308.00
Fair price optical sensor cutting plotter new automatic contour cutting plotter Fast delivery
- Category: >>>
- Supplier: Zhengzhou Entu Industrial Co. Ltd.
Share on (62399908870):
Product Overview
Description
Product Description
1 Teneth cutting plotter has quality alloy structure and fashionable appearance shown as below;
2 Work independently without your computer: Support large capacity storage of the SD card for cutting documet;
3 adopt 3.0inch large touch screen display in worldwide, can operate by touching the panel directly;
4 Support CDR, AI, CAD ,Flexi professional design software, etc to do output directly;
5 Use New ARM control system and support MAC operation system.
Technical Specifications
Model | T-24A/T24CCD | T-48A/T48CCD | T-59A/T59CCD |
Media way | with floor stand | ||
Mainboard | 32-bit ARM7 CPU,128MB, High-speed CACHA memory | ||
Control panel | 11 membrane buttons+2.4 inch touch srceen / 4.3 inch full touch screen | ||
Driver | Stepper motor | ||
Max paper feed width | 790mm | 1360mm | 1660mm |
Max cutting width | 680mm | 1250mm | 1550mm |
Max cutting speed | 800mm/s | ||
Cutting force | 0-1000g(digital adjustment) | ||
Mechanical precision | 0.025mm | ||
Type of plotter pen | All types diameter 11.4mm plotter pen | ||
Contour cutting way | CCD camera automatic contour cutting | ||
Interface | USB/U disk/Serial port/WIFI | ||
Software and Compatibility | Corel Draw/Illustrator Plug-in, Signmaster, compatible for Windows 7, 8, 10 | ||
Power supply | AC220V/110V,50HZ | ||
Knife | 45 degree knife, 30 degree sharp knife, 60 degree dull knife | ||
Package size | 1060*340*400mm | 1590*330*400mm | 1900*340*400mm |
Gross weight | 22kg | 35kg | 40kg |

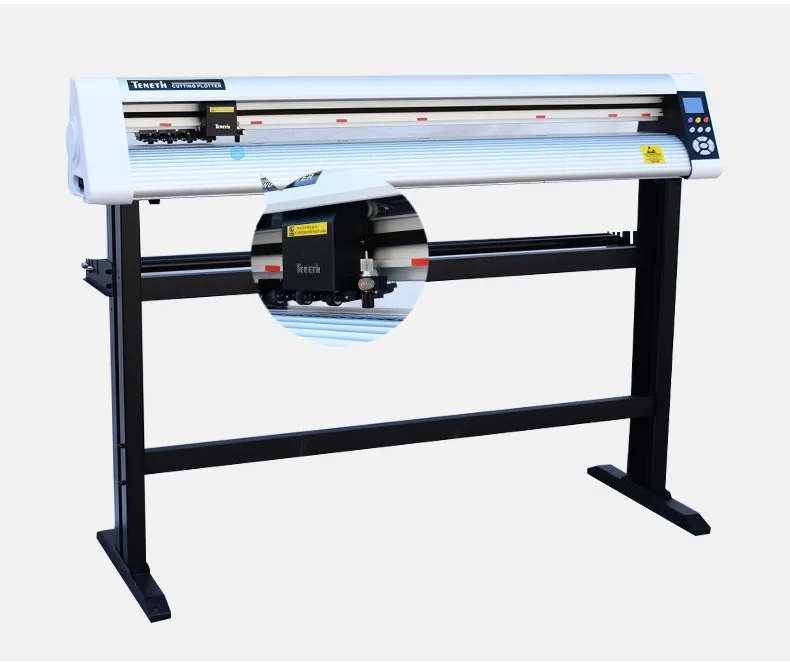

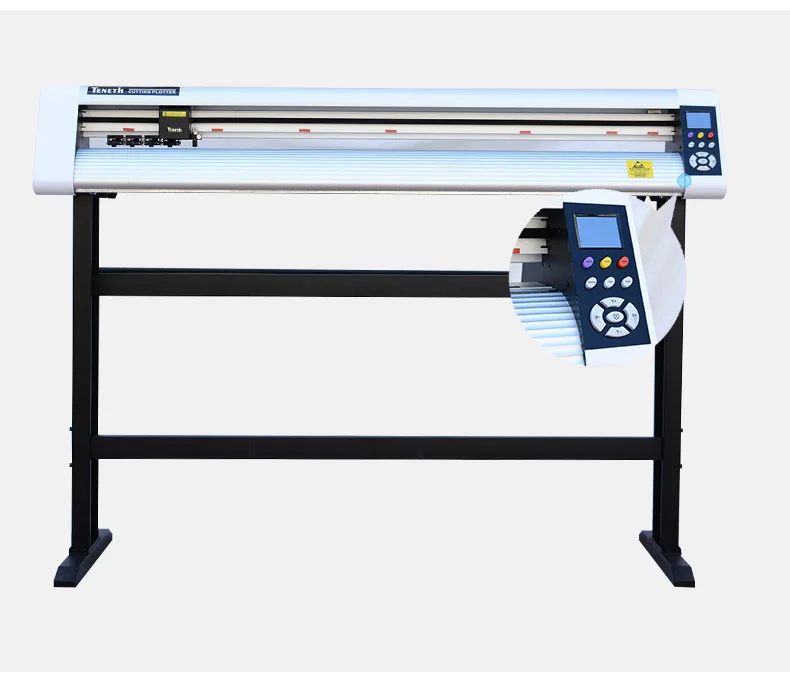

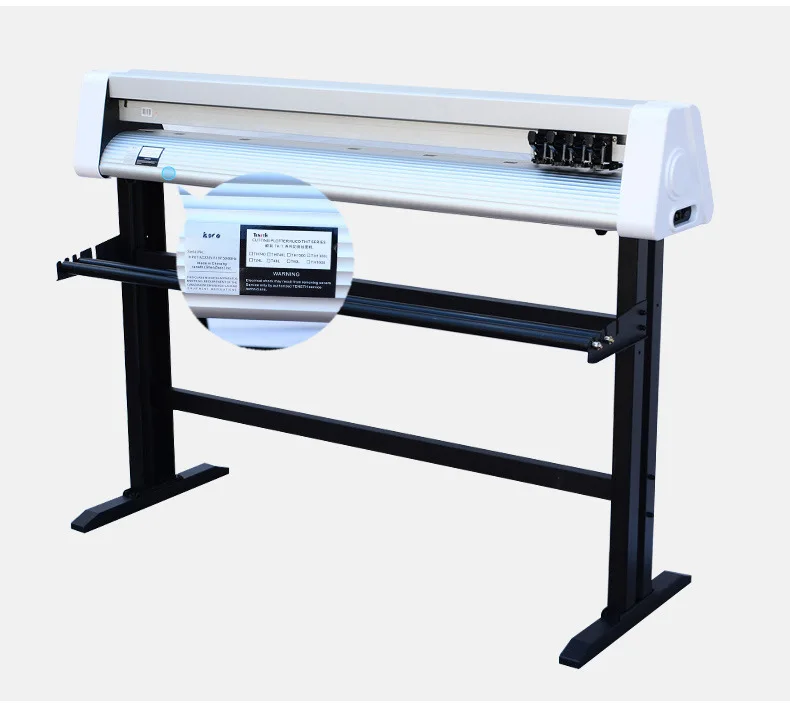

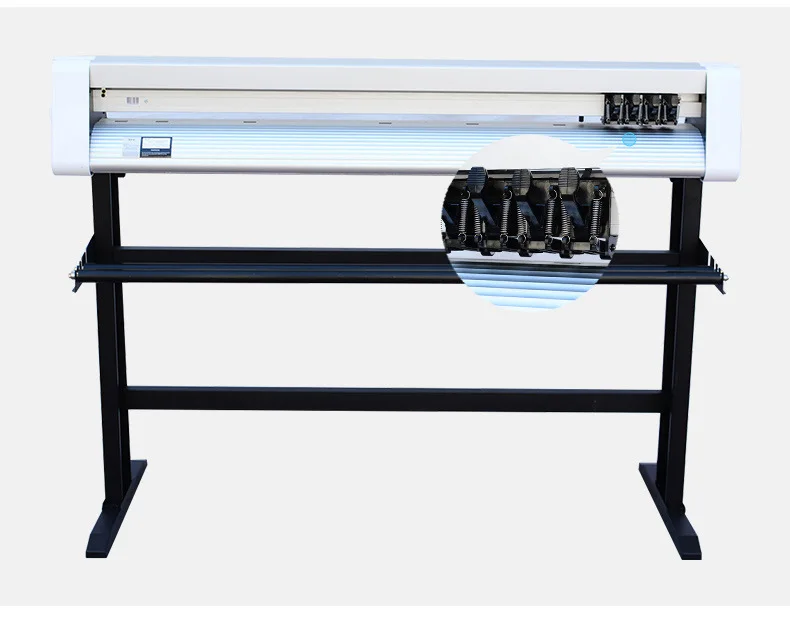

Detailed Images
Apllication
Packaging & Shipping
