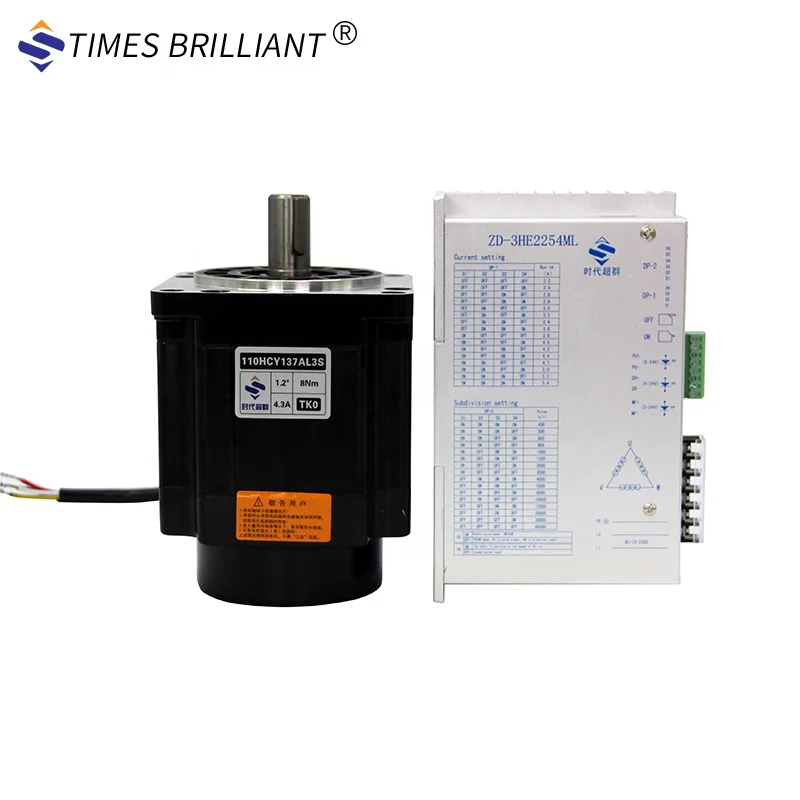

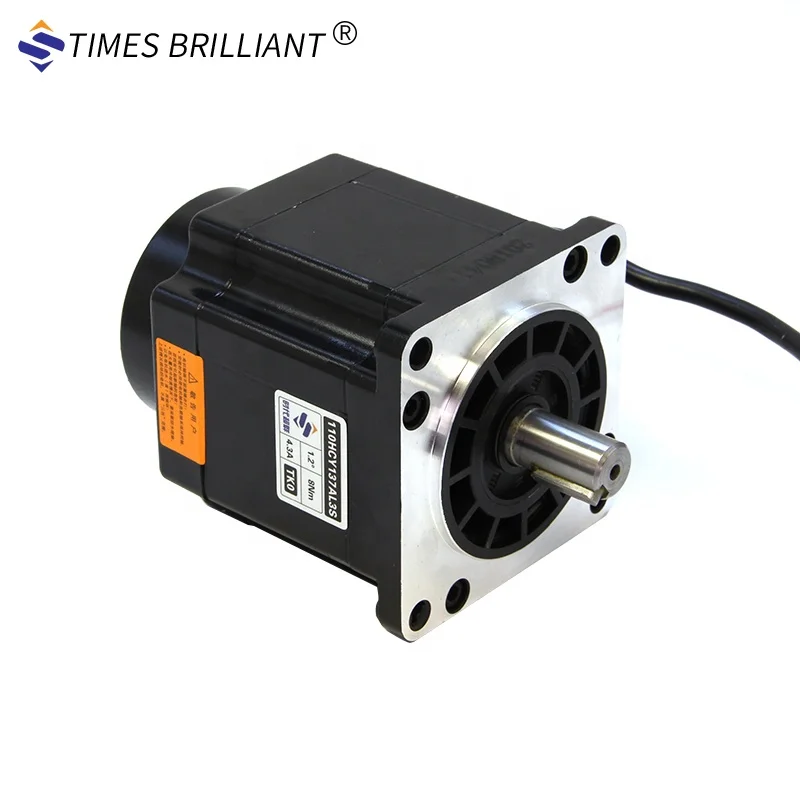

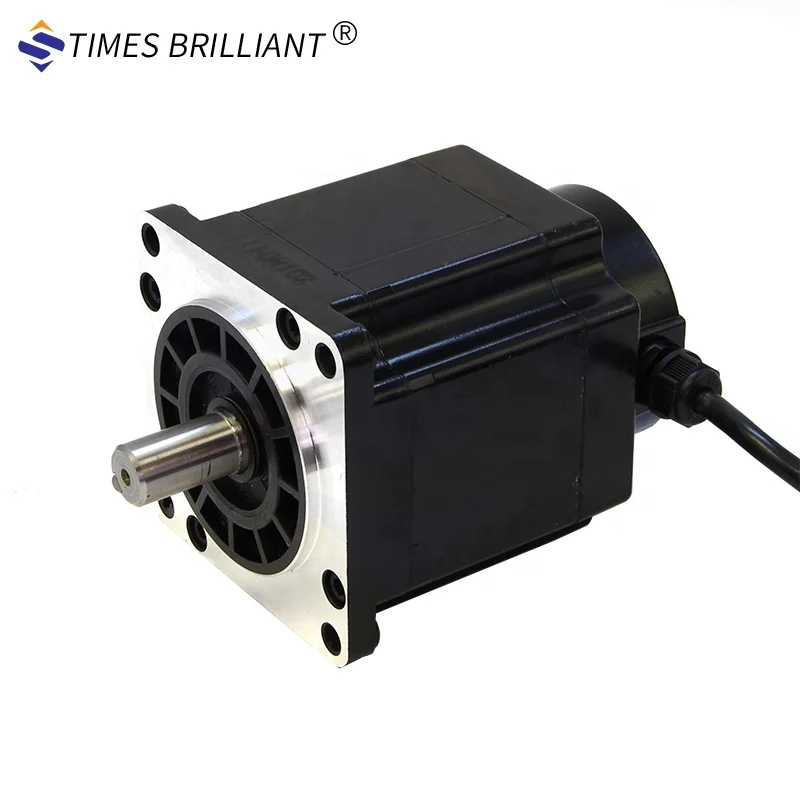

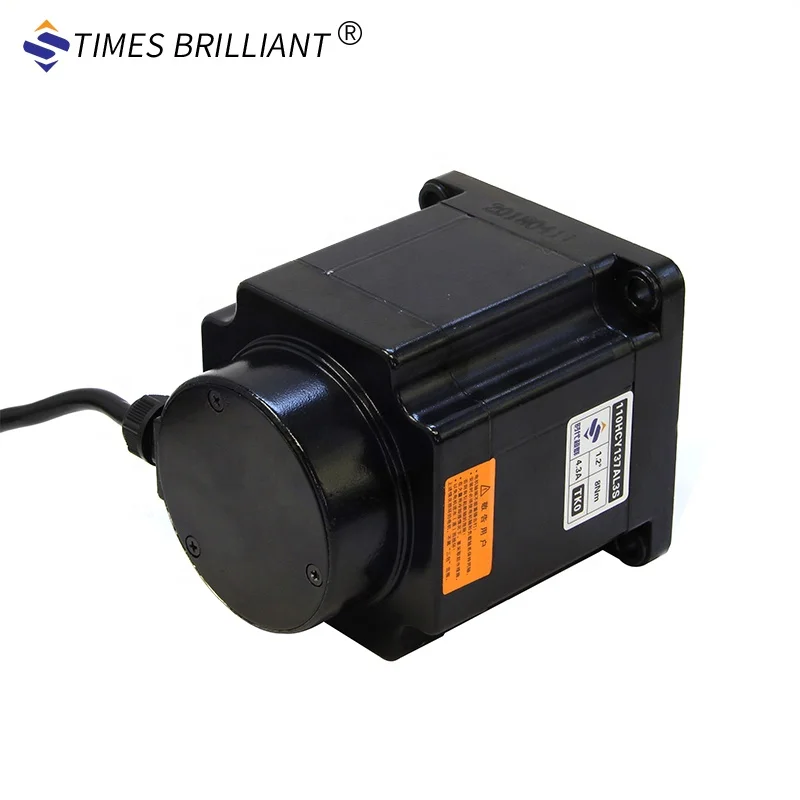

China low price 130mm 3phase Nema43 8NM Stepper Motor with Driver kit for 5.4A for cnc machine

Product Overview

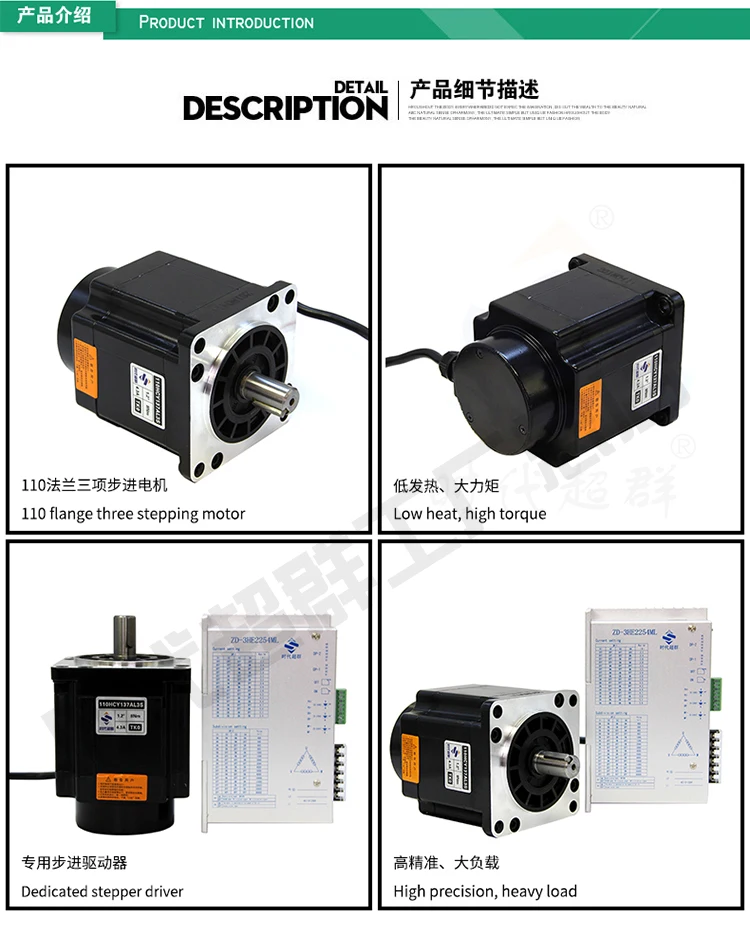

Description

China low price 130mm 3phase Nema43 8NM Stepper Motor with Driver kit for 5.4A for cnc machine





Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it





Related stepper driver

Specifications

a. Single power input, voltage range: AC110V to 220V

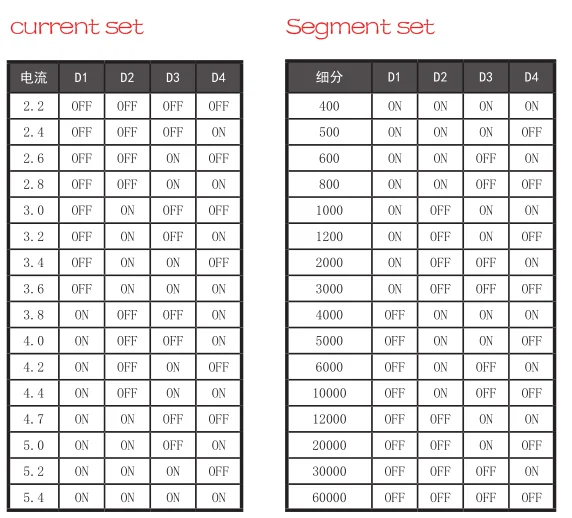

b. Driver current from 2.2A / phase to 5.4A / phase, adjustable with 16 grades

c. The driver features 16-grade micro stepping with equal angular degree and constant torque; the highest resolution may

reach 60,000 steps/rev.

d. The highest response frequency can reach 150Kpps

e.  When the step-by step impulse has halted for over 100ms, the coil current will automatically reduce to half of the set value,

to effectively reduce motor warming  Phase memory function (when the input has stopped unexpectedly or powered off,

 the driver will automatically memorize motor phase at that time).

f. I/O signal, the driver uses optic electronic isolation technique and signal level is 5V ~ 24V, compatible

g. Operation temperature: -40 ℃ ~ 85 ℃

h. Adaptive motor: three-phase86, 110 series high-voltage motors

i. Optocoupler isolation of internal strong and weak electricity

j. Phase memory function (note: when the input has stopped for more than 3 seconds, the driver will automatically memorize motor phase at that time; when power on again or the MF signal turns from low level to high level, the driver will automatically restore motor phase).

 k. It features motor inductance adjustment function, giving full play to the adaptive motor.

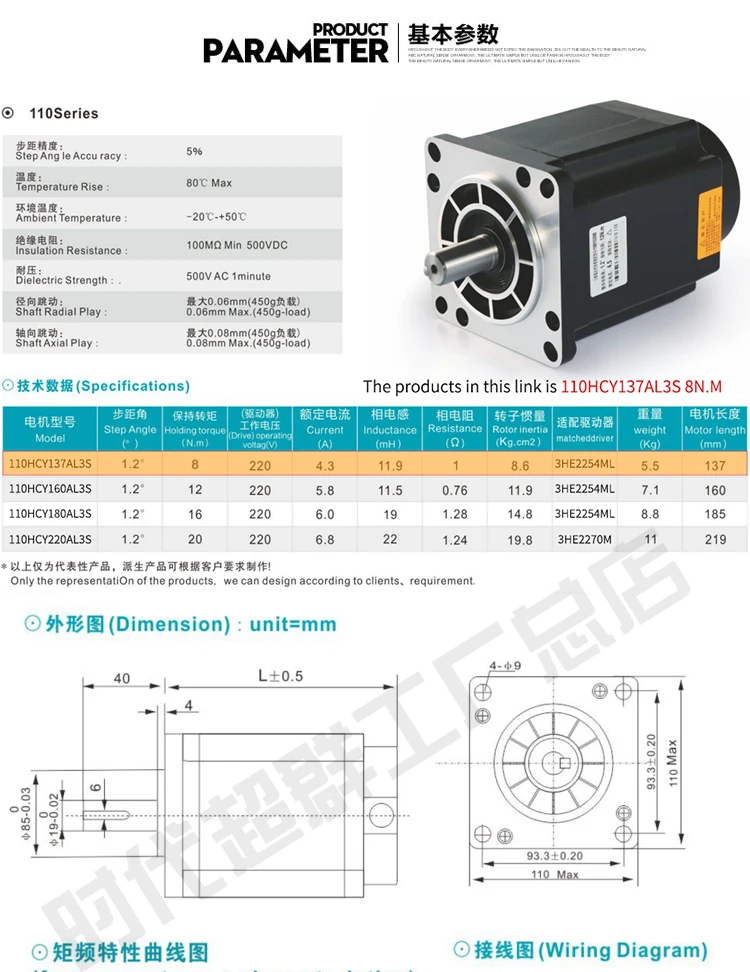

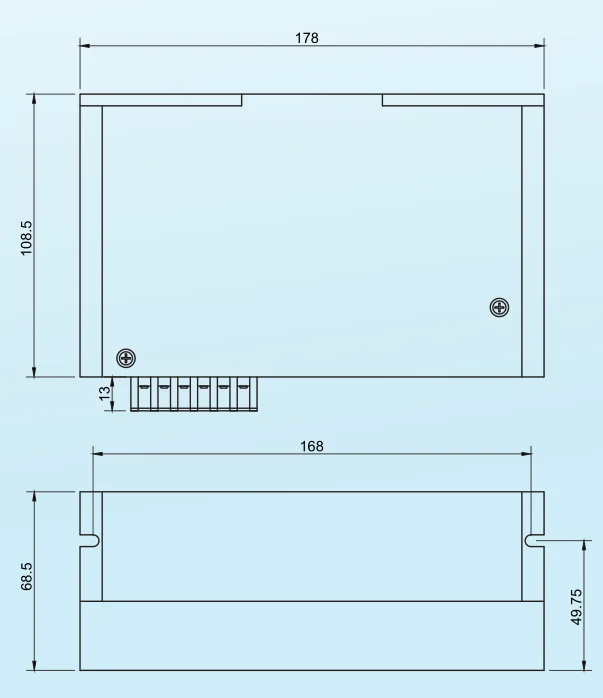

Size

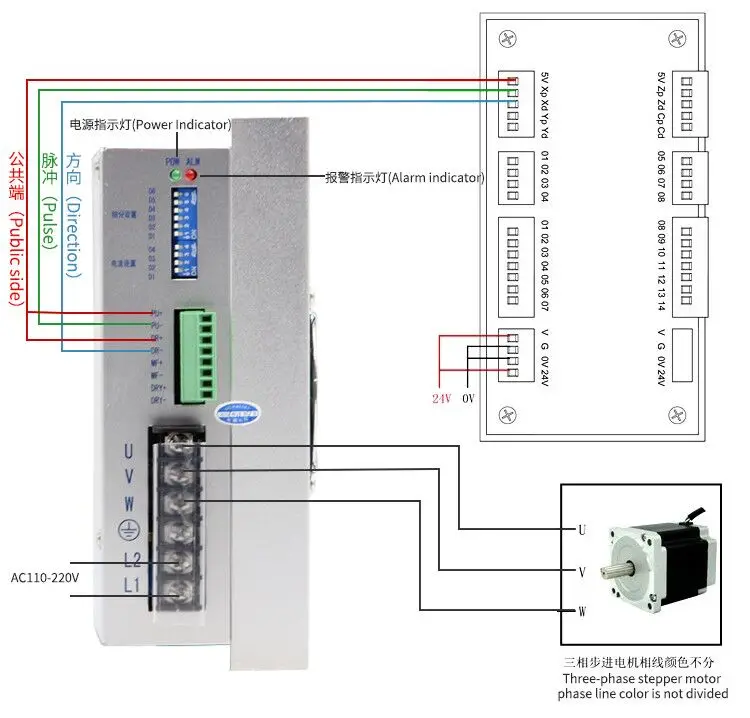

Wiring



Click to get your special discount

Possible problems & Solutions

Our controller have multiple protections, can reslove in right way when protect function actived.

 1.Low voltage protection, controller will be turn to protect mode when voltage less than 13V.

Please cut down AC power then unlock the protection, vote to 18V then can turn on power

again.

 2.Shut down protection. when the motor shut down suddenlly and reached the protect seconds,

power will be shut down.Please turn off the power, slove the problem then can turn on motor

again.

 3.Hall error protection. controller will be shut down the power and to the protection mode when

some error happened. Then shut down power as soon as possible, you can turn on power

again when hall error resloved.
