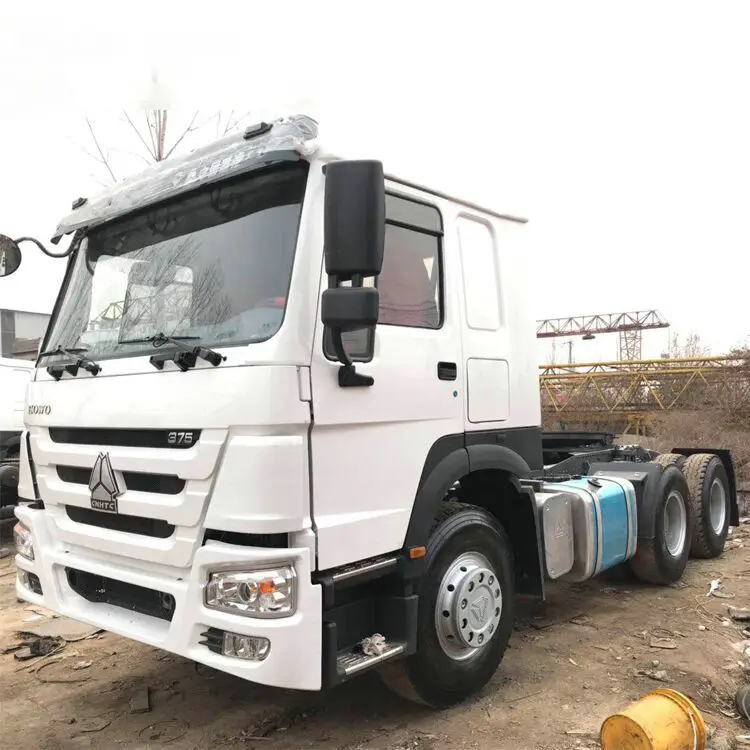

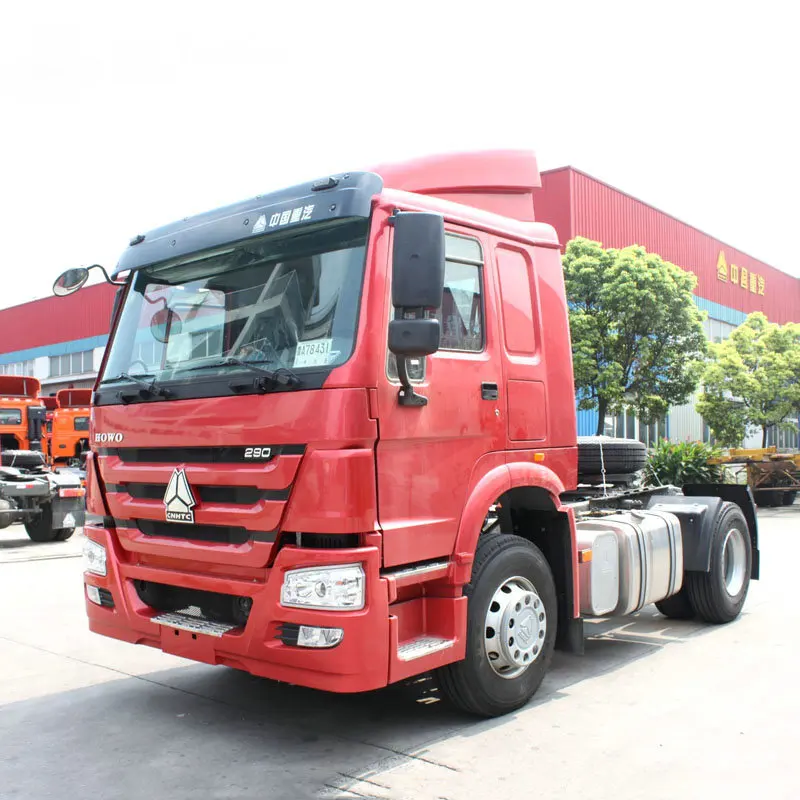

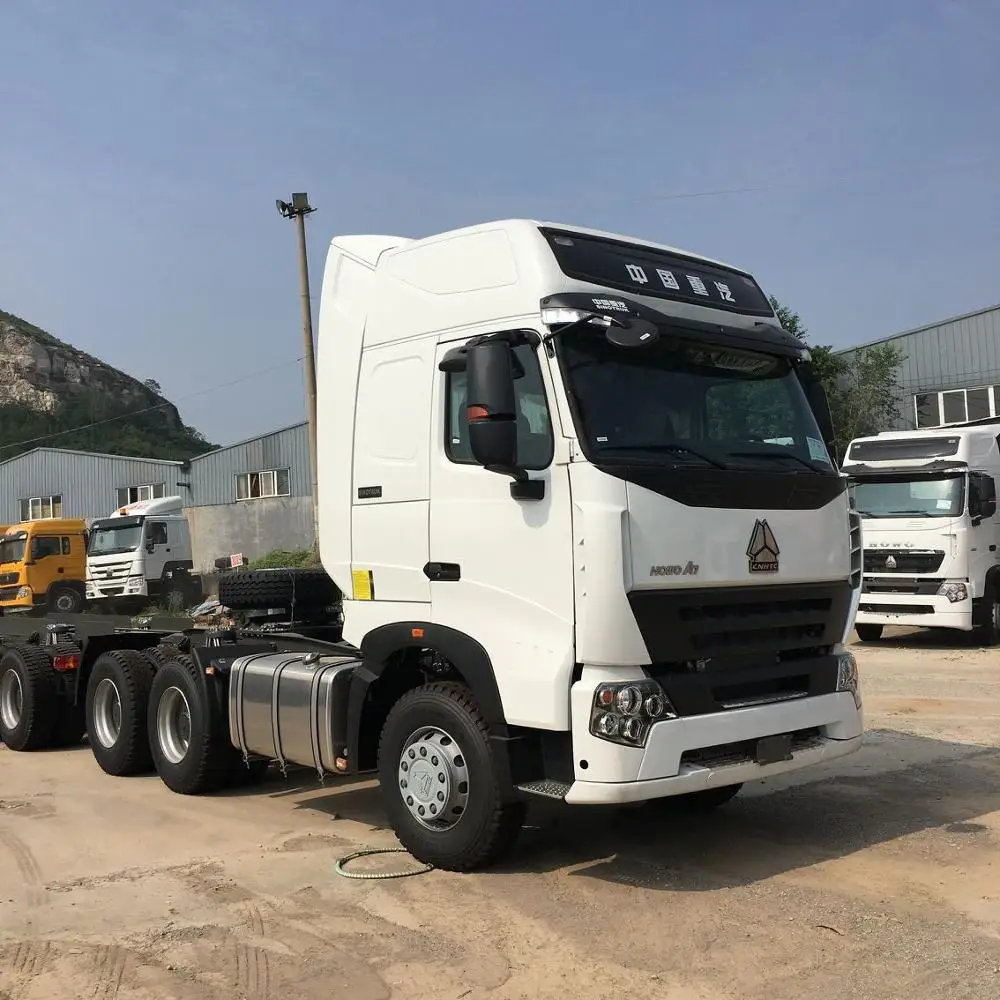

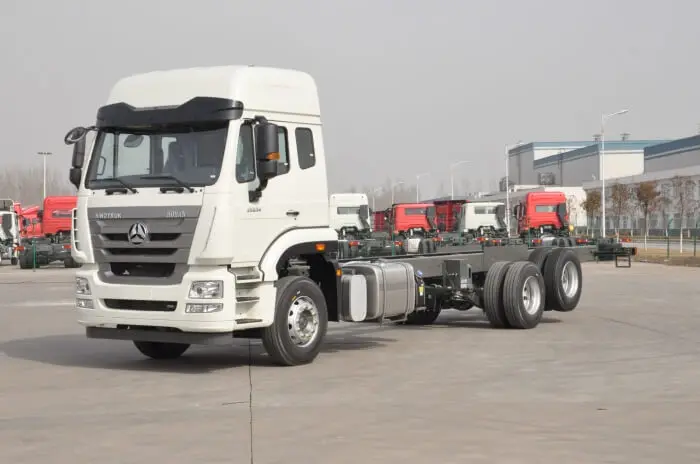

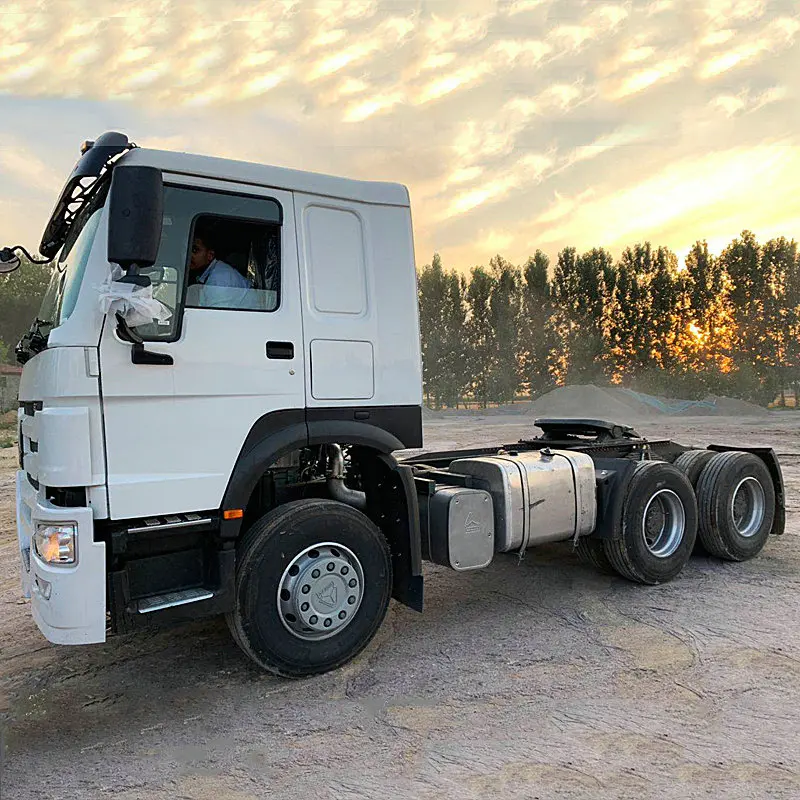

Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP
Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP
Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP
Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP
Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP
Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP
Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP

Hot Selling Howo Sino 6x4 Tractor Trailer Truck With 420HP

Share on (62400103343):


Price:$45,000.00 - $48,000.00

Quantity:


Product Overview

Description


Product Description

 product details

SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety. we mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, STEYR, STEYR KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.

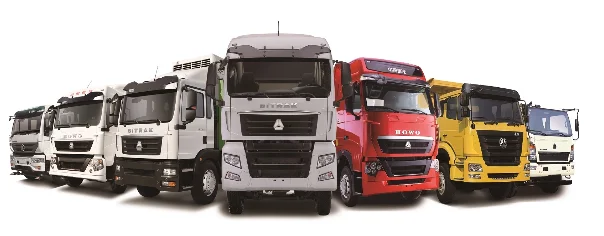

tractor truck (2).jpg



main feature

1)Reduce transportation cost.
2) There are most professional production lines in china .
3)Specialized dump truck line with large box thickness and strong wear resistence.
4) Cutomers from different countries come to visit our factory .
5) Shorten transportation cycle and improve production efficiency.

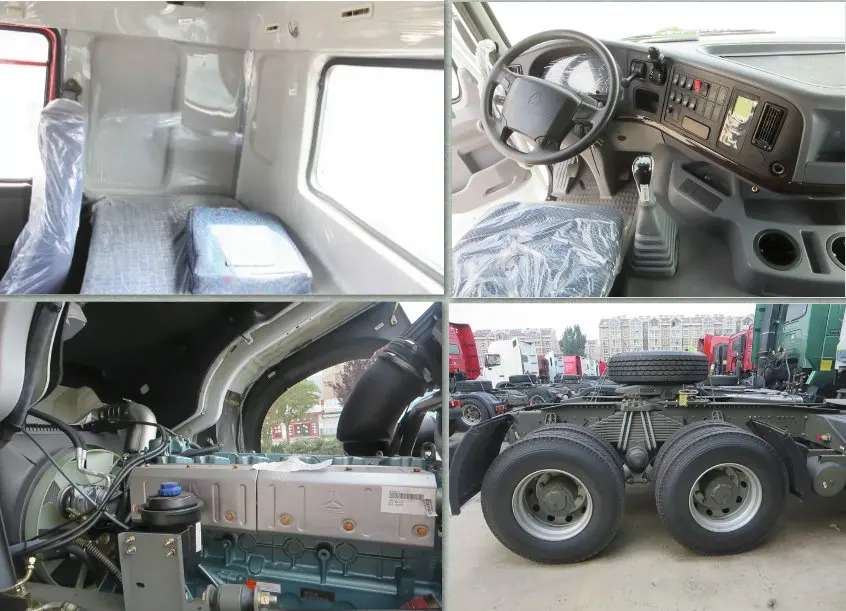

Details of tractor truck




specifications

Vehicle seriesHOWO-7 6x4 Tractor
CabHW76
EngineModelEuro 2:WD615/D12
Power(Ps/rpm)(213-273)/2200 309/2000
Maximum torque(Nm/rpm)(1160-1500)/1100-1600,1820/1100-1500
Displacement(L)9.726/11.596
TransmissionSINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction.   WD615.87standardHW15710,WD615.69,WD615.47,D12.38 and   D12.42standardHW19710
ClutchΦ430diaphragm spring Clutch,Hydraulic control air assisted.   WD615.47,D12.38 and D12.42Engine standard430A,WD615.69standard430B , WD615.87standard430C
Front axleHF7,rated load of 7t, drum-type;heavy load truck with HF9 drum-type, rated load of 9t
Rear axleST16 double reduction, speed ratio:3.93,4.42,4.8;heavy load truck with HC16 double reduction, speed ratio:4.8, 5.73
Steering gearZF8098 steering gear, ZF steering oil pump, system pressure 18MPa
SuspensionSteer Axlefront and rear leaf spring  suspension, front suspension with shock absorber,transverse stabilizer
Drive Axlefront and rear leaf spring  suspension,rear suspension is disconnected type with transverse stabilizer.
Braking systemService brakedual-circuit air pressure brake
Parking Brakespring storage energy without air
Auxiliary brakeEngine exhaust  braking;standardABS,Engine EVB is  Optional and  optional auto clearance adjusting arm
Electric systemVoltage24V
Generator1540W
Batteries12V/165Ah,2 pieces
Starter Power24V,7.5kW
Wheels & TyresTyres315/80R22.5
Optional12.00R20; 12R22.5
Fuel TankCapacity400 Liter 260L auxiliary fuel tank can be added
Weights (kg)Curb weight9180/9230
Gross Vehicle Weight25000
Design loading capacity at fifth wheel15640-15690
Vehicle Dimensions (mm)Overall length x Overall width x Overall height6800×2496×2958
Wheelbase3200+1350
Front overhang/Rear overhang1500/725
Wheel track of front axle2022
Wheel track of rear axle1850
PerformanceMaximum speed(km/h)92/102
Maximum gradeability(%)20
Minimum turning diameter(m)15

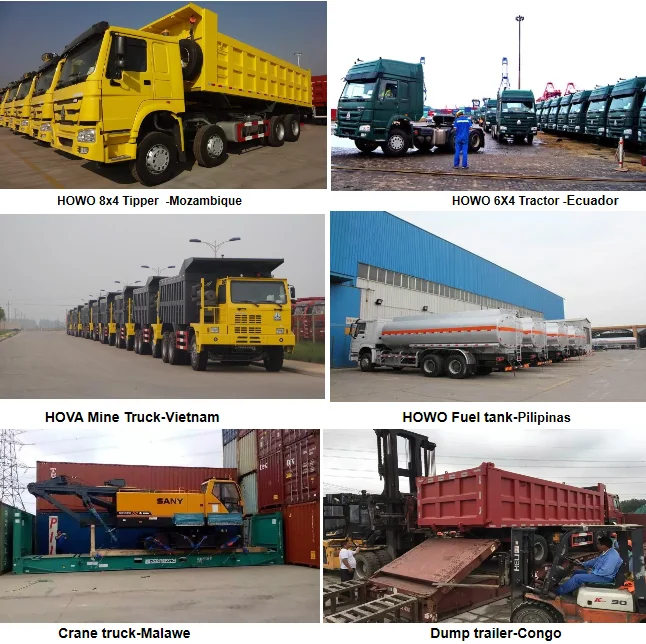

 working site

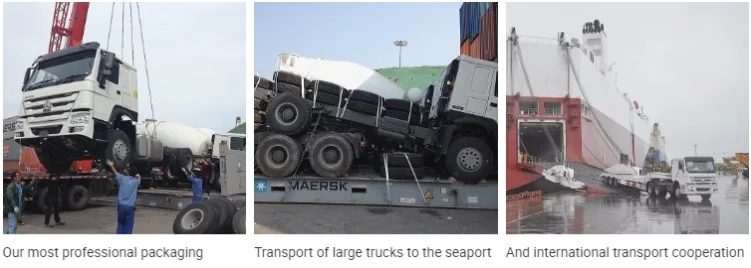

shipping

tractor truck4.jpg
