The oxygen free copper rod produced by up casting is a high conductivity electrical engineering material. It gains its top position in the cable product industry with the advantages of high electrical conductivity, low oxygen content, good elongation, etc. Through further process, the products can be used as wires, cables, and conducting materials for electromagnetic wires and enameled wires, as well as in other electronic and telecommunication products.
Main Specification
No.
Rod Dia (mm)
Annual output (ton)
Induction furnace
Copper feeding method
Consumption of power (KW)
Assembly size L*W*H
Total weight (ton)
1
8
17
20
2000
Double or triple furnaces combine
Can be equipped with the mechanical feeder system to arrange the whole piece of copper plate into furnace
150
26*9*6.2
35
2
3000
185
37
3
4000-6000
Triple furnaces
combine
240
30*12*6.9
40
4
8000-10000
Triple big furnaces
combine
480
5

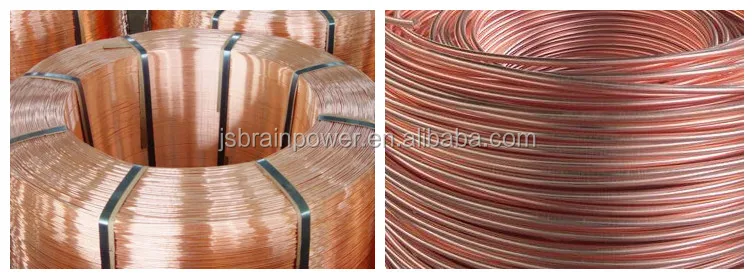

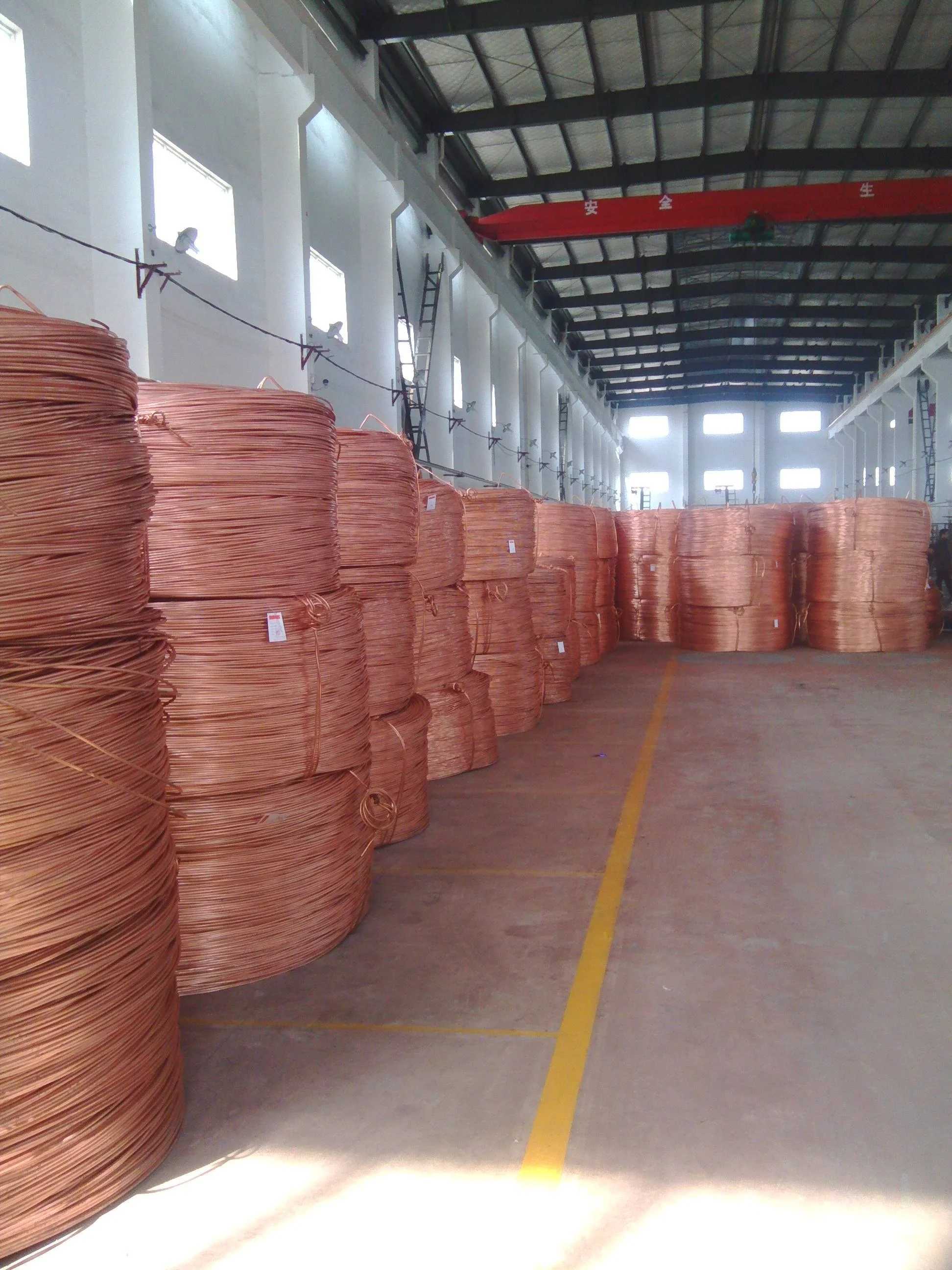

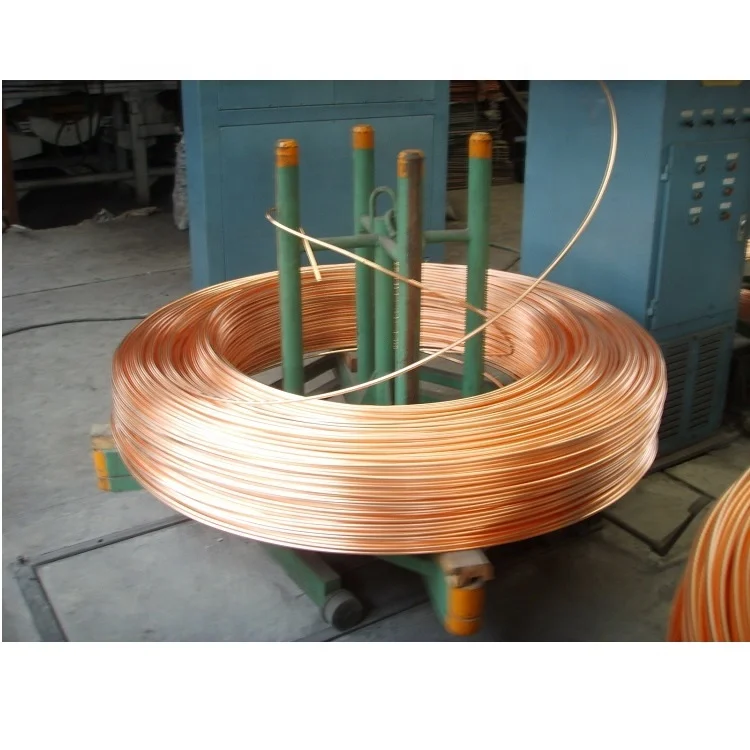

Finished Products

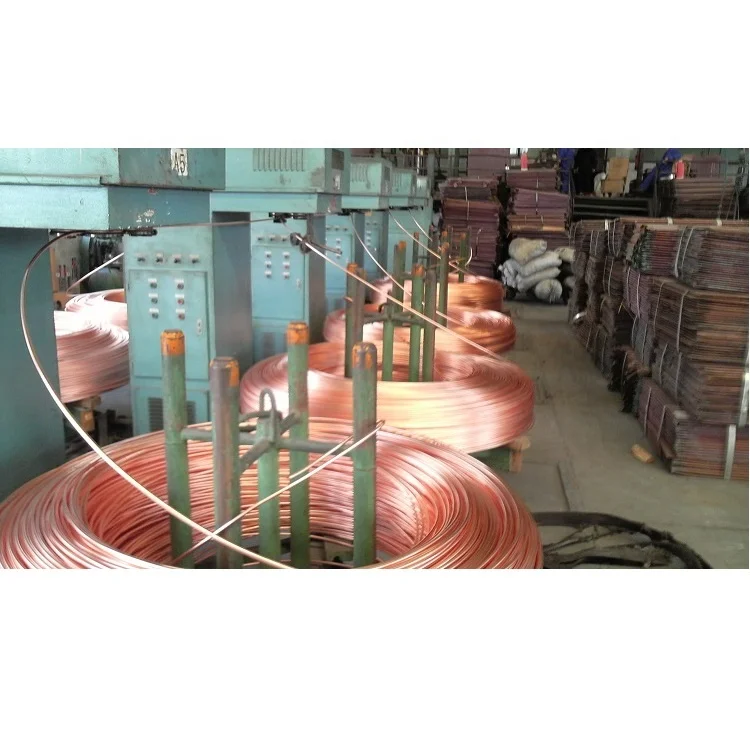

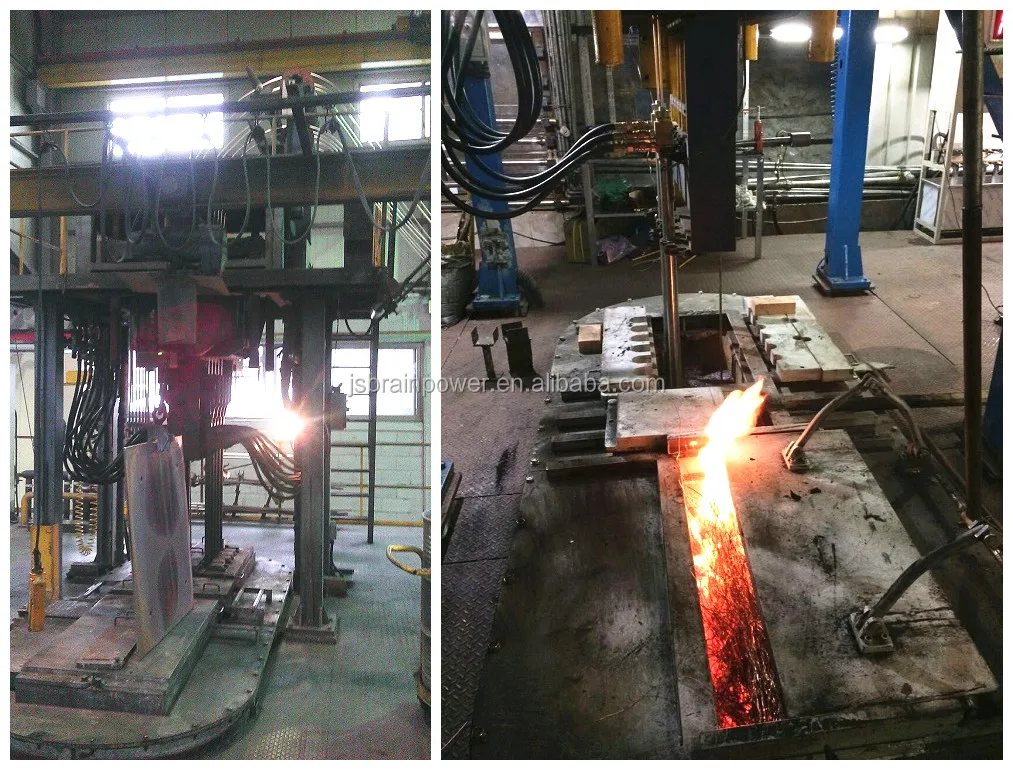

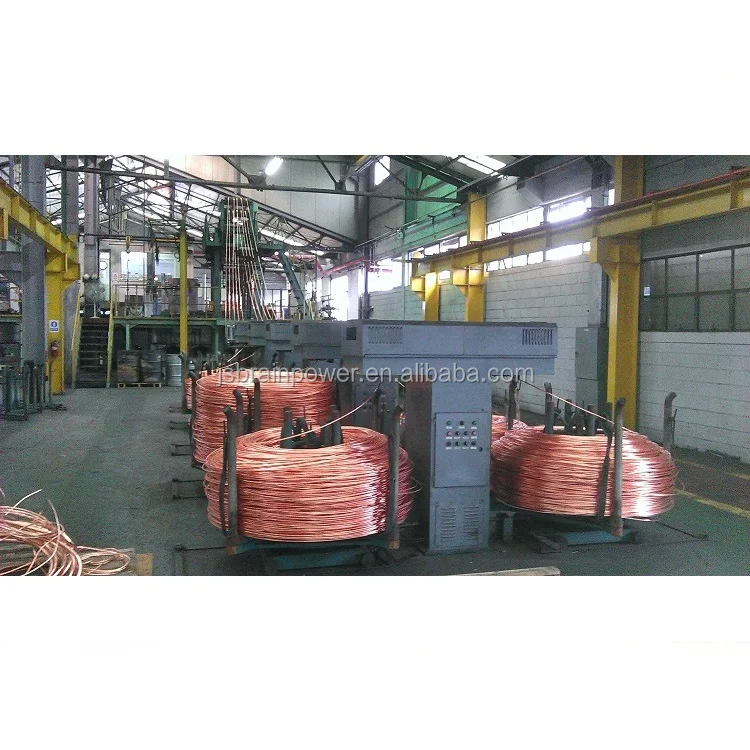

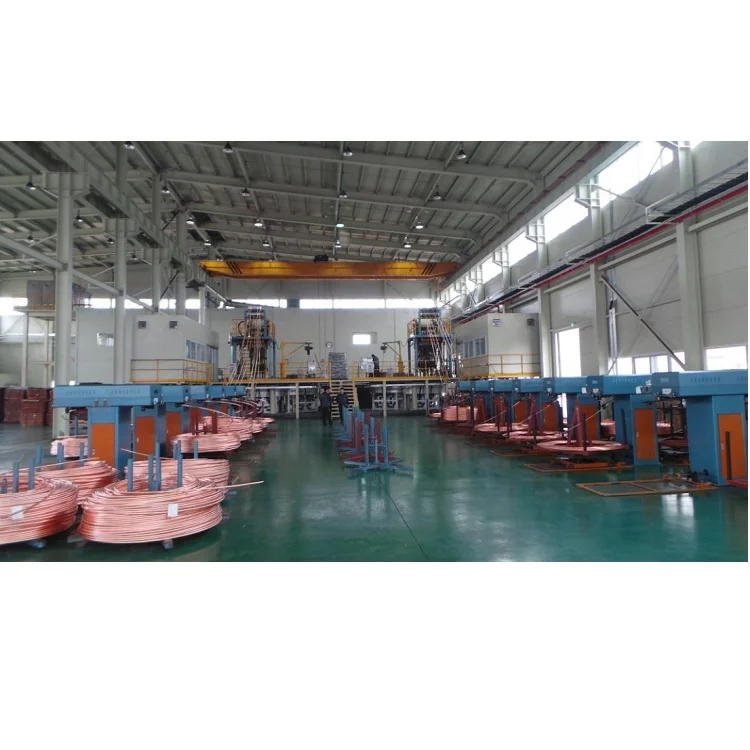

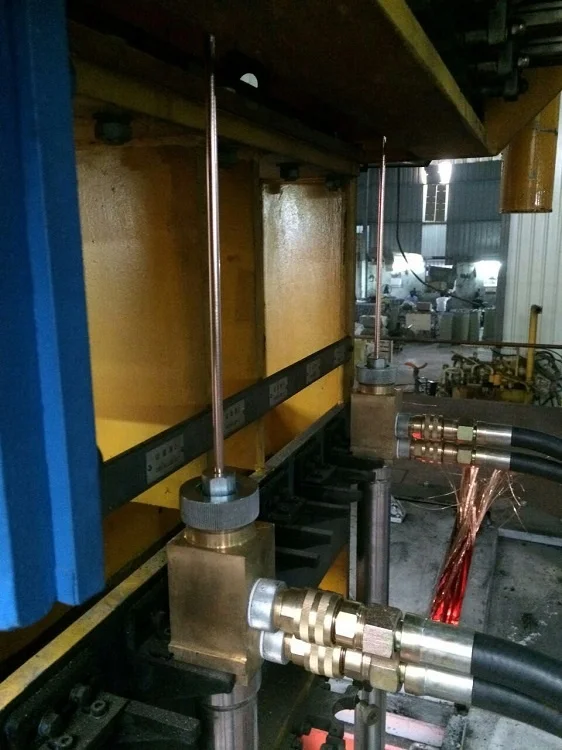

Photos show
Trade Shows
FAQ
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer
