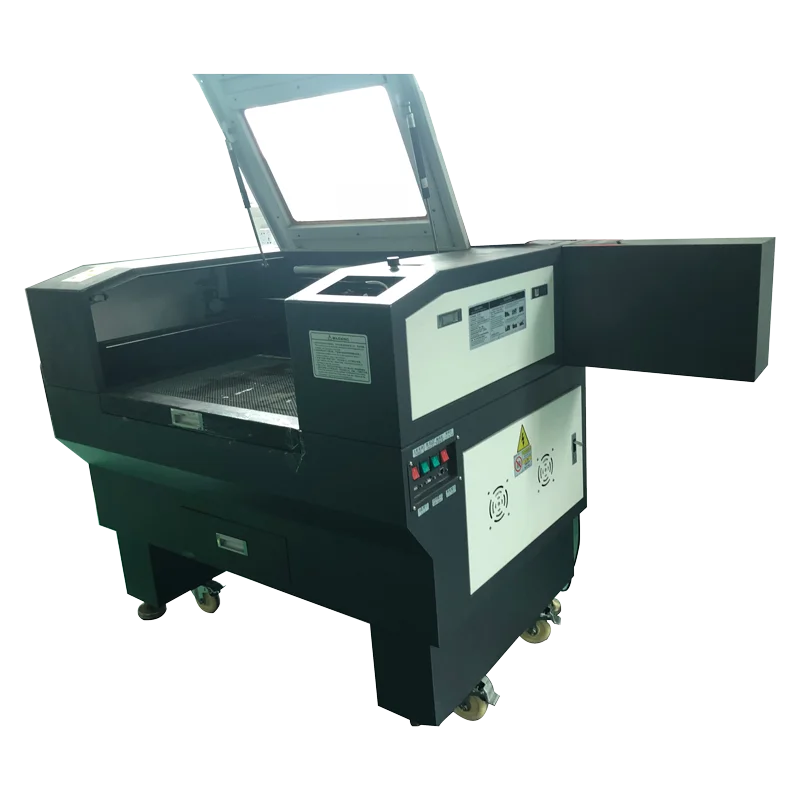

Top 100 ali baba china co2 laser glass tube cutting machine for printing tipping template

Product Overview

Description


Product Description:
1. Adopted the off-line motion control system which need not be connected to PC operation.USB data importing, can reserve several processing documents.
2. Strong and stable mechanical structure, digital control.
3. Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and strong cutting force.
4. Equipped with professional industrial cooling water system, so the continuous work performance is very stable .
5. Support for AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.
6. Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software
7. Servo drive and imported linear guide is optional, to enhance stability, improve accuracy, and increase the work efficiency.
8. Double-head laser cutting is optional for big working area with high processing efficiency.
*High-end produce with good quality,excellent in workmanship, best service.
*Material:metal, power supply, circuit control box







Technical Parameters

Model	LB-CE6040		LB-CE9060		LB-CE1390		LB-CE1610		LB-CE1810
Laser Power	60W/80W		60W/80W		80W/100W		80W/100W		80W/100W
Laser type	CO2 seal from type glass tube laser
Working area	600mm×400mm	900mm×600mm		1300mm×900mm		1600mm×1000mm		1800mm×1000mm
Max.curve ovement speed	50000mm/min (Stepping motor)
Cutting speed	0-40000mm/min (Stepping motor)
Engraving speed	0-50000mm/min
Laserenergy control	1-100%(Software Settings)
Max.scanning accuracy	2500DPI
Positioning  precision	≤±0.01mm
Min.Carving Character	Chinese characters2.0×2.0mm,  English1.0×1.0mm
Color eparation Cutting	The color can set a variety of carving parameter
Working voltage	220±10% 50HZ





Application:

Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.
