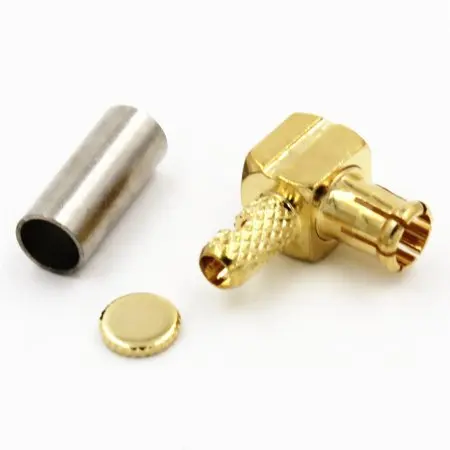

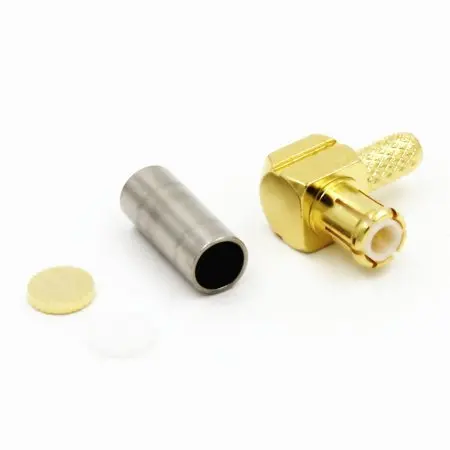

Factory price for RG 174, 188, 316 MCX Right Angle Plug Connector
- Category: >>>
- Supplier: Danyang Hengtong Electronic Co. Ltd.
Share on (62400538133):
Product Overview
Description
Product Description
THE series of MCX radio frequency joining device is that one kind is since pushed the lock type joining divice small-scaly,it has a small,light,characteristic with comapct structure.Small-scale electronic equippment or network system that can be used for requiring to volume,weight and installaton way.
Temp.range | -65~ + 165℃ |
Impedance | 50 Ω |
Frequency range | 0 ~ 6 GHz |
Center conductor withdrawal force | ≥ 0.25 N |
Contact resistance | Center conductor ≤ 4 mΩ Outer conductor ≤ 2 mΩ |
Insulation resistance | ≥ 1000 mΩ |
Withstand voltage | 750 V rms ( At seal level ) |
Working voltage | 33.5 V |
VSWR | Straight ≤ 1.3 Angel ≤ 1.5 |
Durability | 500 cycles |
Connector Part | Material | Plating |
Bodies | Brass | Gold |
Socket Contact | Beryllium-copper | Gold |
Insulator | PTFE | Natural |

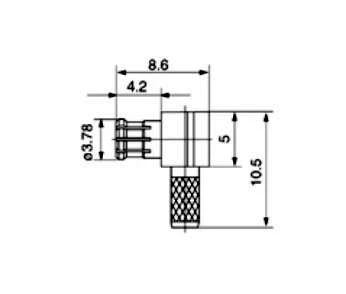

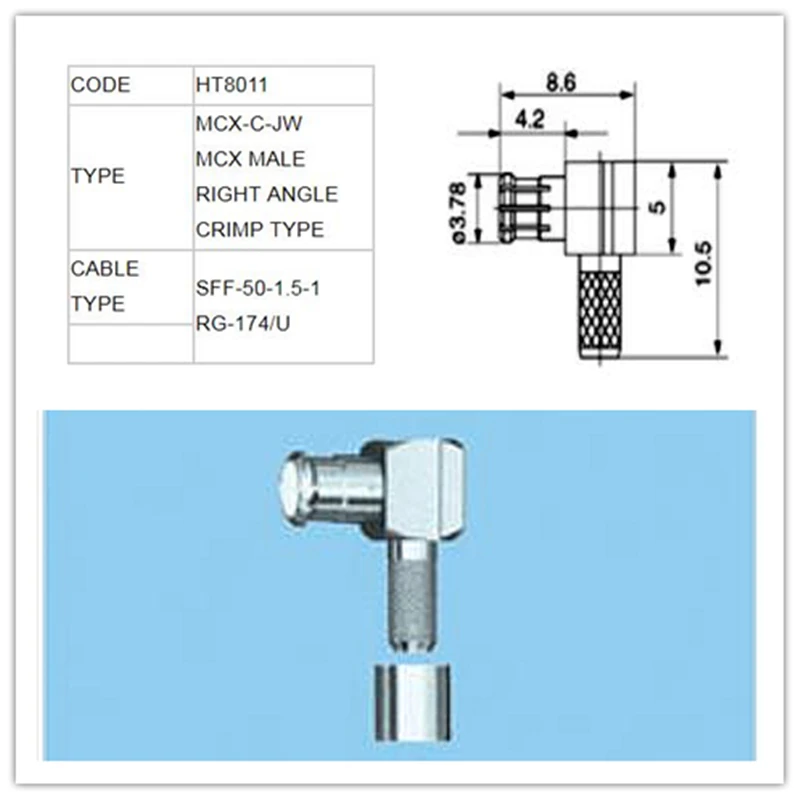

Size Information
Applicable Standard: CECC 22340
Size: International Standard Or Customized
Application
MMCX Connector Application:
Antenna, Broadband Communication, Cellular Phone, GPS, Instrumentation, Radio Board, RF Test port, Satellite Reception Terminal, Telecom, Wireless Application, Wireless LAN
Antenna, Broadband Communication, Cellular Phone, GPS, Instrumentation, Radio Board, RF Test port, Satellite Reception Terminal, Telecom, Wireless Application, Wireless LAN
Related Products
Packing&Shipping
Can provide various sizes and packing according to specific requirements; Packing material: PP bag,copy
paper,carton,wooden box,palltes; Meet export requirement; According to customer's required.
Company Introduction
Hengtong is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. Hengtong engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. Hengtong combines the advantages of low cost production inChina with a high level of engineering expertise, service, and quality.
