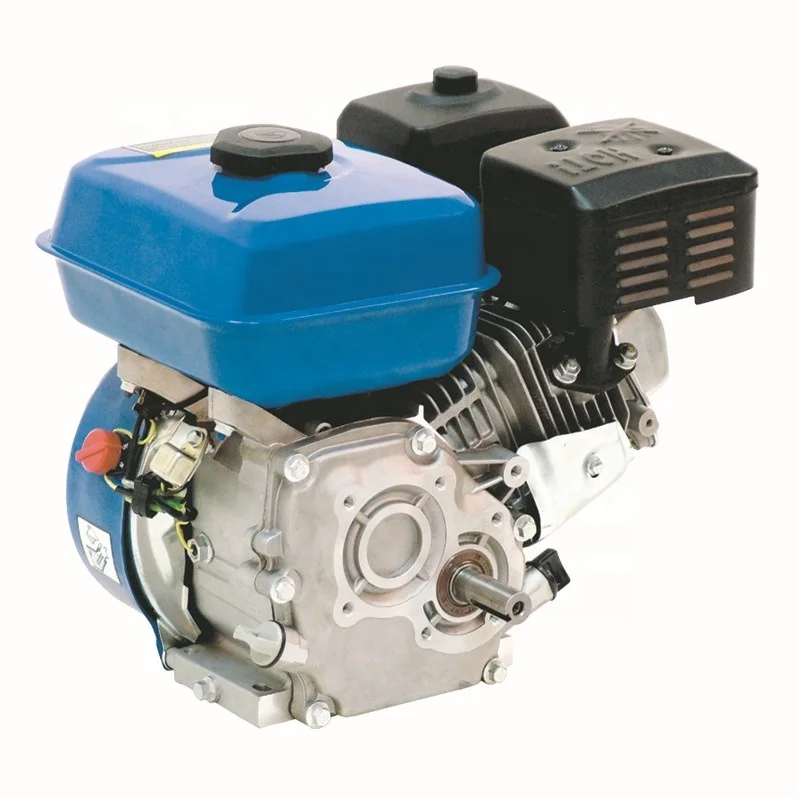

6.5HP Horizontal Shaft Camshaft Reduction Low Speed 1800RPM Gasoline Engine
- Category: >>>
- Supplier: Yancheng Talos Engine Equipment Co. Ltd.
Share on (62400626836):
Product Overview
Description
Product Description
The Talosplus® 196cc Engine with net 4kW(5.5HP)@3600RPM and 11N.m@2500RPM. Enough power to run a wide range of equipment, including log splitters, pressure washers, air compressors, go-karts, water pumps and chippers/shredders.
Meets EPA and CARB emission levels standards.
OHV design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life. It is reliable, easy starting and quiet running. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Specification
Model | T200C | Engine Type | OHV, Single cylinder | ||
Bore x Stroke | 68 x 54mm | Displacement | 196cc | ||
Compression Ratio | 8.5 : 1 | Start Type | Recoil Start | ||
Speed | 1800RPM | Rated Output | 4kW@3600RPM | ||
Maximum Output | 4.8kW@3600RPM | Torque | 11N.m@2500RPM | ||
Fuel Consumption | 395g/kW.h | Shaft Output | Horizontal | ||
Output | Camshaft | Cooling System | Air cooled | ||
Fuel Type | Gasoline | Fuel Tank Capacity | 3.6L | ||
Oil capacity | 0.6L | Lubrication System | Forced splash | ||
Low Oil Alert | Yes | Low Oil Shutdown | Yes | ||
Governor System | Centrifugal mechanical | Throttle Control | Remote (cable) | ||
Carburetor | Float | Choke Control | Manual | ||
Net Weight | 15kg | Gross Weight | 17kg | ||
Dimension(L x W x H) | 41.5 x 38x 39cm | CE/EPA/CARB | Yes | ||
Available Option | Electric start | Warranty | 1 Year | ||
Shaft Rotation | (From PTO Shaft Side)\tCounterclockwise | ||||
Features + Benefits
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency
High compression ratio for better fuel efficiency
Low vibration from precision-engineered components
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Detailed Images
Packing & Delivery
Packing & Delivery
Durable carton box or according to demand.
Package dimension(L x W x H): 41.5 x 38 x 39cm
Gross weight with package: 17kg.
Lead time: regular 30 days after got deposit.
