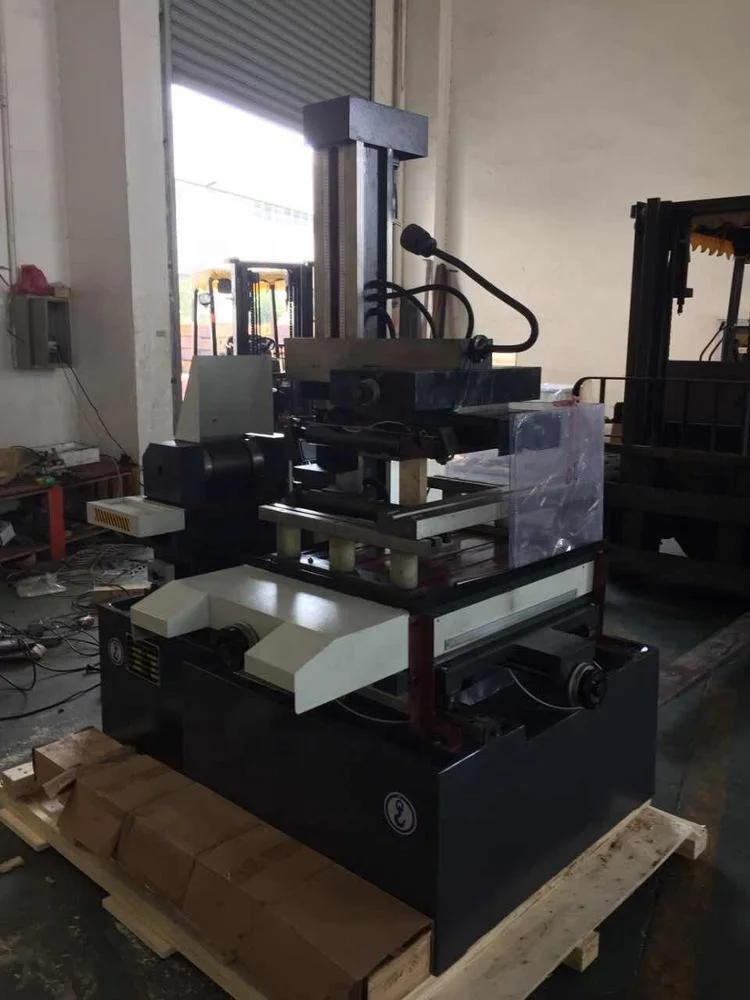

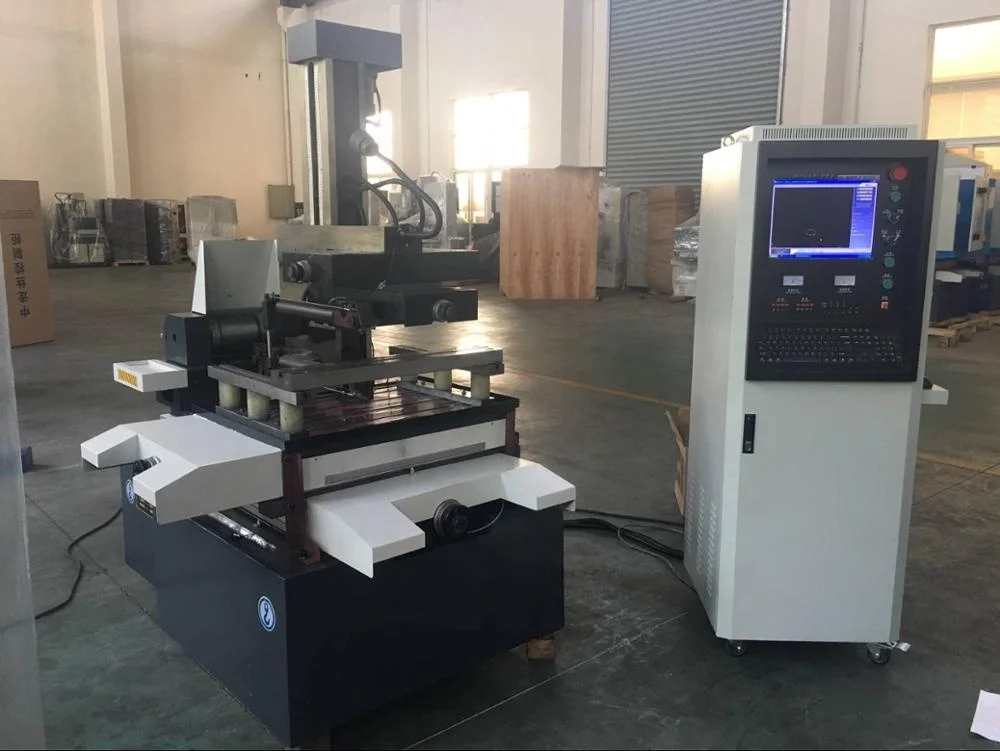

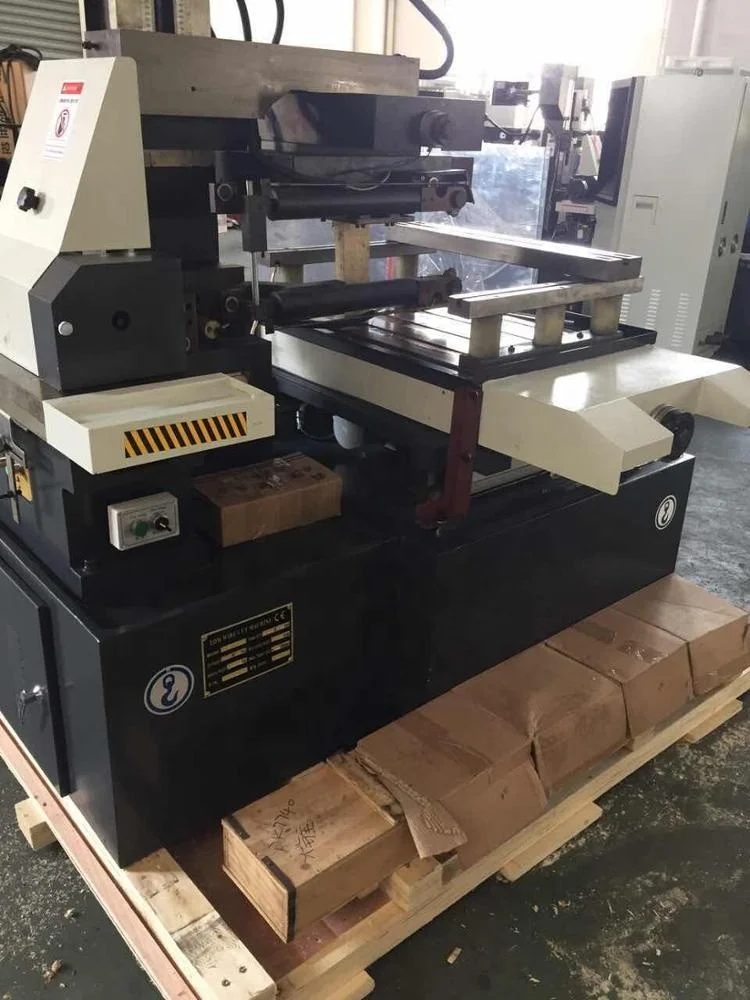

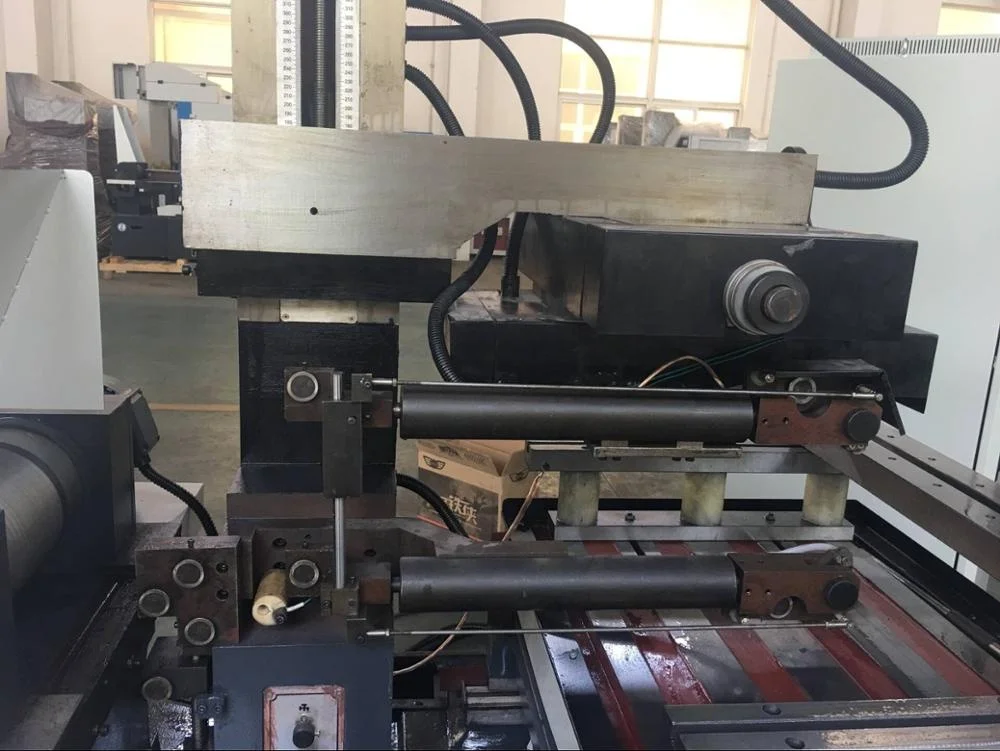

DK7740 30 angle CNC EDM Wire Cutting Machine

Product Overview

Description

DK7740-30 EDM Wire Cut CNC Cutting Machine with Best Price



CNC cutting machine DK7740  -Features:

1. Large travel , High cutting speed.
2. Four axes independent UV work.
3. Work pieces to 600mm thick.
4. Taper angles up to ± 30°.
5. Standard model is equipped with  ± 30° taper attachment.
6. Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7. Accuracy: 0.015mm, even 0.01mm.
8. Roughness: Ra 1.6-2.5 µm.
9. Low consumption, material saving.
10. Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11. Advanced CAD/CAM software with file transfer and translation capabilities.
12. High cutting speed modular is optional.



CNC cutting machine DK7740-30  -cut edm Control system  ( HL, HF, W-Cut, A-Cut)

A) Microcomputer process control system
B) PC control system.
C) Luxury cabinet control.

come with: Taper cutting accessory.  ± 30°



Optional:
2. Linear rail.
3. Protection cover.
4. Higher speed control board, improve the efficiency 30-40%.
5. Middle speed control system.

Model	DK7740-30
Table size (mm)	780*540
Table travel (X×Y) (mm)	500*400
Max.Z axis travel (mm)	400
Max.workpiece weight (kg)	450
Max. cutting angle (degree/mm)	+/- 30°/100
Position accuracy (mm)	0.015
Repeatability  (mm)	0.01
Max. working current(A)	6
Roughness (um)	Single cut≤2.5
Wire diameter(mm)	Φ0.15-Φ0.3
Wire moving speed (mm2/m)	5-11.5
Max.Cutting speed (mm2/min)	High speed: 160
Power	220V/380V-50/60Hz
Control system	High efficiency control cabinet (single cut), Windows system, Autocut software
Dimension L*W*H (mm)	1600*1300*1500
Net weight (kg)	1350
