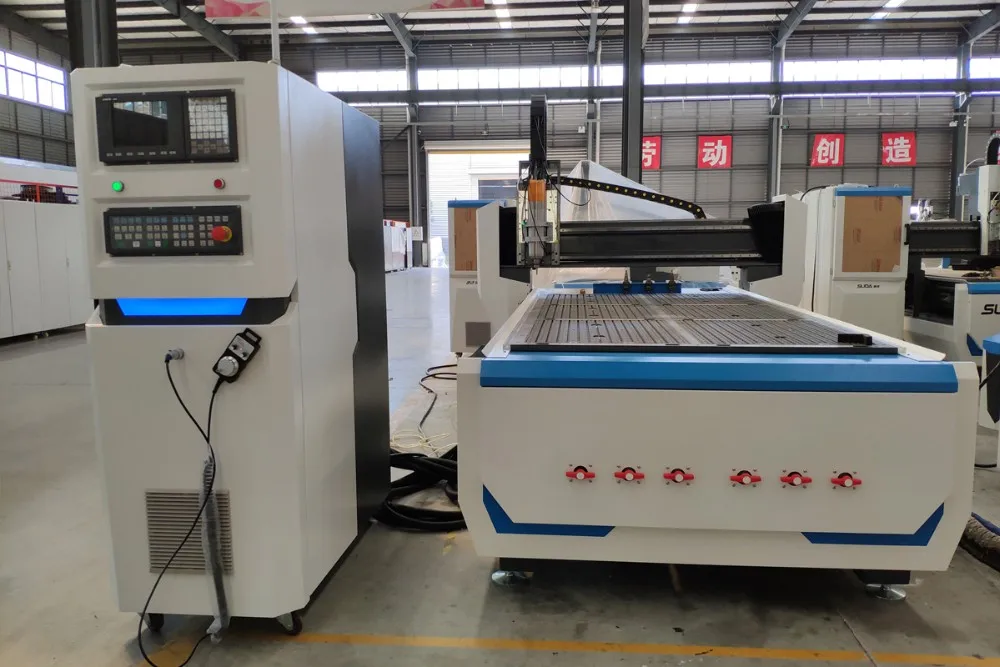

High Speed ATC cnc router 1530 with SYNTEC 6MB controller system
- Category: >>>
- Supplier: Hefei Siwei CNC Machinery Co. Ltd.
Share on (62400698807):
Product Overview
Description
Product Description
Linear ATC 4PCS CNC Router for Acrylic Wood Aluminum MDF PVC Material Processing
Main configuration
1. adopt industrial heavy-duty structure design, thus to ensure the strength and rigidity of the machine body.
2. Stanard with independent 6 zone matrix vacuum table with high strength. suitable for different size processing.
3. Adopt gantry transmission structure, to ensure fast speed and high efficiency.
4. Adopt Japan THK high precision linear rail with lubrication system, more wearable.
5. Configuration with France Schneider servo motor, to ensure the transmission stronger and noise lower.
6. Independent control cabinet, spearation of strong electricity and weak electricity to make the maintenance more convenient.
7. X, Y, Z axis full of dust cover, can keep the guide clean and extend life.
Model | MC1325-A7S |
Machine Structure | Heavy duty machine structure with heat treatment |
Table size | 1300*2500mm |
Z axis travel | 170mm |
Transmitting way | X, Y axis adopt high precision grinding gear rack transmission, Z axis configured with high precision grinding rolling ball screw. |
Linear rail | THK linear rail from Japan |
Max running speed | 20m/min |
Repeat precision | 0.025mm |
Spindle motor | 7.5KW water cooling spindle |
Auto feeding device | equipped with an auto surface detector |
Working table | Matrix Vacuum table |
Driver system | France Schneider AC servo system |
Control system | Handheld type ATC Control system, can optional Syntec control system. |
ATC tools | Standard with 4pcs, can optional 6pcs, 8pcs, etc. |
Reducer | Japan Shimpo |
Inverter | Taiwan TECO |
Software | new version router 8 |
Detailed images
Name: Spindle motor
Brand: LINNAN
Original: China
Standard with 7.5kw/380V high speed water cooling spindle, high efficient.
Optional: 6KW Italy HSD Air cooling spindle
Name: Linear rail
Brand: THK
Original: Japan
Long life, the ball holder can eliminate the friction between steel balls and achieve low noise, long-term maintenance-free and excellent high speed.
Name: Servo system
Brand: Schneider
Original: France
There is no problem of Schneider servo system from customers after using many years, good after sale service
Name: DSP Control system
Brand: SIWEI
Original: China
The control system support ATC function, developed and produced by ourselves, can contact us directly when you have problem during using, and free upgrade in the future.
Name: Vacuum table
Brand: SIWEI
Original: China
6pcs matrix vacuum zone, can adsorb the material more tight, make sure the process higher precision.
Name: Vacuum pump
Brand: SIWEI
Original: China
for vacuum pump
can optional Germany Becker pump.
Name: Linear ATC
Brand: SIWEI
Original: China
improve working effciency, can optional 6pcs, 8pcs according to your needs.
Name: Chiller
Brand: S&A
Original: China
For cooling the spindle
Product Application
Advertising industry: MINI LED word, bevel edge word, acrylic lighting word, high-end advertising word and sign processing.
Other industry: building model, plastic and wood, instrument, 3D surface processing of masical instrument.
Also applies the carving on cooper, aluminum, iron plate and cutting processing.
\t\t\t\t\t\t\t\t\tProduct Certificates \t\t\t\t\t\t\t
Clients&Exhibitions
We have clients from all over the world come to our factory to learn machine.
And we have 3 exhibitions every year at least.
Pre-sale service
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test etc.
After-sale service
1) 24 Hours online service.
2) 1 year warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.
4) Offer help out of warranty.
5) Clients come to factory learning.
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
HEFEI SIWEI CNC MACHINERY CO.,LTD
established in 1992, lies in HEFEI --One of Chinese scientific and technology cities. It has been working on researching and manufacturing CNC machinery in field of woodworking, stone engraving, metal processing, glass cutting and advertising etc over 20 years.
The main products: Heavy moving column CNC machining center, Heavy static column CNC machining center, High accuracy metal cutting machine, High precision fiber laser machine, Vanguard series CNC engraver, Multistage CNC machine center, high accuracy CNC engraver, laser cutting machine, plasma cutting machine, totally 23 series, more than 100 models.
Our sales net not only covers all Chinese provinces and municipalities, including HongKong, Taiwan&Macao, also the products are exported to more than 120 countries and regions such as Europe, America, Middle-east, South-east Asia etc.
Packing&Shipping
Size | 3.3*2.26*2.2m | ||||
Weight | 2500kg | ||||
Packing details | Standard with plywood case, for special packing, case by case. | ||||
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1.How do you get the best price?
As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.
Q2:How long is the delivery time?
For standard machines, it would be 15-20days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 days.
Q3.In case of failure,how to do?
Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4:How is the packing?
1) For CNC engraving machine: Machine body covered with plastic film, control cabinet packed with plywood case and put on the machine body.
2) For fiber laser cutting machine:Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone.
IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANK YOU!
