Product Overview

Description

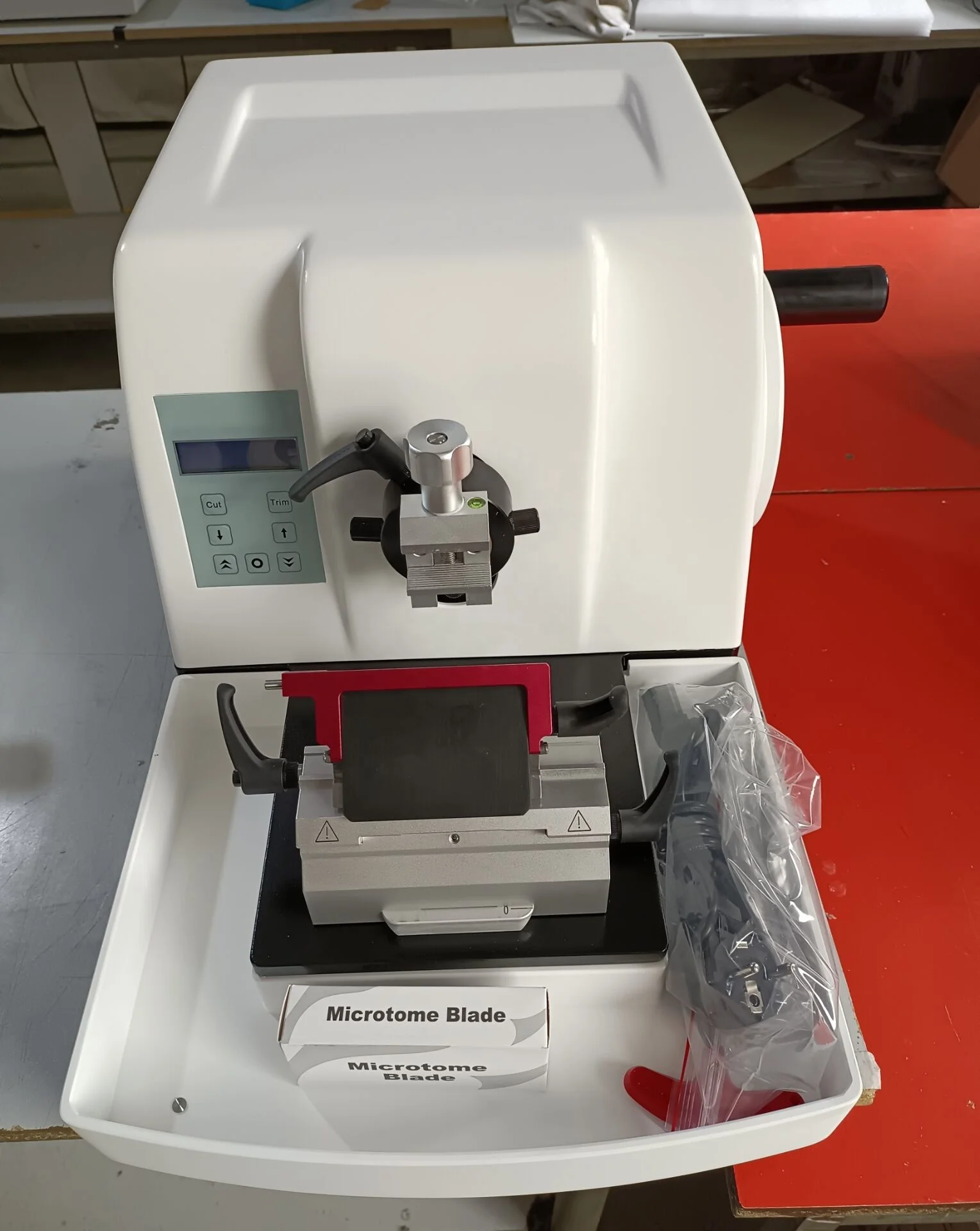

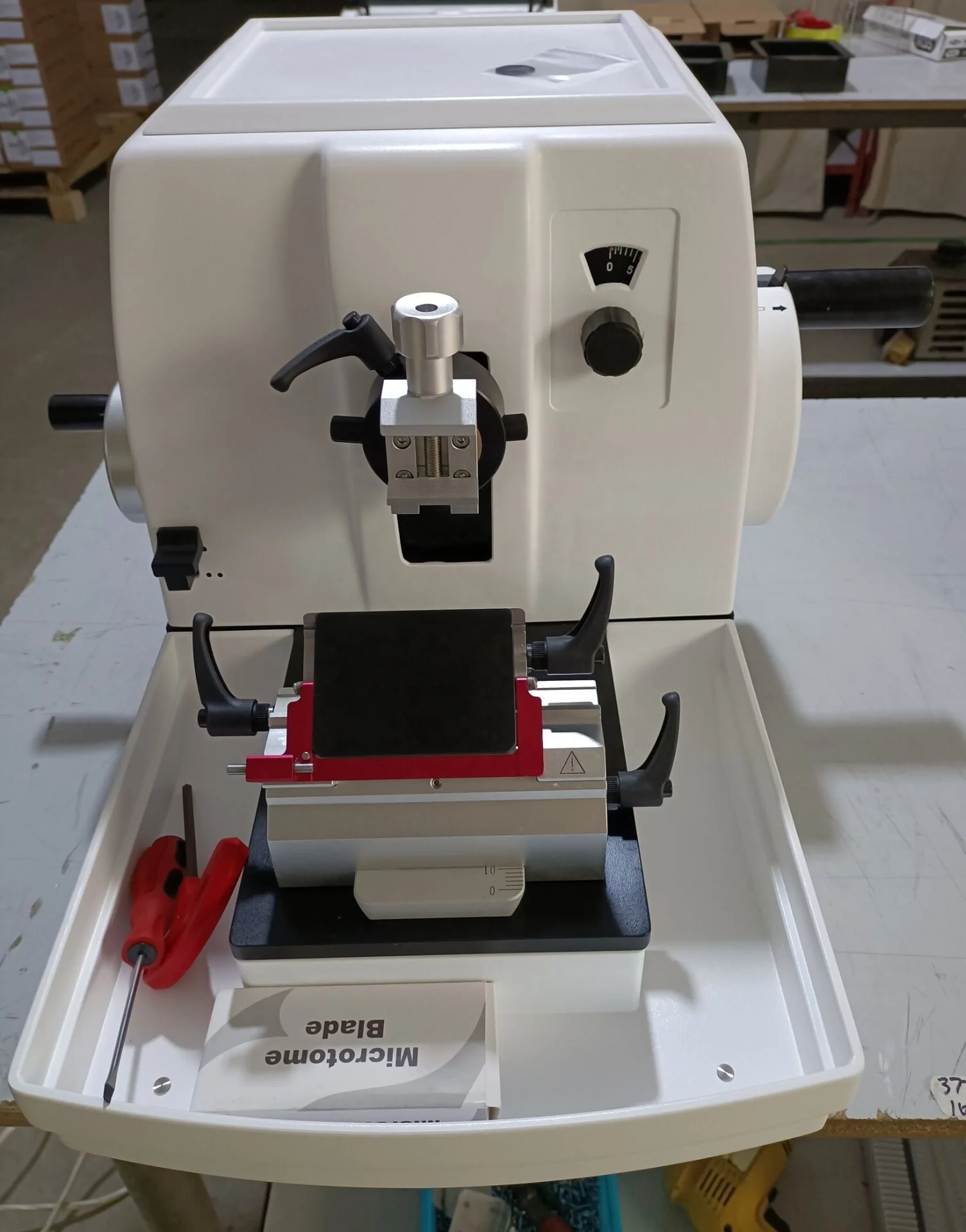

Product Description

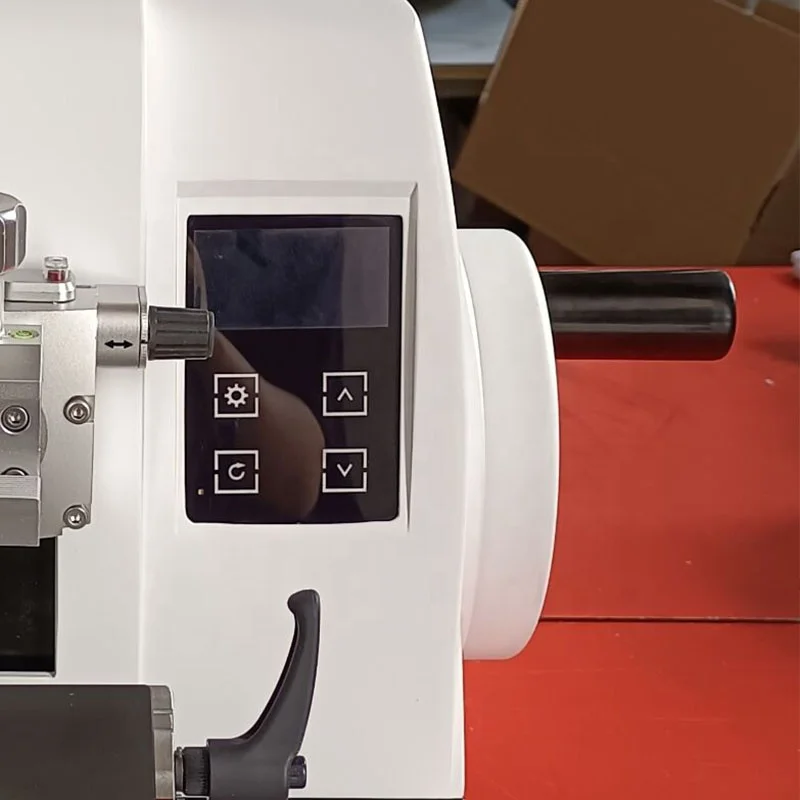

These rotary microtomes equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.


Features:

* Large-volume removable waste tray on the top of housing, convenient to use.

* Imported cross-roller guide rails andhigh-precision screw motion mechanism.

* Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.

* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.

* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.

* Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning.

* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration, cassette clam is optional.

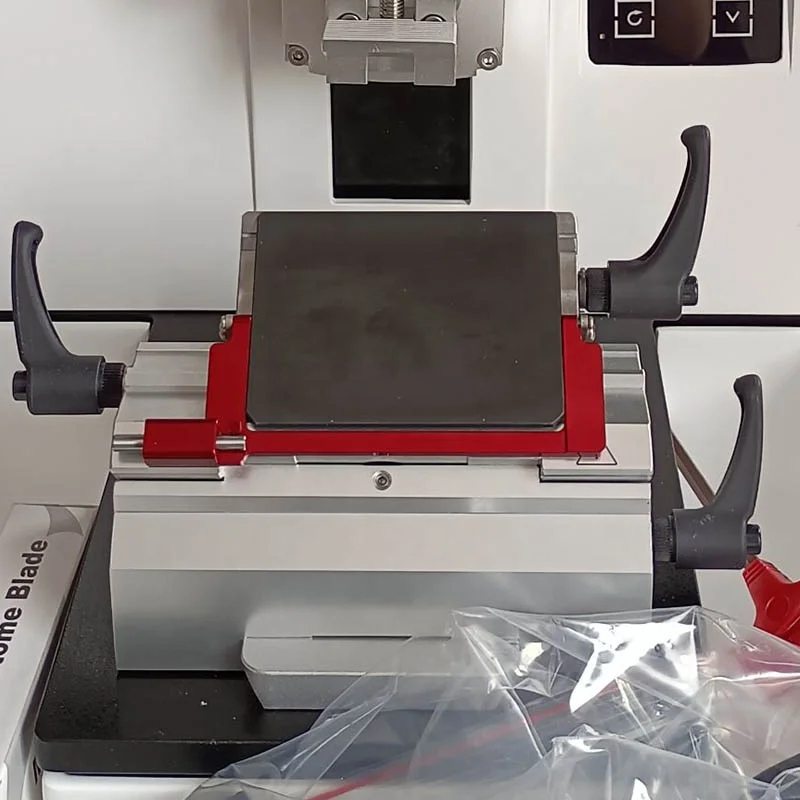

* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).

* Cassette clamp can be locked at any position along each of the three axes,enabling easy adjustment of the specimen sectioning angle.

* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.

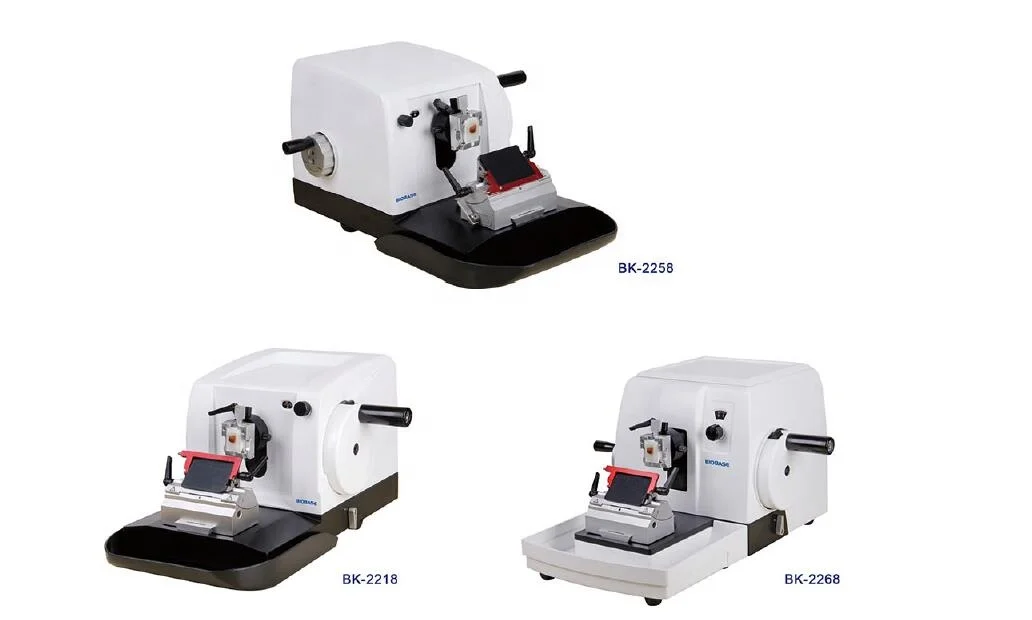

Model
BK-2258
BK-2218
BK-2268
Function
Sectioning, trimming, fast forward, fast backward, quick conversion;
automatic retraction (Only for BK-2268).
Specimen Retraction
/
/
60μm (on/off)
Sectioning Thickness Range
0~60μm
0~2μm increment 0.5μm
2~10μm increment 1μm
10~20μm increment 2μm
20~60μm increment 5μm
0~60μm
0~10μm increment 1μm
10~20μm increment 2μm
20~60μm increment 5μm
0~60μm
0~20μm increment 1μm
20~60μm increment 5μm
Trimming Thickness Range
0~60μm
0~60μm
0~60μm
Mini. Sectioning Thickness
0.5μm
1μm
Max. Specimen Size
50*70mm
60*70mm
70*70mm
Precision
±5%
Specimen Horizontal Feed
28mm
29mm
28mm
Specimen Vertical Stroke
52mm
60mm
70mm
Specimen Orientation
XY – 8°
External Size (W*D*H)
565*440*285mm
570*440*290mm
590*500*330mm
Package Size (W*D*H)
620*530*450mm
620*530*450mm
690*590*500mm
Gross Weight
40kg
40kg
54kg


Company Information


BIOBASE, Founded in 1999, having over 3500 employees (till September, 2020), BIOBASE Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.
BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.

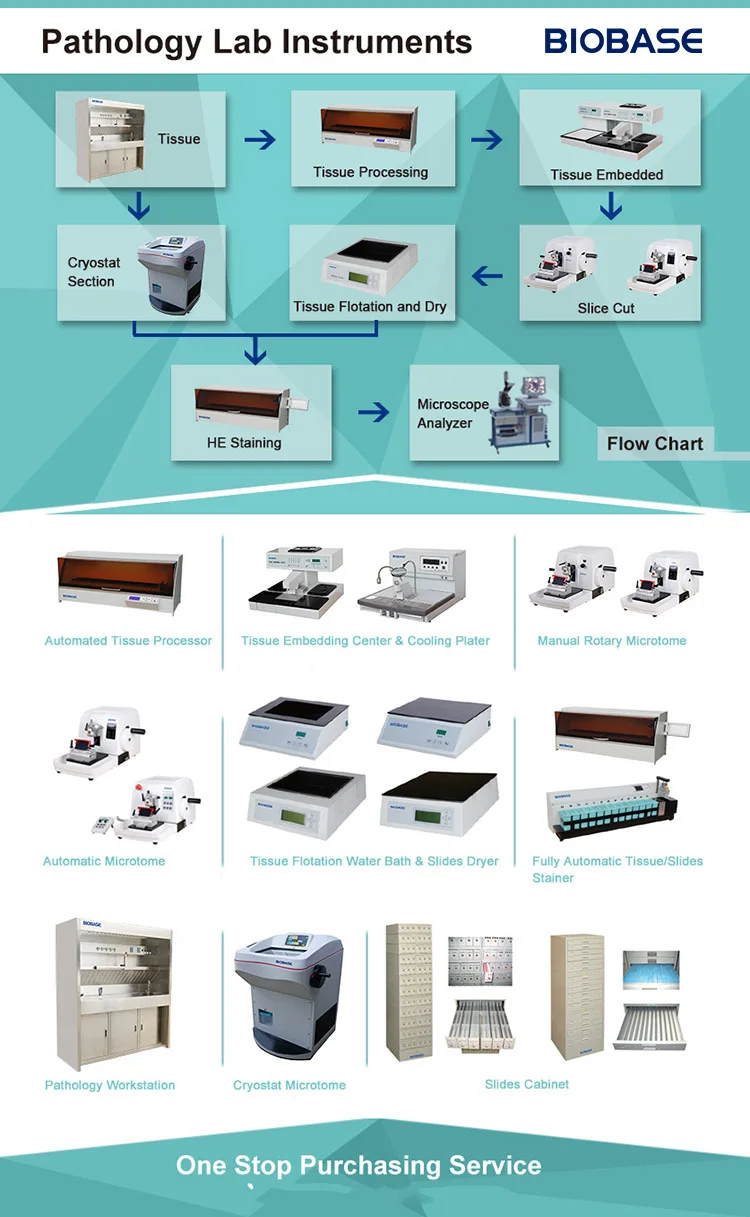

One-stop Shopping






Customer Feedback




Package And Delivery








Exhibition




After sale service


Ocean shipping, air transportation and express delivery are available

Delivery within 15 days after receiving payment

Biobase has a professional pre-sale and after-sales team, providing a free one-year warranty.
