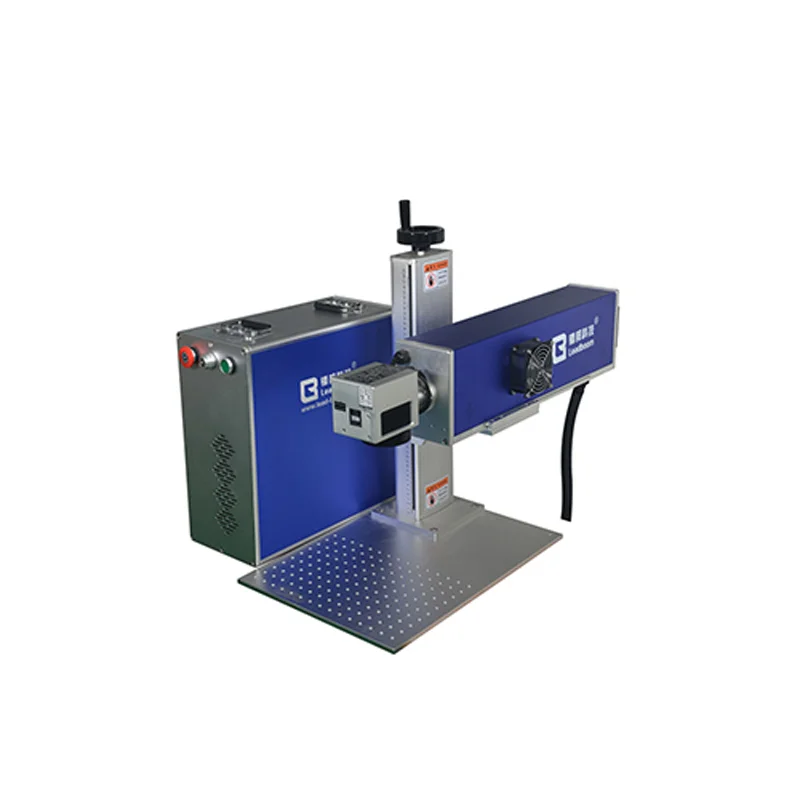

High quality cheap price 50 watt fiber laser marking machine for complicated patterns marking

Product Overview

Description



Product Overview
Fiber Laser Marking Machine adopted Raycus fiber laser and high speed galvanometer scanning system with stable power, excellent optical mode, beam with high quality, fast marking speed, good effects and high efficiency, it can meet the demand for mass production.







Technical Parameters

Type	LB-MF20	LB-MF30	LB-MF50
Laser Power	20W	30W	50w
Laser wavelength	1064nm
Beam quality	M2≤1.3	M2≤1.3	M2<1.8
Laser repetition rate	20KHz~80KHz	20KHz~200KHz	1Hz~1000Hz
Working area	70×70mm~175×175mm	70×70mm~200×200mm	70×70mm~200×200mm
Marking speed	≤8000mm/s	≤8000mm/s	0-100mm/s
Min.characters	0.15mm	0.15mm	0.15mm
Minimum  line width	0.01mm	0.01mm	0.01mm
Repeated precision	±0.001mm	±0.001mm	±0.001mm
Cooling system	air-cooled	air-cooled	air-cooled
Power supply	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
power consumption	0.8KW	1.2KW	1.2KW
Dimension	800x600x1400mm	800x600x1400mm	800x600x1400mm





Technical Parameters:

1.High electro-optic conversion efficiency, no power coupling loss, and save operation cost, service life can be reach 80000-100000 hours, maintenance-free, without consumables.
2.Fine laser beam, small materials consumption, and small effects on heating area, can mark all kinds of delicate and complicated patterns on tiny surface of products according to customer’s request.
3.Non-contact processing, no damage on products, no tool wear, marks with good quality.
4.Fast speed, high efficiency, processing quantities increased obviously at the same time, to speed up return on investment for end user.
5.Integration of overall design, nice appearance, small volume can save more floor space, transport conveniently.
6.DXF ,PLT, BMP ,AI ,JPG and other documents supported in the software, and can form the serial number, production date, bar code and planar bar code automatically .

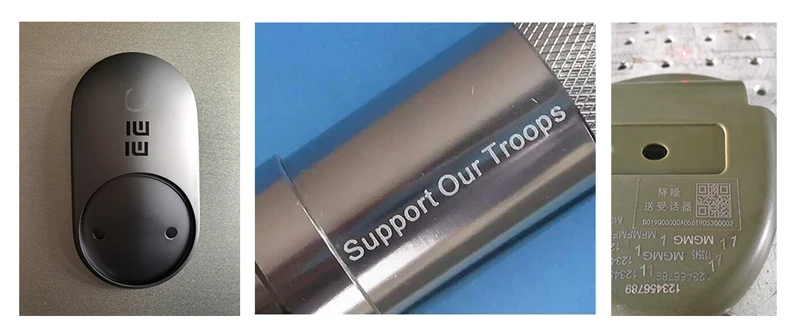

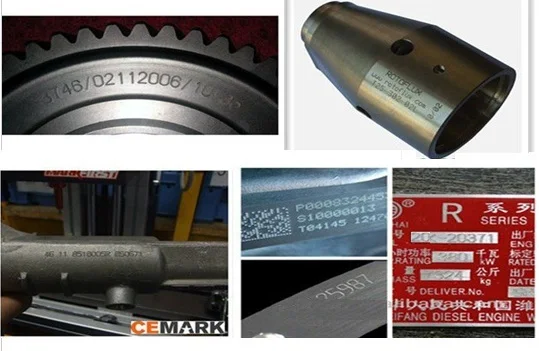

Application field
Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, edical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.

Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.

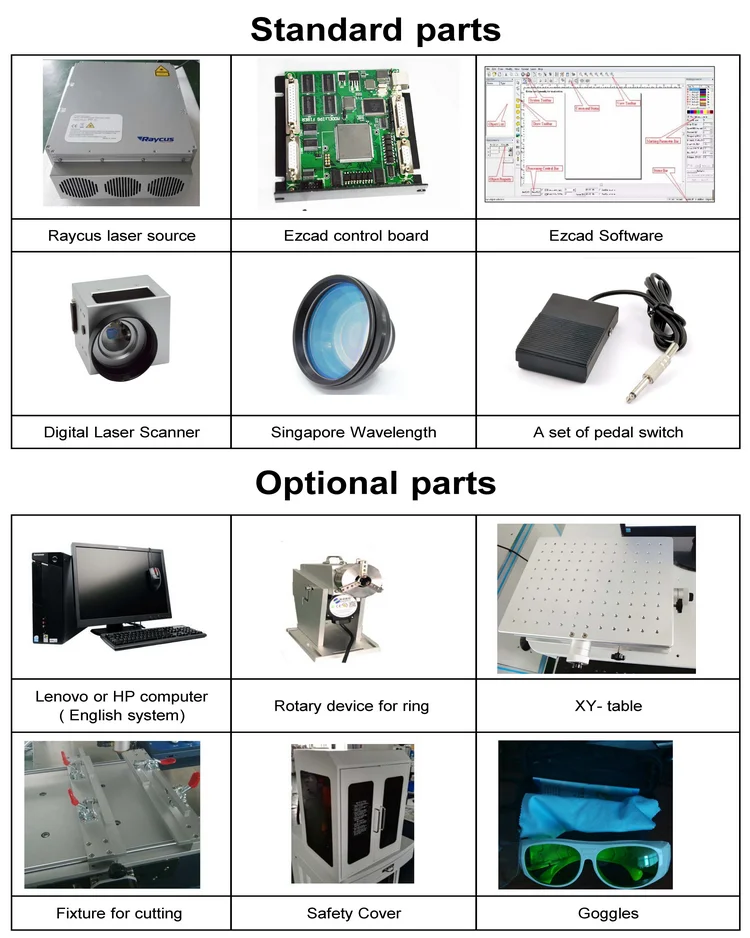

Machine configuration
