Product Overview

Description

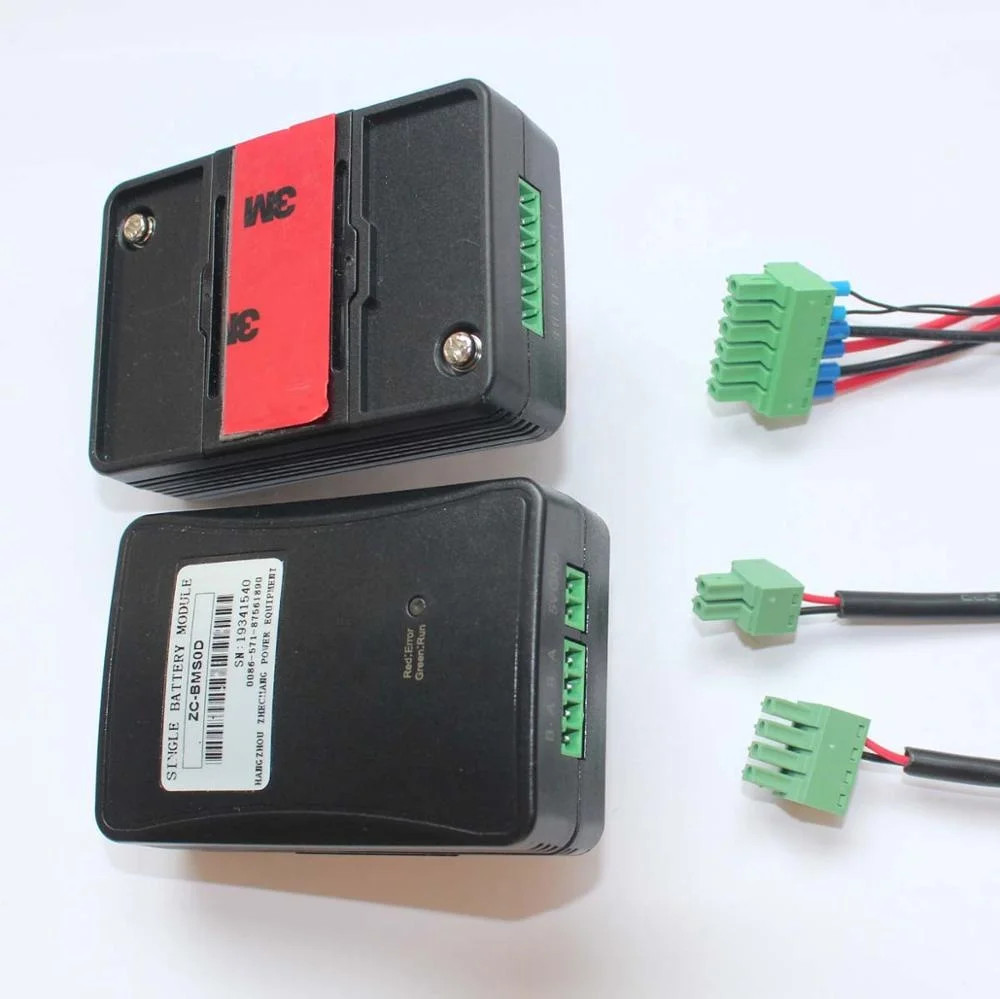

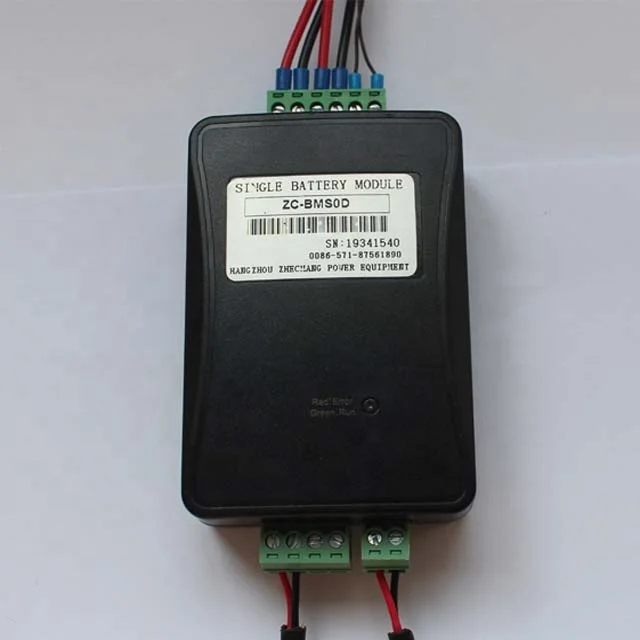

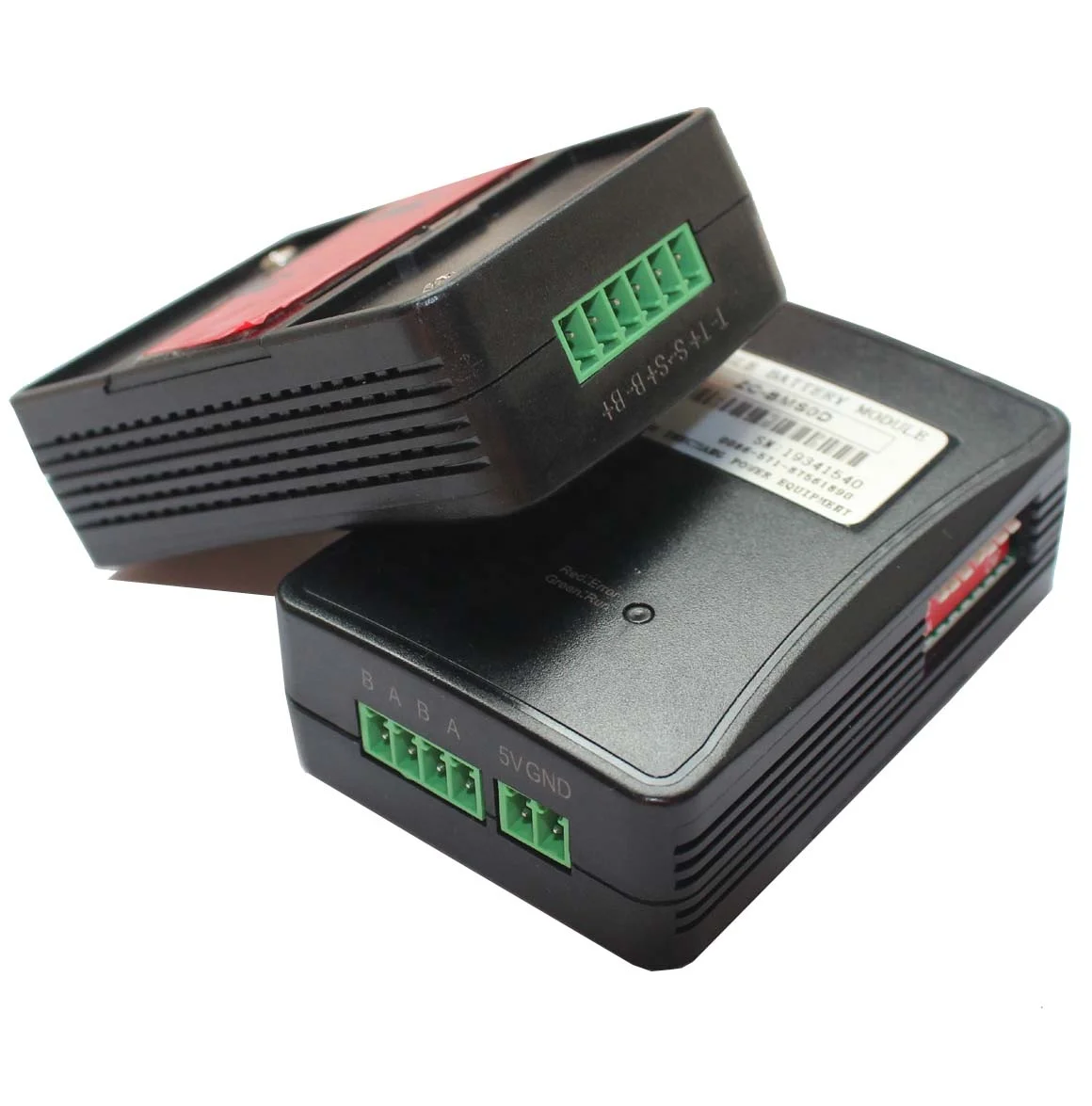

Zhechang ZC-BMS02D Battery Tester Monitoring Unit System Battery Monitor 12V5-1

Our Advantages

MoniTor Advantage



Application -1

Product Parameter

Feature:

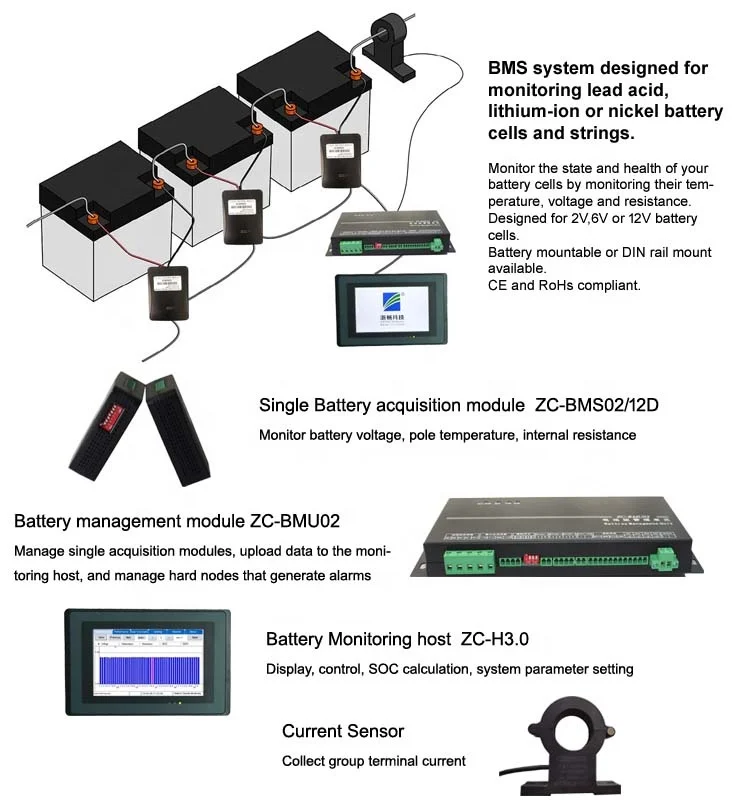

1.Single battery management system is a comprehensive result of battery measurement, loop communication and computer information processing.

2.Single battery module can choose the loop communication mode, easy to use, safe and reliable.
3.Real-time monitoring the voltage of battery to avoid the measurement error for the long line.
4.High accuracy, low power, small size.
5.Based on the discreteness of battery pack's daily operation data, the capacity and health status of each battery were estimated by neural network algorithm.
6.USB/RS485/RJ45 communication interface which can communicate with the computer real-time data or control other intelligent devices.
7.Perfect software can real-time display each measurement data and curve, provide data query, report generation and other functions.
8.it have automatic wizard function, without too much manual intervention,it is simple to use .
9.Single battery acquisition module Parameter.
Parameter:
Model ZC-BMS02D/ZC-BMS12D
Applicable battery grade 2V/12V
Voltage monitoring accuracy ≤±0.2%
Voltage monitoring range 2V(1.8V~3V)/12V(10.8V~16V)
Power Supply powered from the monitored battery
Static power ≤300mW
Temp Accuracy ±1℃
Temp Range -25℃~85℃
Support battery number lead acid battery x1(Ni-cr battery x 2)
Communication mode 2 channel RS485
Communication baud rate 9600bps
Operating temperature -25℃~65℃
Operating Humidity < 85 % 5%-95%,without condensation
Storage temperature -40℃~+85℃
Installation Paste on battery or rail mounting
Size 78mm×53mm×24mm(L*W*H)

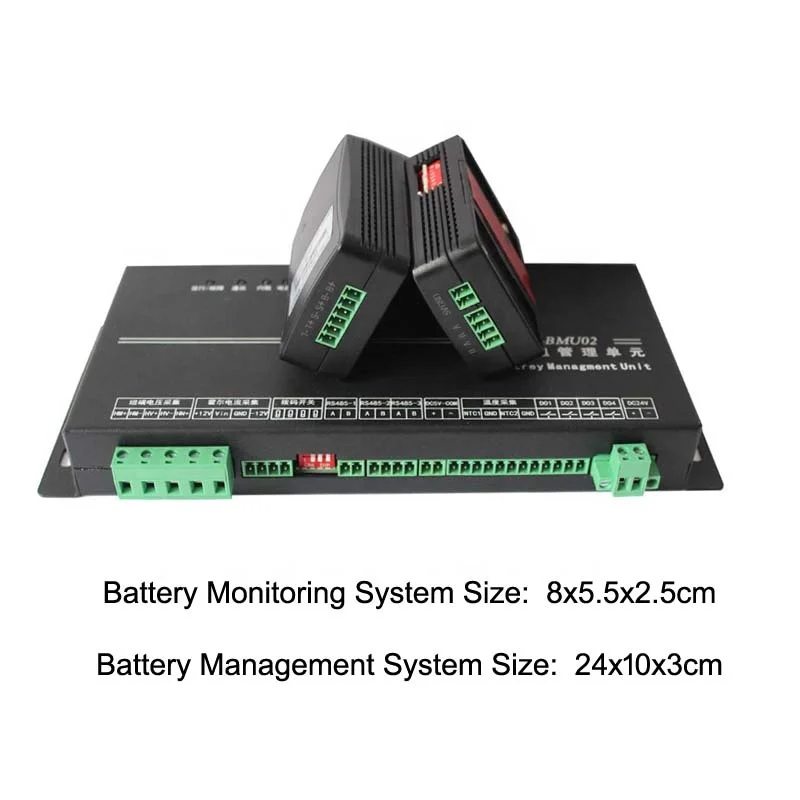

Battery Monitor (75)
Model ZC-BMU02
Power Supply DC24V
Module Power ≤2W
Group terminal voltage accuracy ±1%
Group terminal voltage range ≤DC800V
Accuracy of ambient temperature acquisition ±1℃
Range of ambient temperature acquisition -25℃~85℃
Channel of ambient temperature acquisition 2 Channel
Current Accuracy ±1%FS
Current range ≤2000A
Accuracy of busbar voltage ±1%
Range of busbar voltage ≤DC800V
Alarm output 4Channel
Support battery number 250
Communication mode RS485
Communication baud rate 9600bps
Communication protocol MODBUS protocol
Module Site setting dial switch
Operating Temp -25℃~65℃
Operating Humidity < 85 % 5%-95%
Storage temperature -40℃~+85℃
Installation Screw mounting
