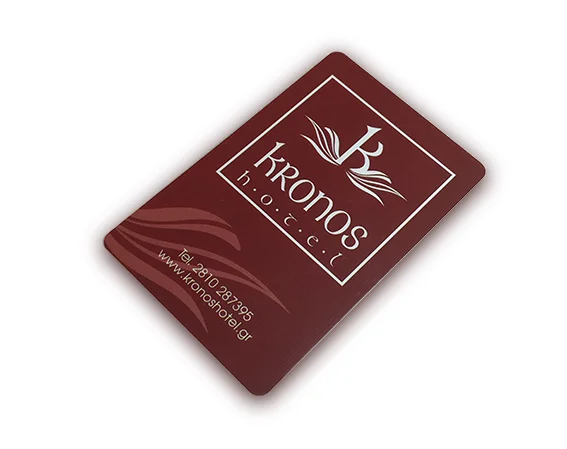

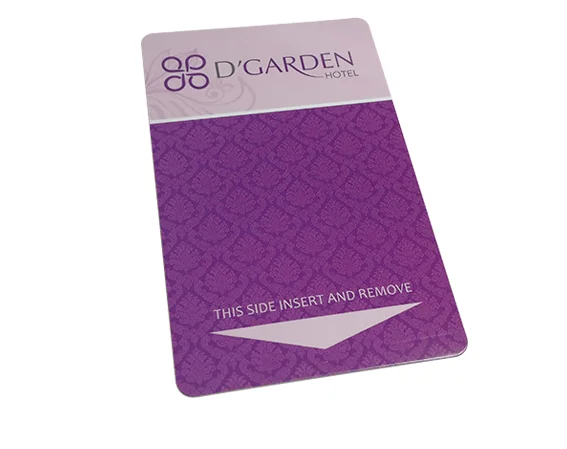

Color printing signature strip FM11RF08 card with 13.56mhz chip
- Category: >>>
- Supplier: Guangzhou Taihe Dahua Intelligent Technology Co. Ltd.
Share on (62401186014):
Product Overview
Description
CMYK four color printing signature strip card with 13.56mhz chip
Material: | PVC | ||
Dimension: | 85.6x54x0.88mm | ||
| Surface | Glossy, matt, frosted laminated | ||
| Frequency | 13.56MHz | ||
| RF Protocol | ISO 14443A | ||
| Chip | FM11RF08 | ||
FM11RF08 (F08) is according to ISO14443 Type A developed by Shanghai FuDan Microelectronics Co., Ltd.
This chipset has 1K × 8bits EEPROM organization.
The maximum communication rage between the reader and contactless card is approximately 10cm.
Chip Features:
- 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
- User definable access conditions for each memory block
- Mutual three pass authentication (ISO/IEC DIS 9798-2)
- Individual set of two keys per sector (per application) to support multi-application with key hierarchy
- 4Bytes Unique serial number
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56 MHz
- Data transfer: 106 kbit/s
- Data integrity: 16 Bit CRC, parity, bit coding, bit counting
- Anticollision
- Typical ticketing transaction: < 100 ms (including backup management)

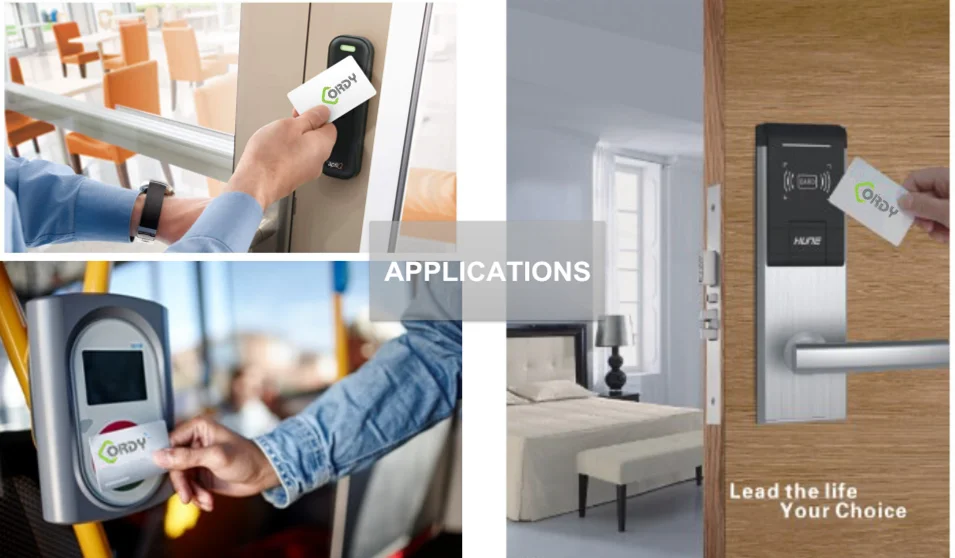

Application:
- Payment
- Access Control
- Time Attendance

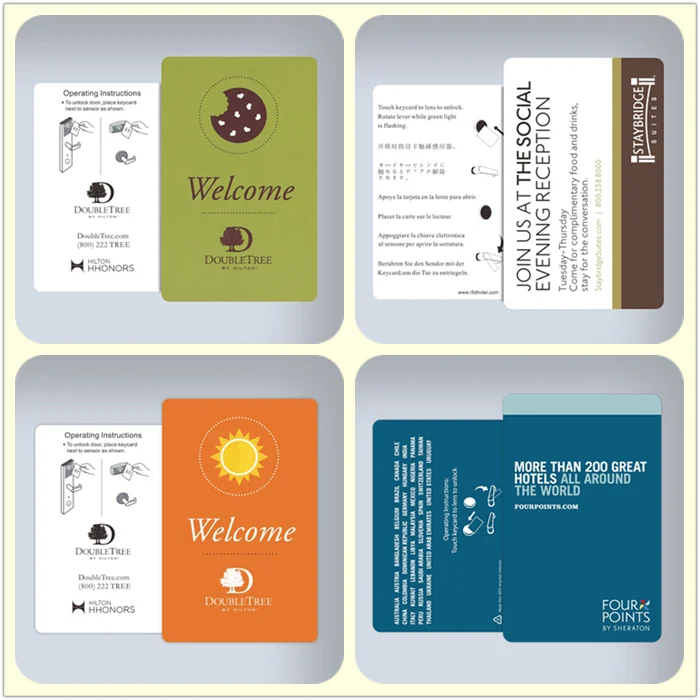

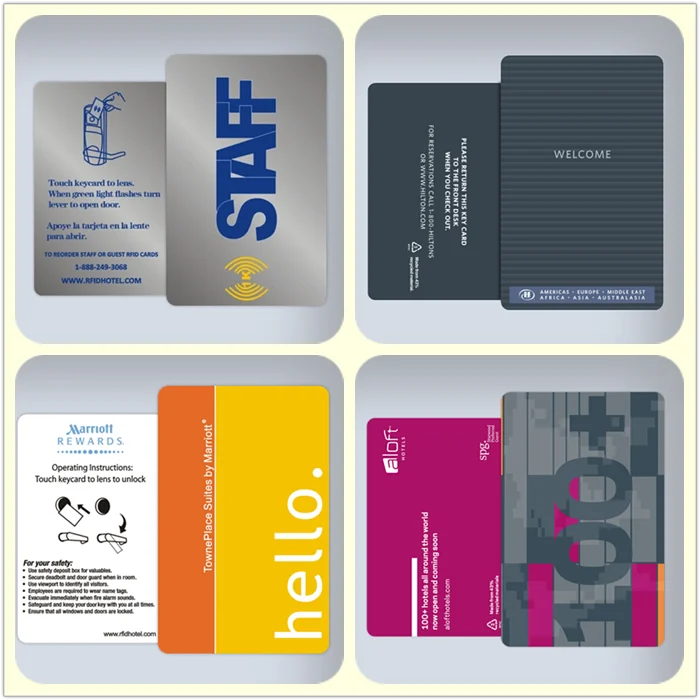

- Hotel Key Card
- Public transportation
- Access control
- Event ticketing
- Gaming & identity

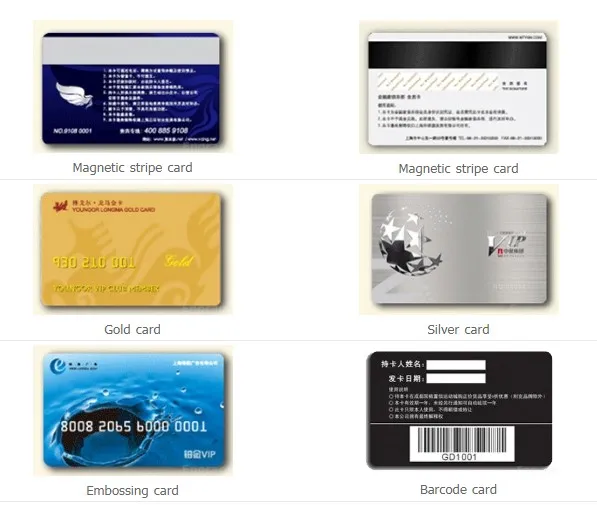

Available crafts:
Magnetic strip:
- 1_ Low-coercivity (loco) at 300 OE
2_ High-coercivity (hico) at 2750 OE
Signature panel and scratch panel
Barcode in different types(39/EAN 13/EAN 128...)
Hot stamping gold/silver color
Personalization:
- Numbers or texts in thermal/inkjet /embossed/laser engraved/UV printing , Offset printing CMYK full color printing, Silk printing Panton Color value, digital printing, thermal printing, laser printing and ink-jet printing.
- Offset CYMK 4 colours
- This is the most common method used in commercial printing.
- The CMYK refers to the four inks used in the printing process: Cyan, Magenta, Yellow and Key (Black)
- Screen Printing
- This method is used when the artworks only have limited colours and the accuracy is important
- We accept custom material and artwork/design order
Applactions:

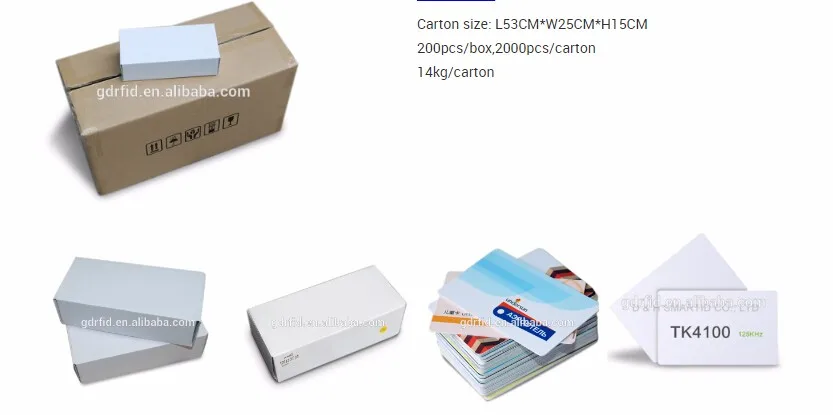

Packing:
About US:
In 2008, Guangzhou TAIHE DAHUA Intelligent Technology Co., Ltd established
In 2011, D & H SMARTID CO., LTD established and sales amount of overseas sales department was over 20, 000, 000
Since then, we are one of the most professional manufacturer of contact and contactless smart cards, smart tags and RFID reader.
Since 2000,we have provided billions of pieces RFID products to domestic and international users, which are widely used in security,transportation,tourism,anticounterfeiting,financial, produton and other fields.
We provide RFID contactless smart tags,including a various specification cards,non-standard tags;different protocol interfaces reader circuit modules;customized smart card and tags.
To be the best at what we do
You and your customers want the best and that is what we deliver.
As a knowledge-based enterprise, we are driven to continually improve and innovate and to be the leader in all of our markets
WE BRING RFID SOLUTIONS TO OUR CLIENTS WORLDWIDE!
Contact US:
D & H SMARTID CO., LTD.
Guangzhou Taihe Dahua Intelligent Technology Co., Ltd.
Address: Linghui Business Center D9, No. 38 Huicai Road, Tianhe, Guangzhou, 510660 China
Tel: +86 20 28036205 Fax: +86 20 87503775
whatsapp/Mobile: +86 13650798302 Skype: gdrfid001
email:nicoleyu at gdrfid.com.cn
