Gasoline Machinery Engine Spare Parts 7KW Single Phase AVR Petrol Generator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Technical Data
Product Name
AVR 7KW
SENSING/POWER INPUT
Voltage
120(90-132VAC) or 240(190-264VAC), 1 phase 2 wire
MAGNETIC FIELD OUTPUT
Voltage
max 90VDC at 207VAC input
Current
continuous 4A, intermittent 10A within 10 seconds
PRESSURE REGULATING ACCURACY
<+/-1%RMS with 4% engine governing
Detailed Images

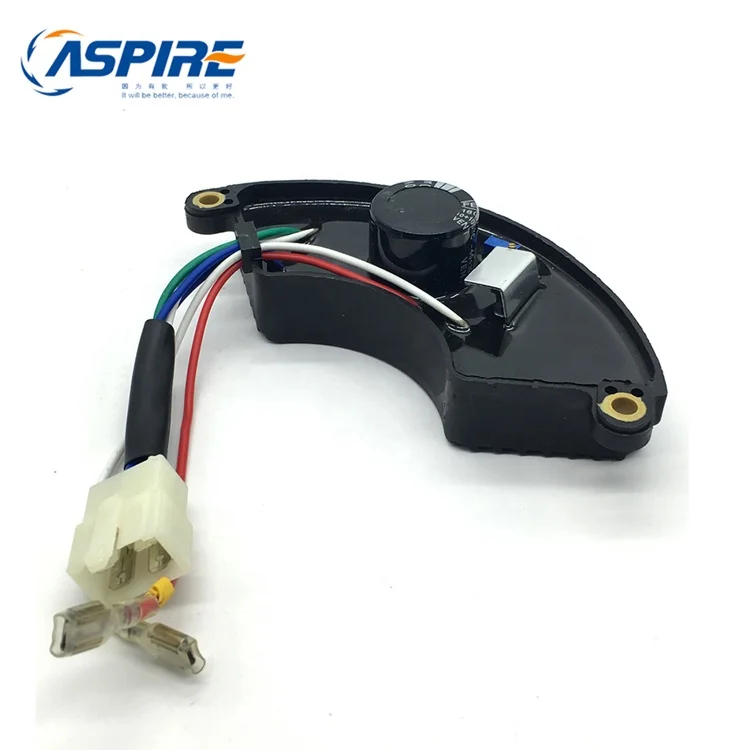

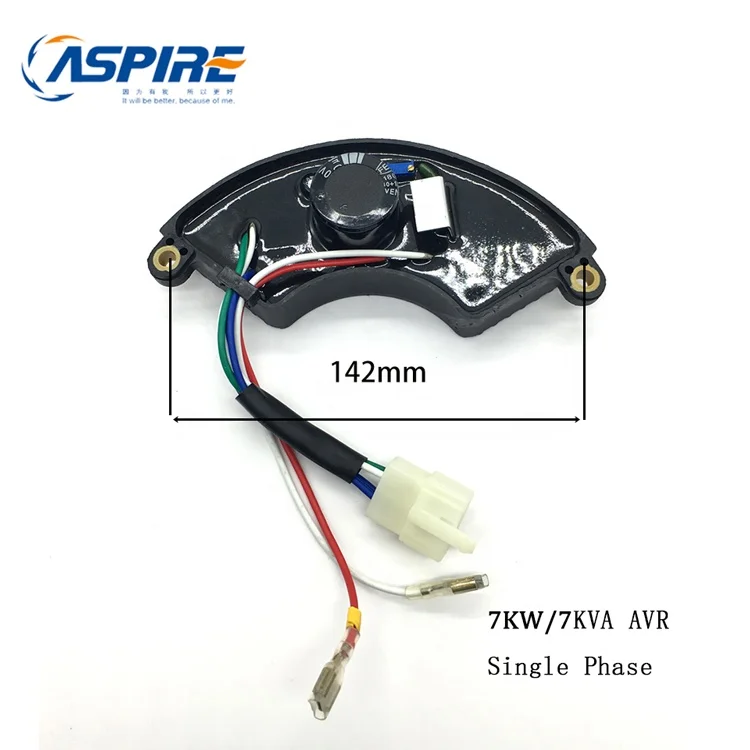

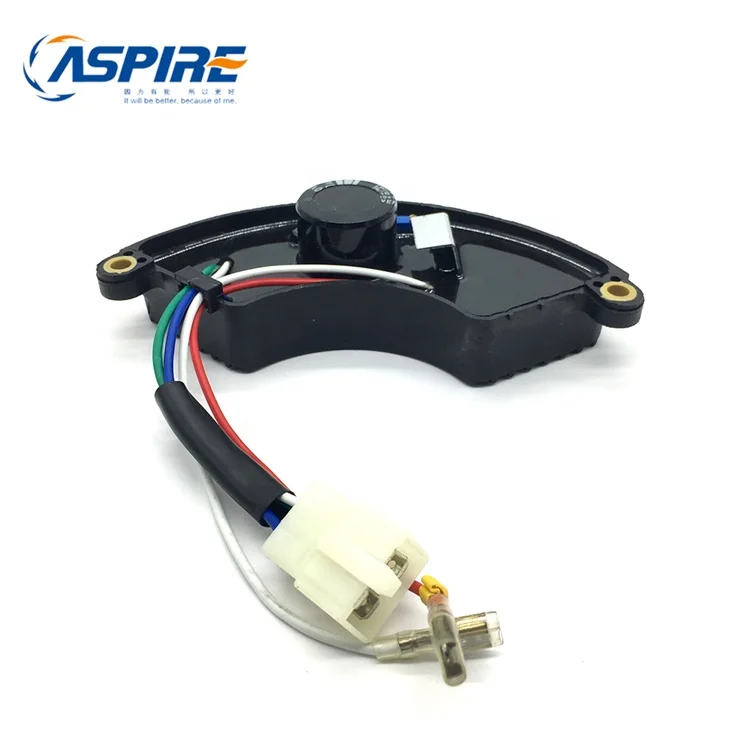

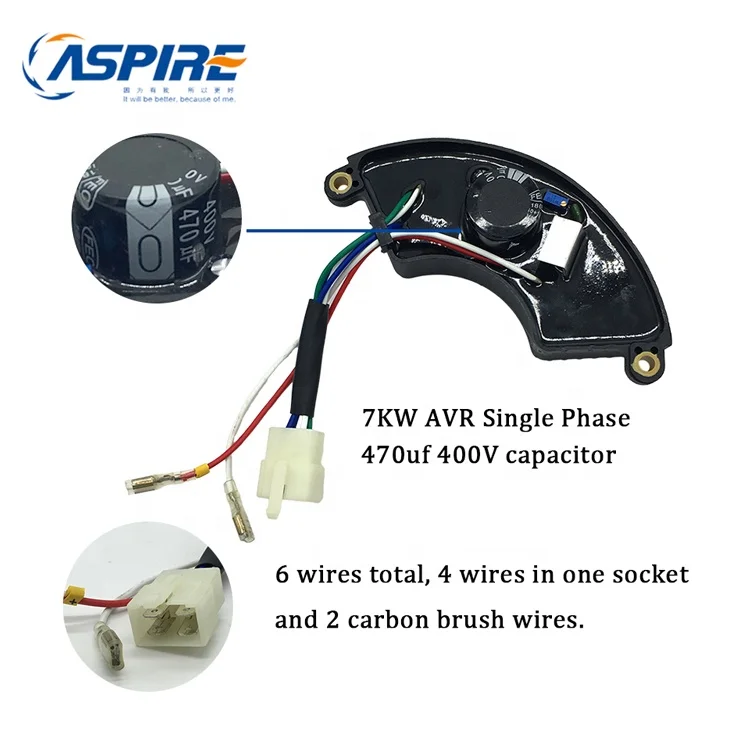

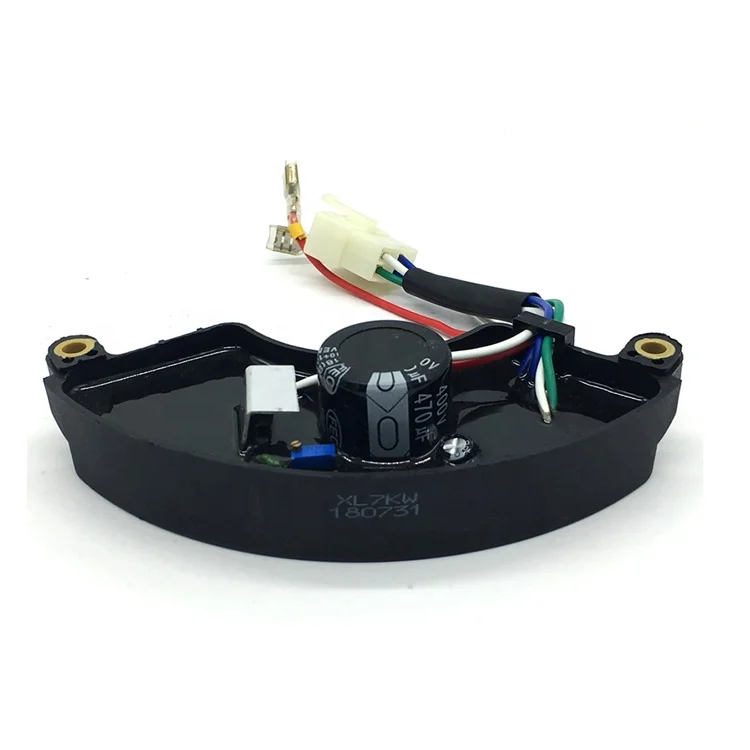

7KW AVR Single Phase Pictures
Related Products
Company Information
Certificate
Contact Us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory more than 12 years since 2006.We have a professional team to develop and manufacture the generator spare parts and supply technical support, with factory price and timely delivery.
Q2: How long is your delivery time?
A: Most parts are in stock.Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it based on the quantity.
Q3: What is your guarantee ?
A: Our warranty is one year for neutral products and two years for Aspire logo products .We can replace a new one in your next order if the product is broken during this period.However, even your products are beyond the warranty,we are still glad to supply technical support for you.
Q4:Can your products be used in severe condition place?
A: Don't worry. We test our products both in high temperatuer and low temperature testing equipment, from -40°C to 80°C.
