Us Standard Sieve Size Electromagnetic Seed Sieve Shaker Industrial Soil Sieve
Product Description

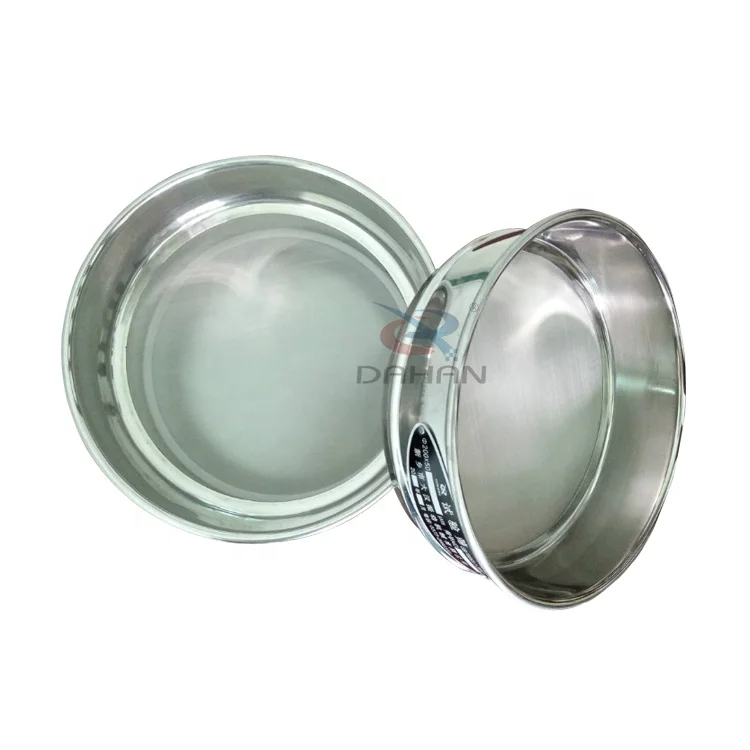

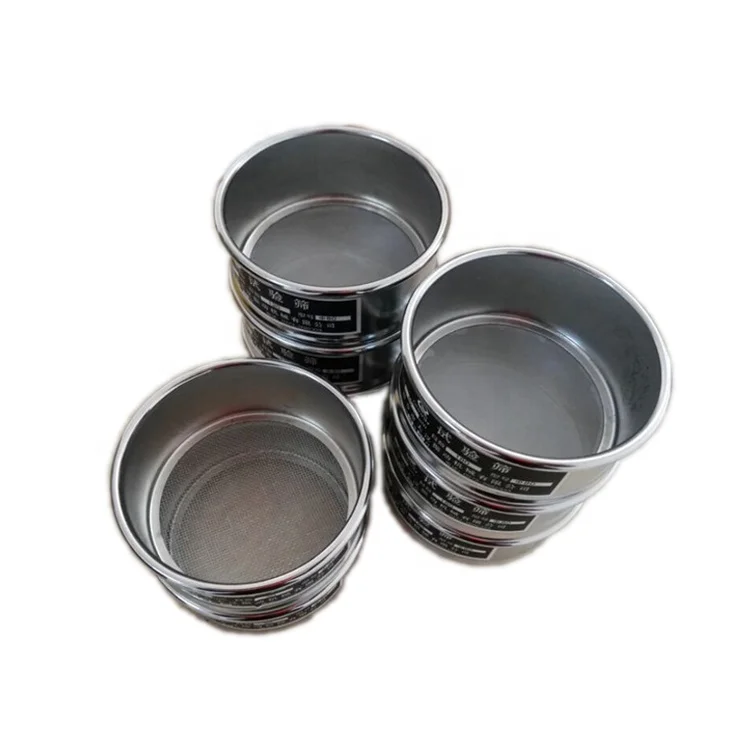

Us Standard Sieve Size Electromagnetic Seed Sieve Shaker Industrial Soil Sieve is divided into Φ200 test sieve and Φ300 test sieve, and is divided into a wire woven mesh test sieve and a metal perforated plate test sieve according to the sieve surface material.

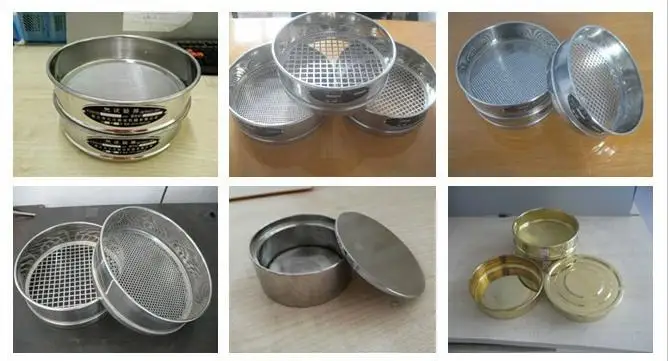

The wire woven mesh test sieve is produced by the national standard GB/T6003.1-1997. The basic size of the mesh is 2.36mm-0.038mm, in line with the international standard ISO3310-1:1990 R20/3, R20, R40/3 series, the screen material is brass, tin bronze, stainless steel.
Our all test sieve can be customized the mesh size,the diameter of sieve frame,the height the frame,the material.If you have any questions,you can tell me.
The standard screen size as follow:
No.
Type
Mesh(mm)
No.
Type
Mesh(mm)
1
8#
2.360
15
70#
0.212
2
10#
2.000
16
80#
0.180
3
12#
1.700
17
100#
0.150
4
14#
1.400
18
120#
0.125
5
16#
1.180
19
140#
0.106
6
18#
1.000
20
170#
0.09
7
20#
0.850
21
200#
0.075
8
25#
0.710
22
230#
0.063
9
30#
0.600
23
270#
0.053
10
35#
0.500
24
325#
0.045
11
40#
0.425
25
400#
0.038
12
45#
0.355
26
500#
0.028
13
50#
0.300
27
>500#
<0.028
14
60#
0.250
Main Features
Screen frame using SUS304 from polished stainless steel tension, thickness 0.6 mm, the overall shape of durable, non-magnetic, screen and screen frame fixed by soldering, do not slack. The following 300 degree heat resistant.
Product Application

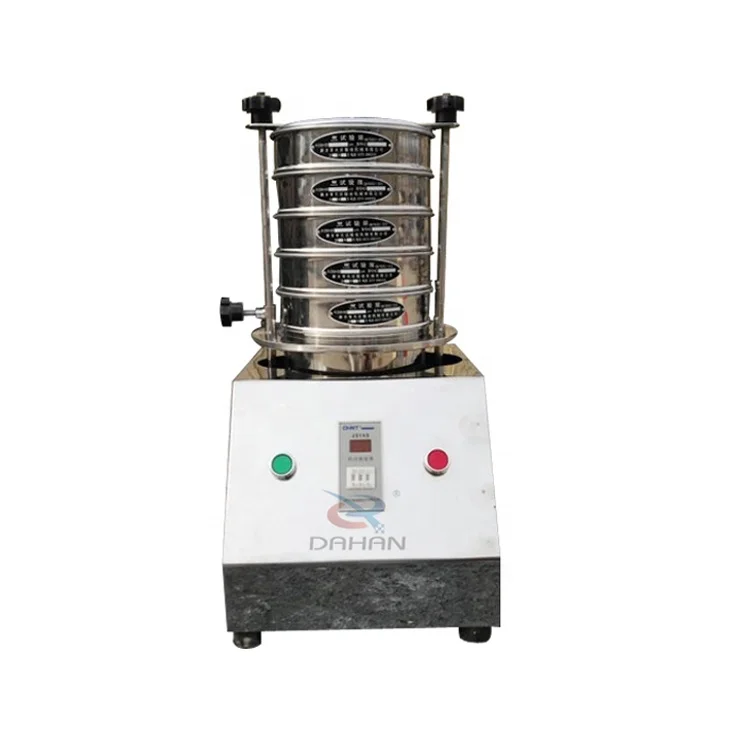

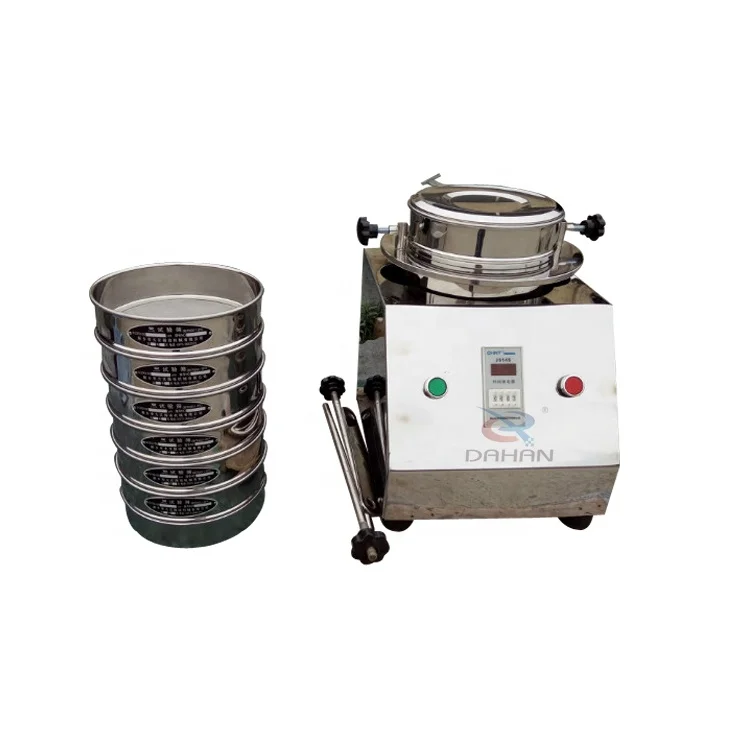

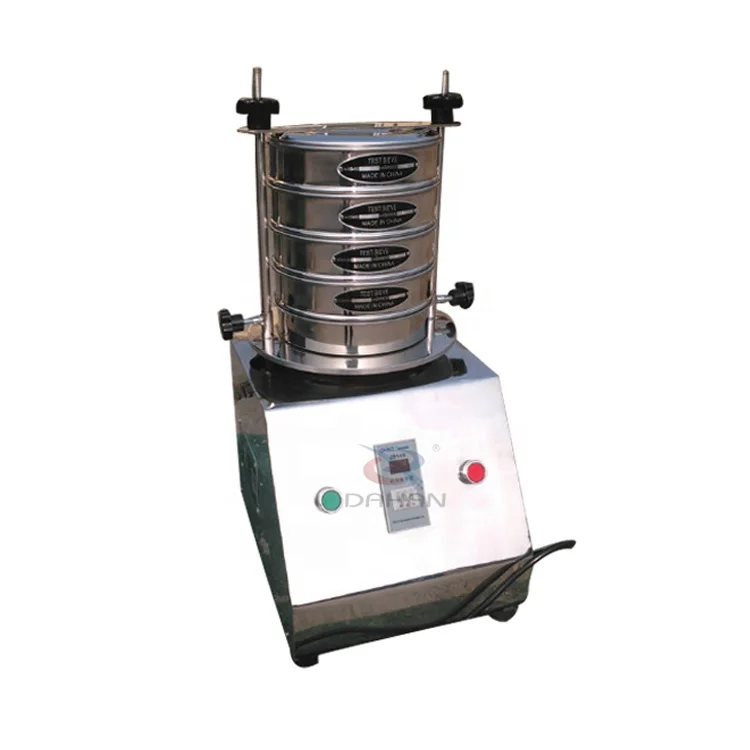

Us Standard Sieve Size Electromagnetic Seed Sieve Shaker Industrial Soil Sieve is mainly used for the particle size analysis of granular materials, and is used in a tapping standard sieve machine or a standard sieve machine to classify the particle size composition of various powder materials. It is widely used in the screening of granular materials in abrasive, metallurgy, metallurgy, pharmacopoeia, chemical building materials and other industries.
