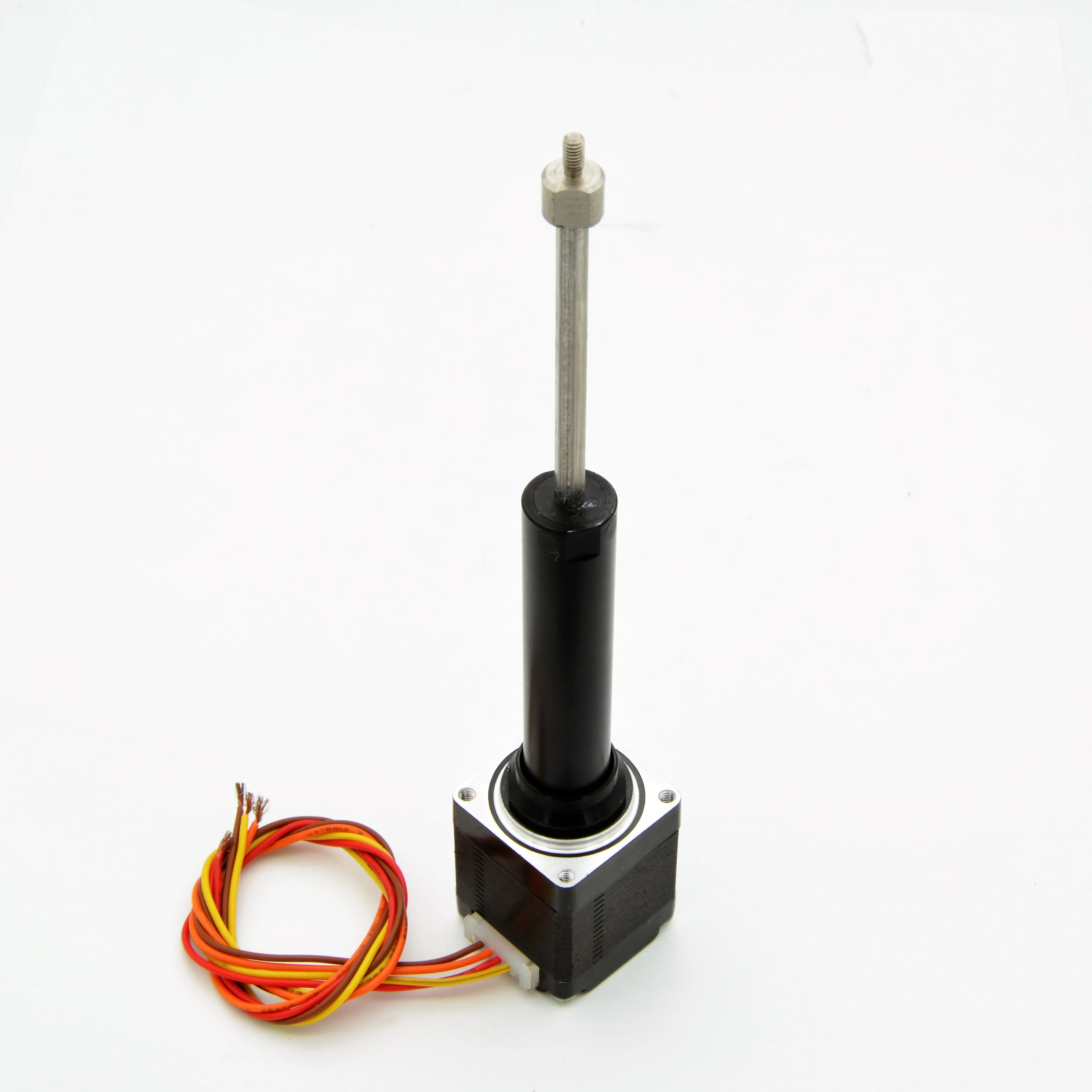

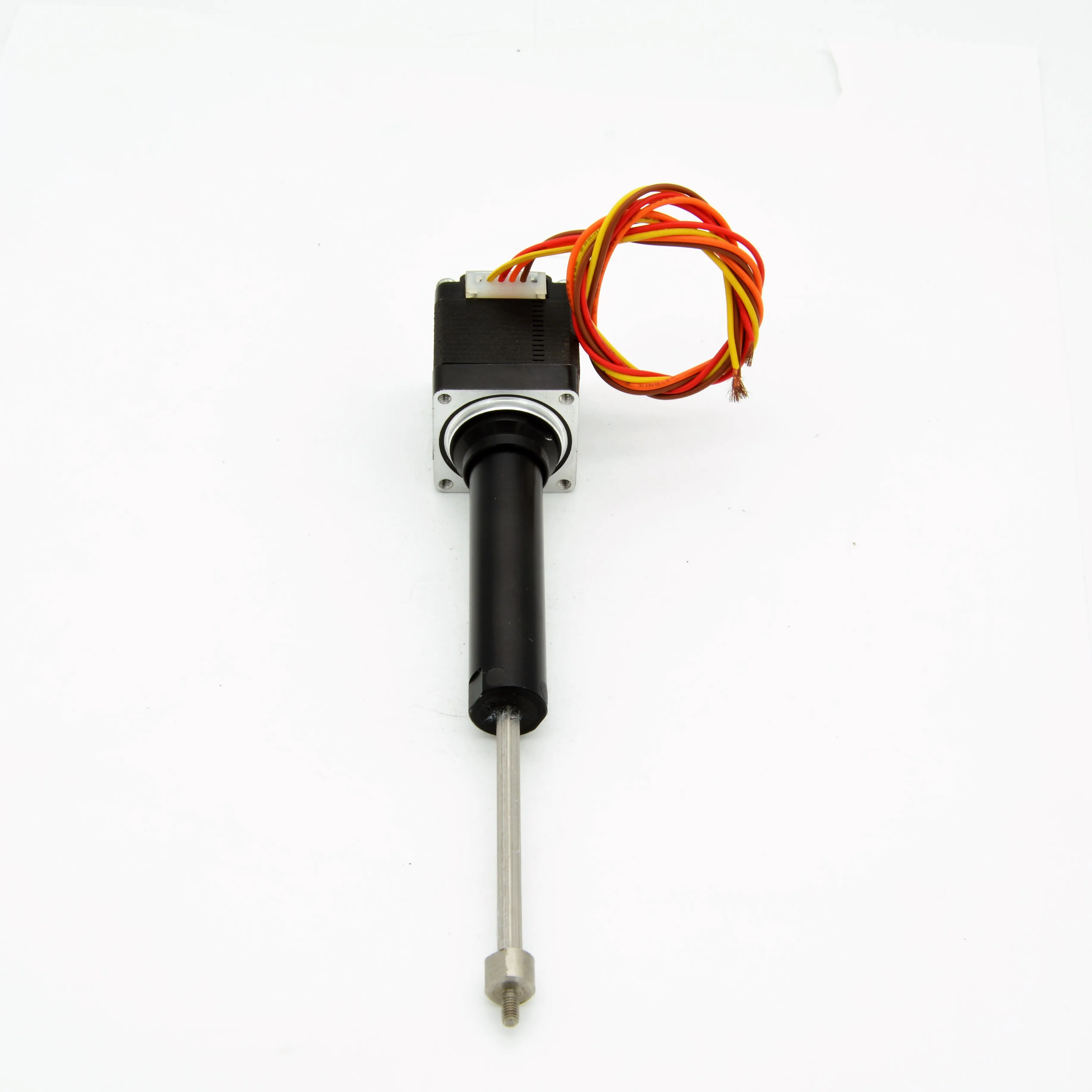

Product Overview
Description
Product Description
Genaral Specification:
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 110 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N

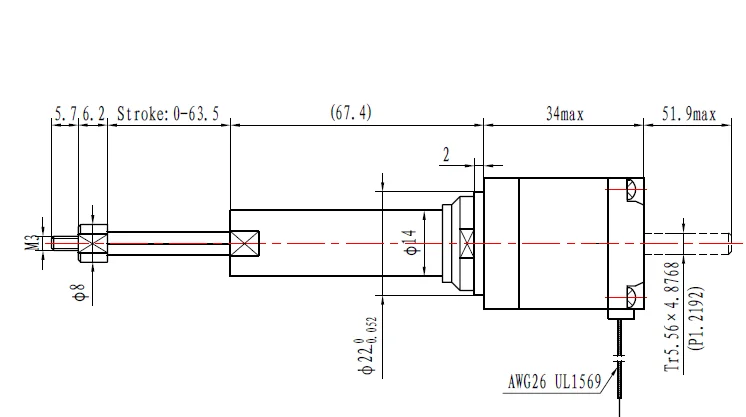

Lead Screw Specification:
Lead Screw Length: 90m
Lead Screw Diameter: 5.56mm
Pitch: 1.2192mm
Number of Leads: 2
Weight : 0.18Kg
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 110 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N
Lead Screw Specification:
Lead Screw Length: 90m
Lead Screw Diameter: 5.56mm
Pitch: 1.2192mm
Number of Leads: 2
Weight : 0.18Kg

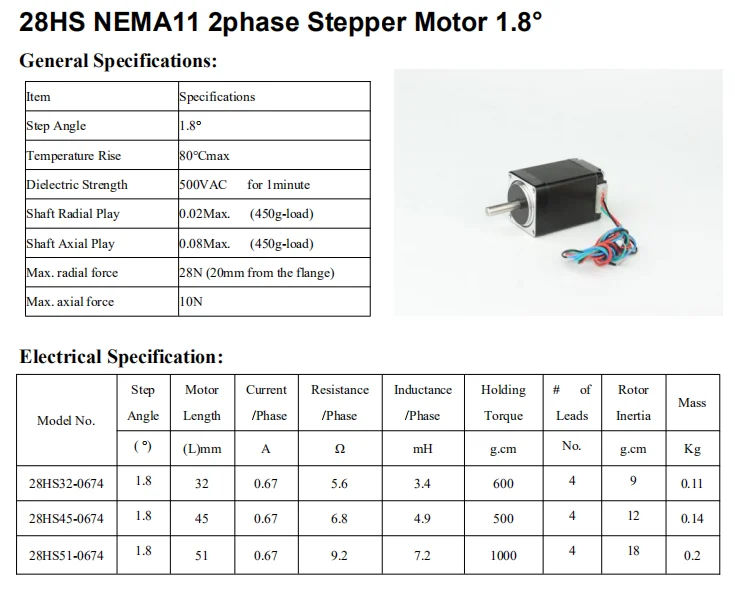

Step Angle | 1.8 degree |
Motor Length | 34mm |
Current /Phase | 0.75A |

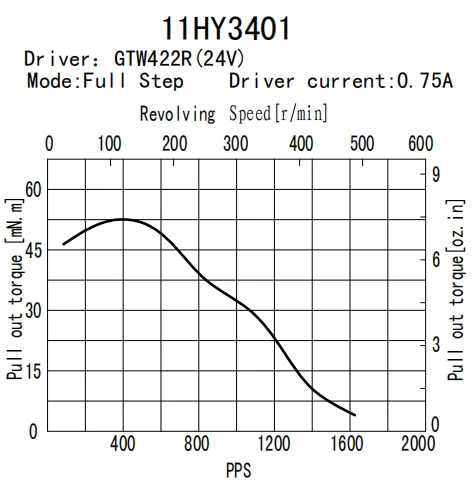

Holding Torque / Nm | 60mN.M |
No. of Leads | 4 |
Resistance/ Phase | 5 |
Mass | 0.18Kg |
Voltage | 3.7V |
Size Information
All NEMA 17 size BLDC motor
Applications
3D printer
CNC milling machine
CNC laser machine
