ZB A Automatic colorimeter

Product Overview

Description

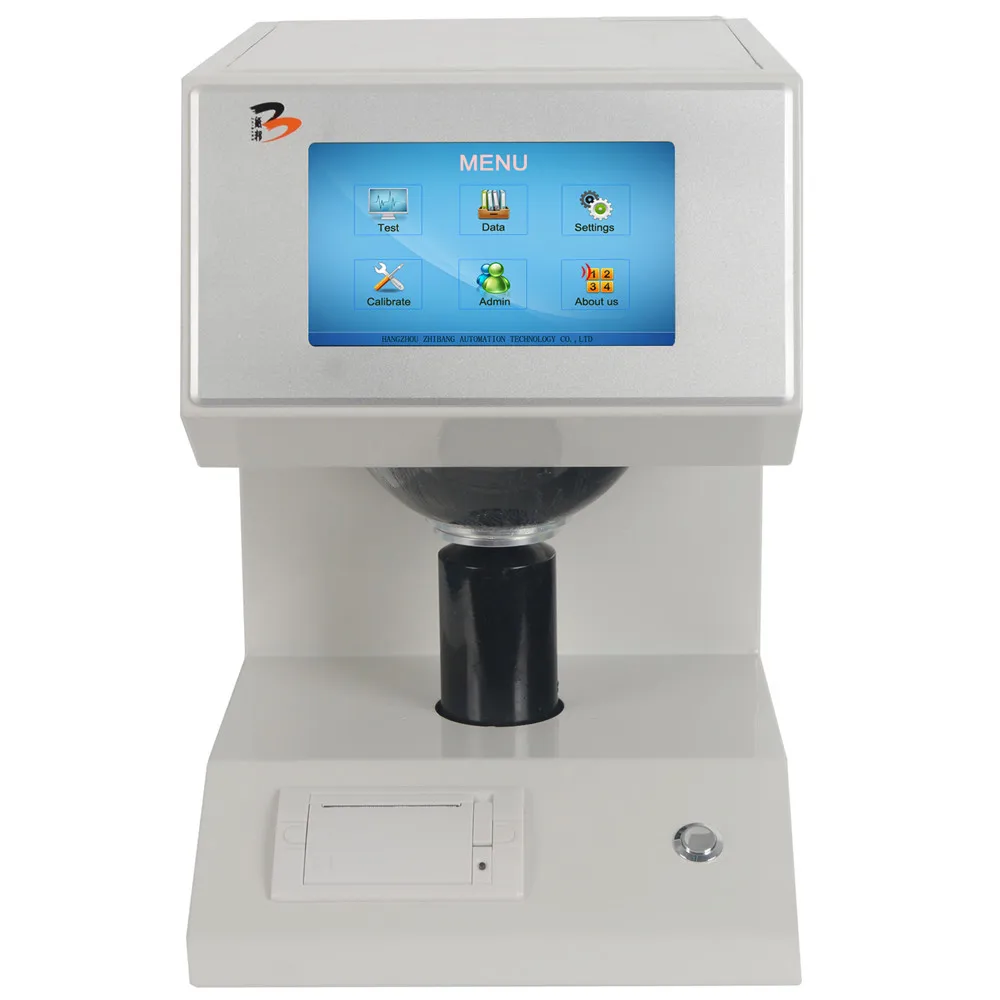

ZB-A Automatic colorimeter

Introduction

ZB-A Automatic colorimeter is to determine the whiteness, yellowness, color and color difference of the object, but also can determine the paper's opacity, transparency, light scattering coefficient, light absorption coefficient and ink absorption value.Widely used in papermaking, printing, ceramics, chemical industry, textile printing and dyeing, building materials, grain, salt and other industries.

The specific functions of the instrument are as follows:

1. Measure the reflected color and chromatic aberration of the object, which can be displayed or printed: diffuse reflection factor Rx, Ry, Rz, stimulus value Y10, X10, Z10, color coordinate X10, Y10;Lightness L *, a * chromaticity, b *, chroma C * ab, hue Angle h * ab, dominant wavelength lambda d, excited purity, Pe Δ E * ab color, brightness difference Δ L *, chroma difference Δ ab, poor tonal Δ h C * * ab, hunter system L, a and b.

2. Measurement of ISO brightness (blue light whiteness R457) and Z whiteness (Rz) can be used to measure fluorescence whiteness generated by emission of fluorescent substances in fluorescent whiteness samples.

3. Measurement of CIE whiteness (gantz whiteness W10 and deviation TW10).

4. Measure the whiteness of ceramics.

5. Measure whiteness of building materials and non-metallic mineral products.

6. Measure hunter whiteness WH.

7. Measure the yellow degree YI.

8. Measure the opacity OP of the sample

9. Measure the transparency T of the sample

10. Light scattering coefficient S of the measured sample

11. Optical absorption coefficient A of the sample was measured.

12. Measure ink absorption.

Standards

ISO 2469 paper, paperboard and pulp -- determination of diffuse reflection factor

ISO 2470 paper and paperboard - determination of whiteness (diffuse/vertical method)

ISO 2471 paper and paperboard -- determination of opacity (paper backing) -- diffuse reflection method

ISO 9416 determination of light scattering and light absorption coefficients on paper (kubelka-munk)

ISO 11475 "determination of CIE whiteness of paper and board, d65/10 (outdoor daylight)"

Determination of diffuse reflection factor of paper, paperboard and pulp (diffuse/vertical method)

GB/T 7974 determination of brightness (whiteness) of paper, paperboard and pulp (diffuse/vertical method)

GB/T 7975 determination of color of paper and board (diffuse reflection method)

GB/T 24288 "determination of the main wavelength and excitation purity of paper and paperboard - d65/10 ° d diffuse reflection method"

Determination of light scattering and light absorption coefficients of paper, paperboard and pulp

GB/T 8424.2 methods for evaluating the relative whiteness of color fastness tests for textiles

Surface active agent detergent test method -- determination of whiteness of powdered detergent

GB/T 8424.1 general principles for the determination of color on textile test surfaces

GB/T 22880 "determination of CIE whiteness of paper and board, d65/10 ° c (outdoor daylight)"

GB/T 1543 determination of opacity of paper and board (paper backing) (diffuse reflection method)

GB/T 6688 method for measuring the relative strength and chromatic aberration of dyes

GB/T 13025.2 general test method for salt industry, determination of whiteness

GB/T 2913 test method for whiteness of plastics

GB/T 5950 "method for measurement of whiteness of building materials and non-metallic mineral products"

GB/T 3979 object color measurement method

GB/T 8424.3 calculation of color difference of textile color fastness test

GB/T 2679 determination of paper transparency

GB/T 9338 instrument method for determination of relative whiteness of fluorescent whitening agents

GB/T 11186 measurement method of coating color

GB/T 9984.5 determination of whiteness of industrial sodium tripolyphosphate test method

GB/T 22427.6 determination of starch whiteness

GB/T 13835.7 test method for whiteness of rabbit hair fibers

GB/T 12911 determination of absorbability of paper and board inks

GB/T 4739 method for determination of chromaticity of pigment of daily-used ceramics

GB/T 11942 measurement method for chromaticity of color building materials

General test method for cosmetics color tristimulus value and chromatic aberration ΔE* determination

QB/T 1503 determination method of whiteness of dailyused ceramics

HG/T 3862 test method for plastics yellow index

Fz-t50013 test method for whiteness of cellulose chemical fibers - blue light diffuse reflection factor method

Main features

1. The instrument adopts 7.0-inch, 65k color, hd color LCD touch screen, simple and friendly human-machine interface, simple and convenient operation.

2. The instrument has a novel appearance and compact structure, which eliminates the manual rotation of the old hand-wheel, automatic switch of optical road and automatic positioning, and realizes the automatic detection, which not only improves the testing efficiency, but also greatly reduces the human error.

3. The adoption of 32-bit MCU microcomputer processor, high-speed operational amplifier chip and high-precision ADC converter, advanced circuit design effectively ensure the accuracy and stability of measurement data.

4. The instrument simulates D65 lighting body lighting.CIE 1964 supplementary chromaticity system and CIE 1976 (L*a*b*) chromaticity formula were used.

5. The instrument adopts d/o illumination to observe geometric conditions.The diameter of the diffused ball is 150mm, and the diameter of the test hole is 30mm. The light absorber is equipped to eliminate the influence of the mirror reflected light of the sample.

6. Serial port thermal printer embedded in the instrument, no need to use ink and ribbon, no noise when working, fast printing speed and other features.

7. The instrument is equipped with corresponding communication interface, which can communicate with microcomputer software.

7. The instrument has power off protection, and the calibration data will not be lost after power off.

8. 9 reference samples can be stored.

Main technical parameters

Power supply	220V±10% 50HZ
Accuracy	chromaticity coordinate is 0.0001 others are 0.01
Stability	≤0.1 within 30min
Repeatability	Rx Ry and Rz  s≤0.01 chromaticity coordinate s≤0.0010,.R457 s≤0.10
Sample size	diameter ≥30mm       thickness≤ 40mm
Dimension	390*280*410mm
Net Weight	23kg
