5-45mm thickness Solid Skinning Foamed PVC WPC Door board production machine
WPC solid door board making machine for 30-45mm thickness e is used for making 30-45mm solid WPC foam board for door panel, it uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall....
Model | SJMS80/173 |
Product width | 1220mm |
Product thickness | 5-45mm |
Capacity | 350-450kg/h |
Raw material | PVC and wood powder |
Motor power | 90kw |
Inverter | ABB brand |
Gearbox | Guomao |
Screw material | 38CrMoAIA+ Bimetallic |
Detailed Images

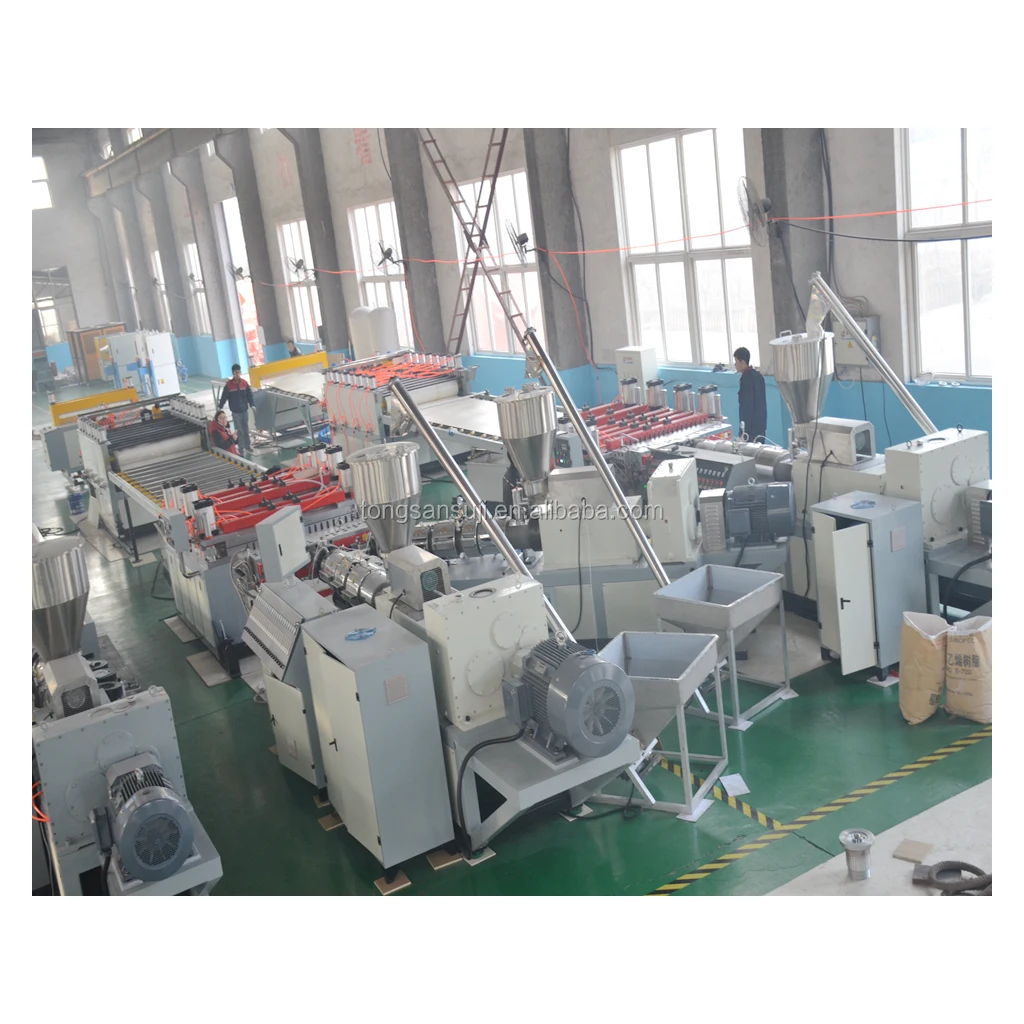

PVC/WPC board machine can continuously produce PVC WPC foam board.This production line is composed of extruder, mould, calibrating platform, cooling frame, haul off machine, cutting machine and stacker.
The customer can also produce A+B+A three layers co-extrusion foam board by adding extruder and distributor .The machine should equip with water chiller, can increase production efficiency.
The customer can also produce A+B+A three layers co-extrusion foam board by adding extruder and distributor .The machine should equip with water chiller, can increase production efficiency.
Auto feeder
Automatic feeding device made by stainless steel, adopting spiral screw feeding, with double screw feeding hopper.

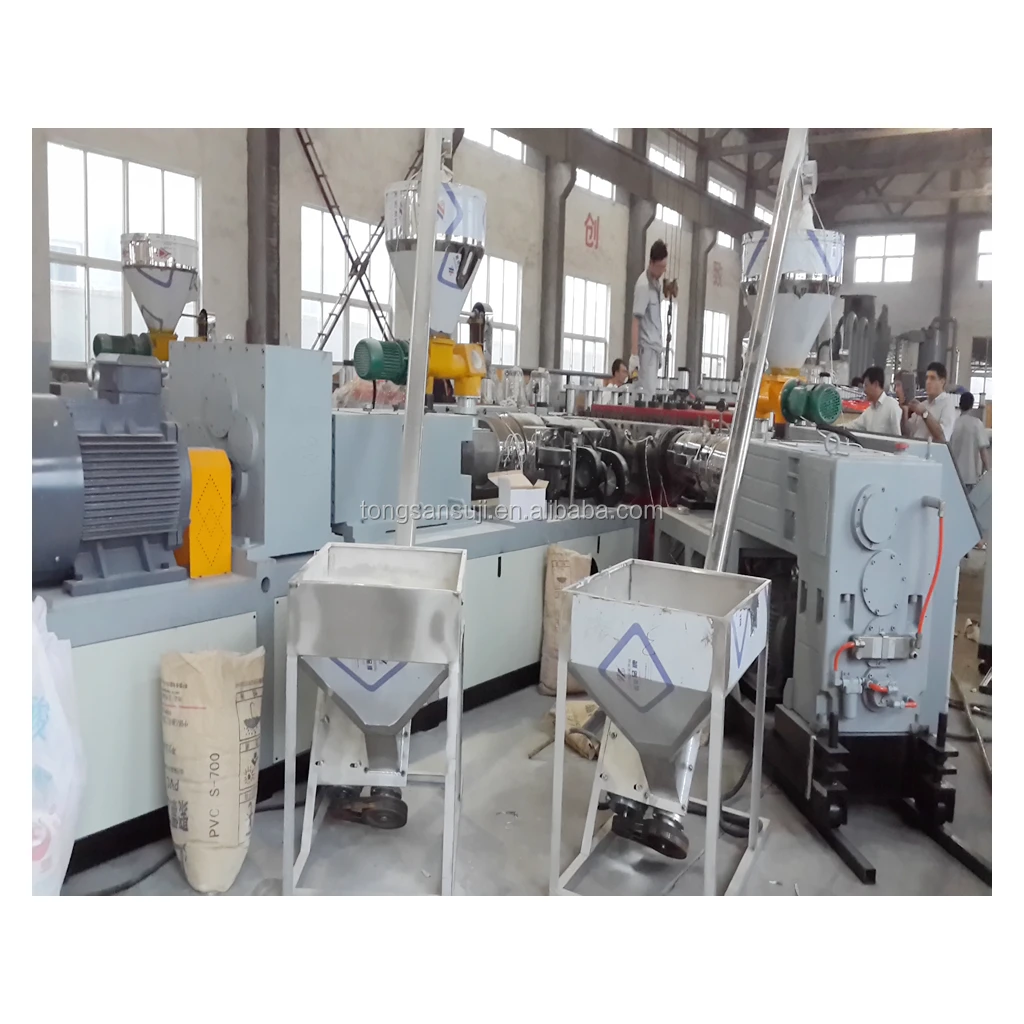

Extruder
Conical double screw extruder with special designed Screw and Barrel, the screw and barrel must be designed for high foaming
technology with one foaming zone
technology with one foaming zone
Electric control system
ABB inverter
Omron temperature control
Siemens PLC control
Siemens contractor
Siemens motor

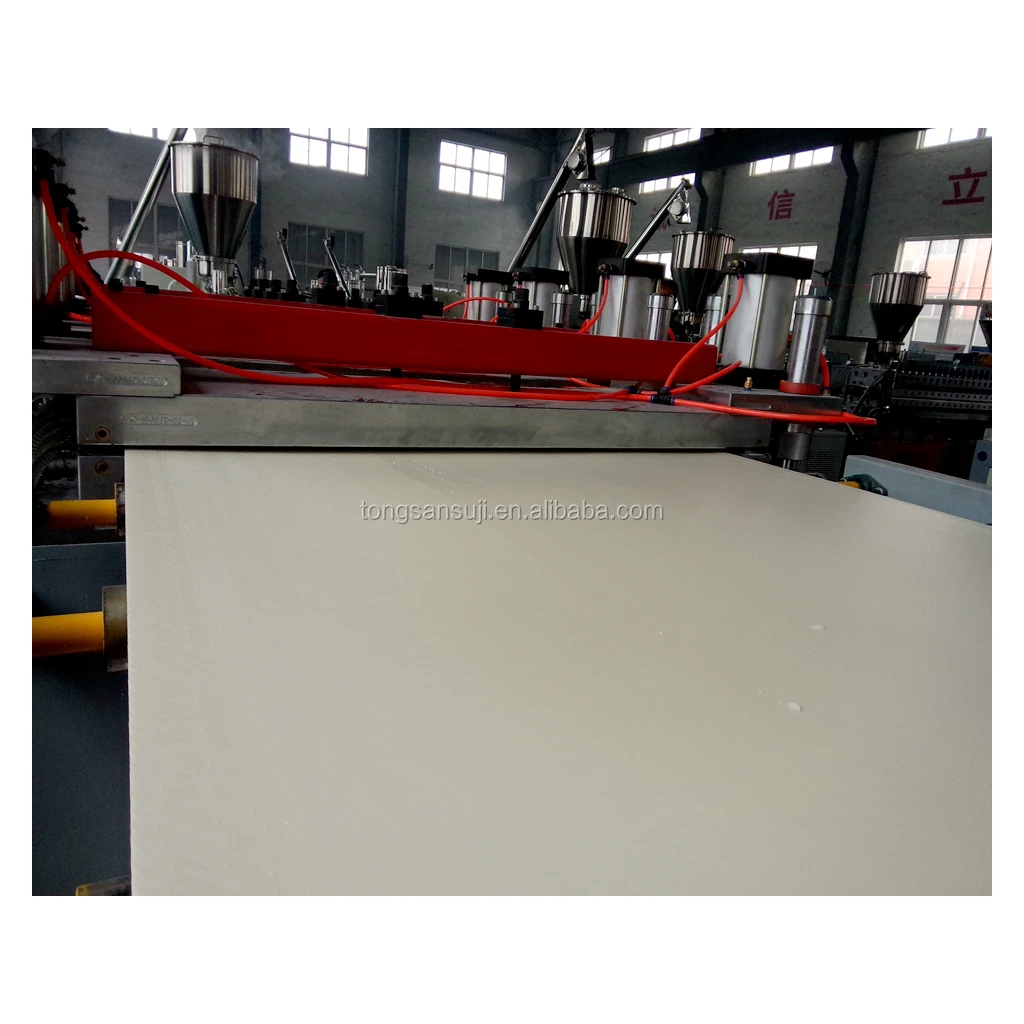

Die head
WPC foam board die head is made by special high quality mold material with good resistance for WPC material, the die head width is 1450mm which can make 1220mm width product

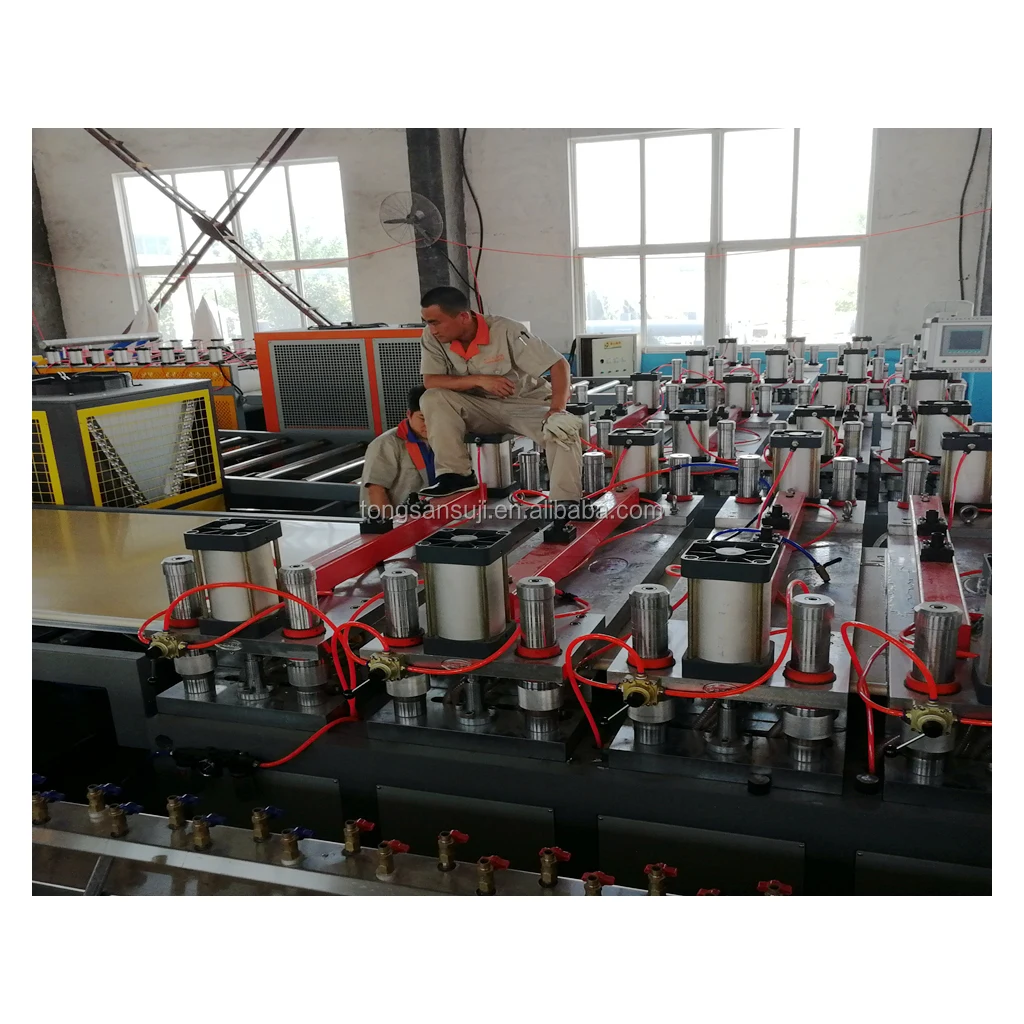

Calibrator
adopting water cooling inside the calibrators, the products shall be cooled by the calibrators without touching water, the calibrators are designed for celluca foaming technology to make inner foamed and skinned surface WPC foam board

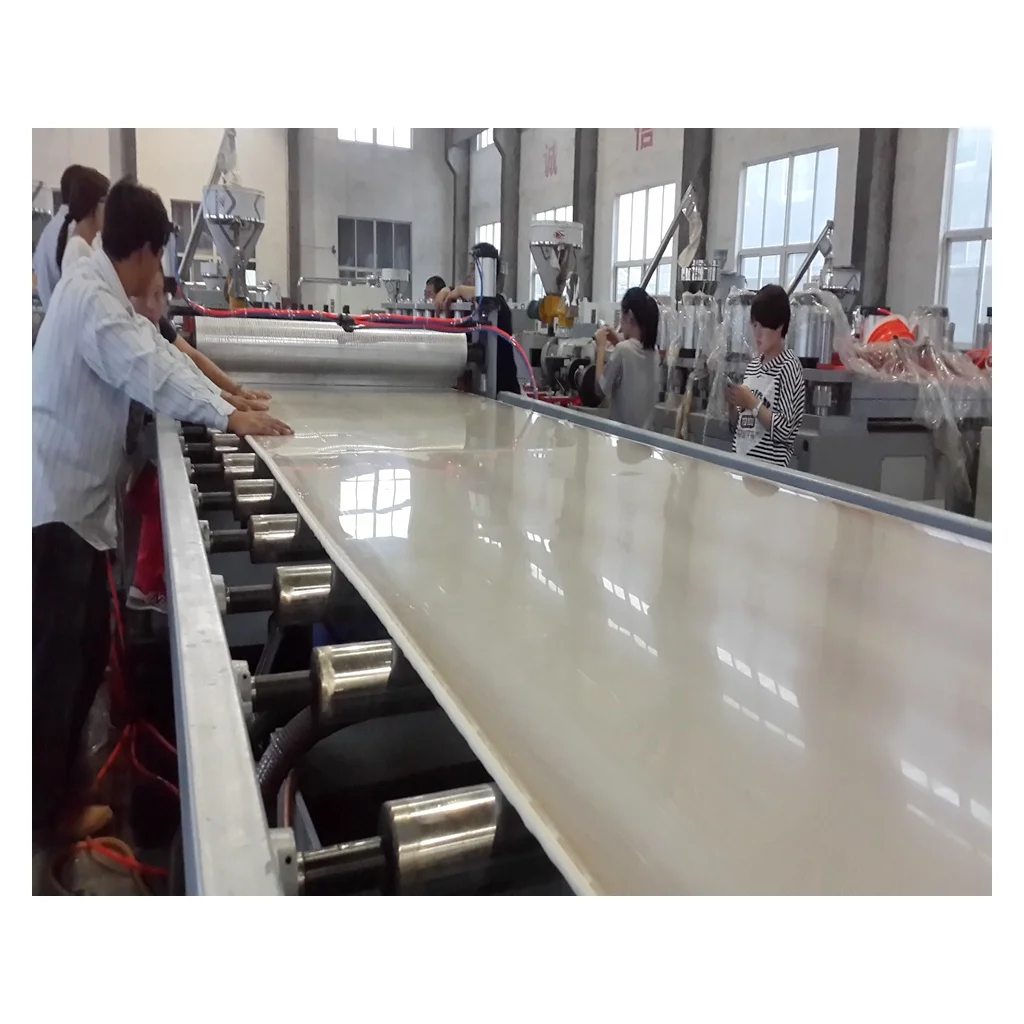

Cooling bracket stacker
WPC foam board cooling bracket is designed for air natural cooling after calibrating, it can make the WPC foam board with uniform
surface without bending, 5 meters cooling bracket is necessary
surface without bending, 5 meters cooling bracket is necessary
Haul off machine
WPC foam board haul off machine is designed with strong haul off force, it is necessary to use 8 pairs or 10 pairs of high quality
rubber rollers which is drived by gear connection
rubber rollers which is drived by gear connection
Edge cutting machine
WPC foam board edge cutting machine is used for cutting the edges of WPC foam board to ensure the uniform cutting edge, the cutting waste can be recycled and reused
Length cutting machine
WPC foam board length cutting machine is used for cutting the length of WPC foam board, it adopts automatic cutting with length metering device.
