TCPIP Communication with 8 Channel relay output IO Control board Compatible Network and UART-TTL



Brief Introduction:

The device has four relay output connectors, can be compatible for correspondence of  TCP/IP network. It can be used in some controller area, such as: automatic light system, motor control, automatic door etc, can make some heavy current to be automatically controlled. It is easy to be connected and can be remotely controlled by computer. 12V/DC to be powered and 220V/AC/10A can be controlled by output. We shall provide free SDK for 2^nd development, and accept OEM/ODM design for regular orders.





Device Appearance

Introduction: there have two functions for RESET button:

(1). When relay is closed, press the button 1S to be released and then the relay will be immediately open

(2). In any condition, press the button more than 10S (RX, TX bright on) then release, device will be going back to factory default setting, so the address ID is changed to 1 and communication baud rate is changed to 9600BPS.





Function and Parameter

Size: 80*68MM (can be change if request)

Weight: about 85G

Working voltage: 12VDC/1A

Static working current :< 30MA

Dynamic current :< 180MA when all relay are closed.

Output: 8 relay, independently from device

Relay contact capacity: 277V/AC/10A;125V/AC/12A

Communication method: TCP/IP

Baud rate: 9600bps (default), can set by computer (19200\\38400\\57600\\115200BPS)

Address ID: 1 (default), can set by computer (1 to 254)

LED:  data transfer indicator (receive & sending), power indication.

Button: RESET button, (Short press 1S for reset and long press 10s for going back to factory default setting).

Support LINUX system.

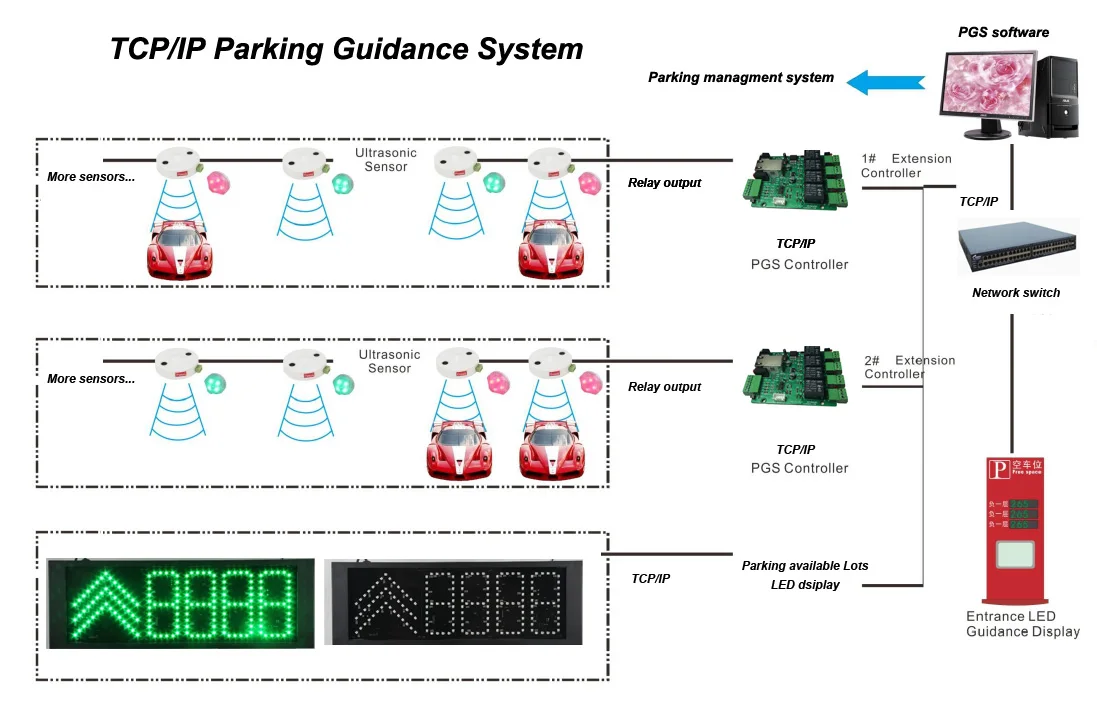

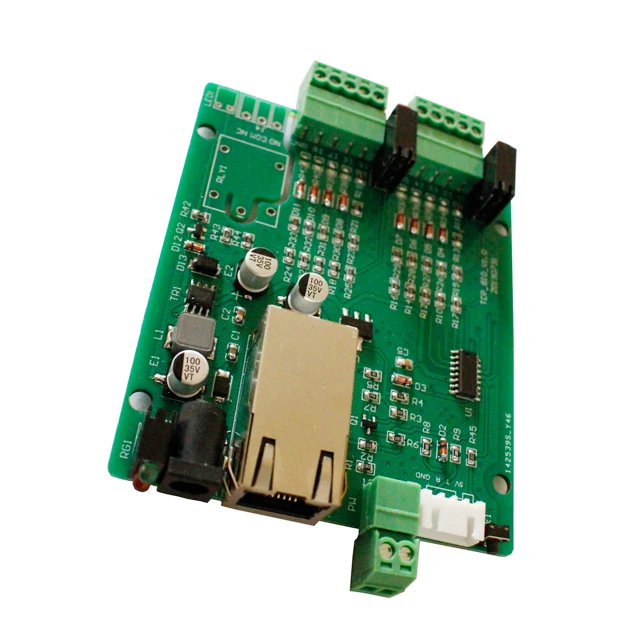

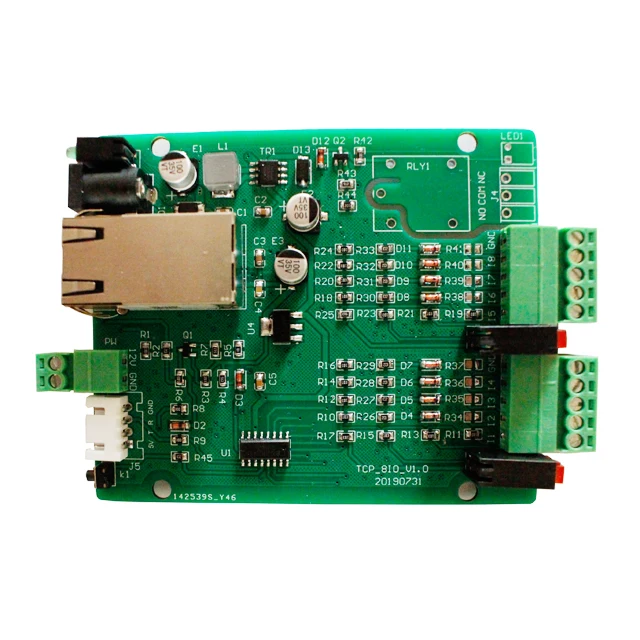

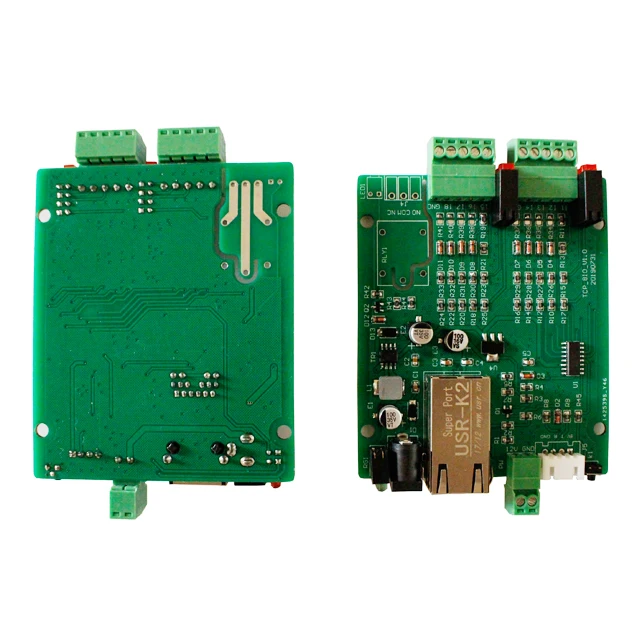

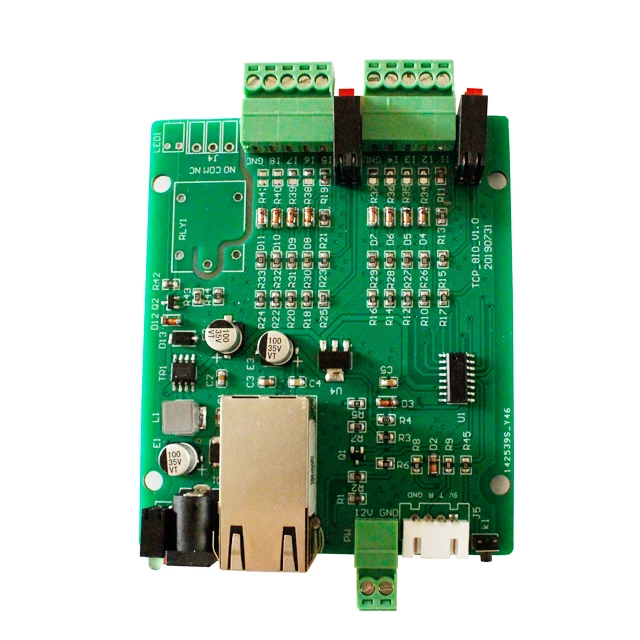

Product pictures:
