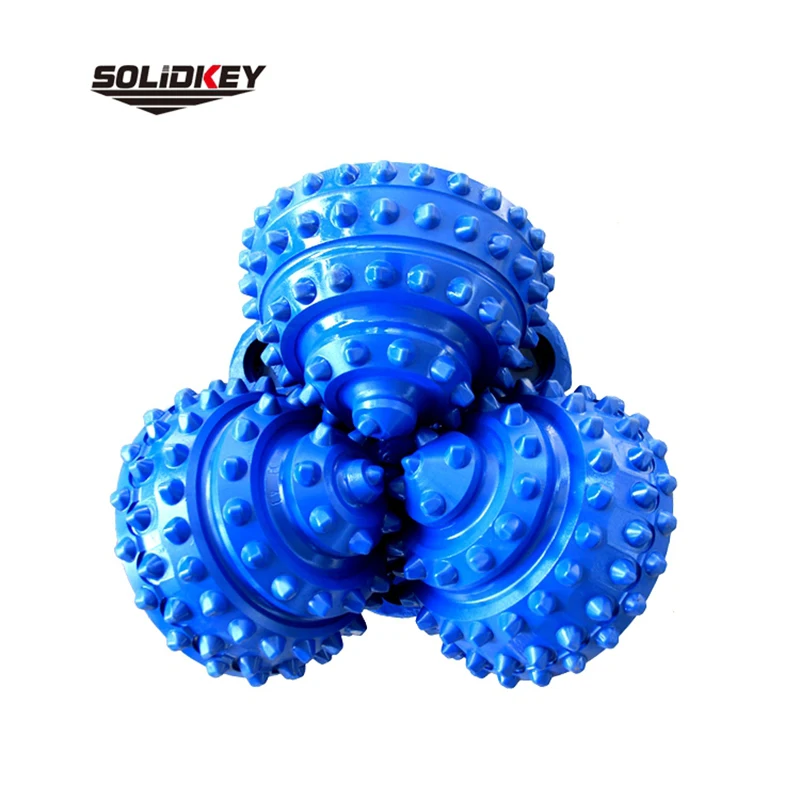

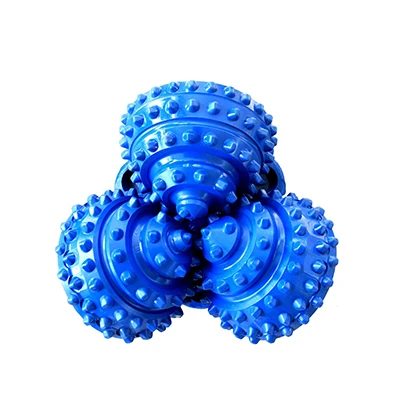

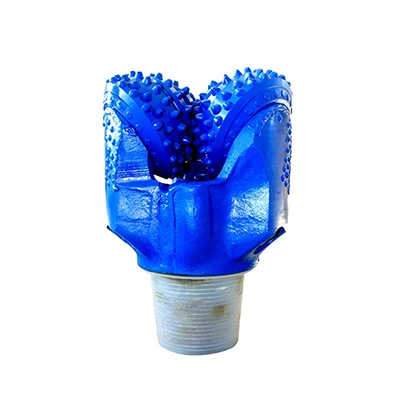

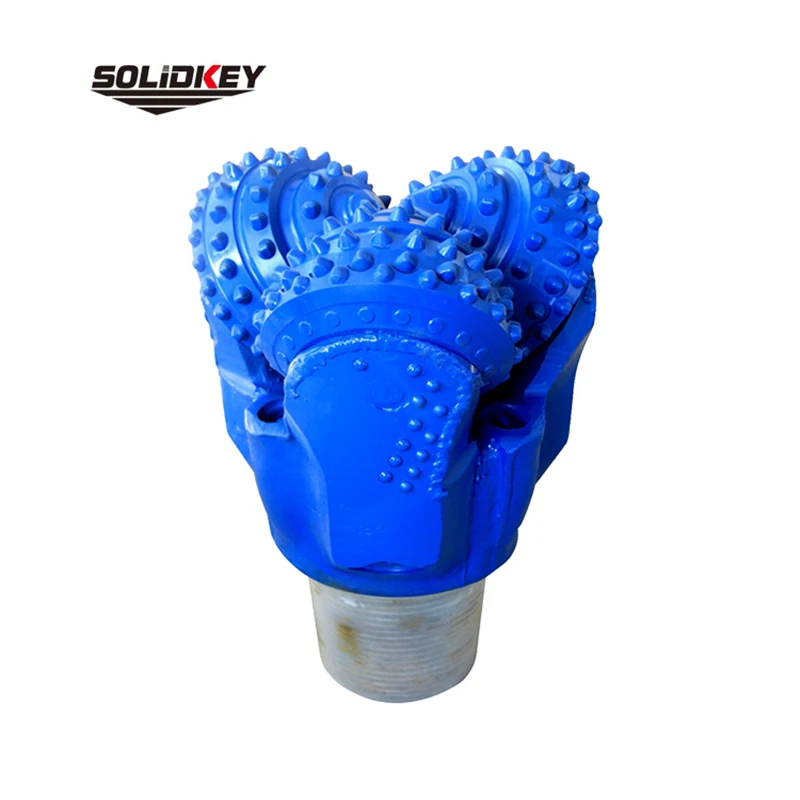

geothermal well tricone bit rock drill button bit with API
geothermal well tricone bit rock drill button bit with API
geothermal well tricone bit rock drill button bit with API
geothermal well tricone bit rock drill button bit with API

geothermal well tricone bit rock drill button bit with API

Share on (62401656747):


Price:$6,400.00 - $6,800.00

Quantity:


Product Overview

Description



Product Description





















































  Basical Specification
 Size of Rock Bit 12 1/4 inches
 311.1 mm
 IADC Code 617
 Thread Connection 6 5/8 API reg pin
 Factory Series KA Series elastomer sealed bearing
  Operating Parameters
 WOB(Weight On Bit) 140-342KN
 RPM 90-50
 Formation

 Hard formation, such as


 sandstone,limestone,dolomite,hard


 gypsum,marble,etc.







Bit Description










































Basical Specification

Size


12 1/4(311.1mm)
IADC Code: 617G
Thread Connection6 5/8 REG PIN
SeriesKA Series elastomer sealed bearing
Operating Parameters
WOB140-342KN
RPM90-50
Formations

Hard formation, such as


 sandstone,limestone,dolomite,hard


 gypsum,marble,etc.







 42





Certificates











API Certificates(No. Spec 7-1-1242)



















ISO Certificates




ISO .jpg









Exhibition











We May Meet In Below Exhibitions

11









Profile & Contacts














Tasks of Solidkey




♦To exploit energy resources underground.
♦To exploit water underground.
♦To install pipelines underground with No-Dig.
♦To pile foundation for constructions.
♦We are one of the people who makes above easier.
♦Let’s work together and enjoy this job.





Who we are:








    We are one of the people who makes above easier.  Let’s work together and enjoy this job.















Solidkey Profile




Established in year 2009, with the first-class engineers of tricone bits and PDC bits, Solidkey is a professional factory of


rock drilling bits.





Main products: Tricone Bits, PDC Bits, Hole Openers, Single Roller Cone Bits.





We service for :


♦Tenders from government or national enterprise.


♦Drilling contractors.


♦Construction projects including HDD and Foundation Piling.


♦Water well drilling, exploration, etc.


















Solidkey Advantages




♦Advanced technology&Equipment, International standard.


♦R&D center for rock drilling tools, high precision CNC      machines, API&ISO Certified.


♦10+ Years & 35 Countries service experience.


♦Optimized solutions for various of requirement.












Regular Sizes











Regular Sizes Of Tricone Bits














































 3 7/8"4 1/2"4 5/8"4 3/4" 5 1/4"
5 1/2" 5 5/8" 5 7/8" 6"  6 1/2"
7 1/2" 7 5/8"  7 7/8"8 1/2" 8 3/4"
9 1/2" 9 5/8" 9 7/8" 10 5/8"  11 5/8"
12 1/4" 13 5/8"  14 3/4"15 1/2" 16"
17 1/2" 20" 22" 24"  26"
