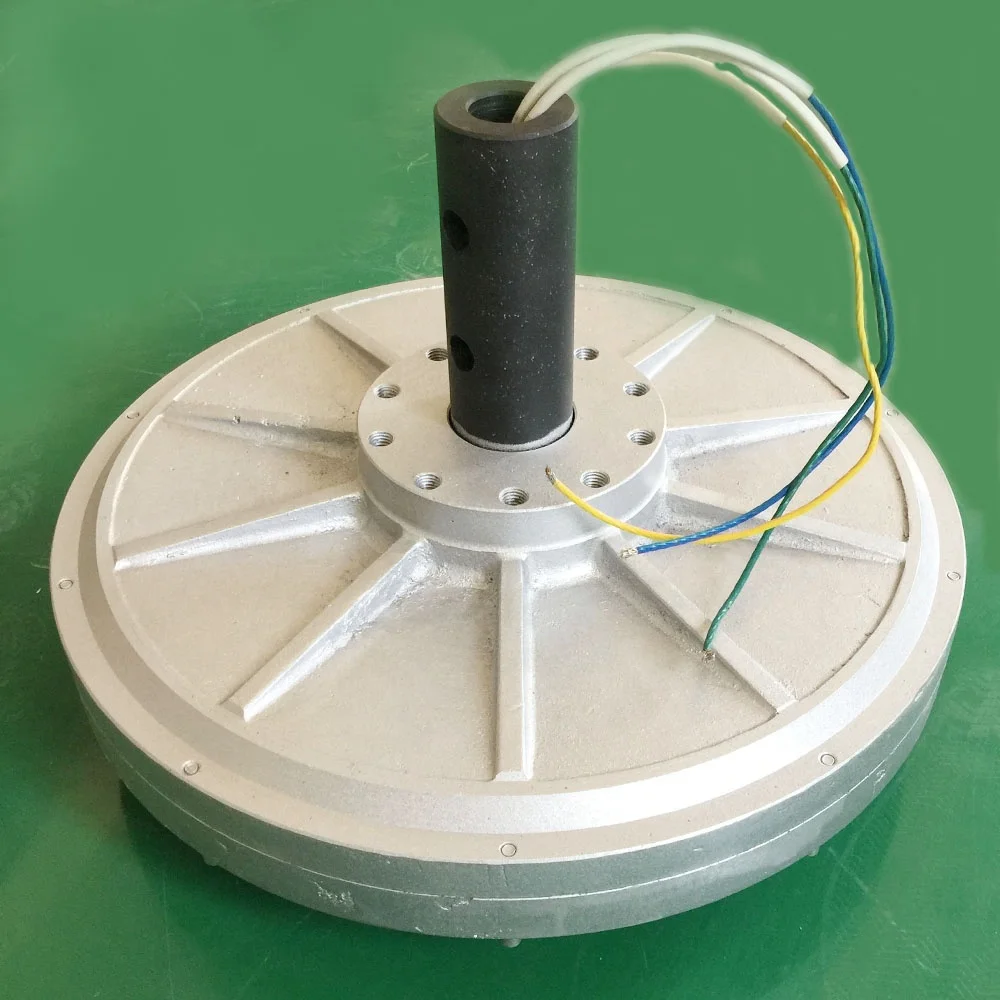

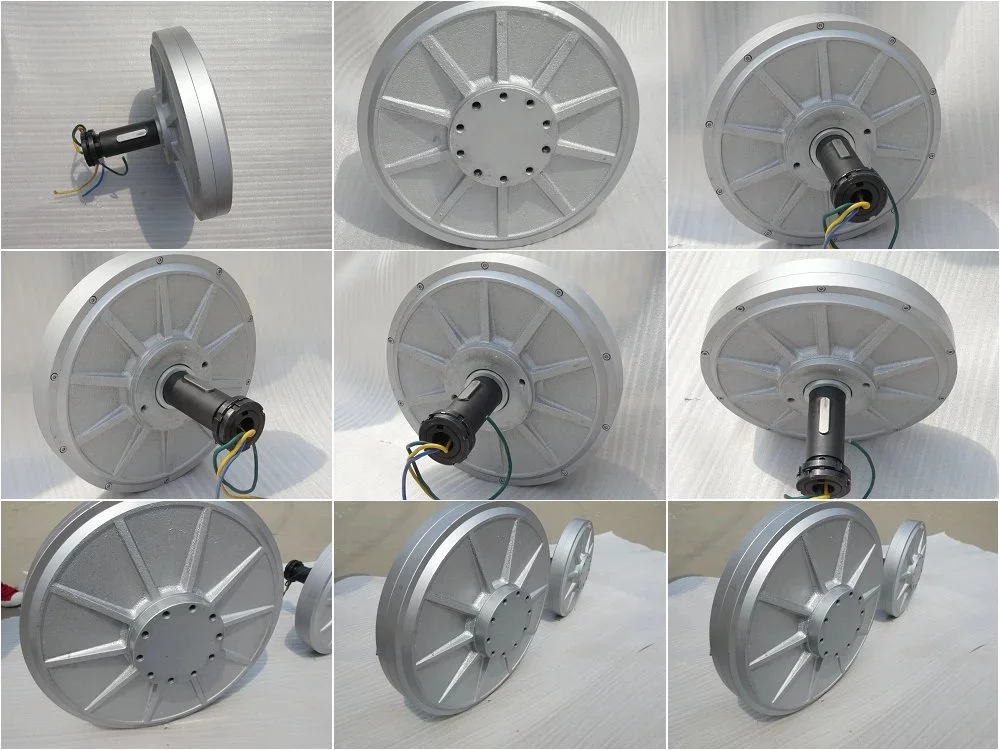

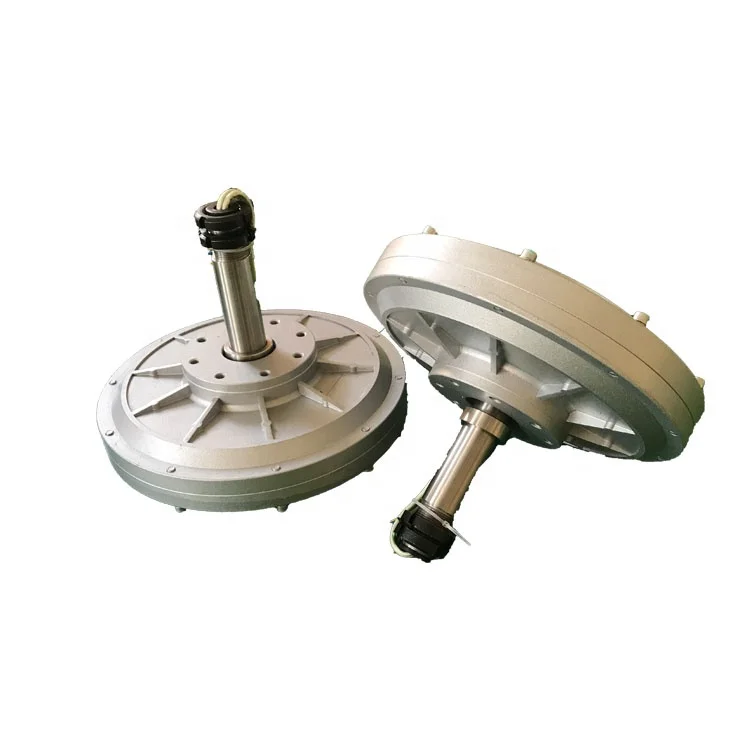

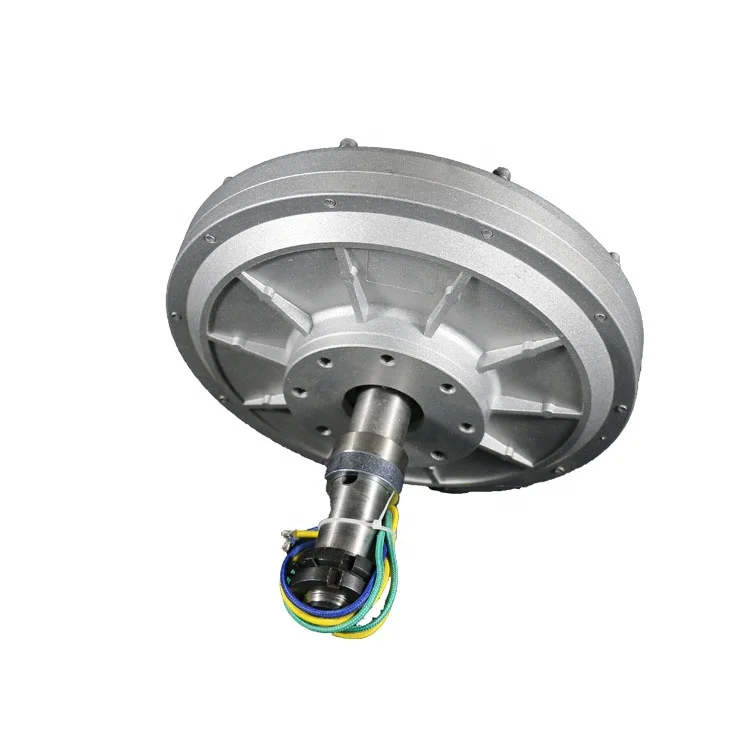

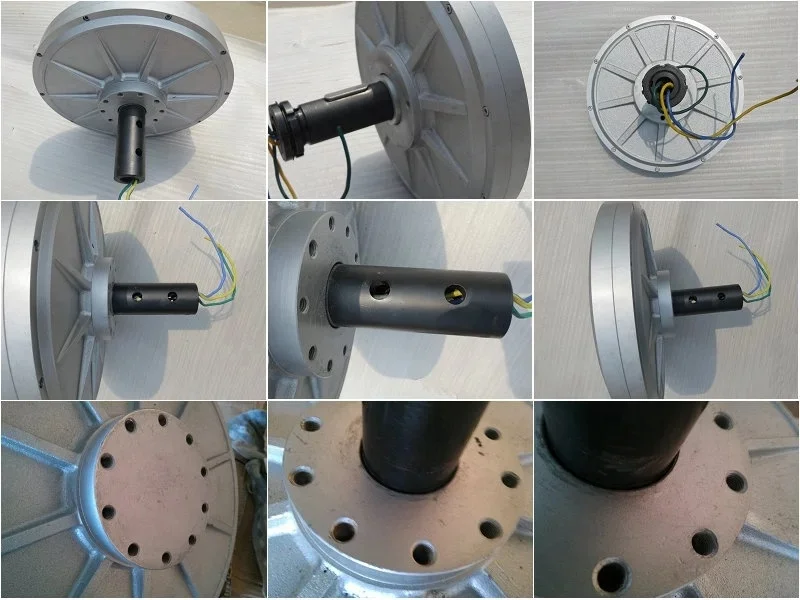

RTS 2KW 2000w 130RPM 96v Low RPM Low Torque permanent magnet alternator Axial Flux generator
- Category: Other Alternative Energy Generator >>>
- Supplier: Wuxi Flyt New Energy Technology Co. Ltd.
Share on (62401682765):
Product Overview
Description
(1) Patent Technology: use newest “Precise Coil” technology, make it more international competitive.
(2) Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
(3) Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
(4) Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
(5) Gearless, direct drive, low RPM generator.
(6) High standard, quality components for use in harsh and extreme environments for wind turbines
(7) High efficiency and Low mechanical resistance energy loss
(8) Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
(2) Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
(3) Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
(4) Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
(5) Gearless, direct drive, low RPM generator.
(6) High standard, quality components for use in harsh and extreme environments for wind turbines
(7) High efficiency and Low mechanical resistance energy loss
(8) Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
Rated power | 2kw |
Rated speed | 130rpm |
Rated voltage | 96v/220v/380v |
Rated Current | 20.8A/9A/5.2A |
Efficiency | >85% |
Resistance (Line-Line) | |
Winding type | Y |
Insulation Resistance | 100Mohm Min(500V DC) |
Leakage level | <5 ma |
Start torque | <0.3 |
Phase | 3 phase |
Structure | Outer Rotor |
Stator | Coreless |
Rotor | Permenent Magnet Generator(Outer Rotor) |
Gen. Diameter | 550mm |
241mmGen. Length | 330mm |
Gen. Weight | 65kg |
Shaft. Diameter | 78mm |
Housing Material | Aluminum(Alloy) |
Shaft Material | Stainless Steel |
1,Competitive Price
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
