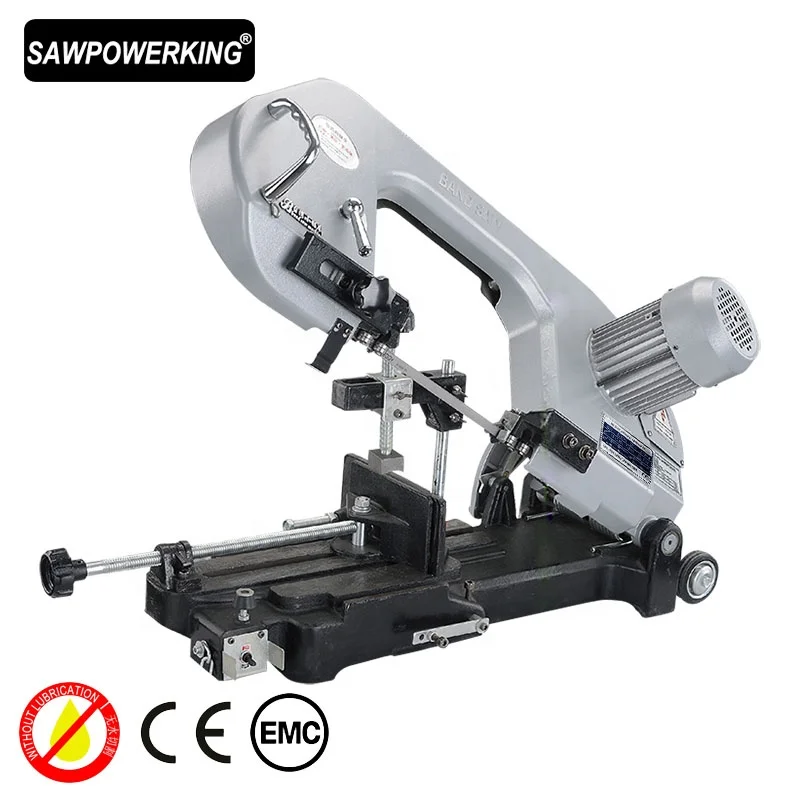

SAWPOWERKING 8' wood cutting DLY 18F1 mini table horizontal band saw machine
- Category: >>>
- Supplier: Yongkang Yike Saw Industry Co. Ltd.
Share on (62401718874):
Product Overview
Description
Product Description
Product Application
DLY-18F1 pipe cutting band saw for metal is specially designed for cutting multiple materials.
It can cut iron pipes, thick-walled pipes, stainless steel pipes, cables and PVC plastic pipes accurately and easily.
Technical Parameters for DLY-18F1 pipe cutting band saw for metal | ||||
Model | DLY-18F1 | |||
Power | 250W | |||
Frequency | 50Hz/60Hz | |||
Blade Size | 13*0.65*1745mm | |||
Blade speed | 45m/min | |||
Max cutting capacity at 90 degree | Round pipe | ø180mm | ||
Solid round steel | ø100mm | |||
Square pipe | 180×200mm | |||
Max cutting capacity at 45 degree | Round Pipe | ø100mm | ||
Solid Round Steel | ø100mm | |||
Square Pipe | 100×100mm | |||
N.W/G.W | 61/68kg | |||
Machine Size | 95×31×40cm | |||
Machine Packing Size | 97×38.5×47cm | |||
20-foot Cabinet Loading | 135sets | |||
Certificate | CE | |||
Main Features
1) It has 180mm cutting capacity.
2) No sparks, no flying cutting powder.
3) It is equipped with a mute motor. Work without noise even during night.
4) Cutting angle can be adjusted from 45 to 90 degrees, and the cutting surface is smooth and flat.
5) Our product is portable, and the workbench can be installed for more efficient cutting.
Certifications

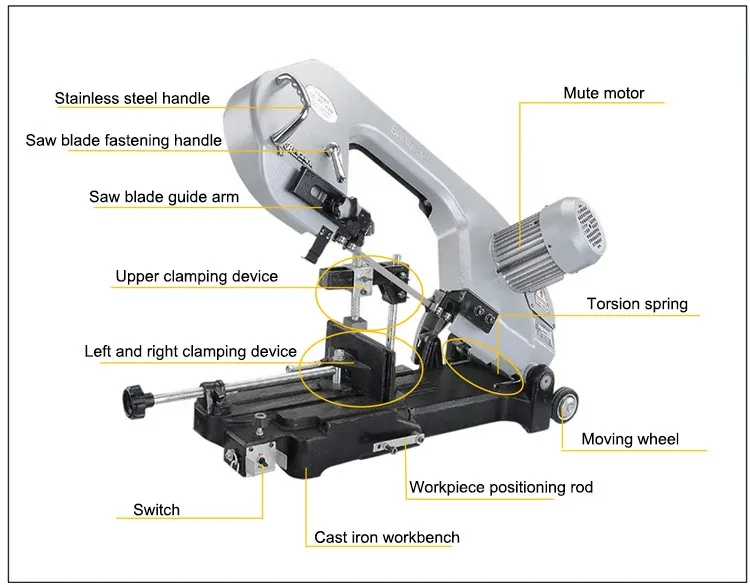

Detailed Images
Driving wheel and passive wheel
1) Cast iron wheel, good wear resistance.
2) Equipped with German bearings.
3) Stable and durable runing.
Cast iron base
1) Quick clamping device,the workpiece is stably clamped.
2) The base is a one-piece casting,the structure is firm.
3) Cutting angle can be adjusted from 45 to 90 degrees.

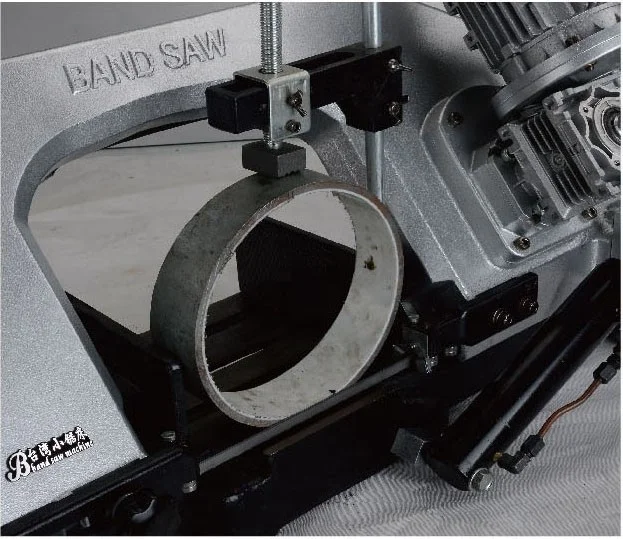

Cutting mechanism
1) The saw frame is lowered by its own weight, so it can
cutting automaticly after booting.
2) The saw frame is completely perpendicular to the base,
no cutting error.
3) It can cut iron pipes, thick-walled pipes, stainless steel pipes, cables and PVC plastic pipes accurately and easily.
Mute motor
Work without noise.

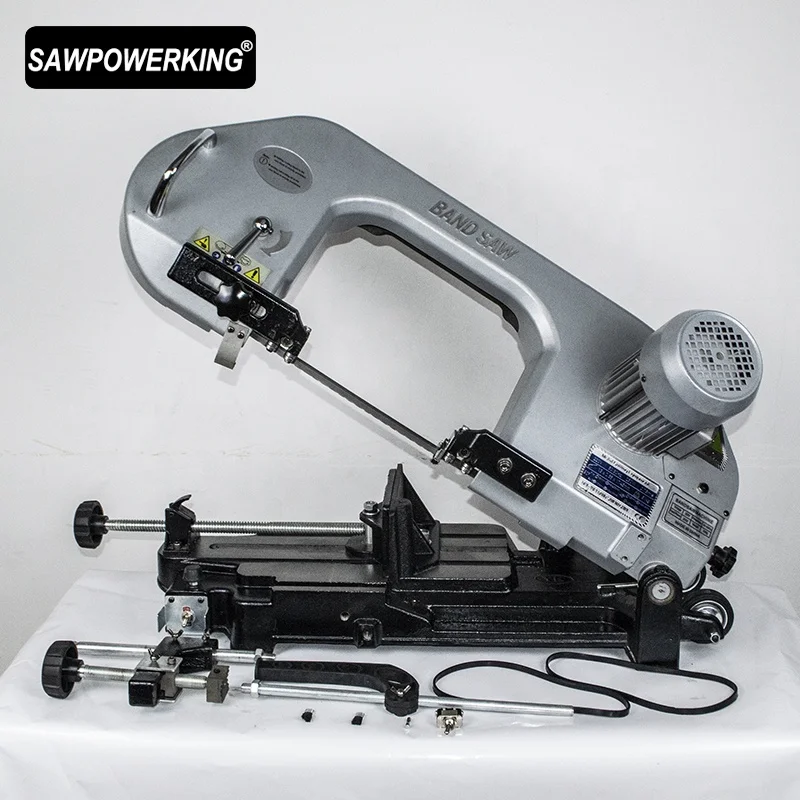

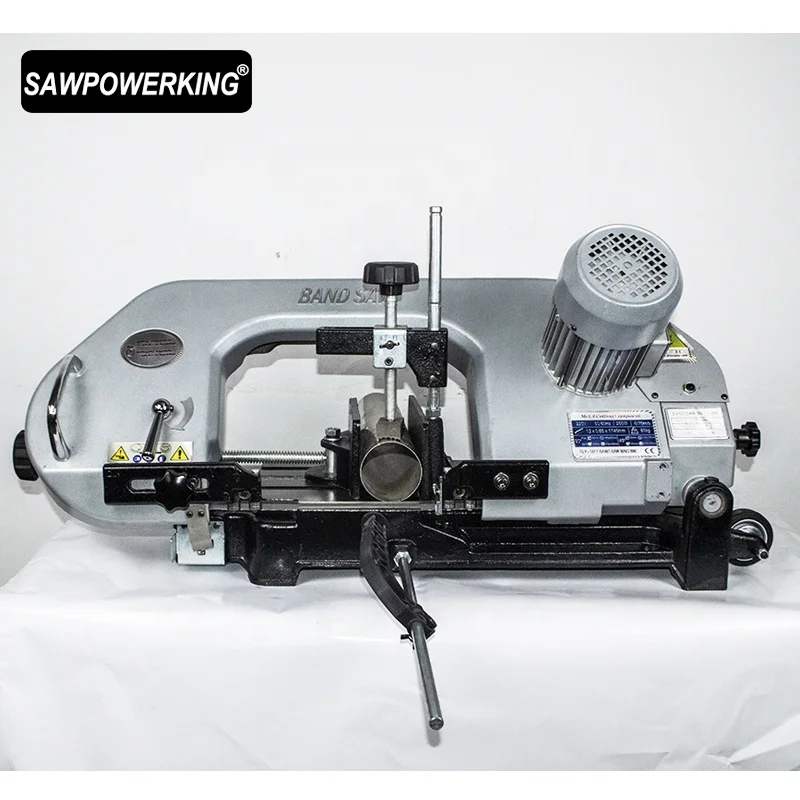

Picture Real Shot
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Online guidance on after-sales issues.
Packing & Delivery
Packaging | ||
Size | 97(L) * 38.5(W) * 47 (D)cm | |
Weight | 68kg | |
Packaging Details | The normal package is wooden box with steel belt. If export to european countries,the wooden box will be fumigated.If container is too tigher, we will use pallet for packing or pack it according to customers special request. | |
