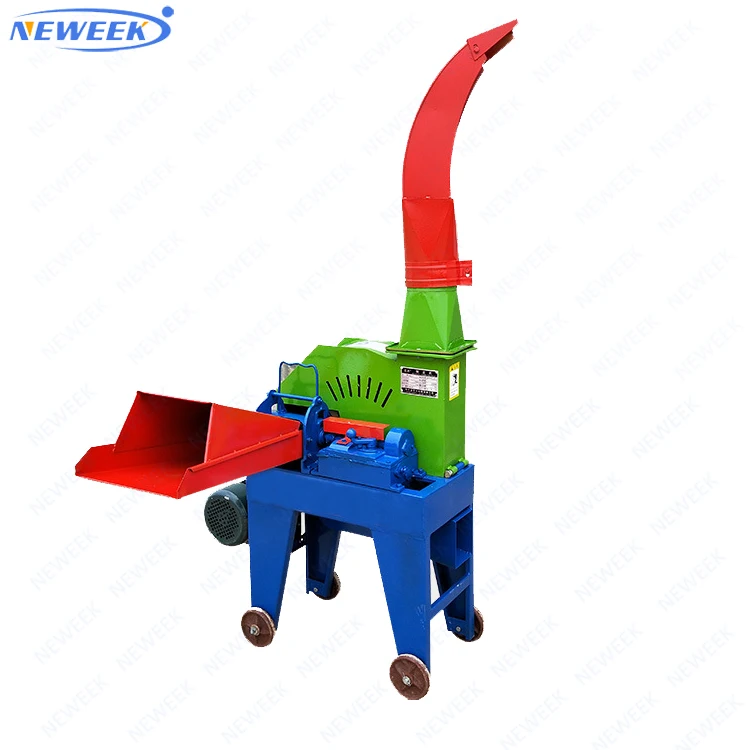

NEWEEK dry branch maize chaff hay chopping cotton stalk chopper machine price
Neweek 9ZC serious chaff cutter grass chopper hay cutter is based on corn straw, wheat straw, straw and other crops for the
treatment of materials, through the chopping, cutting machinery crushing, the production of suitable for livestock breeding
cattle, sheep, horse, deer feed processing equipment. It is mainly composed of feeding mechanism, chopping mechanism, throwing
mechanism, transmission mechanism, walking mechanism, protective device and frame.
treatment of materials, through the chopping, cutting machinery crushing, the production of suitable for livestock breeding
cattle, sheep, horse, deer feed processing equipment. It is mainly composed of feeding mechanism, chopping mechanism, throwing
mechanism, transmission mechanism, walking mechanism, protective device and frame.
Product Paramenters
Model | 9ZC-0.4 | 9ZC-2.0 | 9ZC-4.5 | 9ZC-10 | 9ZCR-3T | 9ZCR-6T | 9ZCR-8T | |||||||
Power | 2.2kw/220v Or 6hp | 3kw/220v Or 6hp | 5.5kw/380v Or 12hp | 15kw/380v Or 25hp | 4kw/220v Or 6hp | 5.5kw/380v Or 15hp | 7.5kw/380v Or 18hp | |||||||
Capacity | 0.5-1 t/h | 1.5-2.5t/h | 4-6 t/h | 8-10 t/h | 3-4 t/h | 4-6 t/h | 6-8 t/h | |||||||
Rotary | 900r/min | 1440r/min | 1440r/min | 1440r/min | 1400r/min | 1400r/min | 1400r/min | |||||||

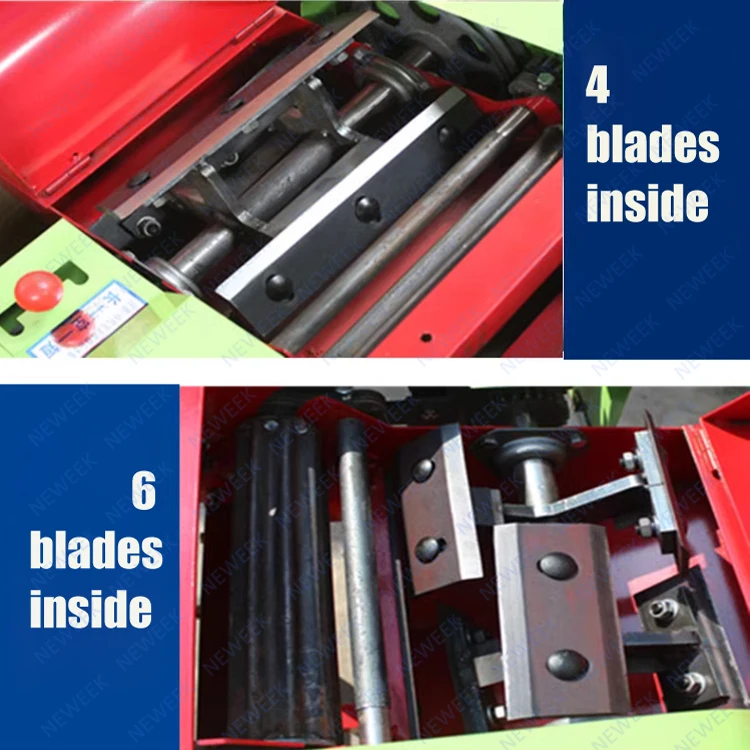

Blade Qty | 4/6 | 4/6+12 | 3+12 | 3+15 | 6+30 | 6+42 | 6+54 | |||||||

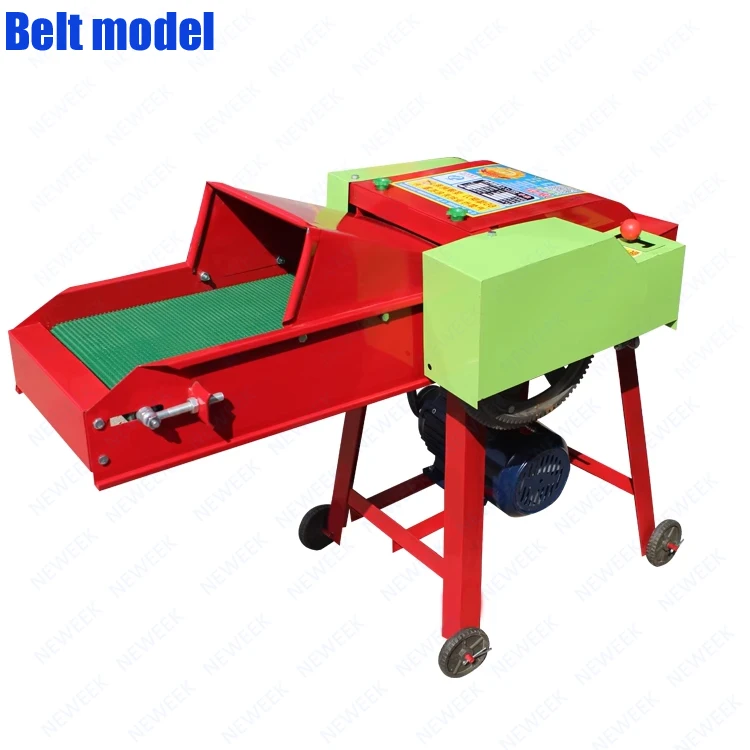

Conveyor | No or Belt | No or Chain | Chain | Chain | Chain | Chain | Chain | |||||||
Output size | 12-35mm | 6-33mm | 6-33mm | 6-33mm | 8-30mm | 10-33mm | 10-33mm | |||||||
Weight | 45kg | 98kg | 300kg | 920kg | 115kg | 140kg | 180kg | |||||||
Size | 1.2*0.6*1.0m | 1.1*0.8*1.7m | 1.7*1.2*2.3m | 2.5*2.1*4.1m | 1.6*0.5*0.9m | 1.9*0.6*1.0m | 2.2*0.7*1.1m | |||||||
In case of product upgrades, equipment specifications subject to change without notice. | ||||||||||||||
