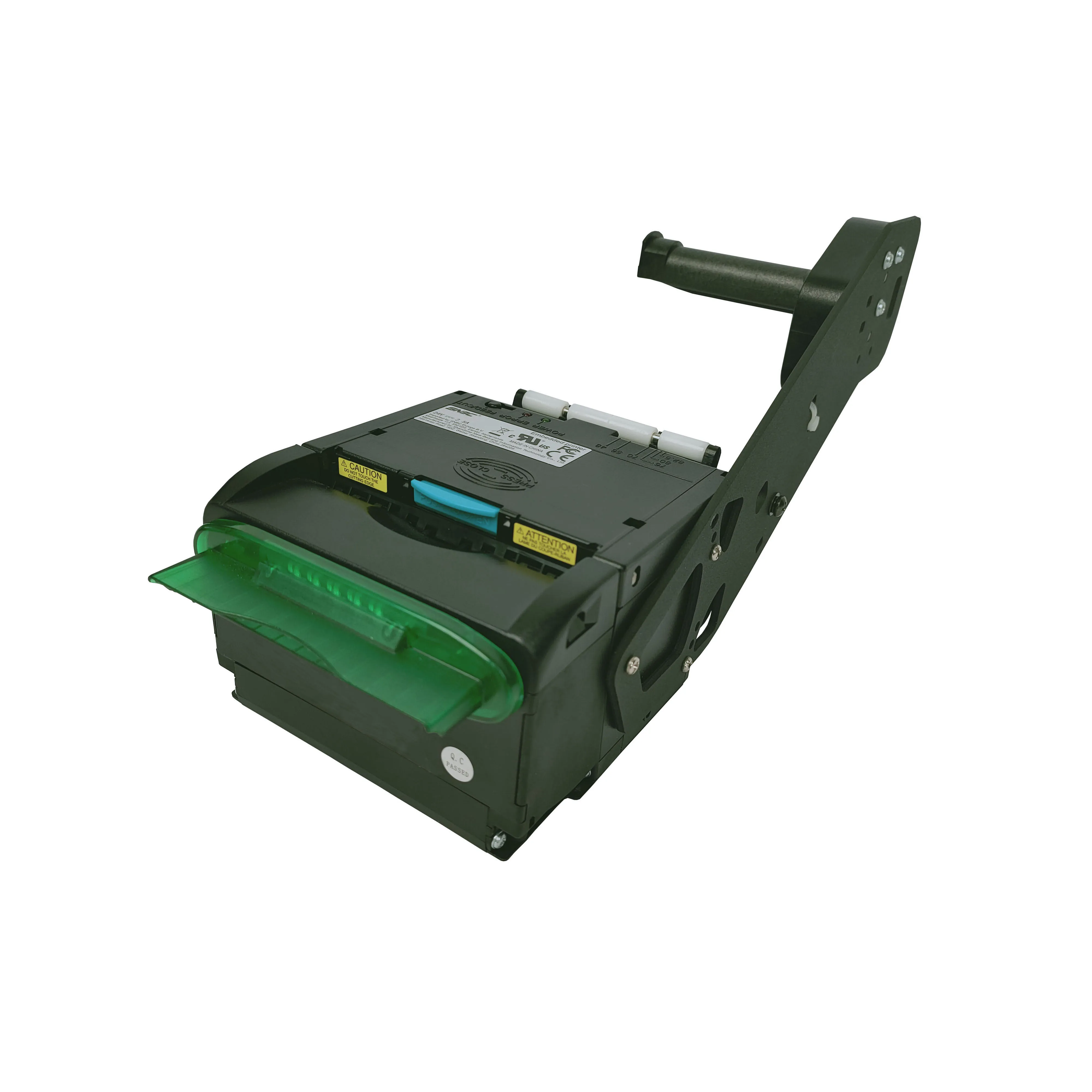

Factory Price High Performance 80mm Kiosk Thermal Printer Module Kiosk With Printer SNBC KT800

Items

Parameter

Printing

Print method

Direct thermal line printing

Resolution

203DPI

Print width

Max. 80mm

Print speed

Max. 130mm/s

Memory

SDRAM: 8MB, FLASH: 2MB/4MB

Interface

USB2.0

Barcode
&
Fonts

Barcode

1D:UPC-A, UPC-E,JAN8 (EAN8), JAN13 (EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR

2D: PDF417, QR, Maxicode, 2D GS1

Fonts

Font A(12×24), Font B(9×17), Kanji Font(24×24)

Rotate(0°,90°,180°,270°), enlarge(1-6X), emphasize, underline, reverse

Paper

Paper type

Continuous paper, Marked paper

Paper width

48~82.5mm

Paper roll OD

Max. 250mm

Paper roll ID

25.4mm

Power Supply

Input

110~240V AC,50~60Hz

Output

24VDC, 2.5A

Reliability

Print head lifetime

≥150KM

Cutter lifetime

≥1,000,000 cuts

Environment

Operation condition

0~50℃, 20~90%RH(40℃)

Storage condition

-25°C ~60°C, 15%~ 98% RH (40°C)

Physics Spec.

Dimensions

116(W) x 146.8(D) x 76.7(H)mm (Without paper holder)

Weight

Approx. 1.5kg (Without paper holder)
