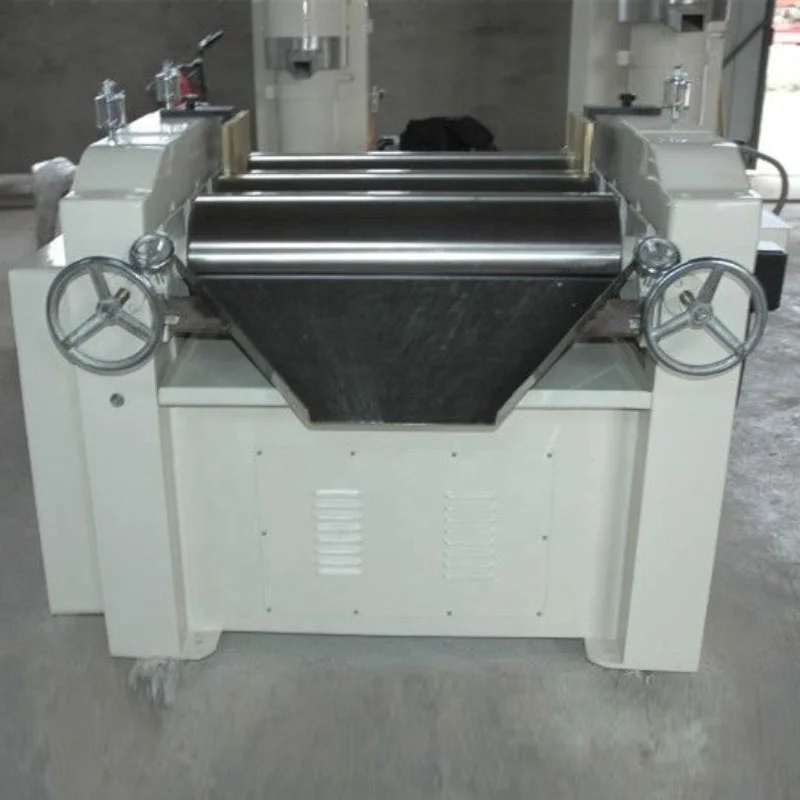

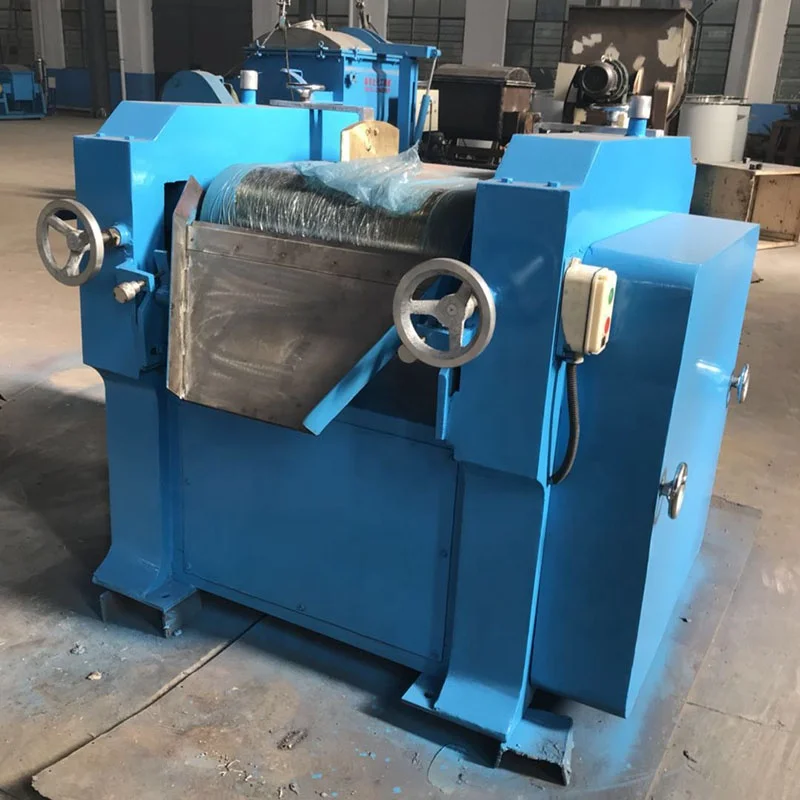

Hydraulic manual excellent exact 50 ointment mill used nano paint printing ink three roll mill machine
- Category: >>>
- Supplier: Laizhou New Hongda Chemical Machinery Co. Ltd.
Share on (62402129493):
Product Overview
Description
Product Description

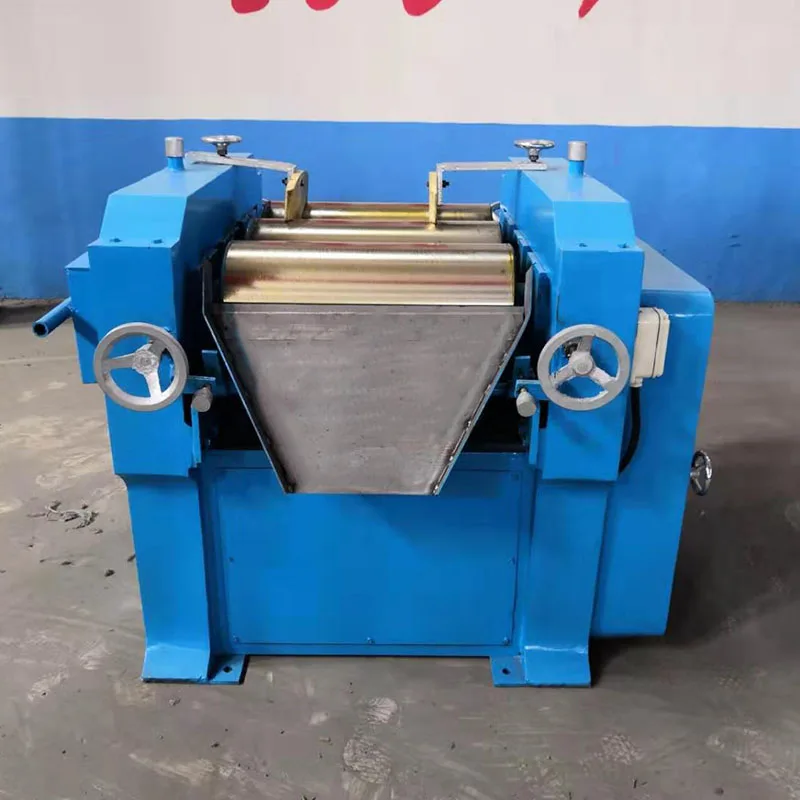

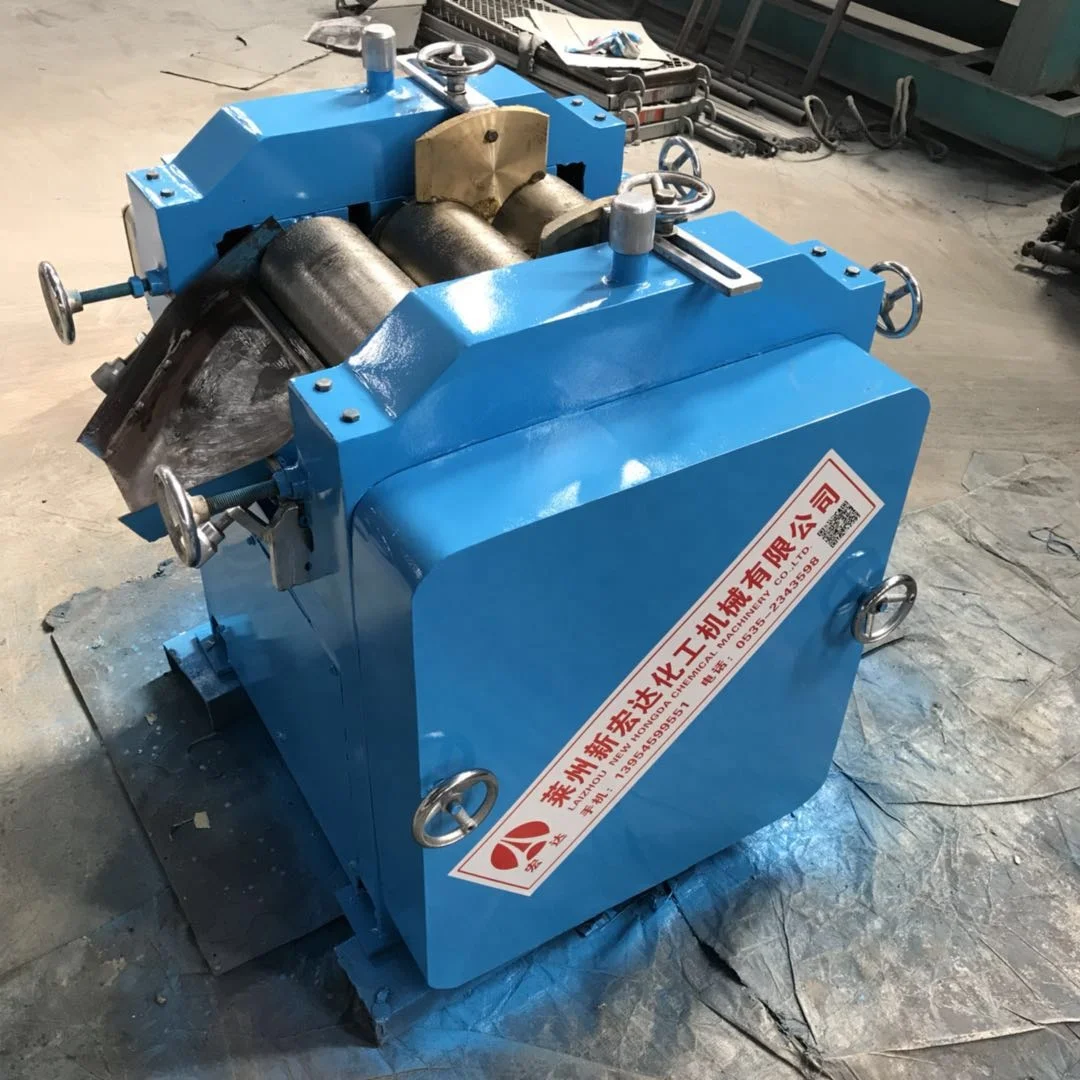

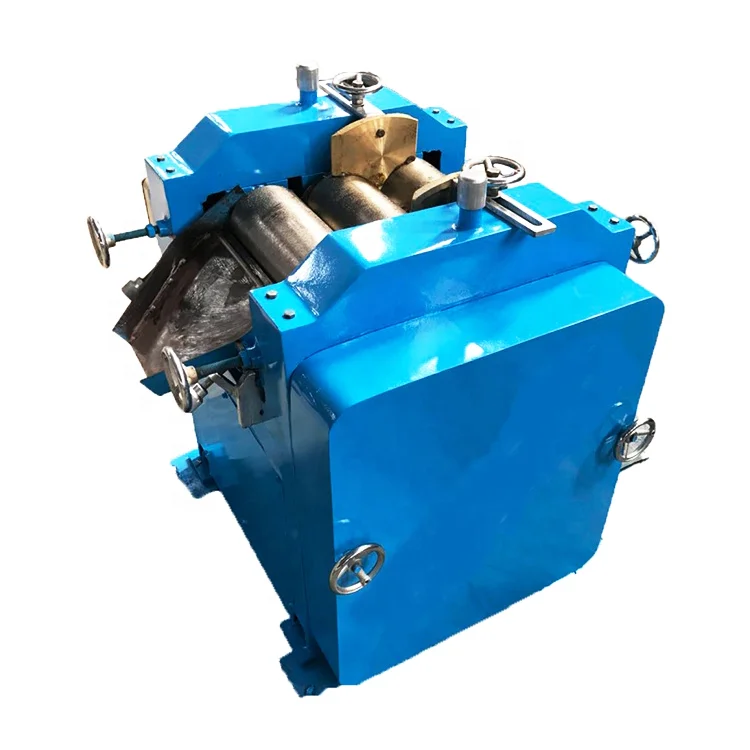

Hydraulic manual excellent exact 50 ointment mill used nano paint printing ink three roll mill machine Information
Type120 / 150 / 250 is applied in small scale production or laboratory;
Type 405 / 315 is applied in large scale production;
Advantages:
1.Steady structure design: The welding machine frame structure ensures the equipment to work more steadily, additionally, the cylinders, gearing wheel and belt pulley are dynamic balance designed, so the machine operates with the lowest noise.
2.The distance between three rollers is adjustable by PLC or Hydraulic system or hand wheels to obtain different grinding fineness.
3.Suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness.
Parameter | Type 120 | Type 150 | Type 250 | Type 315 | Type 400 | ||
Roller Diameter (mm) | Φ120 | Φ150 | Φ250 | Φ315 | Φ405 | ||
Length of Roller Working Face (mm) | 280 | 320 | 600 | 760 | 810 | ||
Speed Ratio (S:M:F) | ≈1:3:9 | ≈1:2:4.98 | ≈1:2:5.25 | ≈1:2.87:8.1 | ≈1:3:9 | ||
Stirring Rate of Roller | Low Speed Roller (r/min) | 31 | 32.5 | 22.4 | 17 | 14.39 | |
Medium Speed Roller (r/min) | 85 | 75 | 56 | 48.8 | 44.39 | ||
High Speed Roller (r/min) | 232 | 173 | 140 | 139 | 136.86 | ||
Motor Specification | Power (KW) | 1.5 | 2.2 | 7.5 | 11 | 15 | |
Stirring Rate(r/min) | 1400 | 940 | 720 | 730 | 730 | ||
Dimension (L*W*H) | 950*700*750 | 896*800*930 | 1065*1010*1030 | 1950*1880*1350 | 2260*1880*1500 | ||
Weight (kg) | 350 | 613 | 2000 | 3170 | 5300 | ||
1. The max processing capacity (customized) in the list is based on the medium water. Changes in design reserved.
2. If works in special environment such as high temperature, high pressure, explosive, combustible, corrosive environment, correct data is required for correct model selection.
3. We can provide appropriate design according to practical conditions and specific requirements.
2. If works in special environment such as high temperature, high pressure, explosive, combustible, corrosive environment, correct data is required for correct model selection.
3. We can provide appropriate design according to practical conditions and specific requirements.
Application
Suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness.
Paints | Automotive Paint / Top Coat / Clear Coat / Cathodic Dip Coating / Coil Coating / Fillers / Construction Paint / Wood Paint / Marine Paint / Dispersion Paint / Road Marking Paint | ||||||
Printing Inks | Screen Printing Inks / Flexo Printing Inks / Rotogravure Inks / Sheet-fed Printing Inks /Ink Jet / Heat-set Inks / Cold-set Inks | ||||||
Agrochemistry | Fertilizer / Pesticides / Suspension Concentrate(SC) | ||||||
Pigments/Dyes | Pigment Production / Titanium Dioxin | ||||||
Ceramics / Glass | Ceramic Pigments / Table Ware/Sanitary Wear / Technical Ceramics | ||||||
Ores/Minerals/Metals | Graphite / Talc / Calcium Carbonate | ||||||
Life Science | Biotechnology / Cosmetics/Personal Hygiene (eye make up, lipstick, skin-care products,soaps) / Pharmaceuticals(dental composites) | ||||||
Food | Cocoa Liquor / Marzipan / Chocolate Fillings / Processed Cheese / Plant Gum / Camellia Japonica Seed Oil | ||||||
Chemicals | Adhesives / Sealants /Plastic | ||||||
Working Principle
This device is composed of three rollers, mounted in a rack, directly driven by motor. The general direction of rotation between the roller, the front roller rotates forward and backward rotation. Before and after roller roller rotation speed fast and slow. The middle roller is fixed, and the two roller is arranged on the slide way, a spring device, adjusting roller and roller wheel before and after in the distance. Material by roller and roller between enter by the roller extrusion, finer granular products, followed by fast and bring out, quickly and end is provided with a scraper, material and the roller separation, fall into the collection bucket. Large amount of heat generated due to the grinding process, the center of the roller is design is of a hollow structure, water cooling, to ensure the quality of the products.

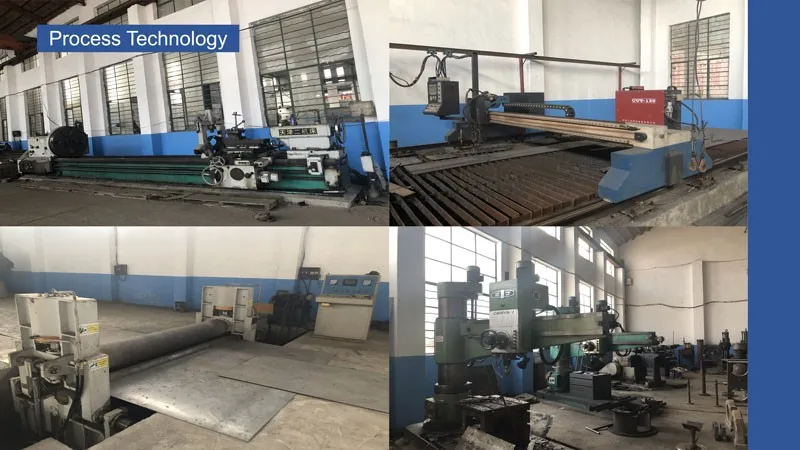

Process Technology
Packing & Delivery

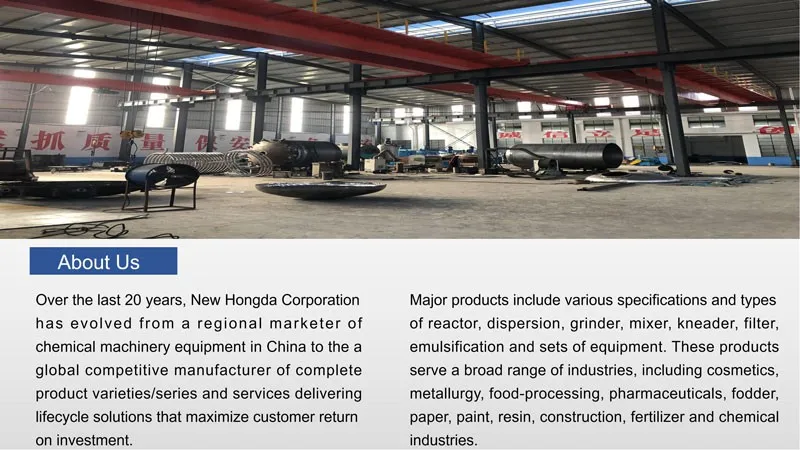

Company Profile
Certification
Our Service
FAQ
