Product Overview
Description
Multi-Functions
asphalt recycling machi regeneration machine for road repair pothole pits repatching patching asphalt bitumen recycling machine
This is one multi-functional road maintenance equipment ,quite powerful with 3main functions integrated in one vehicle equipment
- 1. road pits/pothole repatching ,the repair function
- 2. road crack joint function (filling with Asphalts or sealants)
- 3.Asphalts spraying (hot mixing aspahtls or emulsified aspahtls)
- 4.in addition , also can supply the hydraulic pwoer for other small hydrulic device such as the road breaking hammer , etc
- It is one comprehensive maintenance vehicle which can realize various types of maintenance works for multiple occasions and multiple roads conditions ; it has high curing strength, low cost, fast and flexible operation, high safety and high efficiency, and can be operated 24 hours a day. It is widely used in the maintenance and construction of highways, municipal roads, national and provincial trunk roads, rural roads, factories road and other roads conditions.
Asphalts spraying system | Asphalts tank capacity | 500-1000L |
| Asphalt measurement method | Continuous unlimited metering |
| Temp. control Range | 120-180 ℃ |
| Electric heating hose | 6m/ full heating/360o rotate |
| Spraying speed | 80-100L/min |
| Asphalts heating time | 1000L/2-3h |
China unique design R&D,
1). Select Dongfeng truck chassis, power steering, air conditioning, air conditioning, suitable for all kinds of conditions.2). Adopt cyclone dust removal device, smokeless and dust free, energy saving and environmental protection.3). It adopts vertical forced mixing to mix asphalt concrete.
Asphalts regeneration Mixer system | Single regeneration capacity | 2000kg/time |
| Regeneration Ability | 12-16T/h |
| Fuel consumption | 4-6L /T |
| Mixing mode | Double hydraulic driven vertical forced mixing |
| Discharge mode | Continuous discharge Worked by Single tank discharge or double tanks discharge simultaneously |
| Asphalts discharge Temp. | 120-180 ℃ |
| Heating mode | Burner heating or hot air circulation heating |
4). The whole vehicle is driven by full hydraulic pressure. The main hydraulic components are American Eaton products, which are easy to operate and safe to work.5). Asphalt pipes and asphalt pumps are built-in and are free of cleaning after use.6). With asphalt measuring device, according to the need, measure the amount of asphalt per kettle to ensure the oil-stone ratio of the mixture.7). The asphalt tank is equipped with intelligent automatic temperature control device and liquid level control alarm device to ensure the temperature of asphalt and the loading of asphalt.

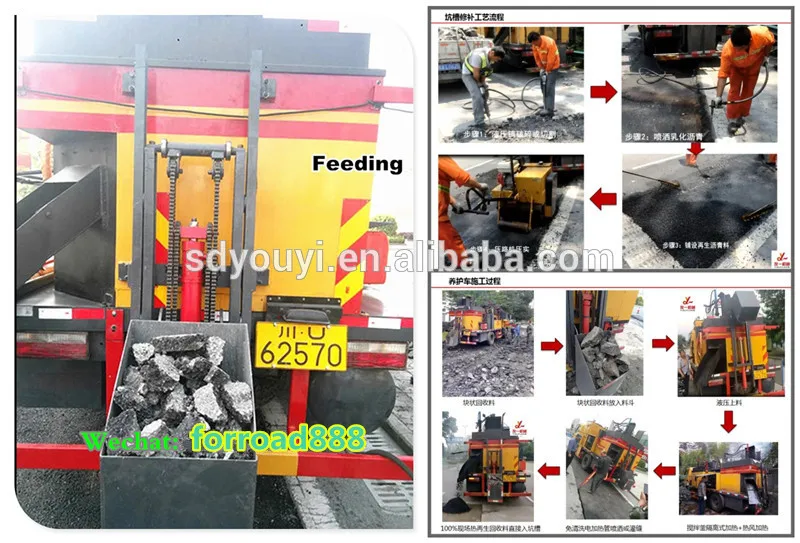

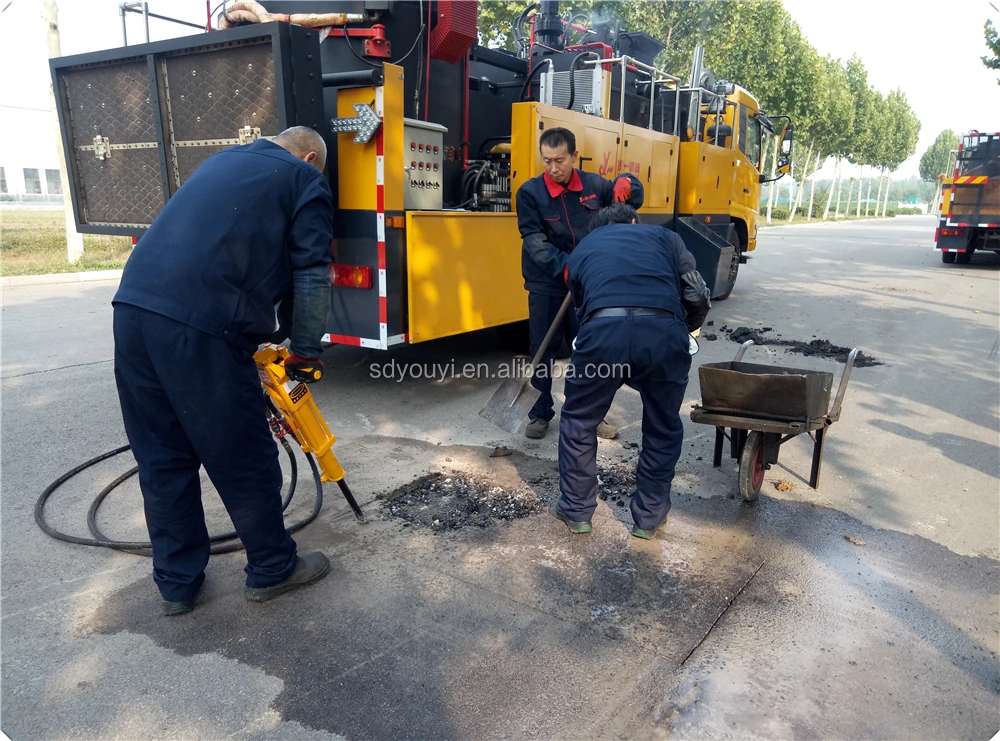

Roadsite working flow
Loading system | Loading type | Single hydraulic cylinder lift chain climb-type |
| Hopper capacity | 300KG |
8). The mixing bin is equipped with an infrared scanner to effectively control the temperature of mixing and discharging.9). Adopt the tail-feed design to reduce the road surface during construction and avoid traffic jams 10). The side design is used for discharging, and the discharging can directly go to the pit, which reduces labor intensity and improveswork efficiency.
infrared heat wall
In addition, the equipment can be equipped with the world's leading gas infrared heating-wall, which can be controlled dividedly , the construction is more flexible, and it is effective against vibration and wind resistance. The construction takes only 10-15 minutes.
The heating wall system
| Heating mode | Fuel gas infrared heating+Blue flame thermal radiation technology |
| Heating area | 2000*1000mm (1/4 area, can work along) |
| Reversal mode | Hydraulic driving,90o reversion |
| lateral movement | To move Left or right of 35mm |
| Height movement | 100mm |

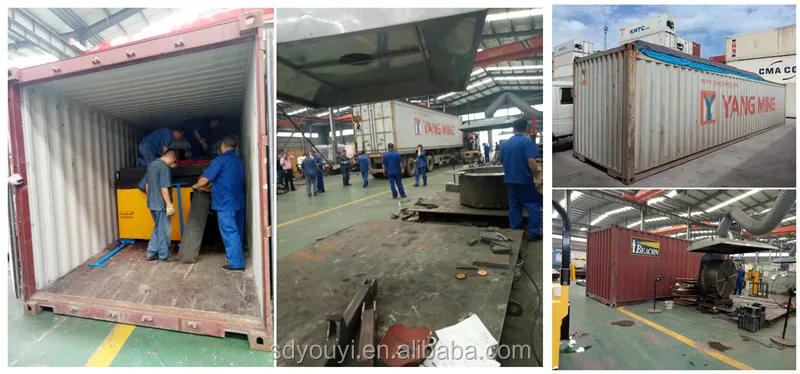

Delivery EXW/FOB/CIF
Company profile
Founded in 1998, Shandong Youyi Machinery Technology Co., Ltd. was formerly known as Huanyu Mould Research Institute..Now Youyi machinery company is located in the NO.11 industrial park,National High-Tech Industrial Zone of Jining city , Shandong ,China.
it integrates the manufacture,design, research&development and sales in one and has been focusing on road maintenance products fields for more than 20 years.
Our company actively adheres to the concept of environmental protection innovation and In line with the global ecological environmental protection strategy, the multi-function comprehensive road maintenance equipment developed is not only energy efficient but also environmentally friendly and sold well in such countries and regions as Australia, Malaysia, Indonesia, South Africa, Turkey and other Southeast Asian, Middle Eastern, European and American countries.
Now our company provides three main series of more than 50 kinds of products, such as road comprehensive maintenance vehicle, road-crack joint equipment and small road construction machinery etc. It has obtained more than 32 national patents, passed SGS international certification, and obtained the quality manage system certification of ISO9001, ISO14001, QHSAS18001 and so on. Besides, we have got many domestic honorary titles such like domestically certified AAA-level star enterprises.
Our company has created the first domestic double-kettle mixing R&D design, which can simultaneously discharge in single-kettle or double-kettle mode. It can mix complete different grades of two materials. The vertical forced stirring performance solves the problem of segregation that can not be solved by common drum mixing in the market.
It also has the characteristics of high heat&cold resistance so that the whole vehicle can be constructed at an altitude of 6,000 meters.Vertical forced stirring and with diesel burner indirect-heating modes and German Green Technology in all to meet a variety of road construction work even at an altitude of 6000 meters conditions.

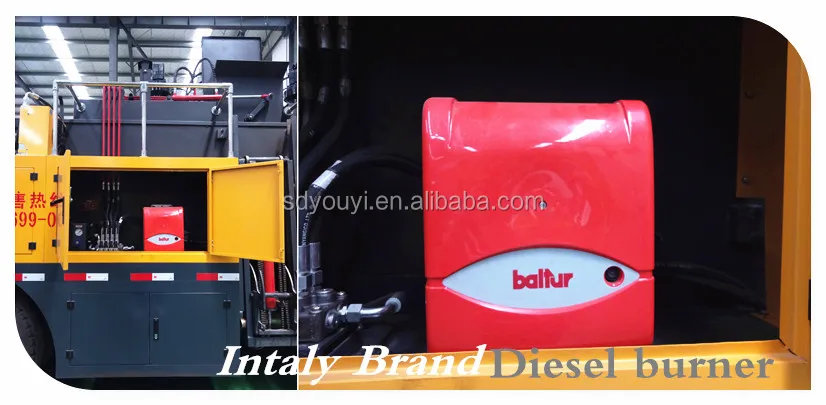

Heating system
| Mixer tank burner power | 310KW |
Asphalts tank burner power | 60KW |
The overall use of German Green Technology to meet a variety of road construction work.

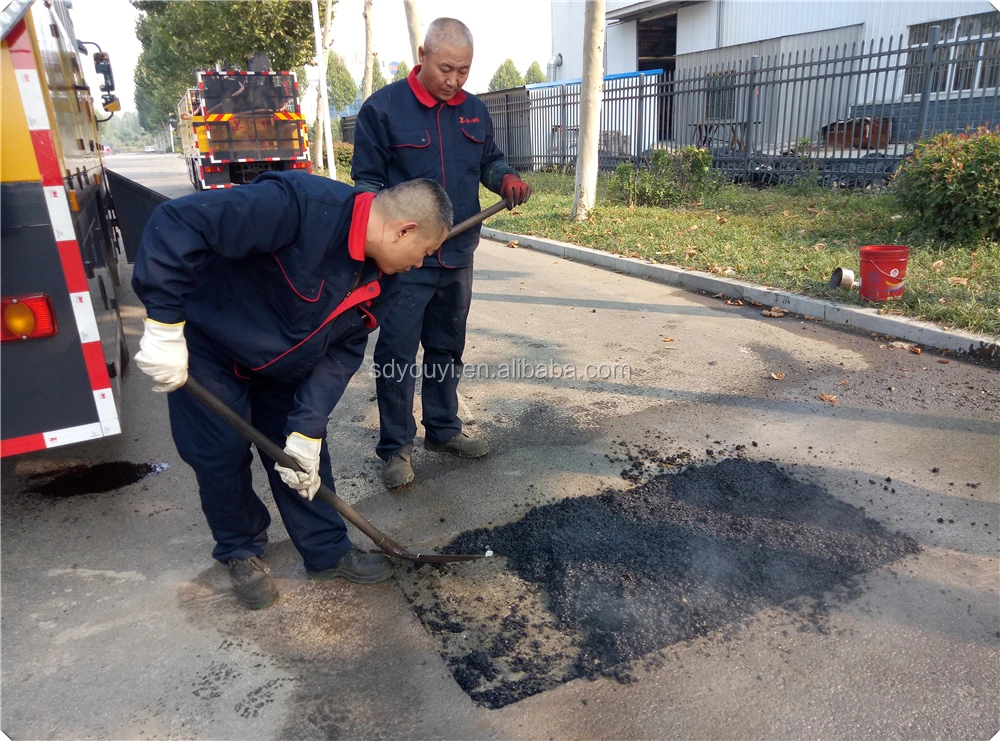

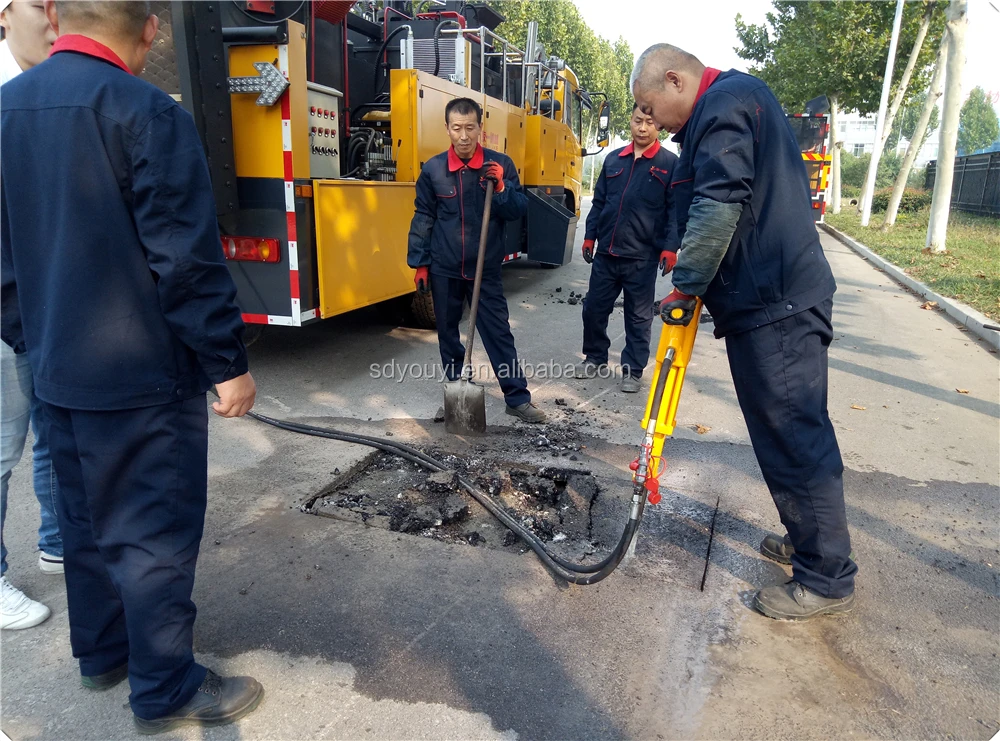

Road site construction Steps
We company specilized in producing road repair machine for 20 Years
Now mainly supply 3 mains series of road machiner
1: road repair machine
2: road roller machine
3: road crack sealing machine
wechat : sunup689, Ms cara.ly +86-17852198185
