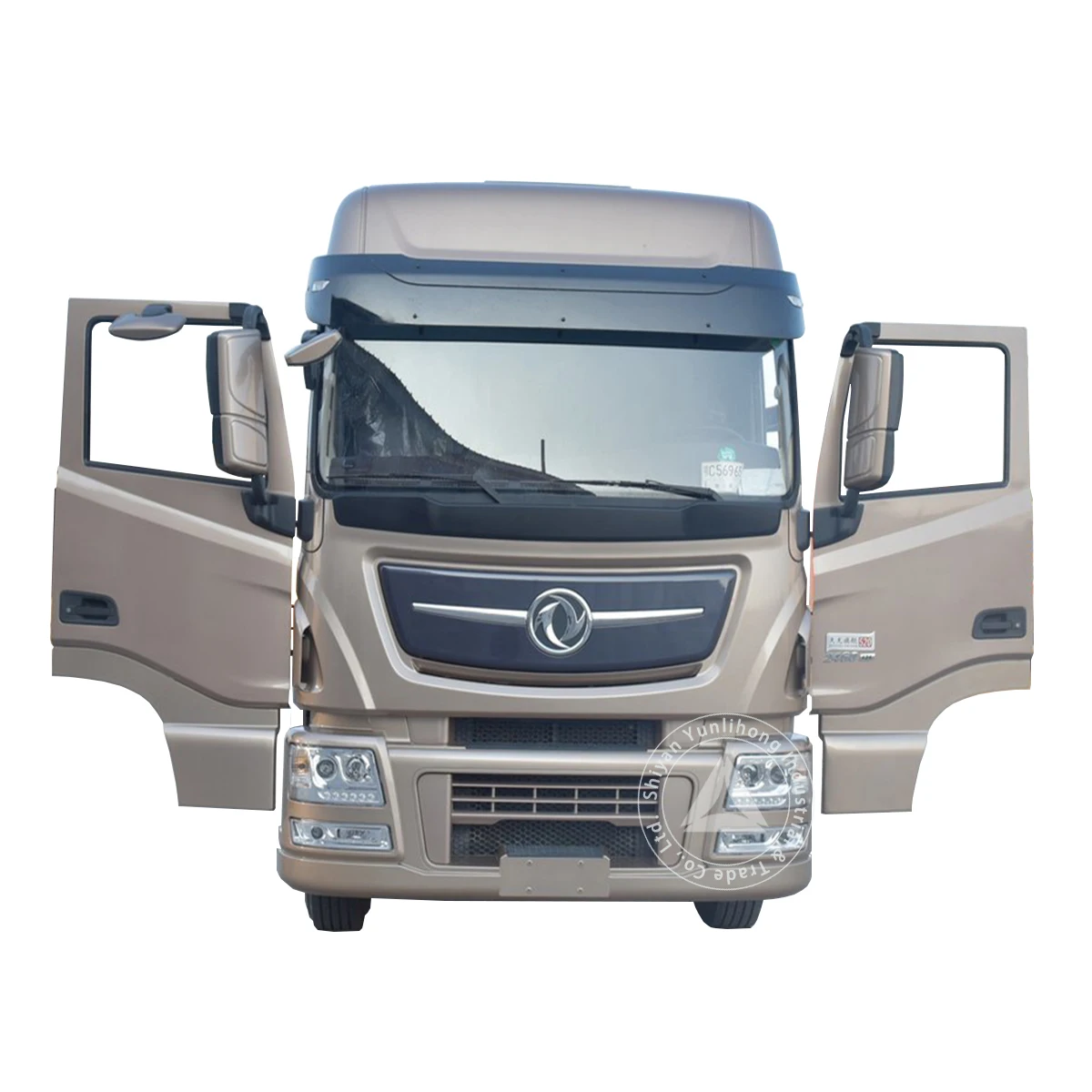

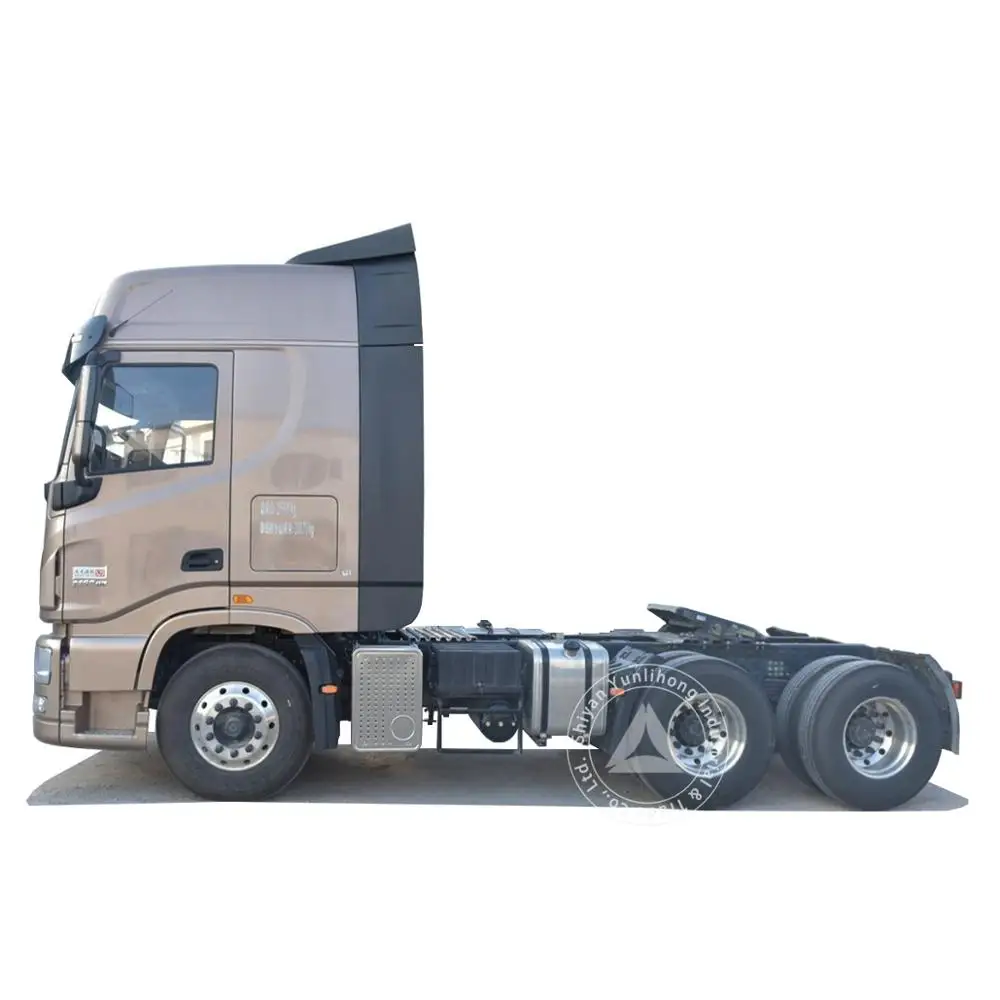

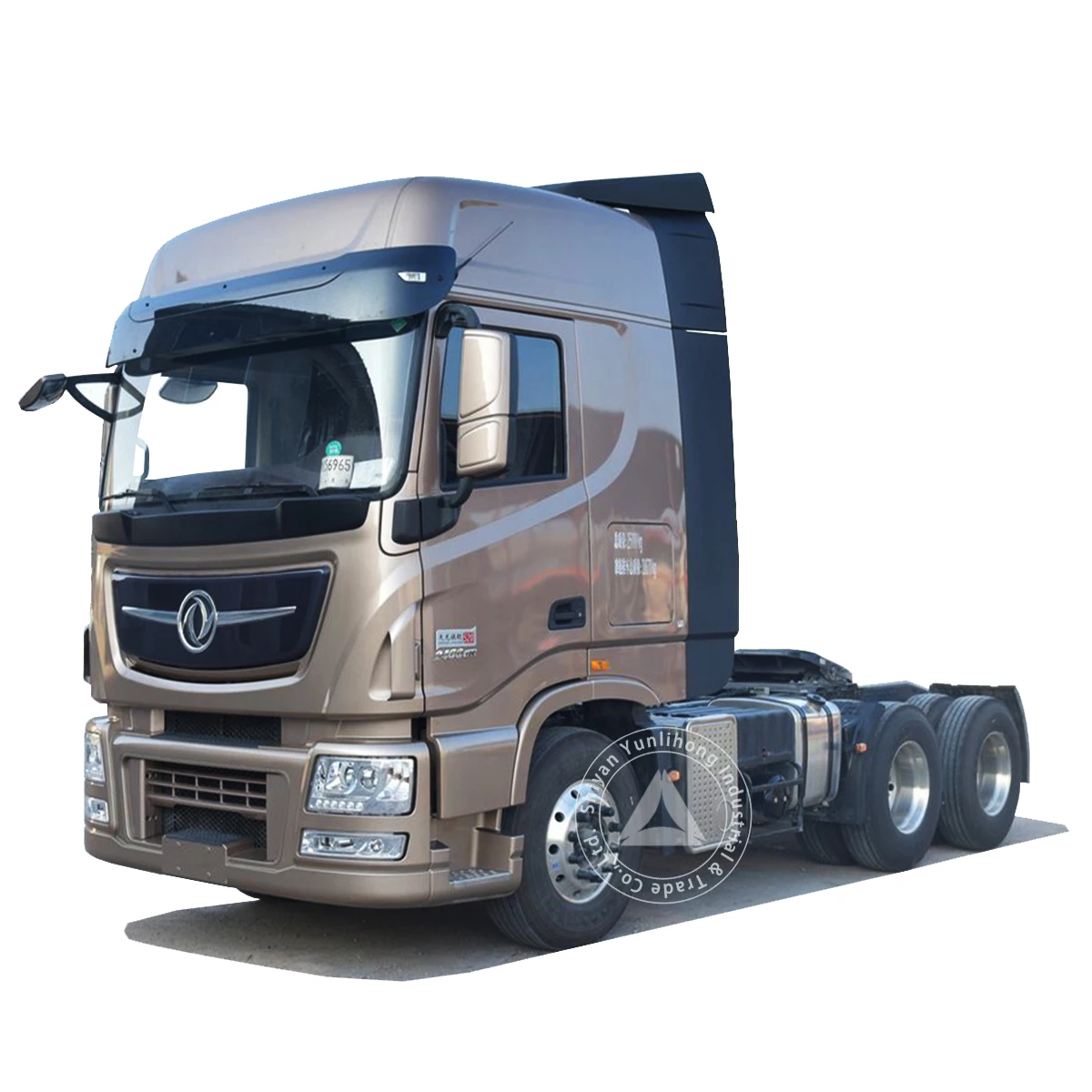

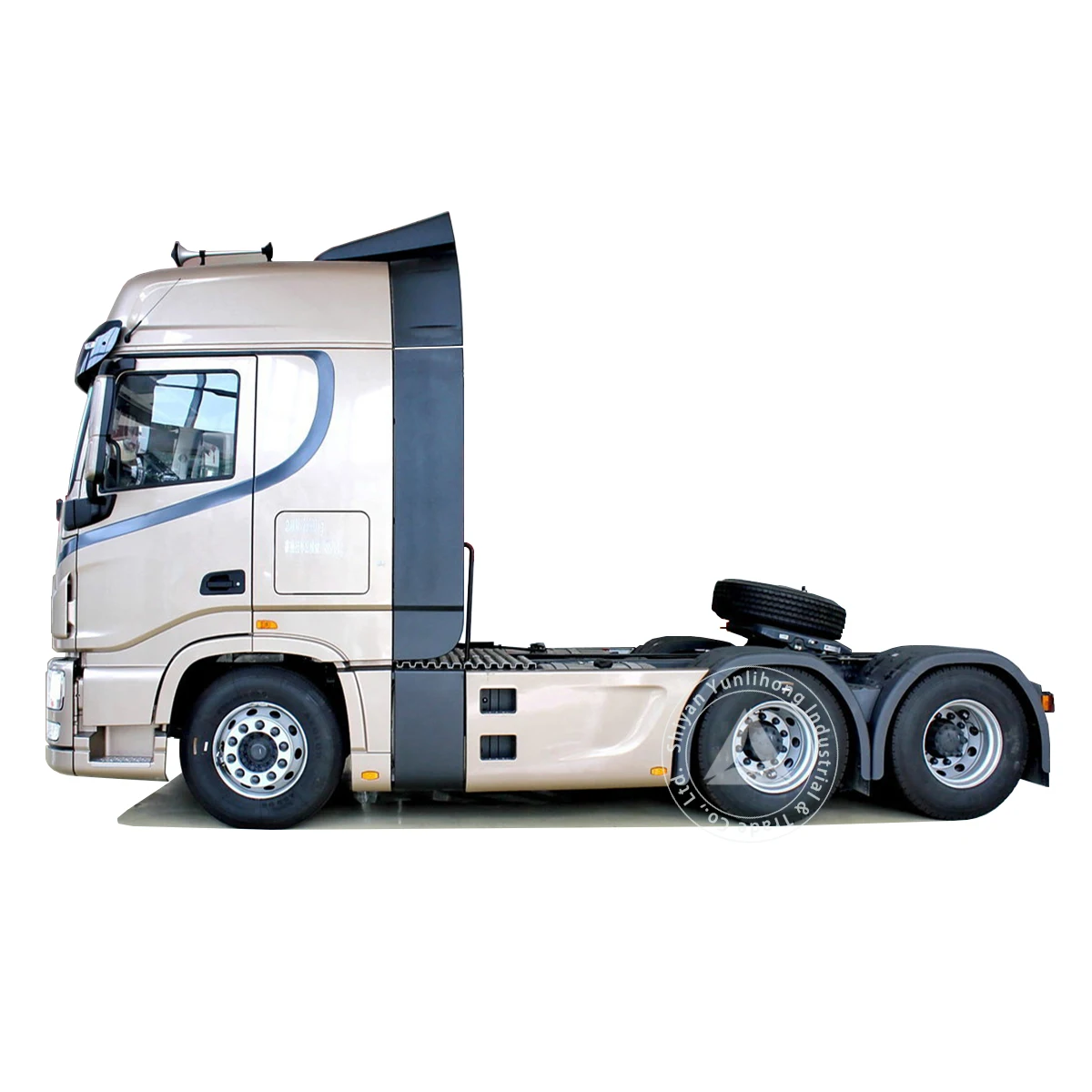

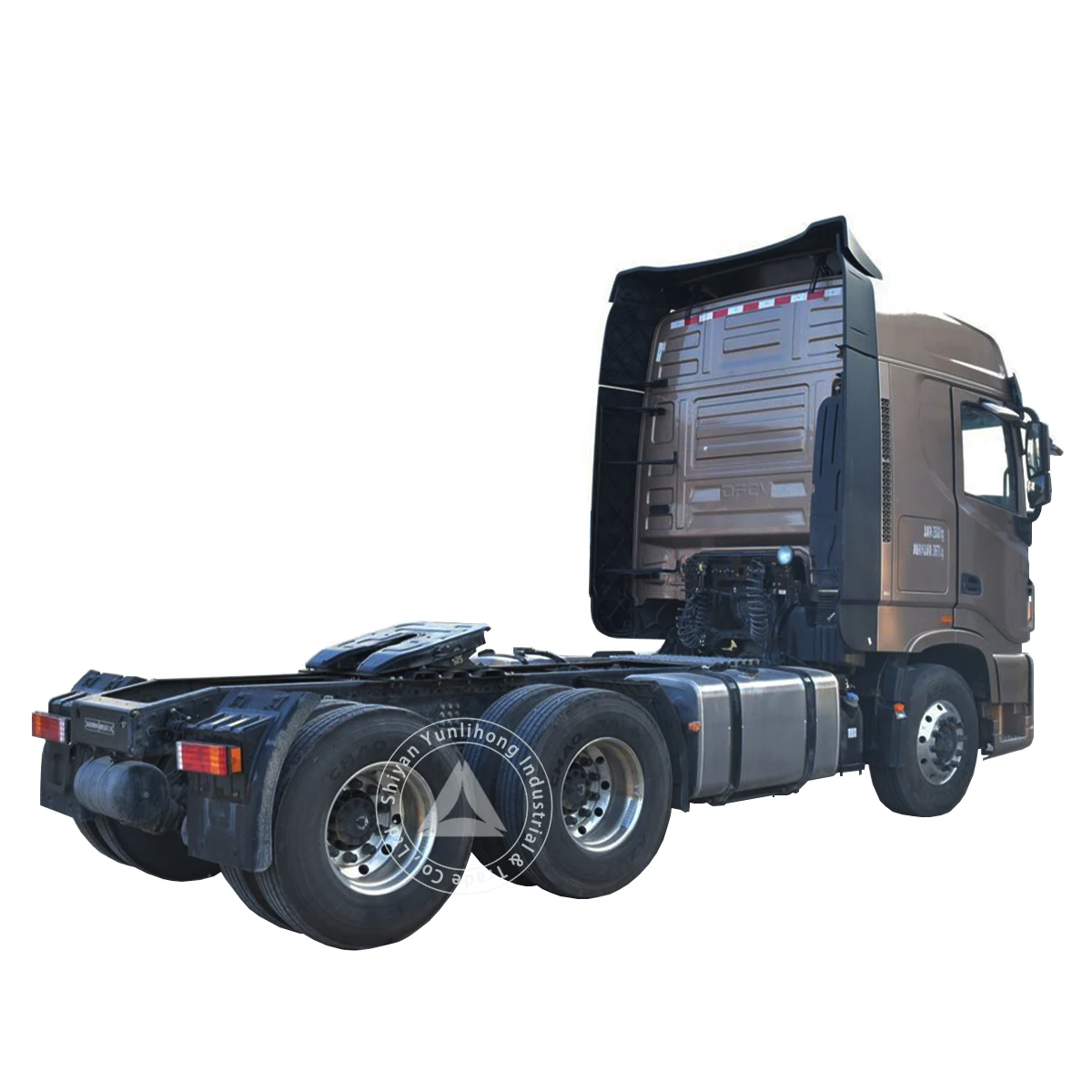

Hydraulic dump truck trailer tractor truck Dong Feng 120 ton 60 ton tractor head truck

Product Overview

Description

Hydraulic dump truck trailer tractor truck Dong Feng 120 ton 60 ton tractor head truck for sale





This model is suitable for long-distance transportation mainly in hilly or comprehensive road conditions.







Serie	KX	Drive wheel	6×4	Engine model	ISZ520 51
Engine brake	Equipped	Gearbox model	ZF16S2530 TO  (with hydraulic  retarder)	Top/lowest gear	0.8/13.8
Axle/Ratio	Double 485 single-  stage axle / 3.64	Frame(mm)	300×90×8+0	Wheelbase (mm)	3300+1350
Suspension	Leaf spring	Fuel tank	600L; aluminum	Tire	12R22.5
Brake	Front & rear drum	Economic RPM  (r/min)	1000-1300	Economic speed  (km/h)	64-83
Standard items	LDWS+FCWS system,  driver evaluation system,  engine brake,  central lock,  automatic air conditioning,  multi-function steering wheel (with fixed speed cruise, Bluetooth),  electric window,  electric heated rearview mirror,  four-point suspension in the cab,  rear spoiler,  electric flip,  FRP bumper,  Metallic paint,  ABS,  trailer ABS spiral,  165Ah maintenance-free battery,  steering wheel Alcoa rim,  Longitudinal pattern tire,  Inter-wheel/axle double differential lock,  maintenance-free wheel End,  GB7258 regulation items (Self-adjusting arm, fender, anti-splash device, etc.),  90 saddles
Optional	Full car Alcoa,  Northern version (double cavity fuel tank, fuel heater, parking heater)





Note:

Electrically heated rear view mirror: The rearview mirror is clear on cold, rainy and snowy days.

Multi-function steering wheel ( with bluetooth & cruise control ) : Easy to control the speed, make phone calls and listen to music

Double cavity fuel tank:  Different fuel can be added at the same time to ensure that the long distance may encounter different climates.

Fuel oil heater: When the temperature is too low, the fuel can be preheated in advance to ensure the normal start of the vehicle.

Parking  heater / air conditioner:  Air conditioning can be used when the vehicle is not started to ensure the comfort of the driver when the vehicle is passing through checkpoints or toll stations and loading and unloading goods.





Features:

1. Lightweight design, lower center of gravity, higher passing.

2. Neat layout makes maintenance more convenient and durable.

3.  The truck is easy to handle and technical content,performing efficient power with low emissions and has a human-oriented design.

4. DCEC engine + FAST or ZF  transmission + DONGFENG DANA axle,  Excellent power combination to meet all working conditions.

5. Dongfeng engine bring the best balance between loading request, fuel efficiency and emission. Powerful six cylinder engine, ensures engine power reserve, accelerating ability and grade ability. Reliable cold start performance with intake preheating, even at -35°C low temperature status.

6. The truck is equipped with ZF or Fast transmission. Proofed for many different road conditions and applications. With crawler gear, better grade ability due to higher 1st gear ratio, adaptable for off-road operations. Optimized ratio steps and bigger ratio spread provides less fuel and more power.

7. Rear axle provides high torque output and a wide ratio range. Integrated main reducer housing, secure light weight, high strength and good sealing performance. Patented lubrication pump technology for middle axle and oil lubrication on main components, will efficiently prevent burn-out of bearings.
