waterproof Car seat navigation pcb key RGB size 10x10 tact switch grey button tactile push switch 10mm 11mm led illuminated

Product Overview

Description

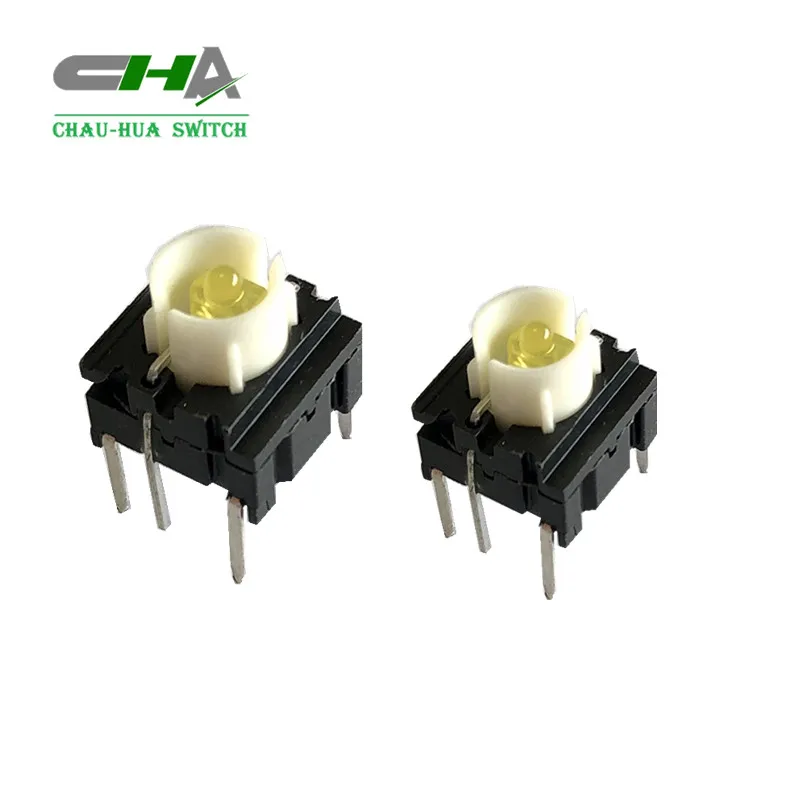

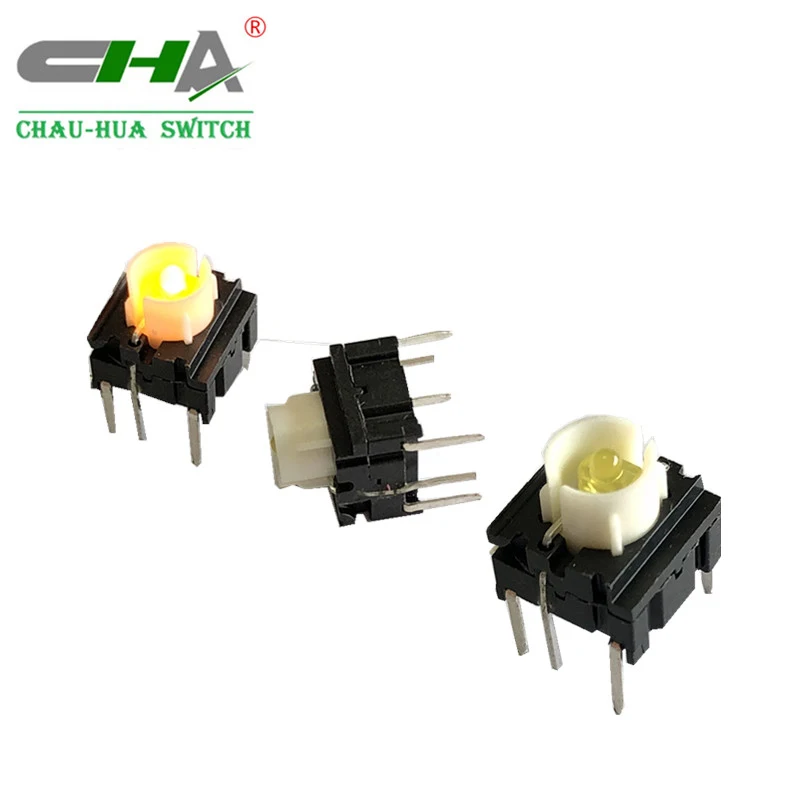

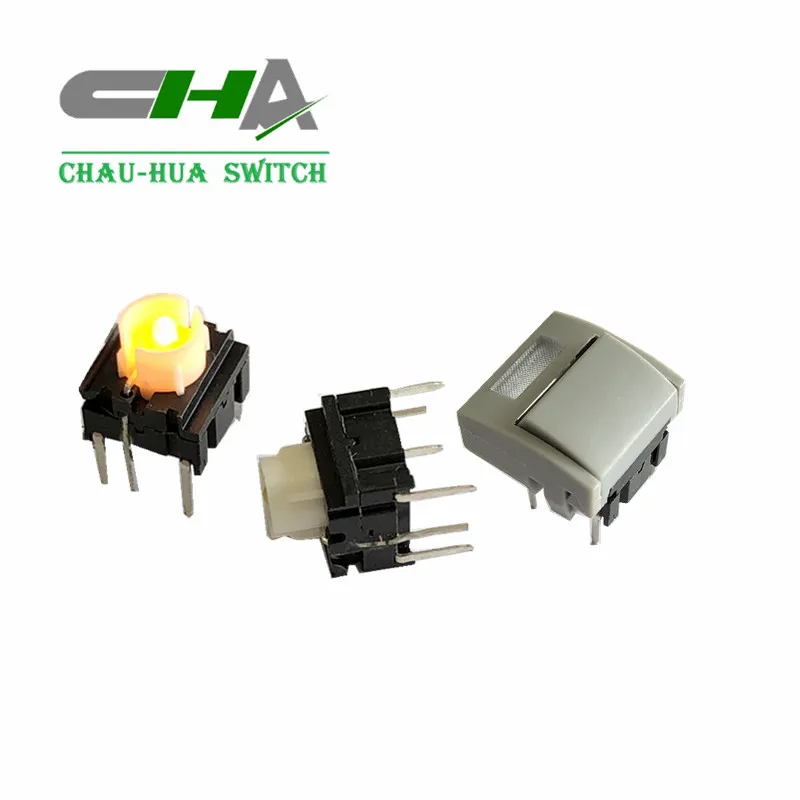

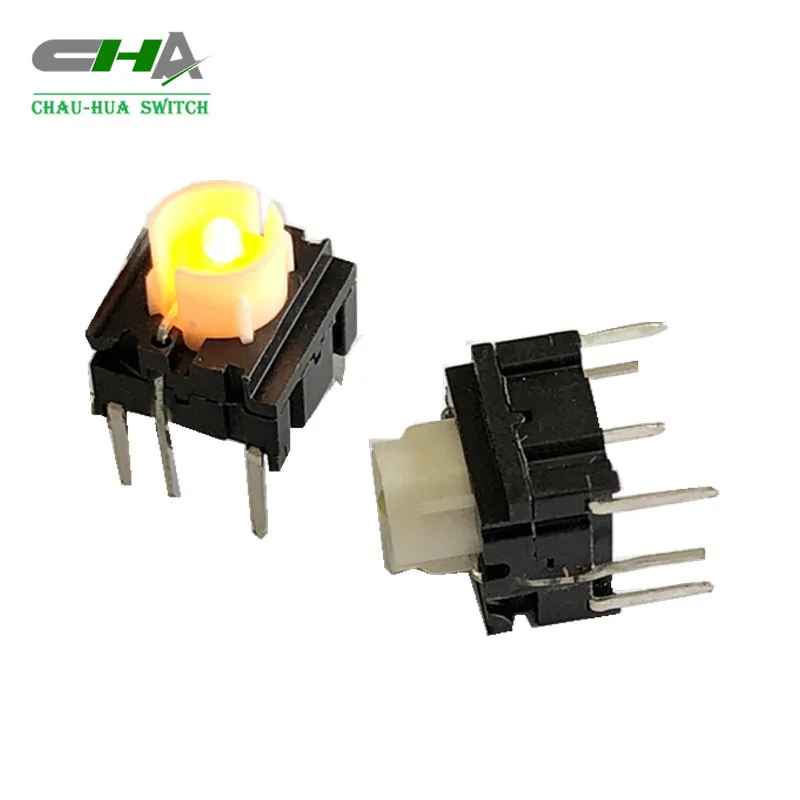

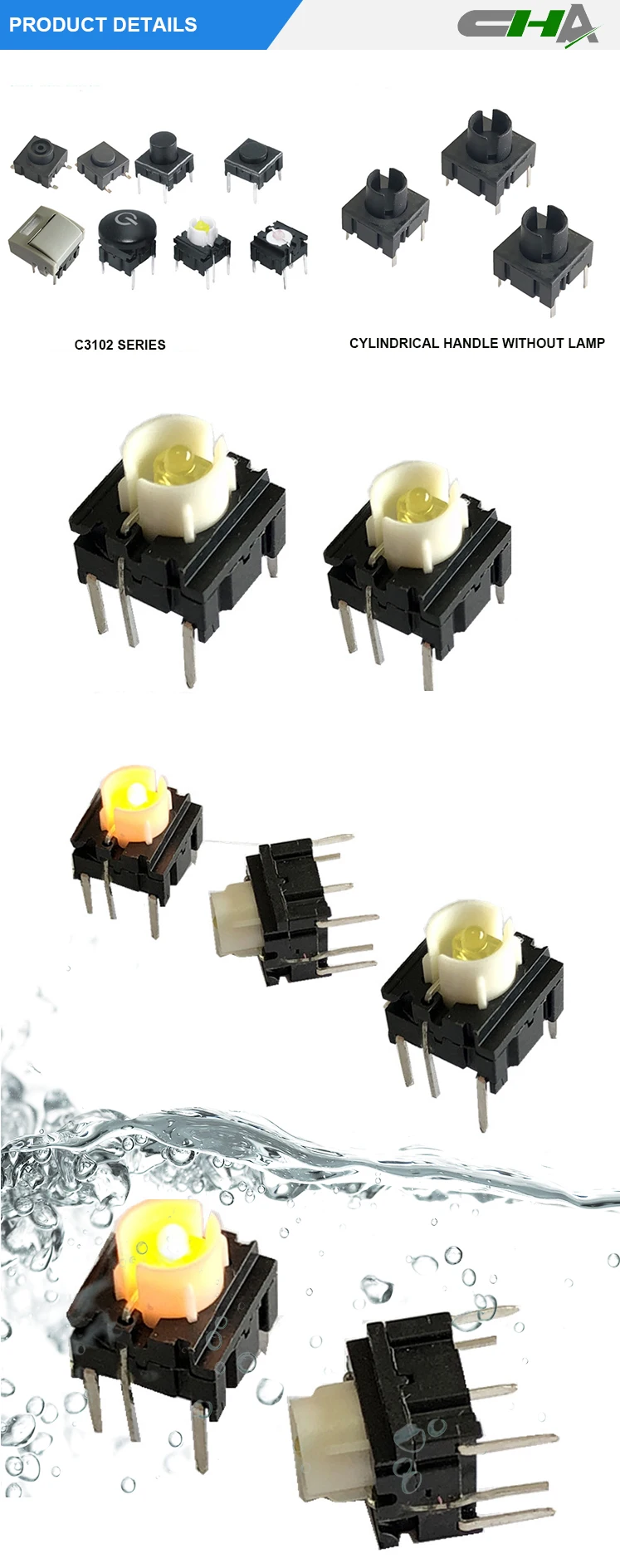

waterproof Car seat navigation key RGB size 10x10 tact switch tactile switch led illuminated

Product Name:	C3102 waterproof  illuminated tactile switches
LED Color:	Red. Green, Black, Yellow, white
Cover:	Transparent, Red, Gray, Black, White
Contact Rating	50mA, 24VDC
Dielectric strength:	250VAC, 1min
Non-Switching/Switching Rating:	100mA , 50V DC/25mA, 24VDC
Insulation Resistance:	10MOhms,100VDC
Operating Temperature:	-40℃~+160℃
Electrical Life:	1,000,000 cycles

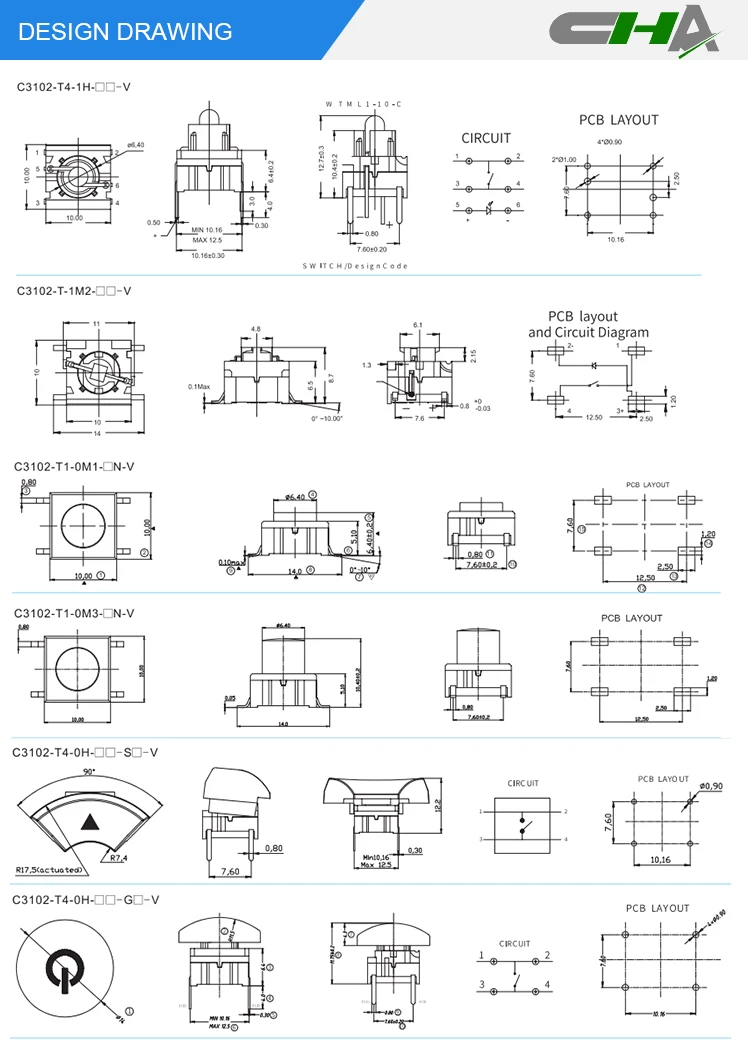

Size Type	T1=10x10x6.4, T2=10x10x6.45(LED), T3=10x10x8.7(LED),T4=10x10x12.7(LED)







Q1.Are you a factory or trading company?

A1.We are a manufacturer which specializes in switch for 12 years, Our price is pretty competitive.



Q2.How does your factory do regarding quality control?

A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .



Q3. How can we get a quote ?

A3.Please offer the specification of the product , such as part No. ,quantity ,drawing ,etc,



Q4.Can you provide some samples for me?

A4.We can provide free samples to you,but you should afford the shipping fee yourself.



Q5.Can we put our logo on the products ?

A5.Yes , ODM/OEM service is provided to meet customers' special requirements well, concerning personalized connector program.



Q6.Do you accept small orders?

A6.Of course.We will do our best to serve you no matter what the quantity is.
