China IPX12 vertical rain drip test equipment for led light waterproof testing


Product Description


Application:

IPX12 rain drop Test Chamber is used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. Under the rain/drip environment,test the physical and other related properties of the product.

The main function of this IPX12 rain drop test equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.



Technical parameter


Model
HNS-IP12A-600
HNS-IP12A-1200
Drip area
600*600 mm
1200*1200mm
Inner size
L800*D800*H1000mm
L1400*D1400*H1400mm
Outer size
About 1250*1000*1750mm
L2050*D1800*H2150mm

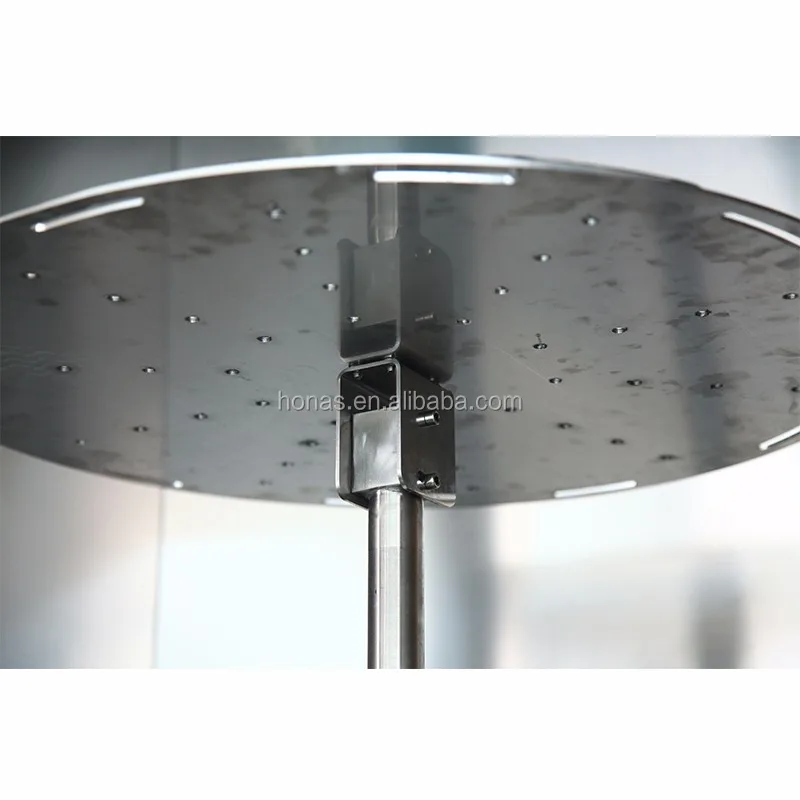

Turntable diameter
600 mm
800mm
Turntable bearing
50KG
50kg
Turntable lifting range
350-700 mm
650-1100mm

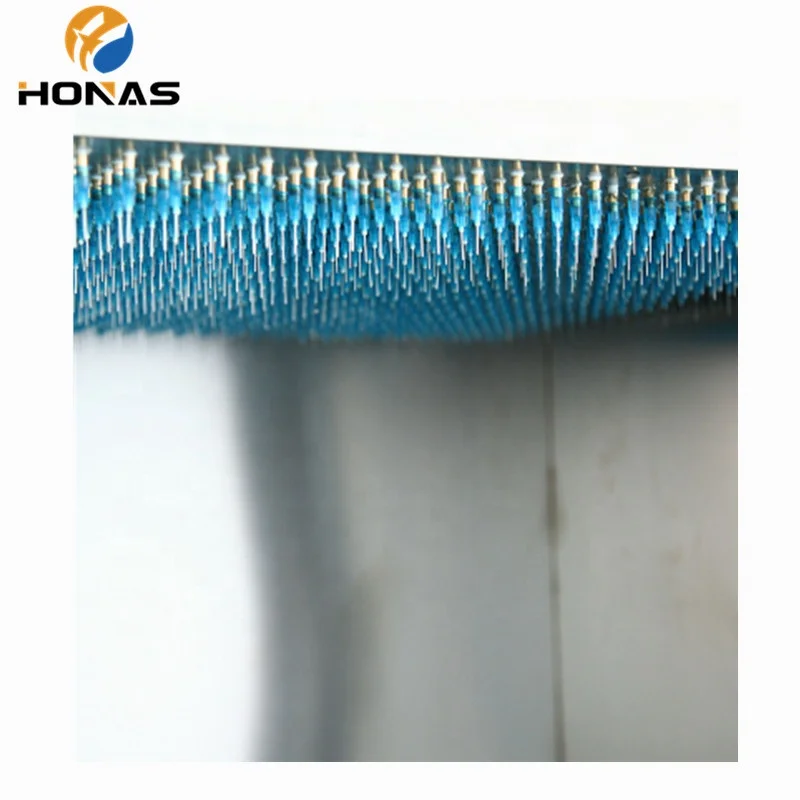

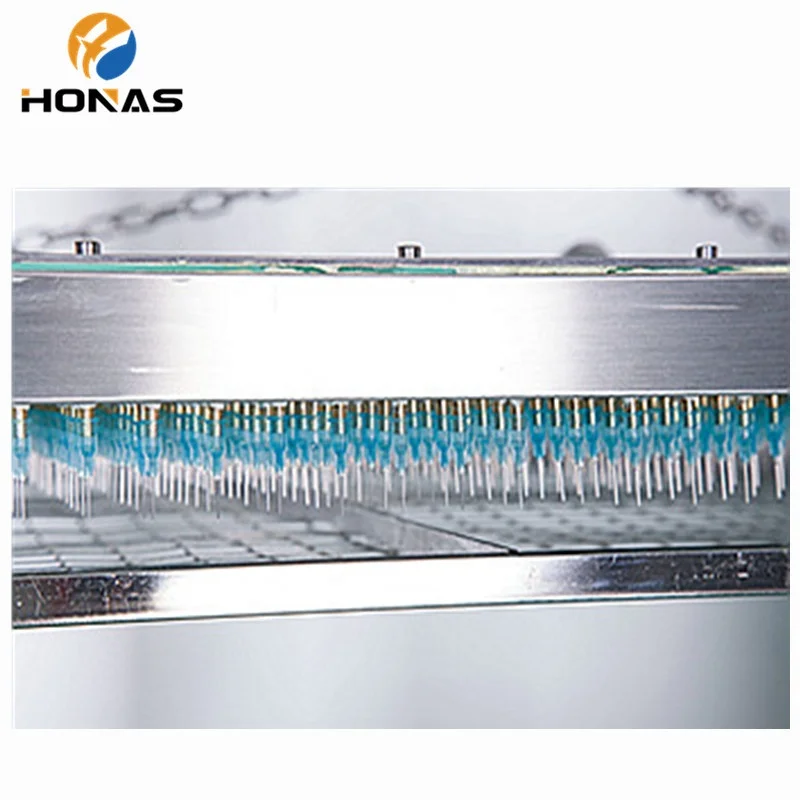

Dripping aperture
0.4mm
Distance between holes
20*20 mm
Rainfall
1-5 mm/min(±0.5mm/min)
Flow adjustment mode
Manual
Drop box height
stationary
Turntable speed
1 r/min(IPX1)
Turntable tilt
0° or 15° (horizontal direction)
Testing times
0-999 min
Protector
Leakage, water short-circuit
Materials
SUS304 stainless steel
Controller
7inch touch screen
Environment temperature
5℃~35℃
Air pressure: 86kPa ~ 106kPa
Voltage(V)
220V
Power(KW)
1.0KW
Standard
IEC60529:1989+A1:1999、GB4208、GB7000.(IPX1、IPX2)


Choose type:
1,IPX12A : 600mm/800mm/1000mm/1200mm ect adjust by your request

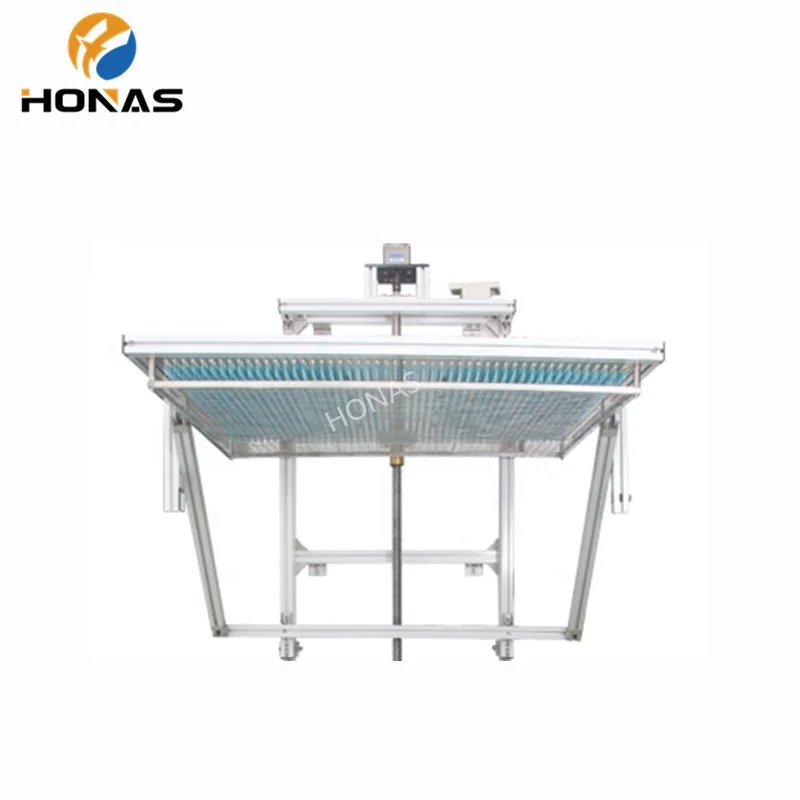

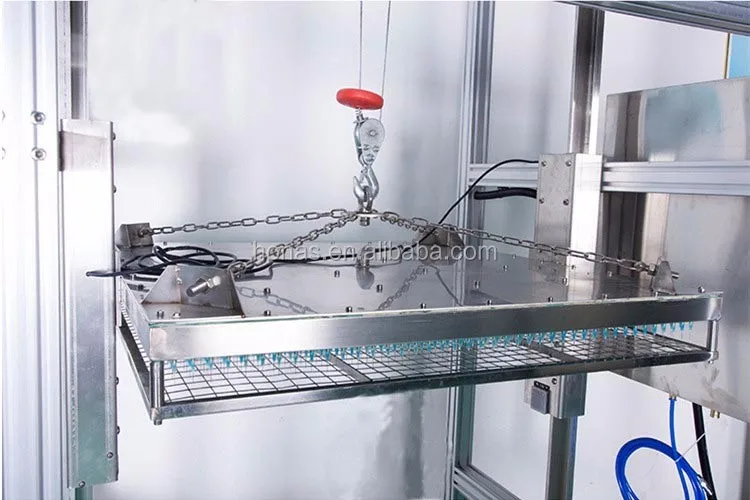

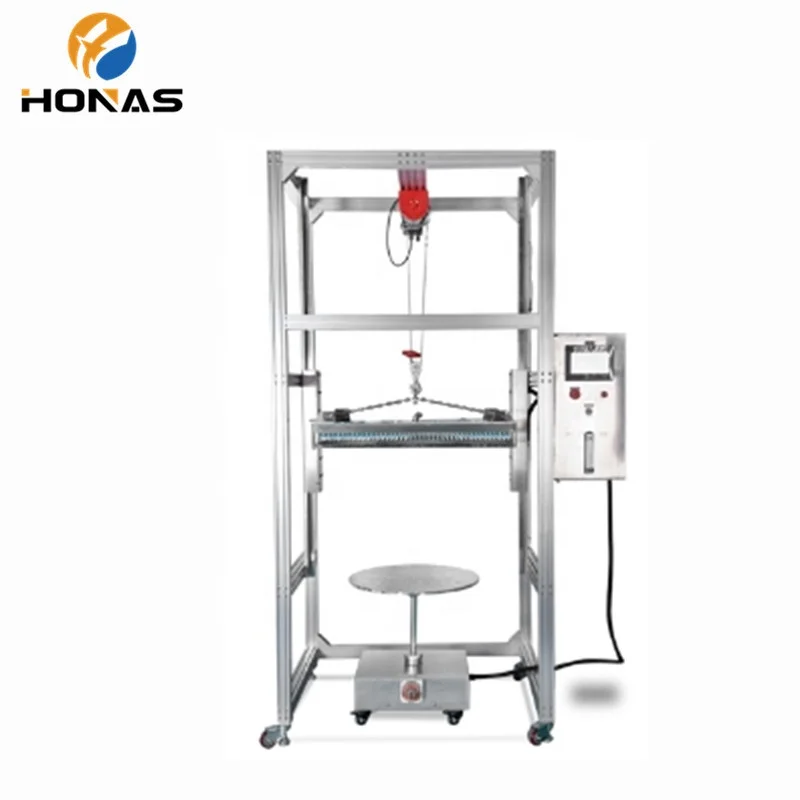

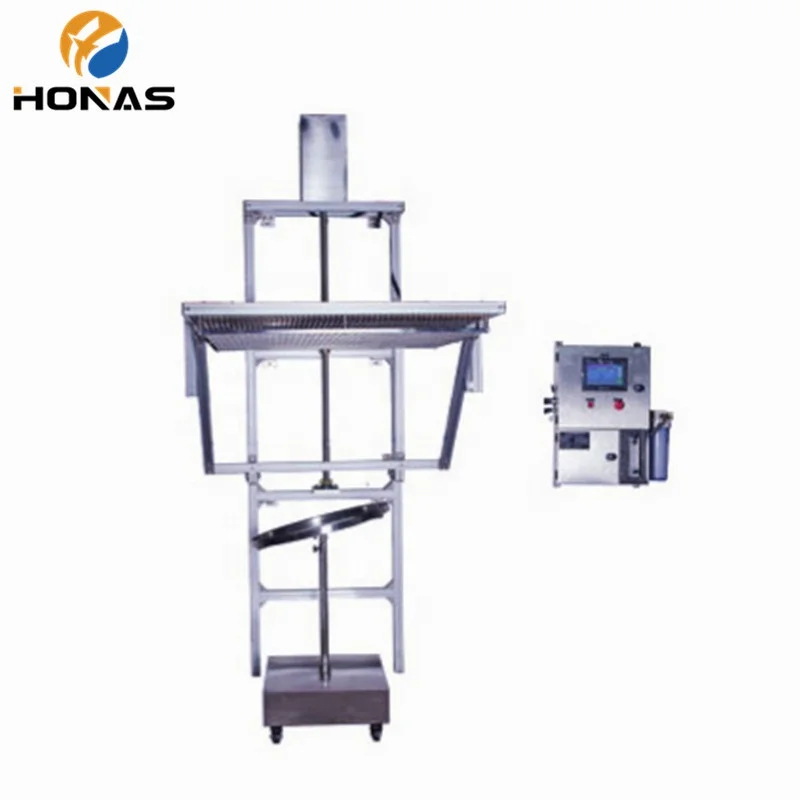

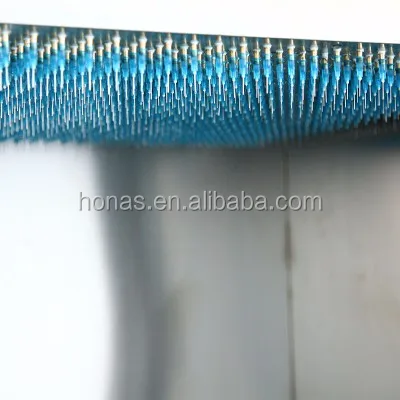

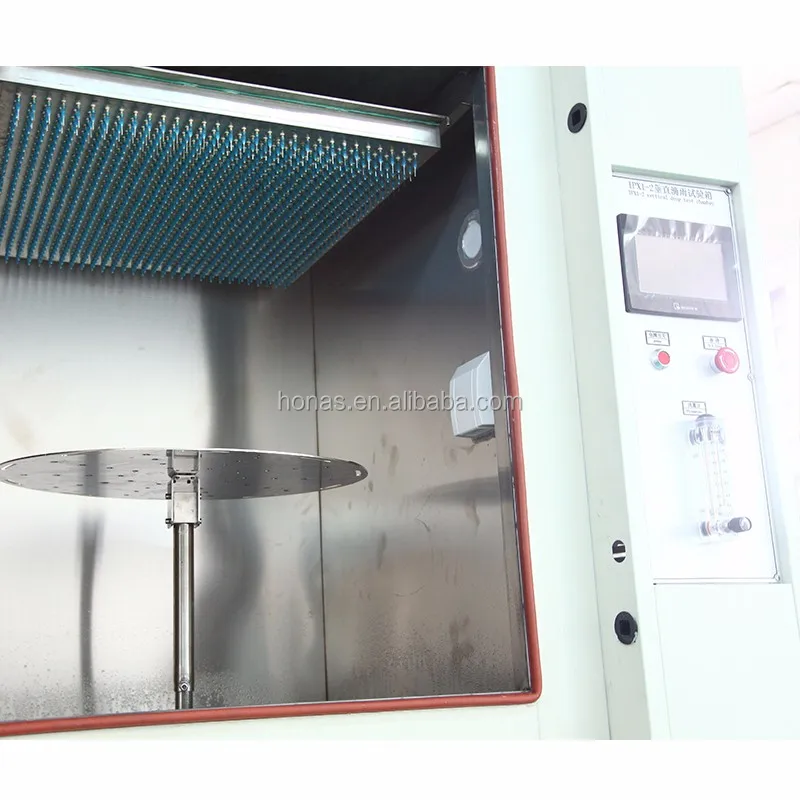

Detailed Images




Packing & Delivery




Shipping by air or by sea

1.By sea: slow but conomy for large equipment, and long times shipping (most about 30days),
2.By air :faster and more expensive for large equipment.

Shipping with express

DHL/UPS/FEDEX/TNT/EMS ECT



FAQ


1.Can I get a sample from you?
Currently we don't provide free samples, but you can get a paid one.

2.Which kind of inquiring is preferred?
A quality inquiring help us to quote more effectively.
It should include: A brief self-introduction; Some inquiry details such as product name, standards, quantity, size, etc. But never forget to leave your contact information.

3.What is the payment terms?
T/T ,Paypal,Western Union,Ali assurance etc

4.What is the delivery time?
3-7days if in store, big equipment is about 30-60 working days

5.Can I book a factory tour?
Yes. Please contact us to arrange it.

6.What is your equipment warranty?
1year,if you need more ,welcome to contact us get more details .

7.What's your working hours?
8:30~12:00 13:30~18:00 (from Monday to Friday)
