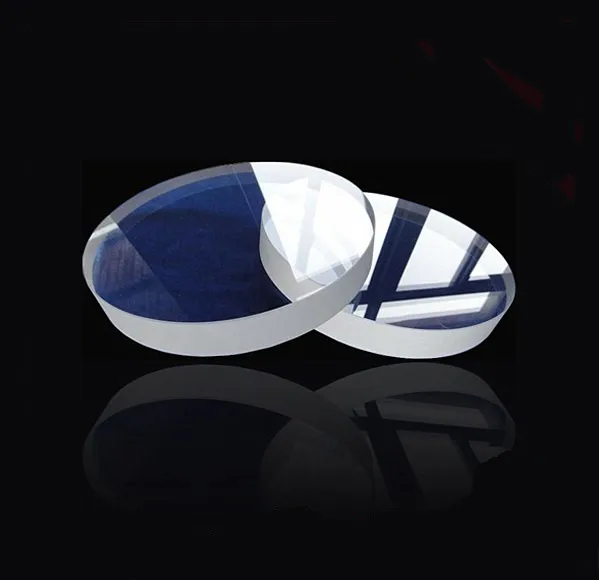

We are a manufacturer of Quartz glass fused silica plate/sheet . Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.
Advantage of Quartz Glass Plate/Sheet/disc: 1)High purity :SiO2> 99.99%. 2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ . 3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability 4)Health care and environmental protection. 5)No air bubble and no air line. 6)Excellent electrical insulator.

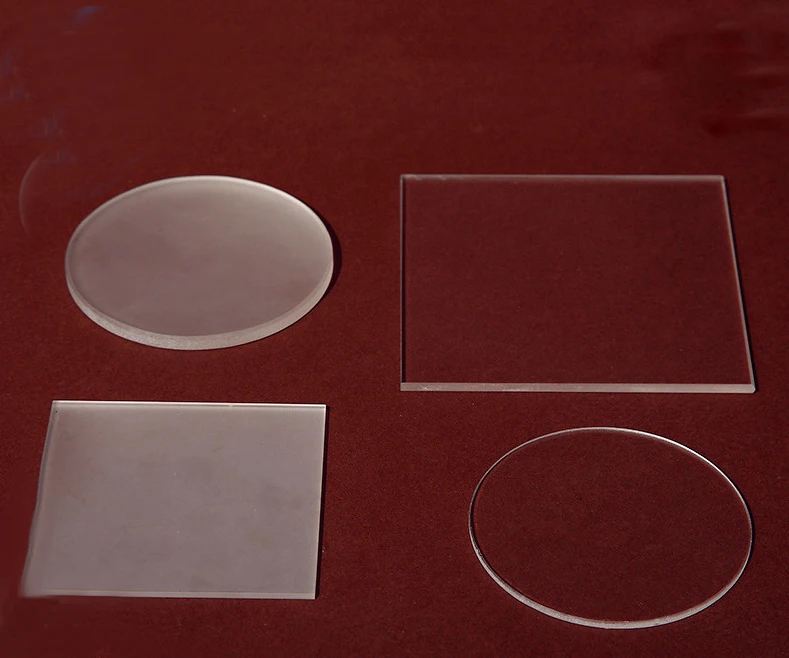

Size of Round Quartz Glass Plate/Substrate /Sheet
Diameter
10mm-600mm
Thickness
0.5mm-100mm
Size of Suqare Quartz Glass Plate/Substrate /Sheet
Length
10mm-800mm
Width
10mm-600mm
Thickness
0.5mm-100mm
Physical property of Quartz Glass
Property
Value
Sio2
>99.9%
Density
2.2x103kg/m2
Hardness
570KHN100
Tensile strength
4.8x107Pa(N/m2)
Compression strength
>1.1x109Pa
Coefficient of thermal expansion(20℃-300℃)
5.5x10-7cm/cm℃
Thermal conductivity(20℃)
1.4W/m℃
Specific heat(20℃)
660J/kg℃
Softening point
1730℃
Annealing point
1250℃
Product Application
Quartz plate/round quartz disc/quartz sight glass were widely used in follow field:
(5) Instrumentation, Research & Development, Nuclear
(6)Optical, Medical, Oil & Gas Lighting, Laser Equipment Security
(7) Automotive, Audio/Video, Display Technology
(8) Furniture Design, Lighting Technology
(9) Military Technology, Office Automation, Projection Technology
(10) Vandal Proof Systems, Semiconductor, High Temperature Lighting
(11) Fiber Optics
Packing
1.Plastic air cushion film 2.Foam material 3.Carton box 4.Wooden case
Delivery
3-10 days after payment
Factory Display
Company Information
Lianyungang Youdi Electronic Technology Co., Ltd is an innovative company which focus on infrared heating industrial during the pass 10 years,
we offer OEM and ODM solutions to oversea customers with stritly Quality Control System
All the products passed CE/ROHS/ISO certifications.the quartz lamps with long time life 5000-6000hrs.The quartz glass with high purity 99.999%.
We use inspection instruments that lead the domestic quartz glass industry.Currently exporting our quartz glass plates and quartz products to clients in Europe, Japan and the USA.
The infrared heaters are wide range using at infrared heater industry . With this technology is helping create energy saving heat efficiency product.
In 2015 year increasing to 2 stoves ,4 production lines including quartz tubes produce line, shortwave infrared heat lamps line, carbon fiber lamp line.
Daily output with 3,000pcs.
Our popular products including:
1. Quartz glass tube,fused milkly quartz tube.UV quartz tube,ozone quartz glass tube 2.JGS1/JGS2/JGS3 quartz glass plate. 3.Quartz glass lab testing apparatus. 4. Single tube lamp: short wave, medium wave, fast medium wave And far wave infrared heating lamps. 5.OEM /Custom the quartz heater lamps according your drawing.
YOUDI TECH provides the most simple, pure and effective method to meet customer request.We hope to have the opportunity to cooperate with you in the future!
