1.27mm Machined Pin Header 16pin ,height of 1.9mm ,Double Row SMT Type socket connector ,tin plated
ARTICLE PROPERTIES
Pins
2-120
KIND PROPERTIES
Pitch
1.27mm
Rows
double
Gender
Machined pin header
Type
SMT
MATERIAL PROPERTIES
Insulator Material
PBT
Insulator Flammability Rating
UL94 V-0
Contact Material
Phosphor Bronze
Contact plating
gold
UL Approval
E503010
Packaging
tray

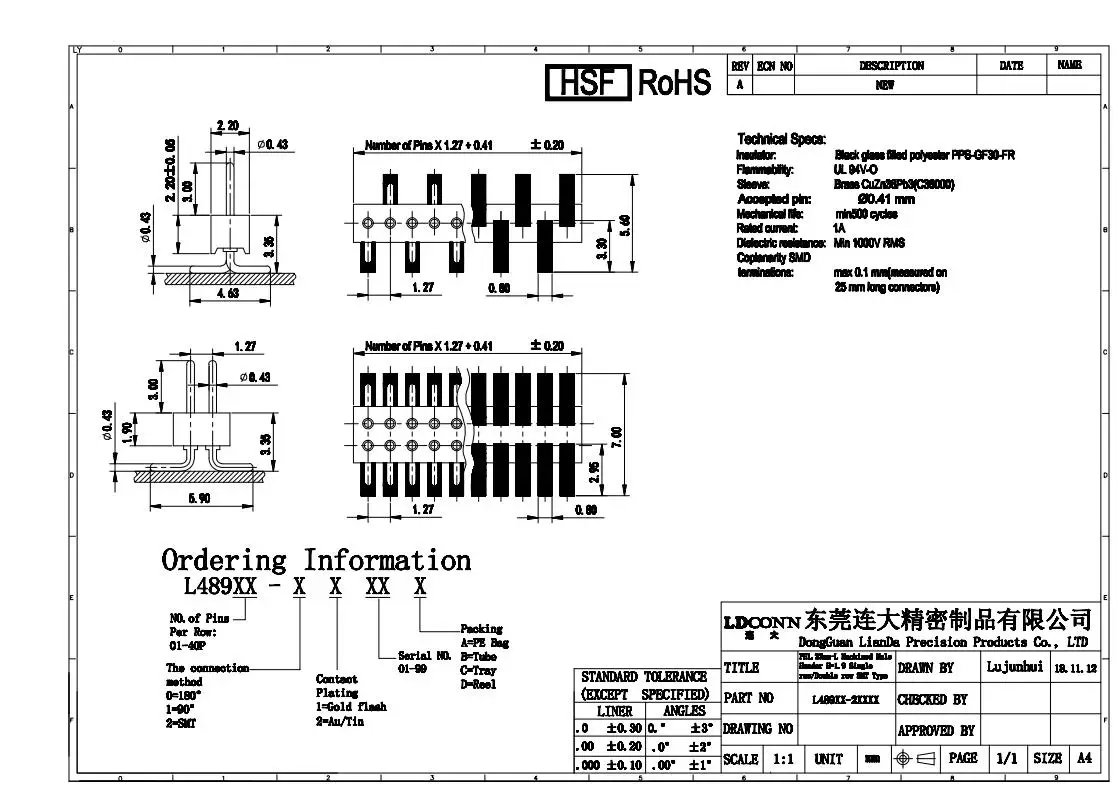

Products Drawing :
Other type connector :
Our customer :
Here below is our company short profile :
1.Manufacturing since 2002 , 90% automatic production , defective rate is less than 0.001%
2. 5-7 days delivery time and reasonable price for work further
3. Customized pin header & sockets solution
4. Main product :pin header , female header ,box header ,RJ 45 connector , USB connector, board to board connector ,D-sub connector ,terminal block , SIM connector and so on
5. Top 3 customers of BizLink , TP-link and Foxconn
6.Our components are manufactured to the ISO 9001 / ISO 14001 / IATF16469 / UL certifications and are RoHs 2.0 compliant as well as Halogen free.
7.You will enjoy the security of knowing that each product LDCONN is offering to you has been designed with high quality materials and engineered to
optimize the performance characteristics still providing low cost installations and an excellent reliability.
