Roller glass coating machine
US $10000-$13000

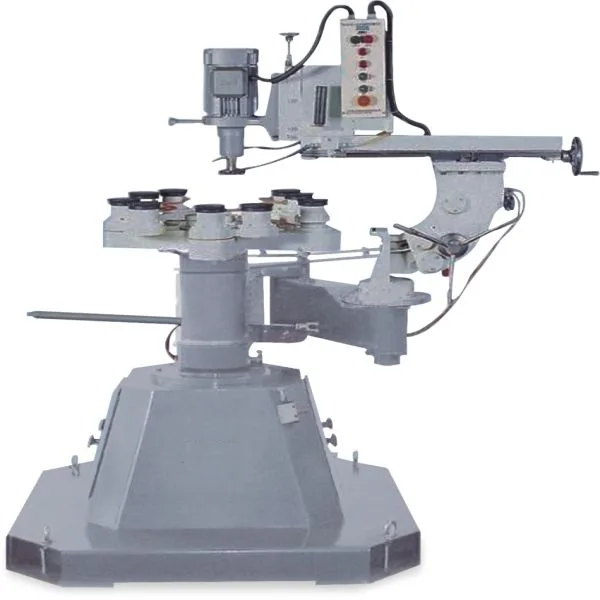

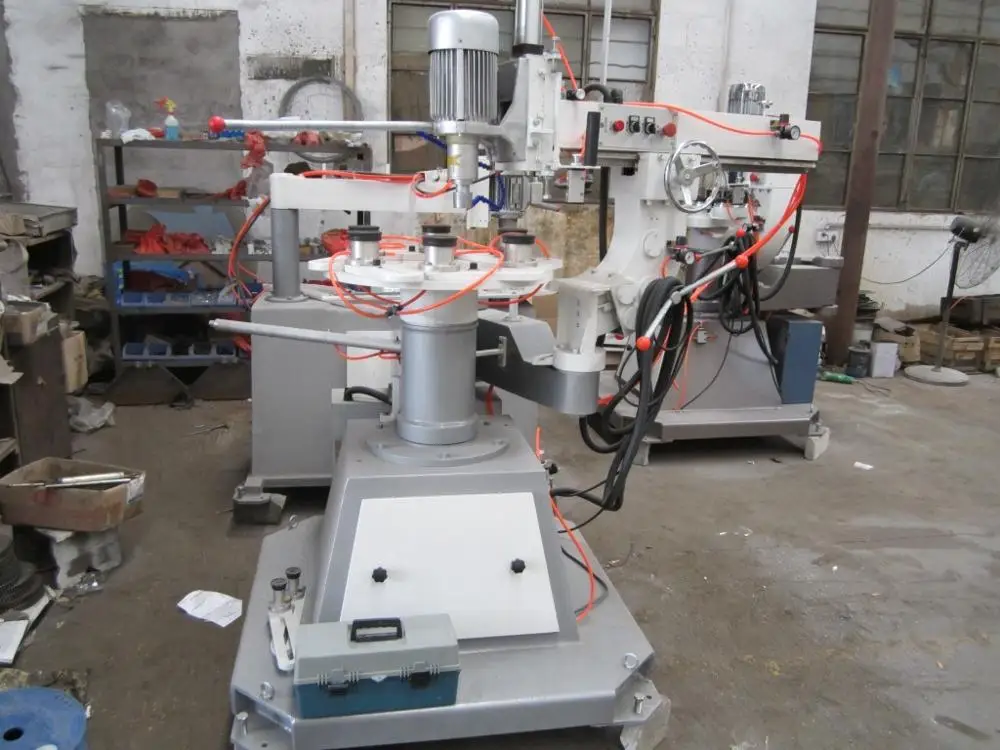

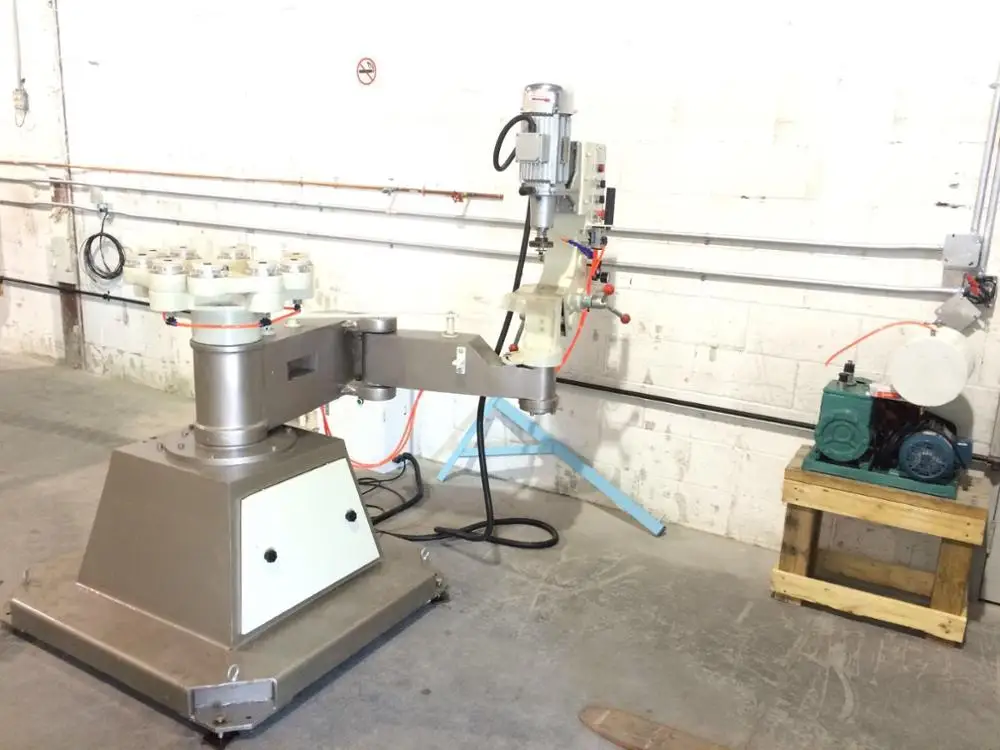

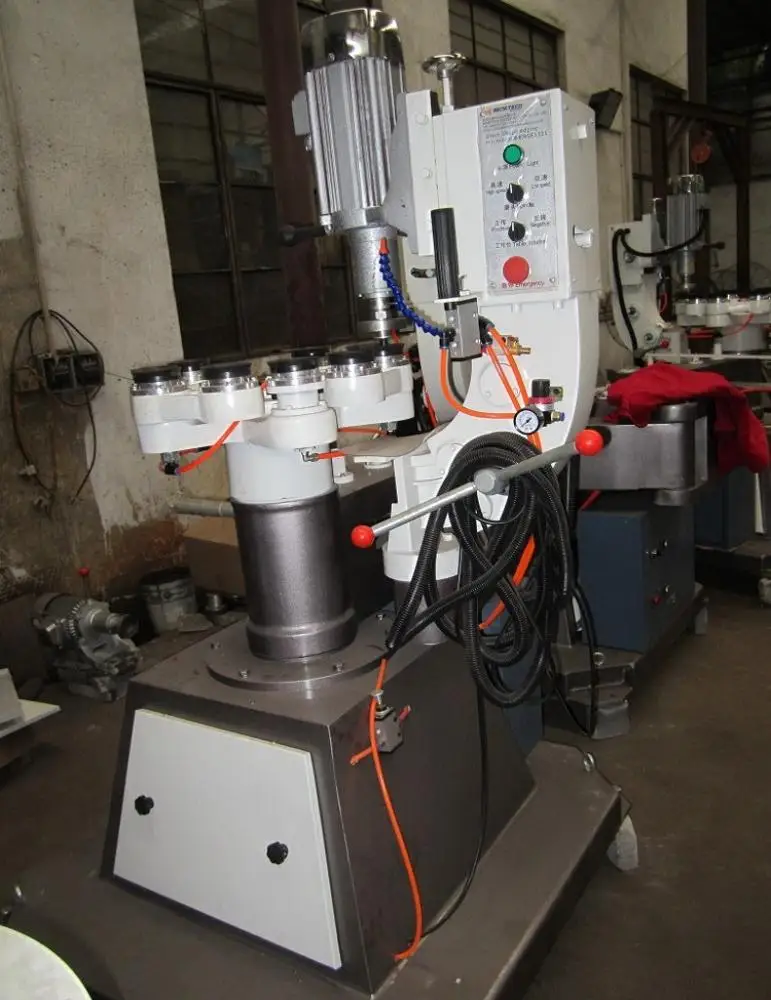

New Round glass shape grinding machine and glass shape beveling machine
- Category: >>>
- Supplier: Guangzhou Benetech Glass Technology Co. Ltd.
Share on (62402458296):
Product Overview
Description
Product Description
Model BSE1321 is suitable for round, oval and shape glass beveling, edging and polishing, different shape edge according to different grinding wheels. With high powered chamfering grinder and vacuum case, the grinding speed is advanced. It can grind simple shape glass automatically but complicate shape glass manually. This model is processed than past model and it promote accuracy of flywheel, so that it can guarantee accuracy of grinding. The special is that it avoids occurring diastema when the worm shaft is running continuously as it has added brake into. Then it reduces shaking when grinding and make it more effective.
| Maximum diameter | Φ100-Φ2100mm |
| Thickness of glass: | 3-30mm |
| Oblique angles | 0° -15° |
| Speed of the spinning disc | 0.5-2.5r/min |
| Speed of the satellite disc | 1.2-6r/min |
| Power: | About 3kw |
| Weight: | 1000kg |
Manual type and PLC type are optional. Please contact us.
