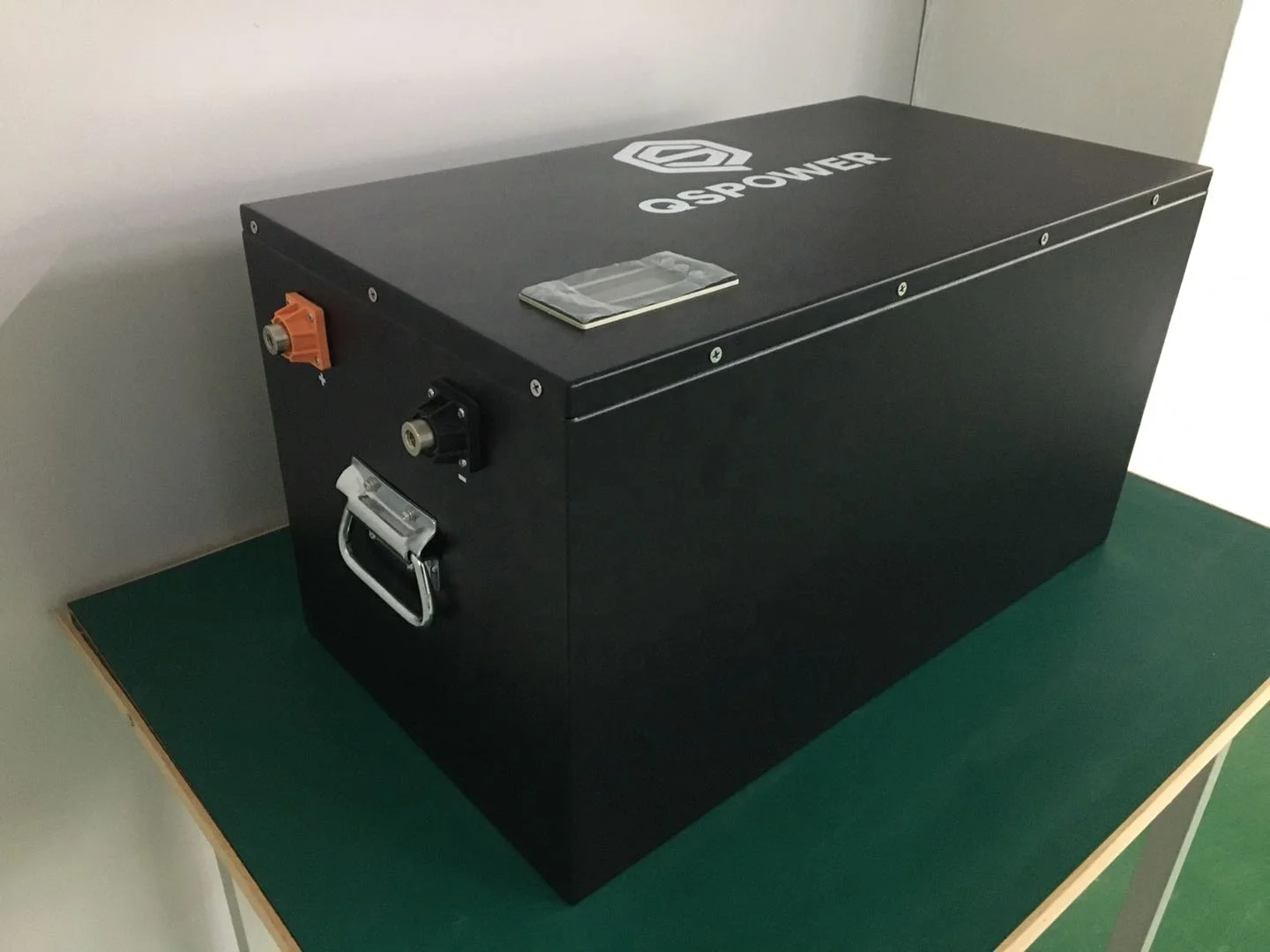

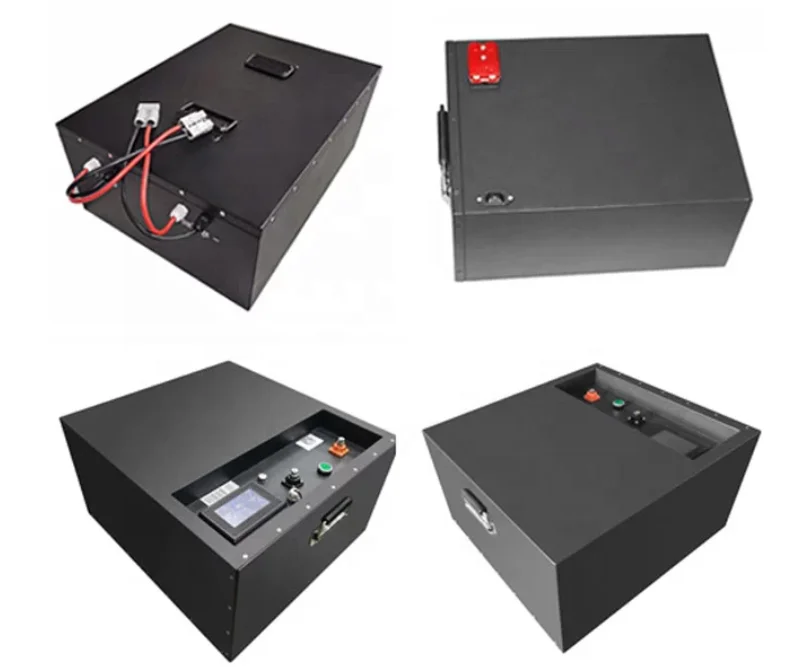

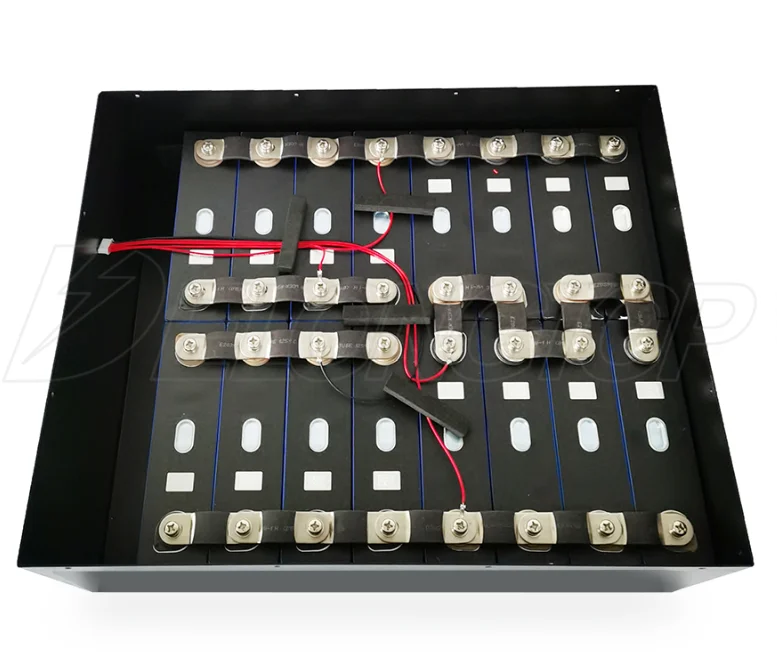

QS Power LiFePO4 lithium battery 48V 100AH power wall 5kwh 10kwh products description
Electrical Characteristics
Model
5KWH 7KWH 10KWH
Display
LCD Display
BMS
Built-in BMS
Standard Charge
Charge Voltage
54V/58V
Charge Mode
0.2C to 54V, then 54V,charge current to 0.02C (CC/CV)
Charger Current
20A
Max. Charge Current
120A
Standard Discharge
Discharge Cut Off Voltage
40V
Standard Discharge Current
50A
Max continuous discharge current
120A
Maximum Discharge Current
300A(1S)
Cycle life
2000 Cycles(100%DOD)
5000 Cycles(80%DOD)
Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 55℃ (-4F to 131F) @60±25% Relative Humidity
Mechanical
Cell & Method
3.2V50Ah 15S/16S
Shell material
Iron

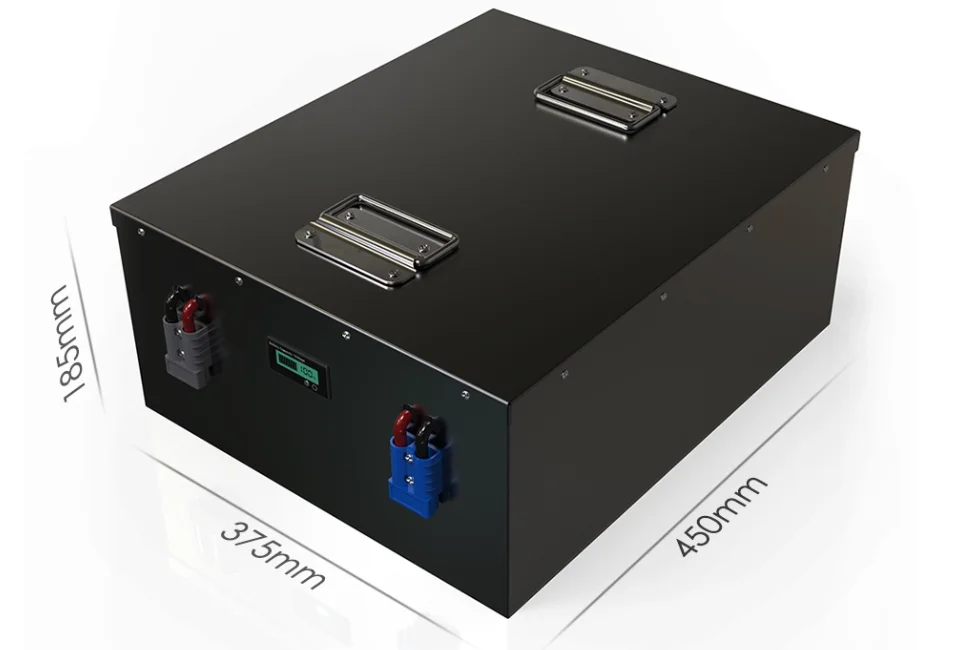

Dimensions (in./mm.)
Customized
Weight (lbs./kg.)
53KG/58.5Kg 65KG/73.3Kg 85KG/96Kg

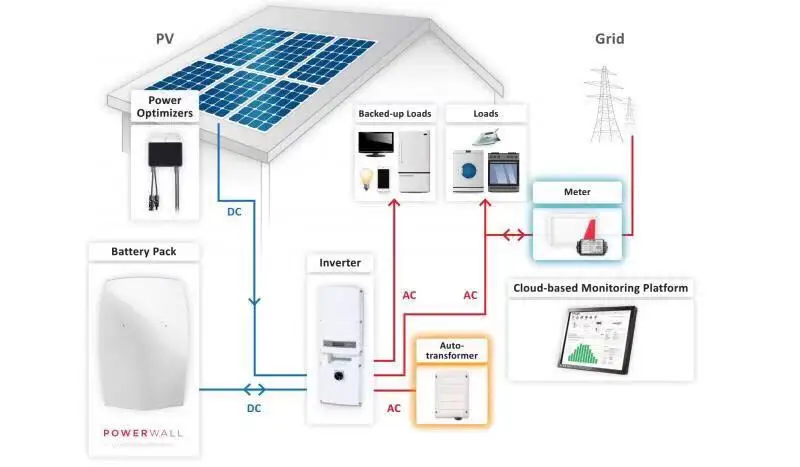

Solar Energy Storage System(Off Grid Solar System&Hybrid Solar System )
Lithium LiFePO4 Battery 48V5KWH/48V7KWH/48V10KWH are most popular and widely used in solar storage system(Off Grid Solar System&Hybrid Solar System ). They can be connected in Parallel to store more energy.
the lithium ion battery larger houses, multi-family homes as well as businesses and public institutions. The product solutions store excess PV energy and provide it at times when there is insufficient PV energy. This will make you independent of rising electricity prices.
Service Range Technical support&joint venture
QSPOWER offer lithium battery technical consultant service such as factory establishment, production plants arrangement, equipment installation & maintaince and management consultant. QSPOWER also make designation and produce high quality different kinds of lithium battery. We provide battery cells and make battery products R&D meanwhile QSPOWER provide battery product inspection service for worldwide customer etc.
Warning :
Make sure you DIY with correct polarity. (Negative polarity located at the top end) Don’t use NiMH or Li-ion smart charger charge LiFePO4 cell/pack. Wrong type of charger used may cause cell damaged. You must limit discharging rate below Max rate Please read more info about LiFePO4 battery
Packaging & Shipping

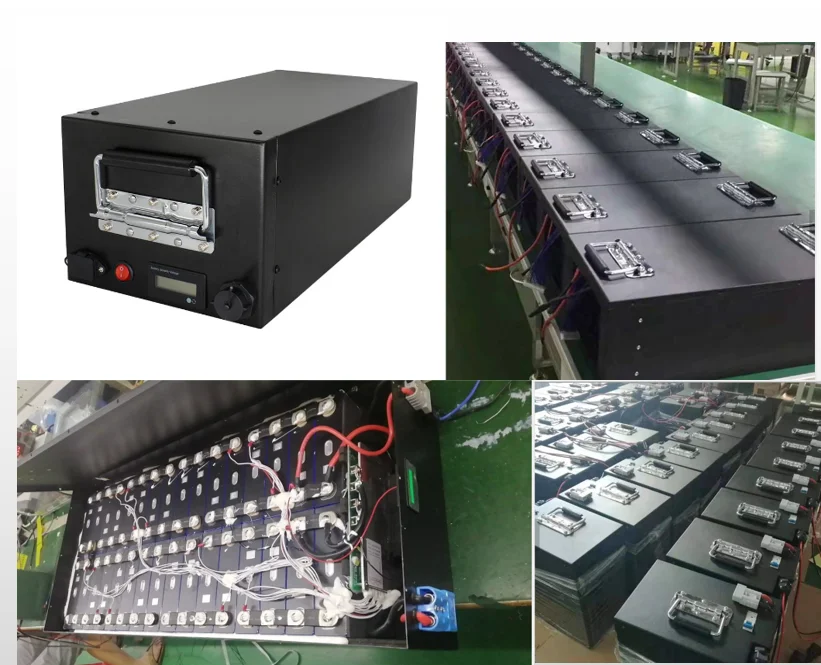

QS Power LiFePO4 lithium battery 48V 100AH power wall 5kwh 10kwh Packing
Seaworthy Carton to fully protect batteries on the way.
Each battery packed in polyfoam ,then put in 3 layer brown box,some related pcs put in 5-layer strong brown outer carton
QS Power LiFePO4 lithium battery 48V 100AH power wall 5kwh 10kwh Delivery
1..by UPS/DHL/FEDEX( It takes 3-5 days to arrive after all details confirmed) 2.by air cargo( It takes about one week to arrive after all details confirmed) 3.By sea shipment ( It takes about one month to arrive after received the d eposit and confirmed all details. 4.Port:FOB Hongkong or CIF terms. 5.Shipment date within 30days for mass production . 6.Shipment date within 7-10days for testinng samples .
Our Services

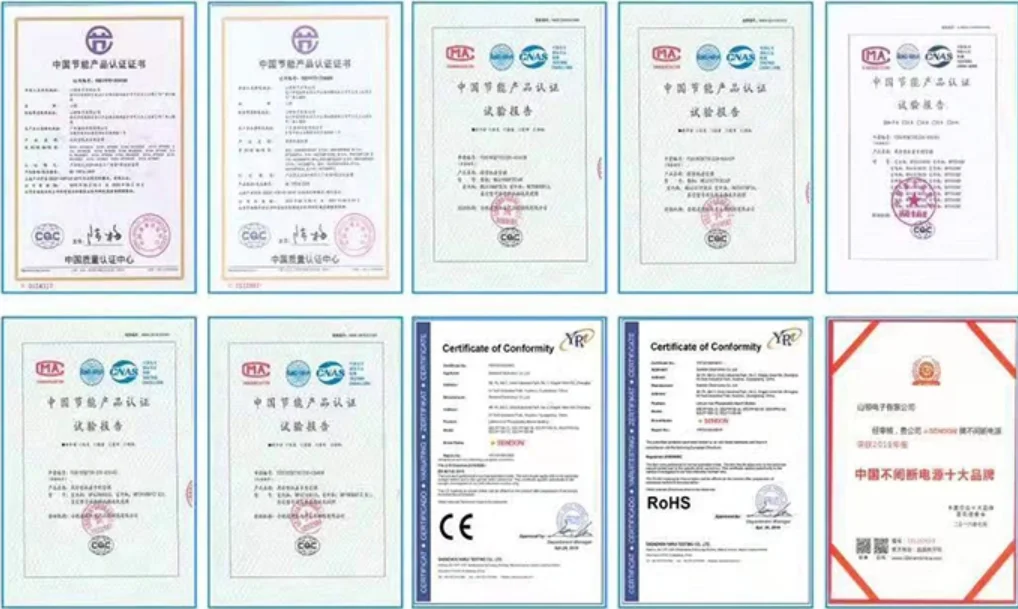

Certifications

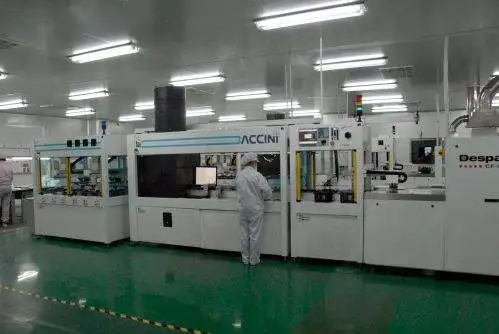

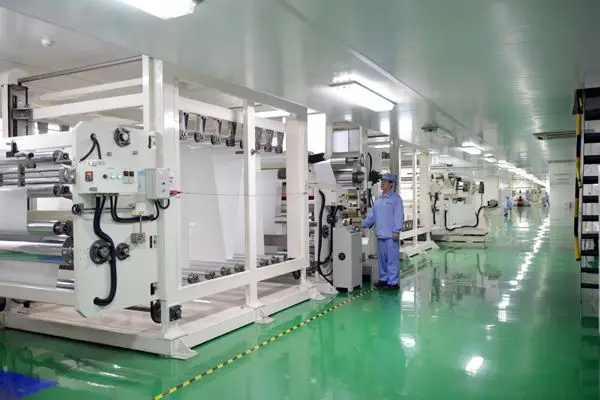

Company Information
QSPOWER(zhuhai) Co.,LTD was founded on 2018 belonging to Qiangsheng Goup(UK) Co.,Ltd which focus on green energy products production since 2012.
QSPOWER have the strong technique support group which have the well-known expert form America and Taiwan. QSPOWER has extensive experience with every facet of the design and manufacturing process of batteries.
QSPOWER are focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain, battery packing and customized green energy solution project.
QSPOWER has the experience and resources to help design engineers ensure a smooth design process and project management meet delivery schedules. We are willing to invest together for potential good project and business partner. New developing requirements are welcome always.
Here are some general categories of markets we are in. our main products QS Power LiFePO4 lithium battery 48V 100AH power wall 5kwh 10kwh with BIS certified
Vehicle battery
Energy Storage
Power bank
Power tool battery
Portable Medical battery
Customized batteries
Welcome to send your inquiry mail about our storage lithium ion batteries,and we are LiFePo4 battery manufacturer
