factory provide commercial use 12 tons/day plate ice machine fully automatic design
- Category: >>>
- Supplier: Focusun Refrigeration (Shanghai) Co. Ltd.
Share on (62402481654):
Product Overview
Description
Product Description
Product Application
FOCUSUN Plate ice machine with R404A SYSTEM
Features of plate ice :
Thickness 4-30mm, size (20cm-40cm)X(30cm 50cm), transparent, dry and hard ice block with irregular shape.
High density, small surface area and good cool storage effect.
Even cooling effect, good ventilation performance, and constant refrigerating temperature,
suitable for refrigeration of aquatic products.
Advantages:
If the ice storage is full,the plate ice machine will switch automatically into the water tank control mode to make sure the cold water inside the cold water tank always be at the set level. If the ice level inside the ice storage is again going down, the ice plate machine will switch again automatically ino the ice makin mode. During perids in which the plate ice plant is not producing, the plant automatically controls the water temperatue of the cold water using the recrcuation mode.
Application fields:
Features of plate ice :
Thickness 4-30mm, size (20cm-40cm)X(30cm 50cm), transparent, dry and hard ice block with irregular shape.
High density, small surface area and good cool storage effect.
Even cooling effect, good ventilation performance, and constant refrigerating temperature,
suitable for refrigeration of aquatic products.
Advantages:
If the ice storage is full,the plate ice machine will switch automatically into the water tank control mode to make sure the cold water inside the cold water tank always be at the set level. If the ice level inside the ice storage is again going down, the ice plate machine will switch again automatically ino the ice makin mode. During perids in which the plate ice plant is not producing, the plant automatically controls the water temperatue of the cold water using the recrcuation mode.
Application fields:
Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.
Models | Capacity | Electricity consumption | Dimension(mm) |
FIP-10 | 1ton/day | 6.69kw.h | 1700×1200×1700 |
FIP-20 | 2ton/day | 9.92kw.h | 2200×1600×2000 |
FIP-30 | 3ton/day | 14.4kw.h | 2200×1500×2000 |
FIP-50 | 5ton/day | 25.15kw.h | 2000×1800×2200 |
FIP-100 | 10tons/day | 39.07kw.h | 2200×1900×2200 |
FIP-150 | 15tons/day | 56.35kw.h | 2200×2100×2200 |
FIP-200 | 20ton/day | 84.00kw.h | 3800×2200×2450 |
FIP-240 | 24ton/day | 100.1kw.h | 4500×2200×2450 |
FIP-320 | 32ton/day | 124kw.h | 3200×2200×2450 |
FIP-120 | 12ton/day | 44.47kw.h | 2200×1900×2200 |
FIP-400 | 40ton/day | 154.7kw.h | 3800×2200×2450 |
FIP-480 | 48ton/day | 189.1kw.h | 3200×2200×2450 |

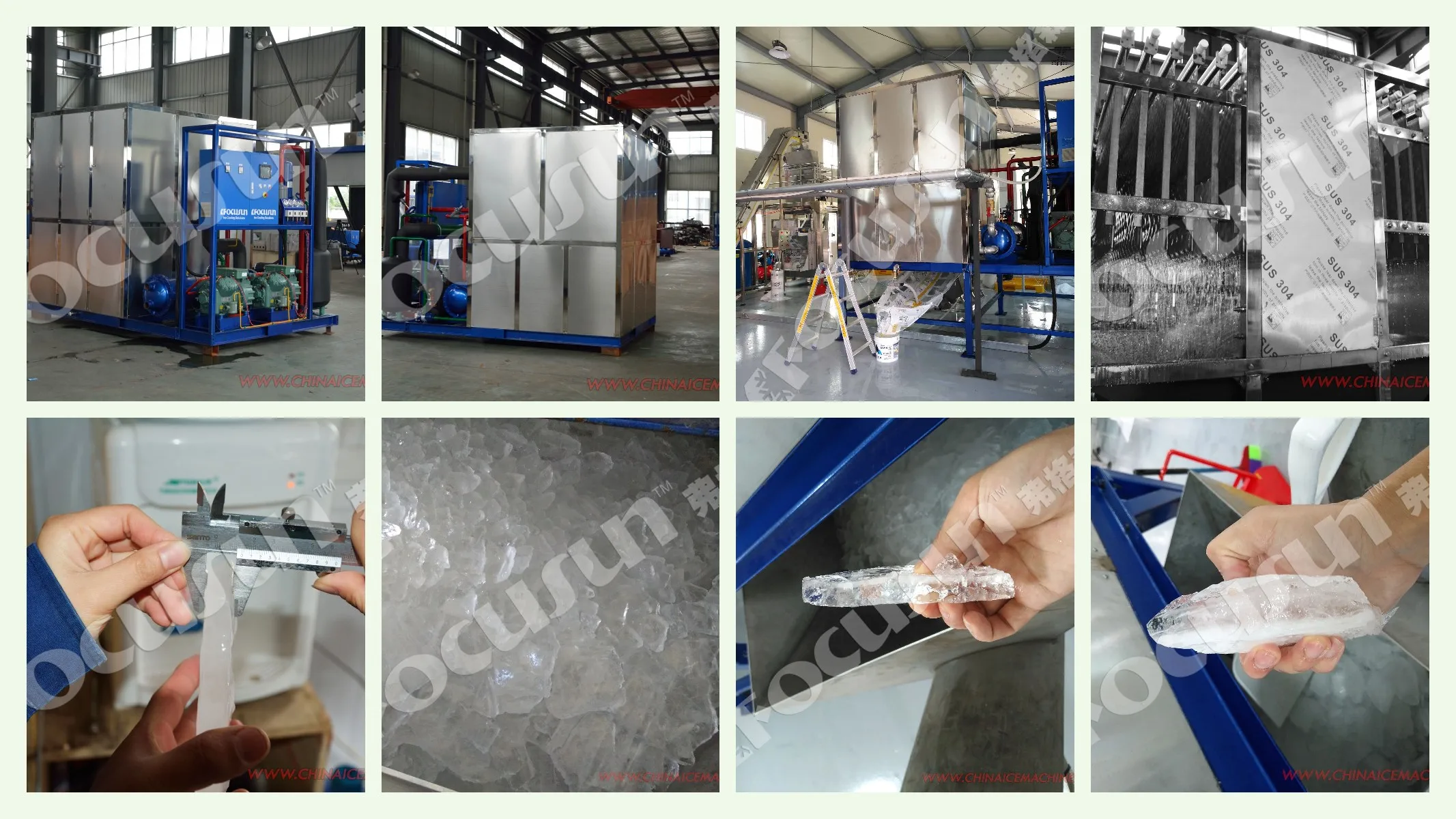

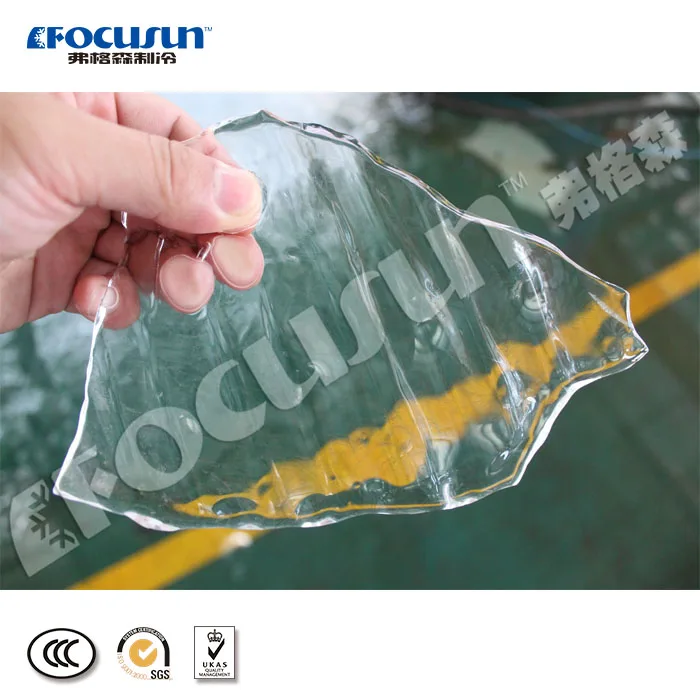

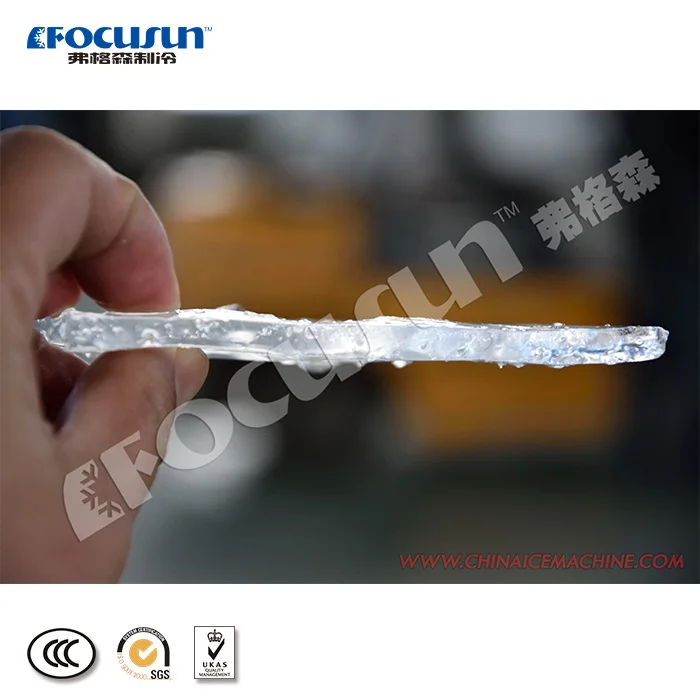

Plate ice introduction:
Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life. Small capacity from 1tons to 10tons day offered.
About Focusun
FOCUSUN---Cooling Technical Master Since 1929, Germany
Focusun is a pioneer in ice cooling techlonogy and manufacture worldwide. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 150 countries around the world. Now we have a factory of 36,000 square meter in Taizhou, Jiangsu province, China.
Focusun (shanghai) Refrigeration Equipment is founded in 2008. In fact, our activity in refrigeration technology is dated back to 2002. In 2012. Focusun(Shanghai) is authorized by Kulinder Incorporation(Germany) to deal with all business, D&M and promotion in China and granted the full right to use the brand of Kulinder, Focusun, pictures and the copyright of design &manufacture in China.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
