Product Overview
Description

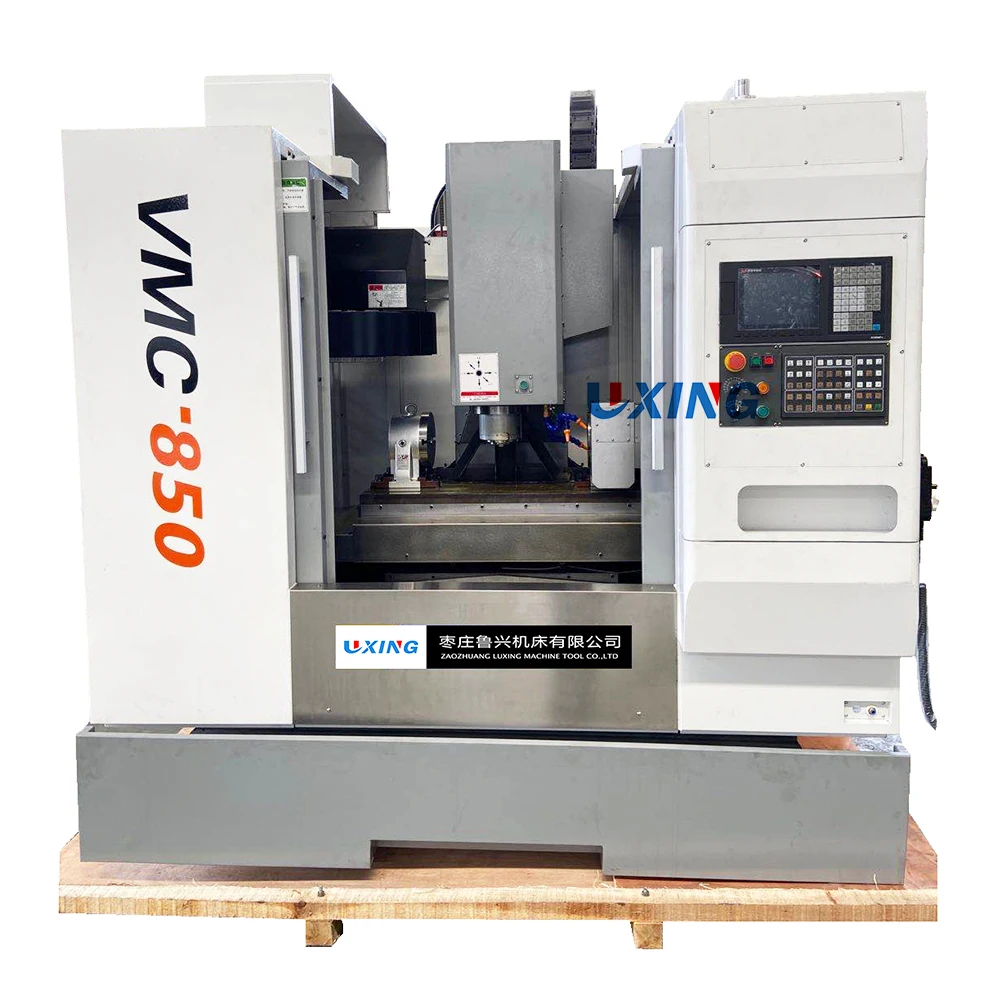

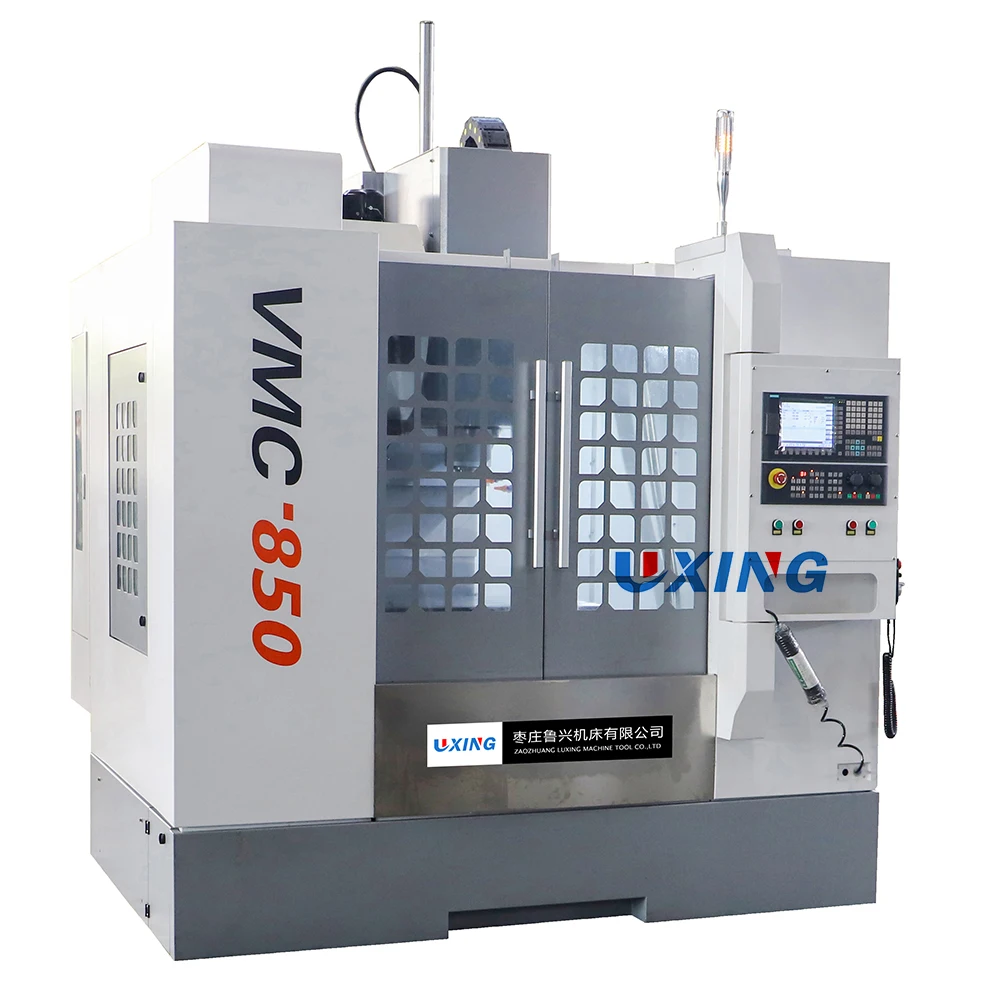

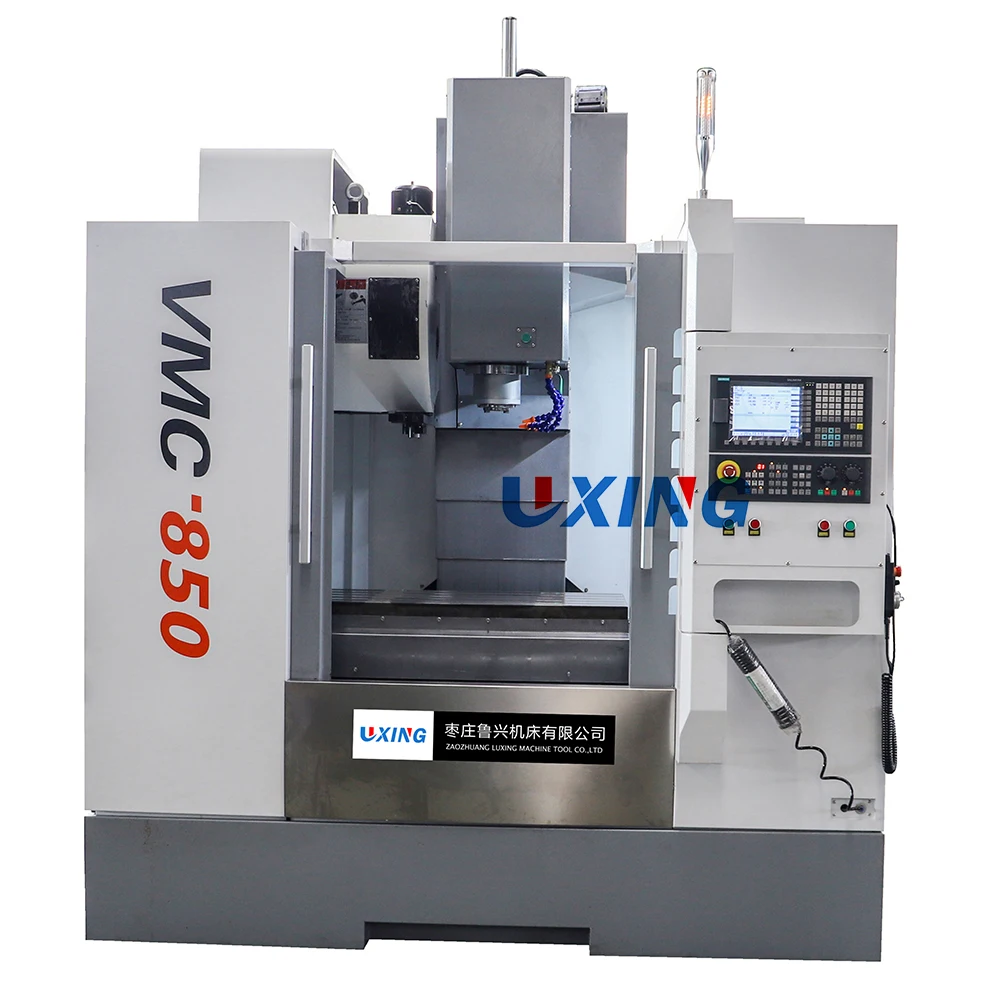

High precision 10000rpm speed 3/4/5 axis Vertical Machining Center cnc Milling Machine VMC850 specifications
Product Description
Product characteristics:
VMC850 is a new generation vertical machining center. It can be used in aerospace, military industry, hydropower, wind power, automobile parts, machining, precision machining and mould manufacturing. Small parts and non-ferrous metals high-speed and high-precision automatic processing. Integral casting FEM finite element analysis, dynamic simulation completely eliminate structural stress, to ensure the best rigidity and stability.
Product application:
Widely used in mechanical processing, mold, instruments, instruments and other industries. The main components, such as base, fuselage, worktable, middle slide, lift slide and so on, are cast with high strength material, and the stability of machine tool is ensured by artificial aging.
Machine main specifications:
Specification | Unit | VMC550 | VMC650 | VMC850 |
Table size | mm | 800×260 | 800×400 | 1000×500 |
T-slot(NO.x width ) | mm | 3-14 | 3-14 | 5-18 |
Max.table load | kg | 300 | 400 | 500 |
Guide rail type |
| Linear rail guide | Linear rail guide | Linear rail guide |
X/Y/Z axis travel | mm | 500×260×450 | 650×400×500 | 800×500×500 |
Distance from spindle nose to worktable | mm | 90-490 | 70-570 | 100-600 |
Distance from spindle center to column | mm | 380 | 450 | 580 |
Spindle taper |
| BT40 | BT40 | BT40 |
Spindle Speed | rpm | 8000 | 8000 | 8000 |
Spindle Drive |
| Belt | Belt | Belt |
Spindle Motor | kw | 3.7 | 5.5 | 7.5 |
X/Y/Z axis rapid feed speed | m/min | 15/15/12 | 20/20/20 | 24/24/24 |
X/Y/Z axis cutting feed rate | mm/min | 1-5000 | 1-6000 | 1-10000 |
Tool changer |
| Hat type-12T | Hat type-16T | Arm type -24T |
Positioning accuracy | mm | ±0.01/300 | ±0.01/300 | ±0.008/300 |
Machine dimensions(L*W*H) | mm | 2100×1700×2200 | 2300×2000×2350 | 2200×2350×2550 |
Machine weight(N.W/G.W) | T | 2.4 | 3.0 | 5.0 |
Details
Optional accessories:
10000rpm;
12000rpm;
The 4th axis;
Tool setter;
Chip conveyor.
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
