Product Overview

Description

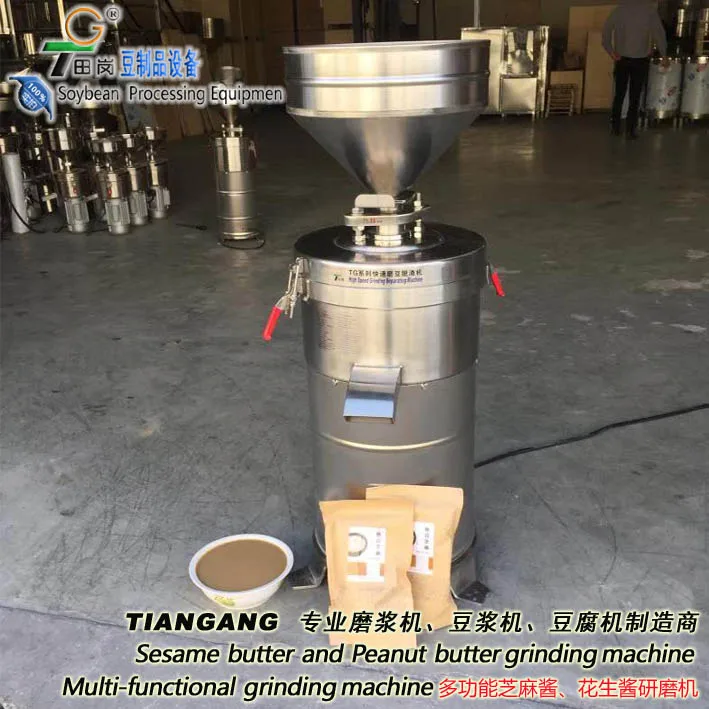

TGM-200B Multi-function food grinding machine - Sesame paste grinder
TGM-200B Multi-function Corundum Disk Mill
The device is a novel wet grinding device used for wet grinding of food materials such as sesame, peanut, pepper, rice, soybean, corn, etc., and also used for wet grinding of certain materials in medicine, food and other industries. When the fried sesame and peanuts can be directly ground into sesame sauce, peanut butter, or the materials after pretreatment such as cleaning and soaking, the materials are ground and grinded under the action of centrifugal force to enter the relatively moving upper and lower sand discs to make the materials. Grinding is carried out from the inside to the outside along the plane of the sand disc from coarse to fine.




Features:
1, can be customized according to the nature of the material, process requirements of the grinding stone and feed structure.
2, carefully designed special waterproof and drainage design, easy to clean.
3, practical unique thickness adjustment mechanism, using 304# stainless steel structure.
Uses: Make sesame sauce, peanut butter, chili sauce and soy milk, rice syrup, and other foods soaked in soft items.




Technical Parameters:
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 60-150kg / hour; grinding wheel diameter: 200mm;
Size: 480*520*1150mm;Weight: 96kgs;
package size: 530*480*1250mm;Gross weight: 105kg;




JM series Vertical Colloid Mill/Peanut Butter Colloid Mill
JM-80 COLLOID MILL MACHINE
Voltage:380/50Hz;Power:4KW;
Adjusting Range of Space:1-0.01mm;
Out put:0.05-0.5t/h (Varies According to Materials pioperteies)
Weight:95kg;Size: 360*360*800mm;
Packing size:450*450*870mm；Gross Weight:105kgs




Working principle:
The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:
The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on.

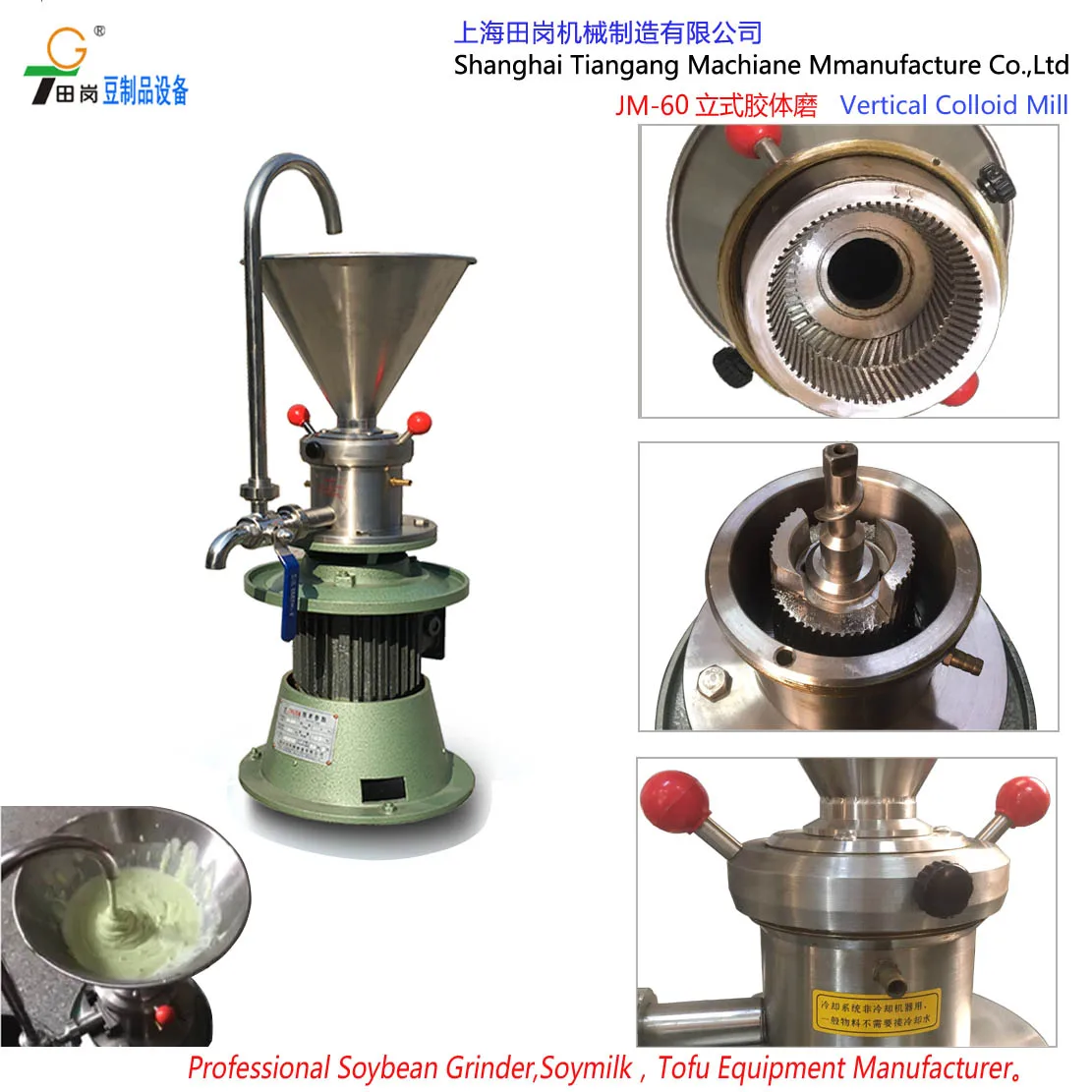

JM-60 VERTICAL COLLOID MILL;
Voltage:220V/50Hz;Power:1500W
Thin degree:1-0.01mm;
Out put:0.05-0.5t/h (Varies According to Materials
pioperteies) Weight:45kg;
Size: 300*300*650mm;
Gross Weight:50kgs;
Packing size:360*360*780mm
JM-65 VERTICAL COLLOID MILL;
Voltage:220V/50Hz;Power:1500W
Out put:0.05-0.5t/h (Varies According to Materials
pioperteies) Weight:50kg;
Size: 300*300*700mm;
Gross Weight:55kgs;
Packing size:360*360*800mm

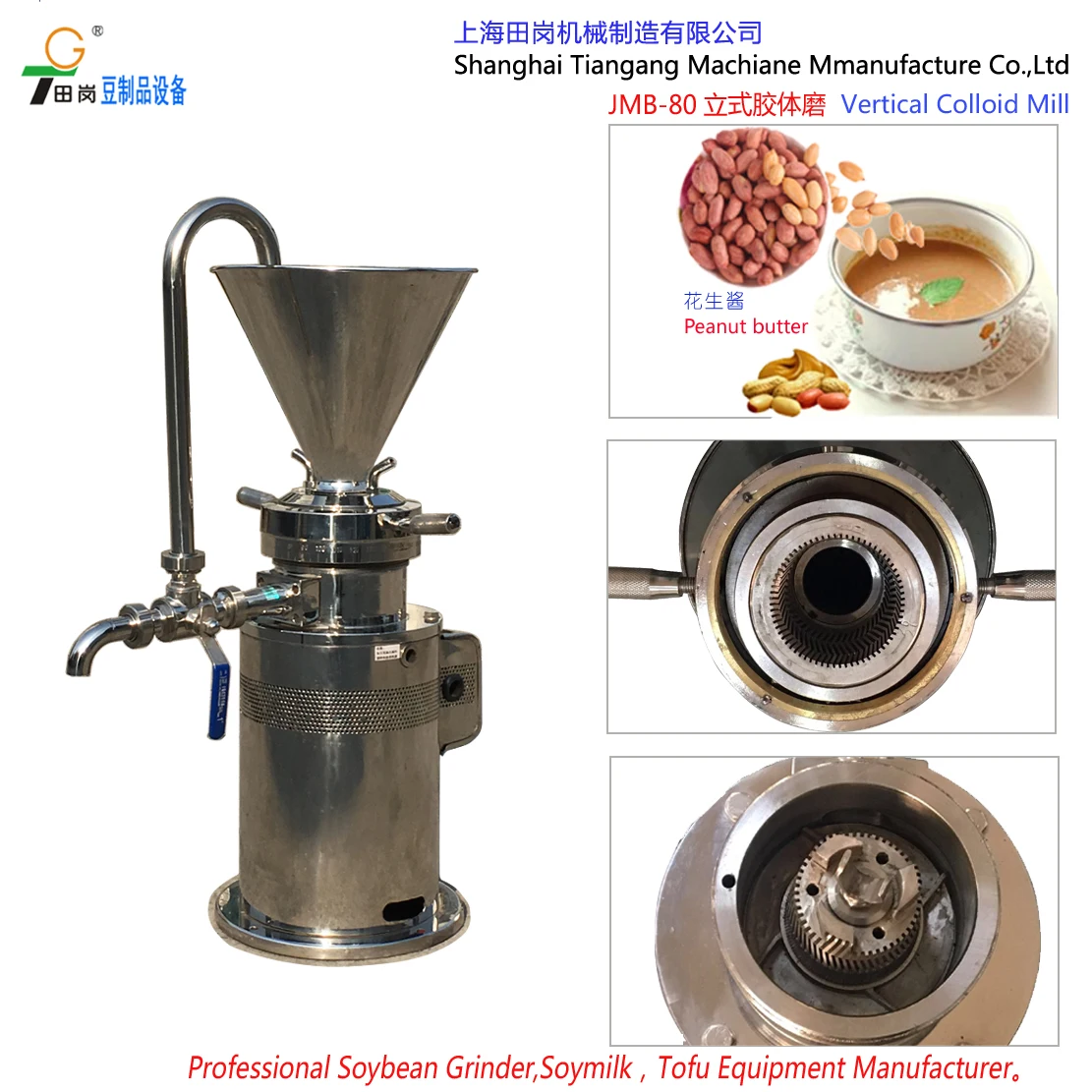

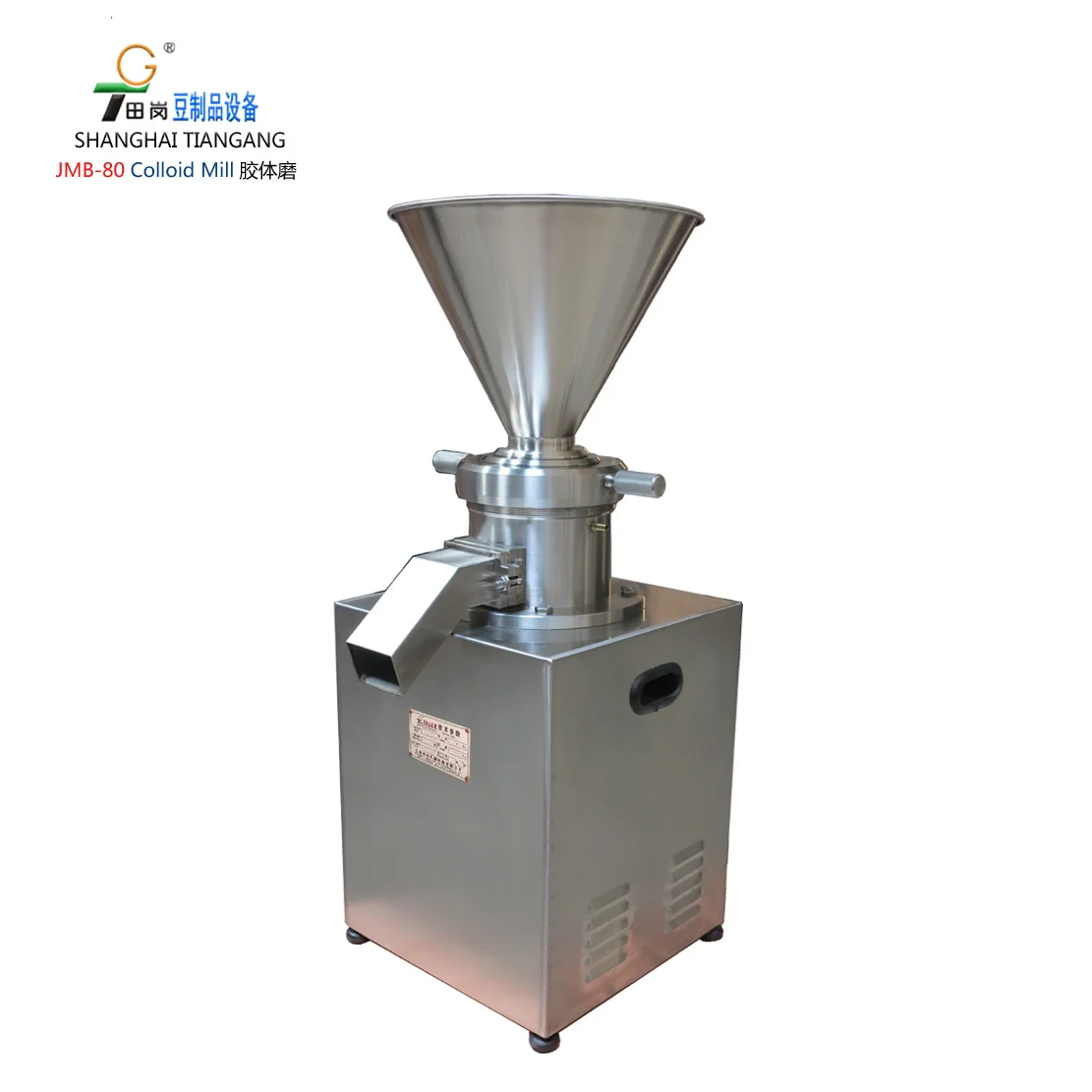

JMB-80 Vertical Colloid Mill Machine
Voltage:380/50Hz
Customizable 220V/60Hz motor.
(Three-phase power supply)
Power:3KW;
(Customizable 4KW motor.)
Speed:1700-3500r/min;
Adjusting Range of Space:1-0.01mm;
Out put:0.1-0.5t/h
(Varies According to Materials pioperteies)
Weight:95kg;
Size: 360*360*800mm;
Gross Weight:105kgs;
Packing size:450*450*870mm








Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
