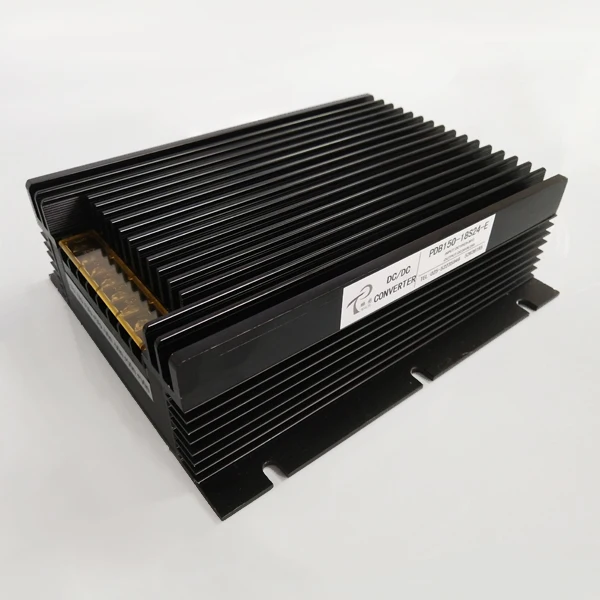

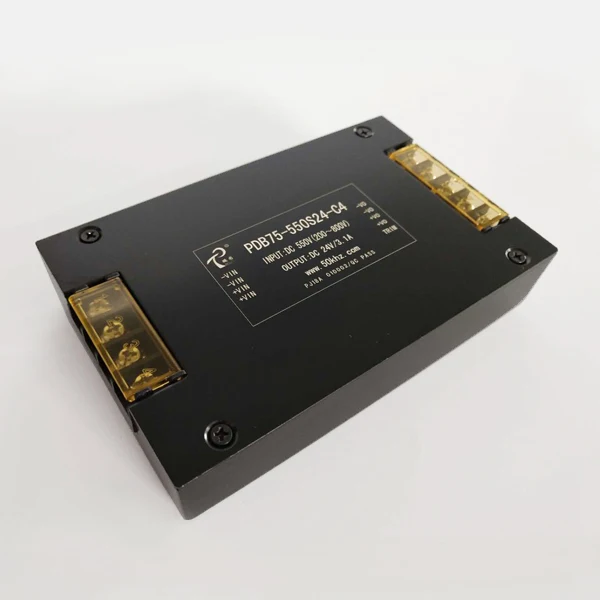

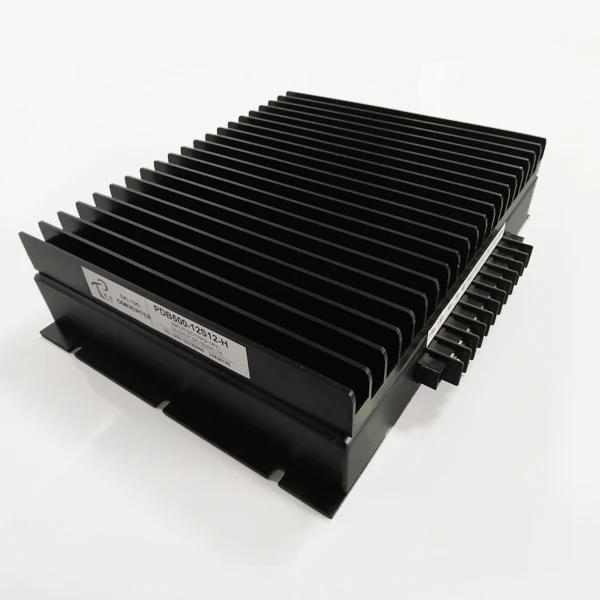

PDB A Series dc dc converter 110vdc 24vdc
- Category: >>>
- Supplier: Nanjing Pengtu Power Supply Co. Ltd.
Share on (62402664323):
Product Overview
Description
Product Description
Specification
Features
Π type input filter
High power density
2X,4X voltage input
Design for high reliability,long lifetime
Easy installation, dual side pin out
Attractive outline design
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9~18 VDC
24VDC (Normal Rated Value): 18~36 VDC
48VDC (Normal Rated Value): 36~72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9~36VDC(Quadruple input)
Output Characteristic
Voltage set-point accuracy ……±2%
Line Regulation (full load) ……±0.5%
Load regulation (20%-100%load) ……±0.5%
Output Current Limiting ………………120%(Tye)
Output Current ………………………………2~10A for option
Output Voltage ………………………………5~48V
Power ……………………………………………30-100w
General Characteristic
Switching frequency ………100-200 KHz
Isolation resistance ………200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
Dimensions:116.40*65.00*21.50mm
Protection Features
1.Input under voltage protection 2.Output short circuit protection
3.Input over voltage protection 4.Output over current protection
5.Over temperature protection
Π type input filter
High power density
2X,4X voltage input
Design for high reliability,long lifetime
Easy installation, dual side pin out
Attractive outline design
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9~18 VDC
24VDC (Normal Rated Value): 18~36 VDC
48VDC (Normal Rated Value): 36~72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9~36VDC(Quadruple input)
Output Characteristic
Voltage set-point accuracy ……±2%
Line Regulation (full load) ……±0.5%
Load regulation (20%-100%load) ……±0.5%
Output Current Limiting ………………120%(Tye)
Output Current ………………………………2~10A for option
Output Voltage ………………………………5~48V
Power ……………………………………………30-100w
General Characteristic
Switching frequency ………100-200 KHz
Isolation resistance ………200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
Dimensions:116.40*65.00*21.50mm
Protection Features
1.Input under voltage protection 2.Output short circuit protection
3.Input over voltage protection 4.Output over current protection
5.Over temperature protection
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | Pengtu dc dc converter 110vdc 24vdc |
Model Number | PDF |
Output Power | 51 - 100W |
Output Type | Single |
Input Voltage | 24-300VDC |
Output Voltage | 12V |
Output Frequency | 200-350 |
Output Current | 10.4-33.3 |
Product Name | dc dc converter 110vdc 24vdc |
output voltage 2 | 48V |
output voltage 3 | 24V |
