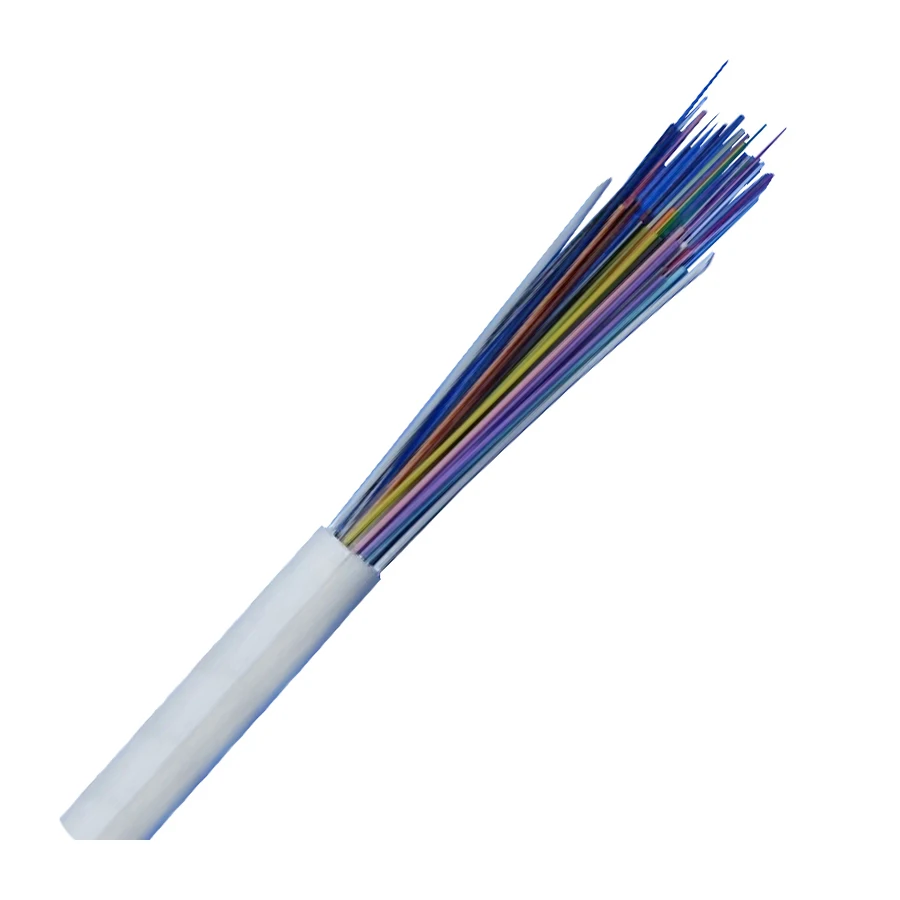

Indoor outdoor Pull out Distribution FTTx Fiber Optic Cable GJPFXJH

Product Overview

Description

Indoor outdoor Pull out Distribution FTTx Fiber Optic Cable GJPFXJH

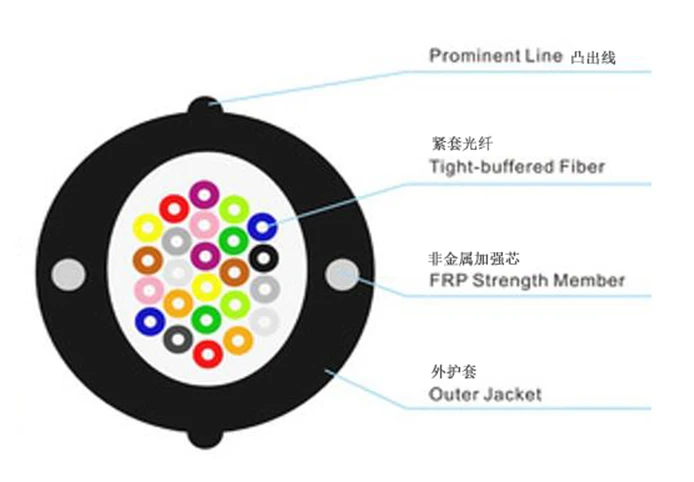

The pull-out distribution optical cable use multiple ∅900µm flame-retardant tight buffer fibers as optical communication medium, two parallel Fiber Reinforced Plastic (FRP) are placed at the two sides as strength member, then  the cable is completed with a flame-retardant LSZH (low smoke, zero halogen, flame-retardant) jacket.

Features:

• Excellent mechanical and environmental performance;


• All dielectric and dry core structure improve the efficiency and cleanness in deployment;


• Small diameter, light weight, be convenient for the installation and maintanence, and reduce construction cost;


• The FRP strength member has strond tension and anti-bend advantages;


• Data transmission with high reliability, easy to connect.

Applications:

• Adopted to core network;


• access network, fiber to the home;


• distribution cable in building, etc.

Technical Parameters:

Fiber Count	Cable Diameter	Cable Weight	Bending Radius (mm)		Tension Strength (N)		Cruch Resistance (N/100mm)
	(mm)	(kg/km)	Static	Dynamic	Long term	Short term	Long term	Short term
2	6.75	33	10D	20D	200	660	300	600
4	6.75	33	10D	20D	200	660	300	600
6	6.75	33	10D	20D	200	660	300	600
8	8.5	69	10D	20D	200	660	300	600
12	8.5	69	10D	20D	200	660	300	600
16	10.5	97	10D	20D	200	660	300	600
18	10.5	97	10D	20D	200	660	300	600
24	10.5	97	10D	20D	200	660	300	600
36	12	132	10D	20D	200	660	300	600
48	13.5	143	10D	20D	200	660	300	600





Standards:

Comply with Standard YD/T1258, 2-2003,ICEA-596, GR-409, IEC60794-2-10/11, etc; and meet the requirements of UL approval for OFNR and OFNP.



Optical Parameters:

		50/125µm	62.5/125µm	G.652	G.655
Attenuation(+20°C)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5dB/km	≤ 1.5dB/km
	@1310nm			≤0.5dB/km	≤0.5dB/km
	@1550nm			≤0.4dB/km	≤0.4dB/km
Bandwidth (Class A)	@850nm	≥ 500MHz.km	≥ 200MHz.km
	@1300nm	≥ 1000MHz.km	≥ 600MHz.km
Numerical Aperture		0.200 ±0.015NA	0.275 ±0.015NA
Cable Cut-off Wavelength λcc				≤ 1260nm	≤ 1450nm
Attenuation at temperature cycling Δα(-20°C~+60°C)	@1300nm	≤ 0.25dB/km	≤ 0.25dB/km
	@1550nm			≤ 0.1dB/km	≤ 0.15dB/km



Transport/Storage/Operating Temperature: -40°C ~ +70°C

Installation Temperature:  -5°C ~ +50°C
