50Hz 400Hz Single Phase Current Transformer Core Split Strip Winding Iron Core For Transformer Chock Inductor
- Category: Transformers >>>
- Supplier: Wuxi,Weibang,Transformer,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

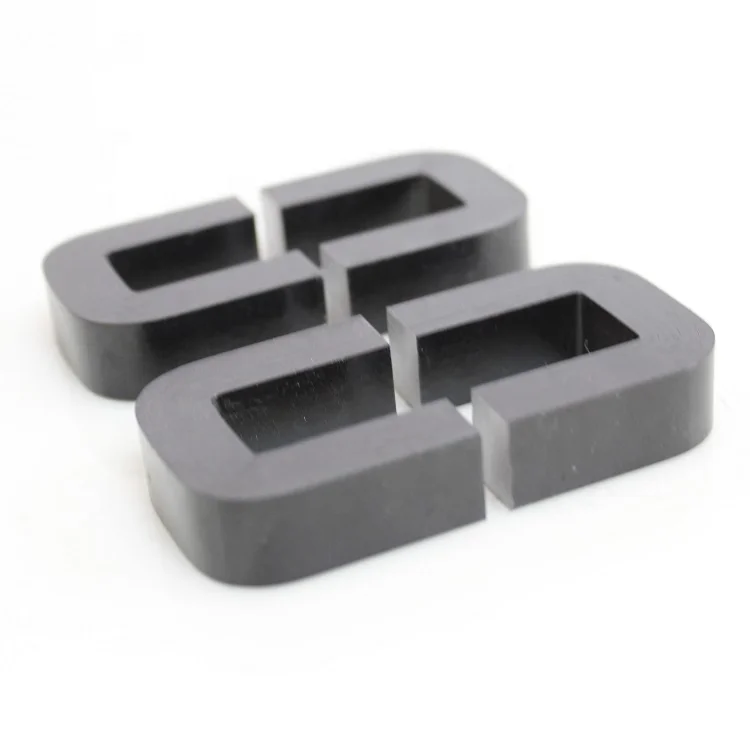

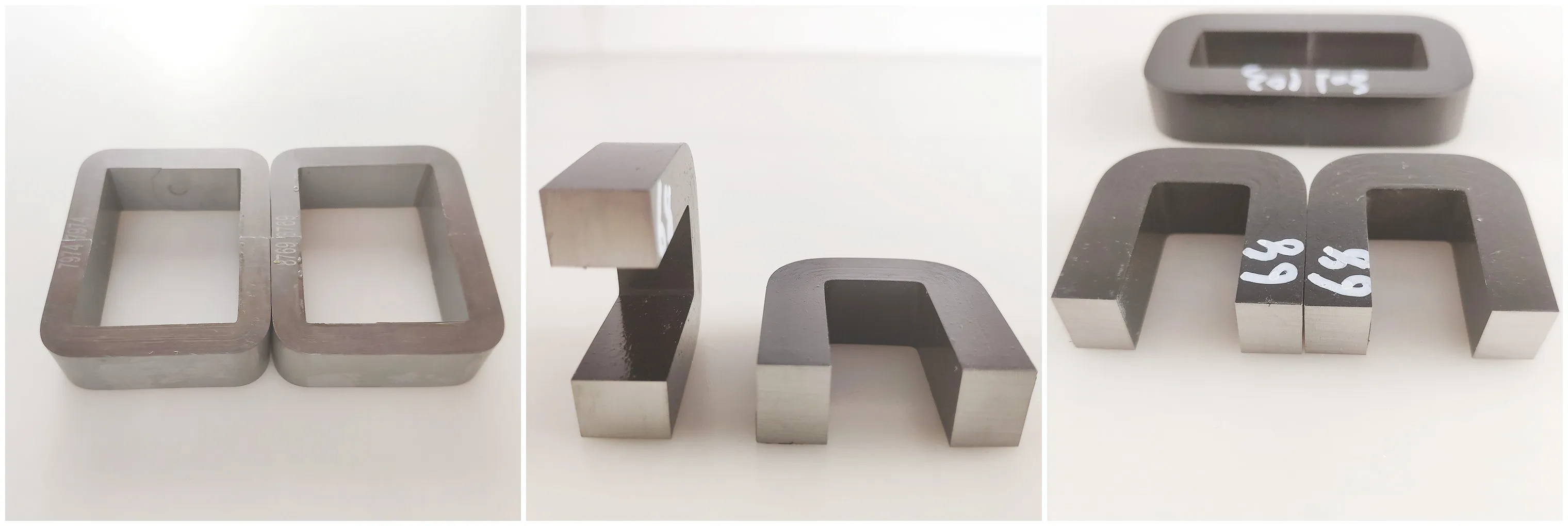

WBCORE Strip Wound C Core is processed by automatic machines to ensure a smooth surface and a standardized product.
After winding,Wound Cores wil be cutted by CNC machines and after-finished to ensure dimensions within the toleranes.
Each pair of wound c cores will be marked with conspicuous characters to ensure correct assembly of transformer,inductor,chock,amplifier.
Product Presentation
Standard Eletrical Steel Wound C Cores(European Stardard) CD Cores(Chinese GB Standard)
To cater for the demands of the electronic and electrical industries in the manufacture of transformers, chokes, reactors and magnetic amplifiers, Wuxi Weibang manufactures a wide range of strip wound C Cores(CD Cores)
Cut C Cores(CD Cores)are produced in four standard ranges – Chinese,British, European Continental and American – all of which can be supplied to various electrical specifications. The cores covered by these standard ranges can be supplied with short despatch times.
Non-Standard Eletrical Steel Wound C Cores(CD Cores)
Cut C Cores(CD Cores) can be manufactured outside the physical dimensions of the standard ranges for special applications. It is however,advantageous to utilise the standard ranges whenever practicable to obtain price and delivery advantage.
Cut C Core(CD Core) | |
Electrical Steel(Cold Rolled Grain Oriented Silicon Steel) Nanocrystalline | |
50Hz~400Hz For Electrical Steel 20~100kHz For Nanocrystalline | |
Tape Thickness | Electrical Steel: 0.05,0.08,0.1,0.23,0.27,0.30,0.35MM Nanocrystalline: 0.017~0.038MM |
Process | Winding,Annealing,Imersion,Cutting,Grinding,Packgaing |
Black,Grey,Blue Or Customized Color | |
Equipement | Automatic winding machine Semi-automatic winding machine |

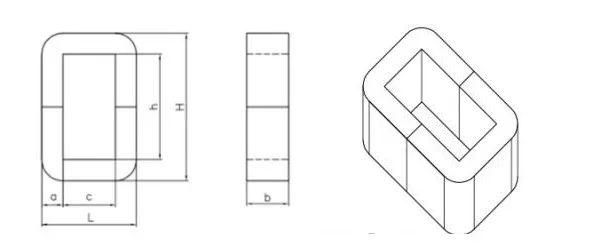

Strip Wound Core(CD Core)Chinese GB Standard(MM) Electrical Steel Tape Wound Core
Core Item | Winding Thickness | Tape Width | Inner Height | Power@50Hz | Power@400Hz |
CD6.5*12.5*8 | 6.5 | 12.5 | 8,10,12.5,16 | NAN | 9.69~20.4VA |
CD8*12.5*12.5 | 8 | 12.5 | 12.5,16,20,25 | NAN | 25.8~51.VA |
CD10*12.5*20 | 10 | 12.5 | 20,25,32,40 | 2.42~6.67VA | 56.6~112VA |
CD12.5*16*25 | 12.5 | 16 | 25,32,40,50 | 10.7~25VA | 119~221VA |
CD12.5*25*30 | 12.5 | 25 | 30,40,50,60 | 31.2~63.2VA | 222~398VA |
CD16*32*40 | 16 | 32 | 40,50,65,80 | 89~171VA | 470~840VA |
CD20*40*50 | 20 | 40 | 50,60,80,100 | 199~375VA | 813VA~1476VA |
CD25*50*65 | 25 | 50 | 65,80,100,120 | 448~776VA | 1595~2668VA |
CD32*64*80 | 32 | 64 | 80,100,130,160 | 1006~1843VA | 3197~5522VA |
CD40*80*100 | 40 | 80 | 100,120,160,200 | 2106~3912VA | 6152~10737VA |
Application Information

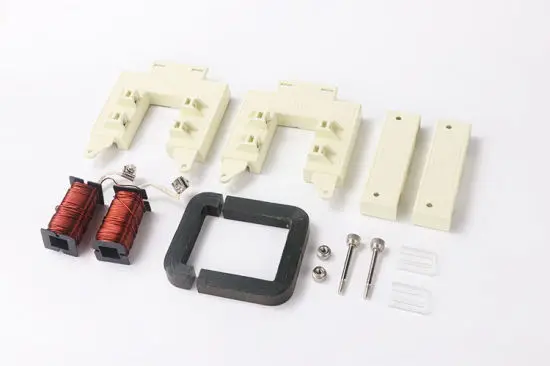

Strip Wound C Core or CD Core is widely used in split transformer as the soft magnetic cores.Electrical Silicon Steel has high saturated flux desity over 2T and is quite suitble low grade and high burden split transformers and nanocrystalline is more suitable for higher grade applications.
Technology
Precision Measuring Instrument
Before and during the production,we must measure the dimension and electromagnetic specifications of iron cores.

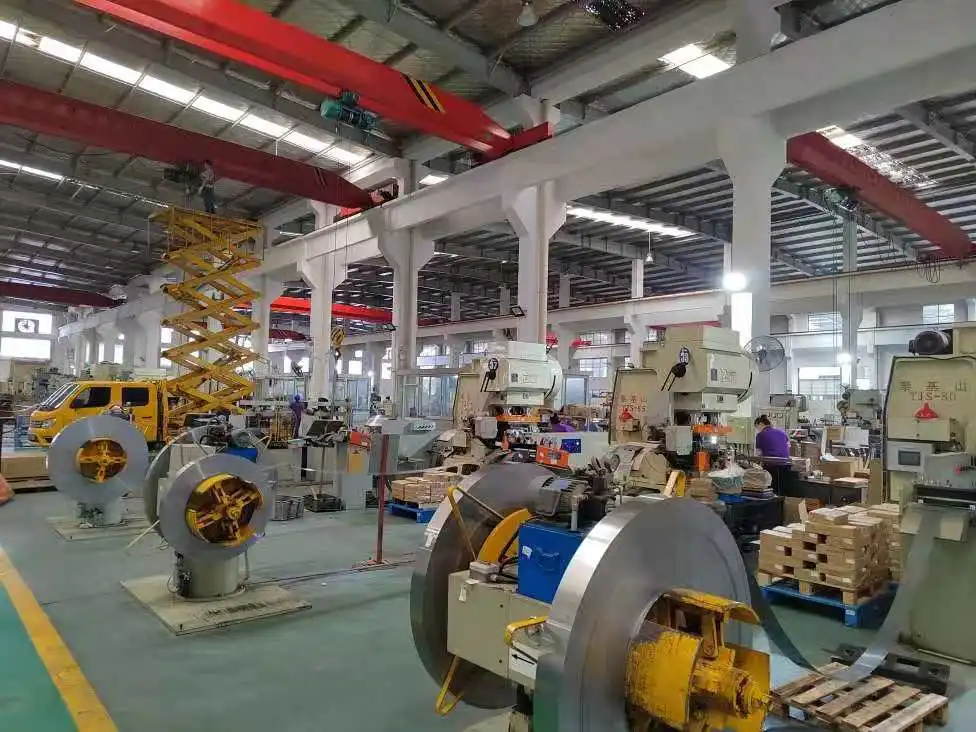

Automatic Winding Machine
Weibang is always seeking for innovative methods to improve production efficiency and working conditions.
Quality Management Systems
All products are monitored by strice quality management,all faces are clean and smooth to ensure the lowest power loss of transformers,chokes,reactors and magnetic amplifers
Vaccum Annealing
Strip wound cores made of electrical steel or nanocrystalline can get better performance after vaccum annealing.
Company Introduction
Wuxi Weibang Transformer Manufacture Co.,Ltd is a leading soft magnetic core manufacturer in China focused on producing and developing top quality strip wound magnetic cores and punching lamination cores for voltage transformers,current transformers,instrument transformers, common modal choke , etc. Wuxi Weibang delivers high quality soft magntic iron cores to customers from over 30 countries.
Wuxi Weibang have been dedicated to manufacture soft magnetic cores under NGV ISO 9001 standard with 3000㎡ modern facilities and 100+ experienced employees.There're are many advanced facilities to improve automatic production ratio.Every piece of the product goes through strict raw material inspectin,automatic wingding or punching,immersion paint,CNC cutting, online inspection,afterfinish,packaging and final inspection.
The WBCORE® are made of eletrical steel(CRGO and CRGNO),amorphous or nanocrystalline to meet different frequency requirment and class grade.Our products are widely used in electronic instruments, transportation, telecommunication, renewable energy and other associated industries.
Wuxi Weibang have been dedicated to manufacture soft magnetic cores under NGV ISO 9001 standard with 3000㎡ modern facilities and 100+ experienced employees.There're are many advanced facilities to improve automatic production ratio.Every piece of the product goes through strict raw material inspectin,automatic wingding or punching,immersion paint,CNC cutting, online inspection,afterfinish,packaging and final inspection.
Certificate

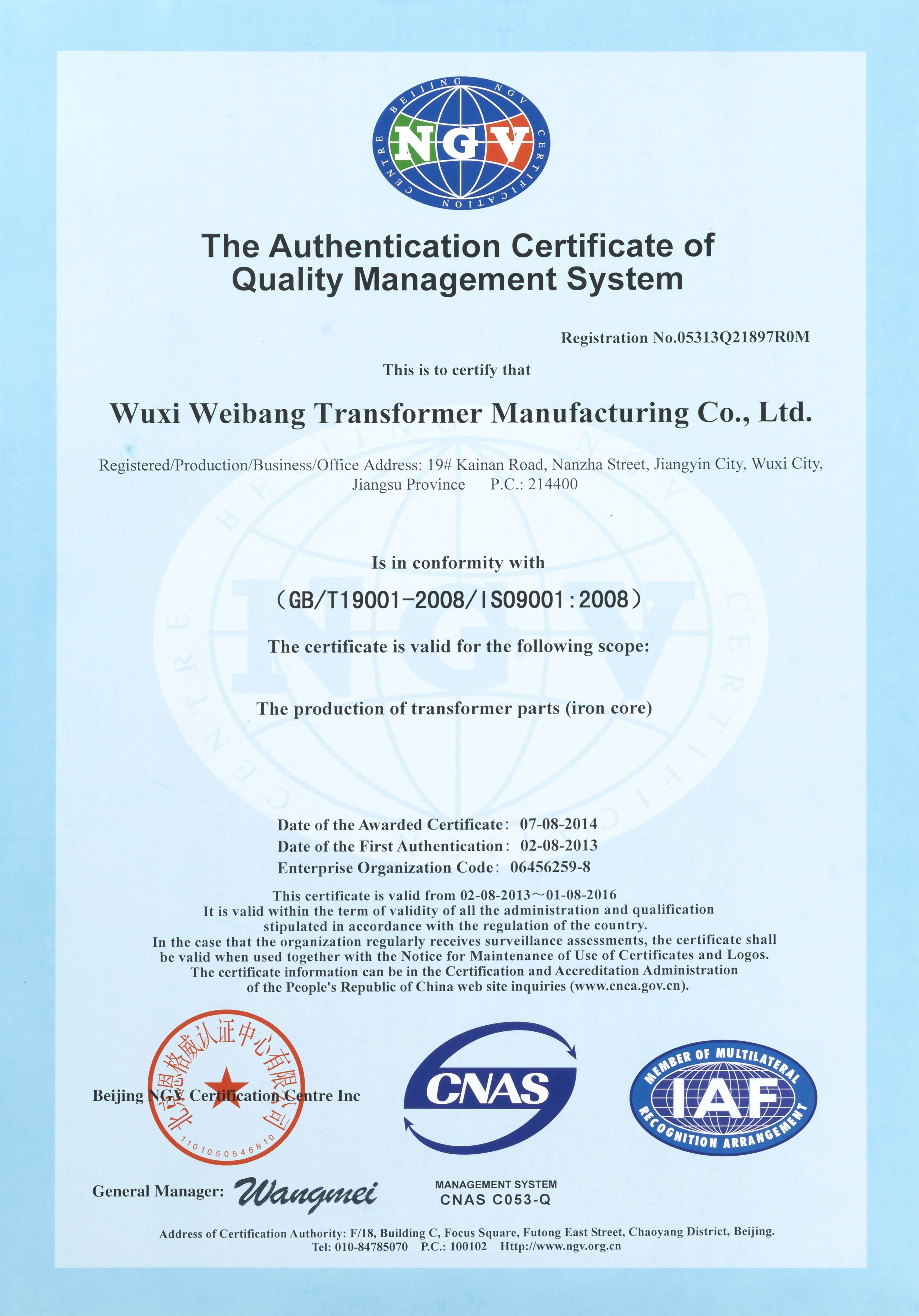

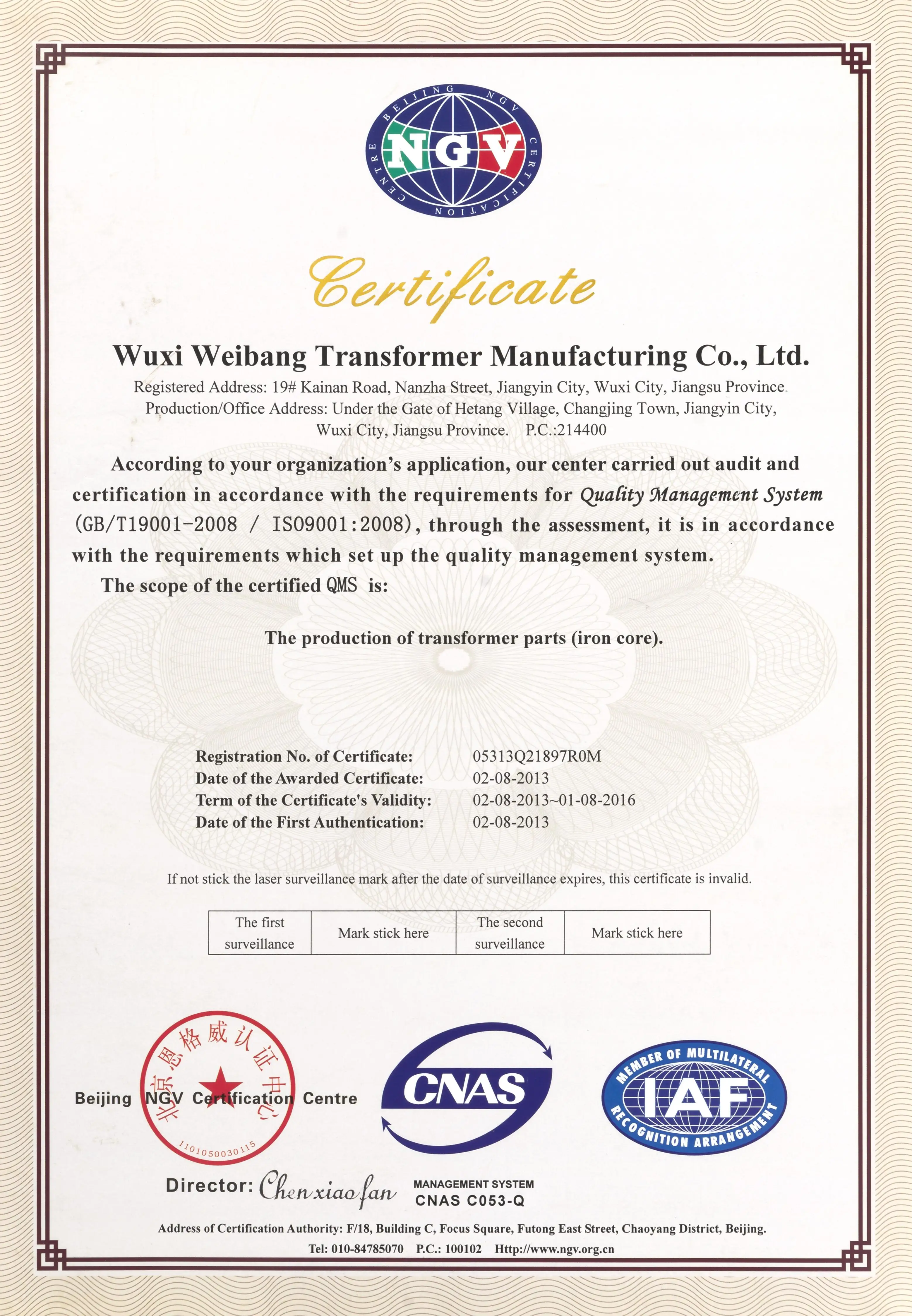

NGV Certification
Wuxi weibang transformer manufacture Co.,Ltd is a professional manufacturer of high quality transformer cores and chokes, supplying soft magnetic materials, soft magnetic cores, electrical and electronic components as well as other materials for transformers and associated industries.Our company have developed in the fileds for years and been certificated by ISO9001:2008
ROHS

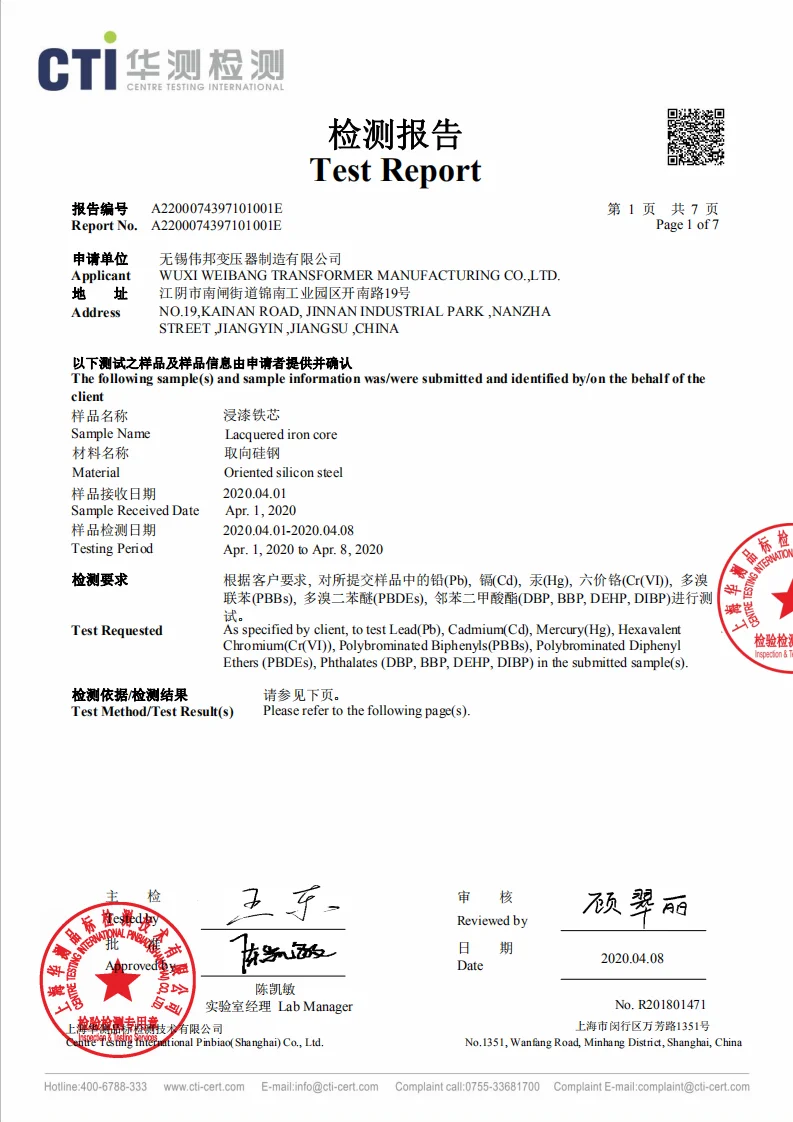

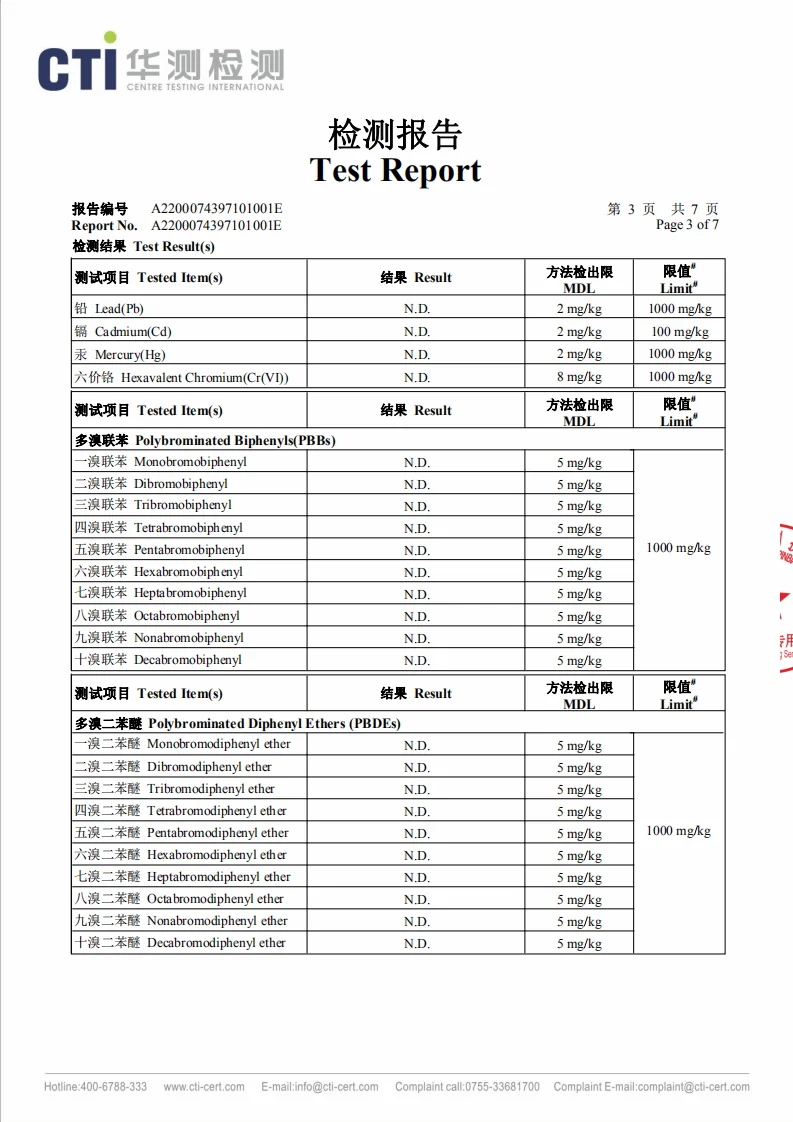

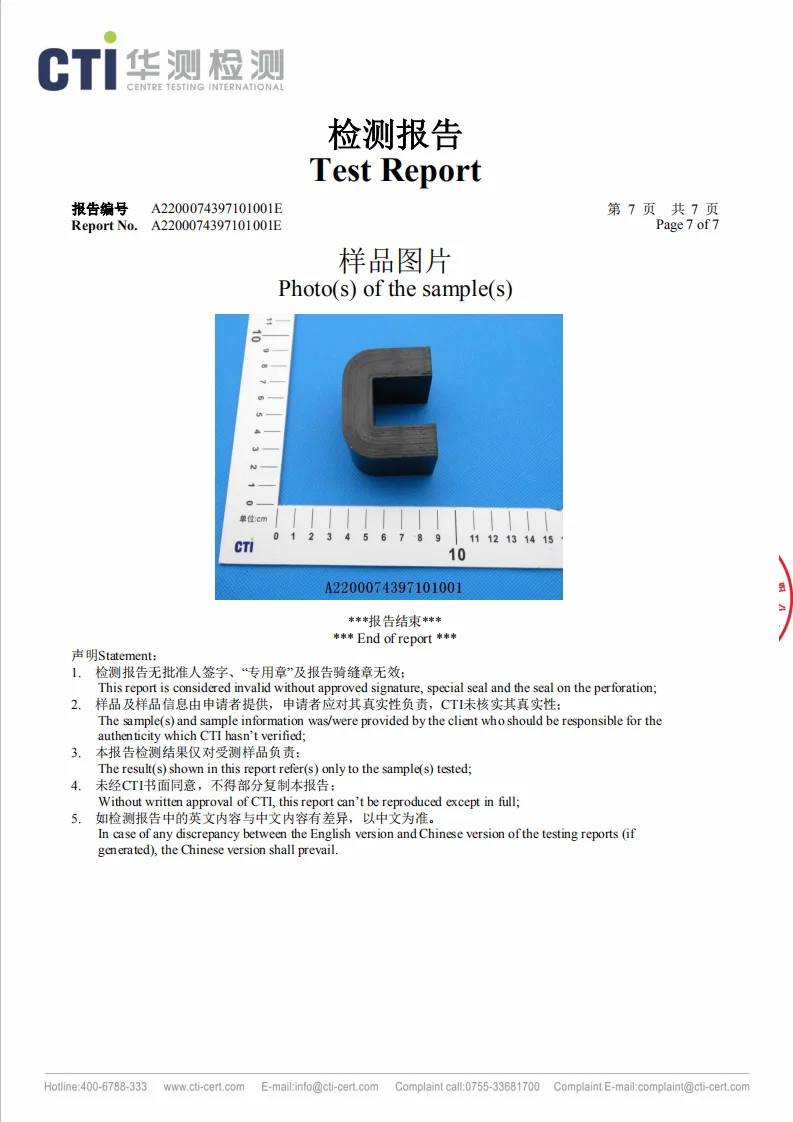

The purpose of this standard is to eliminate harmful substances in electrical and electronic product, such as
