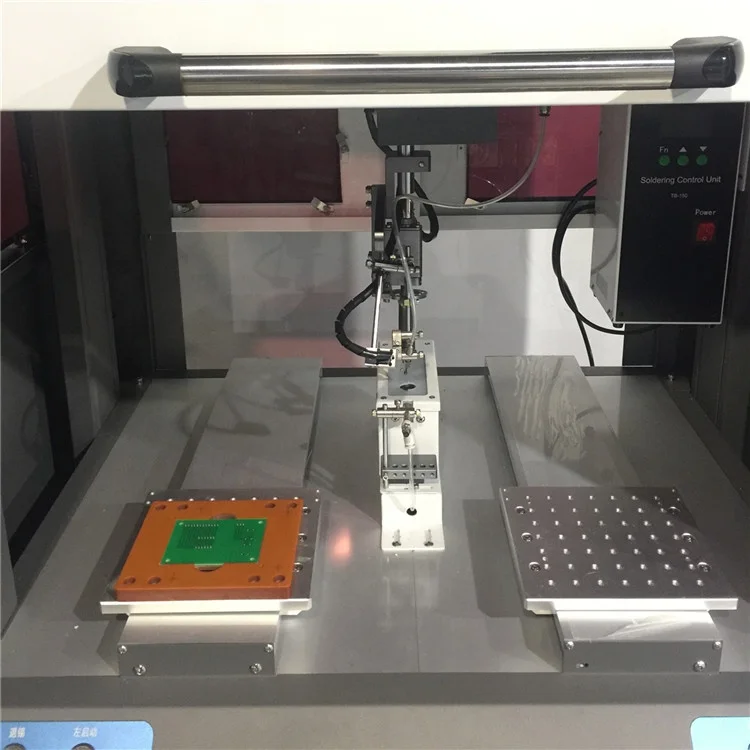

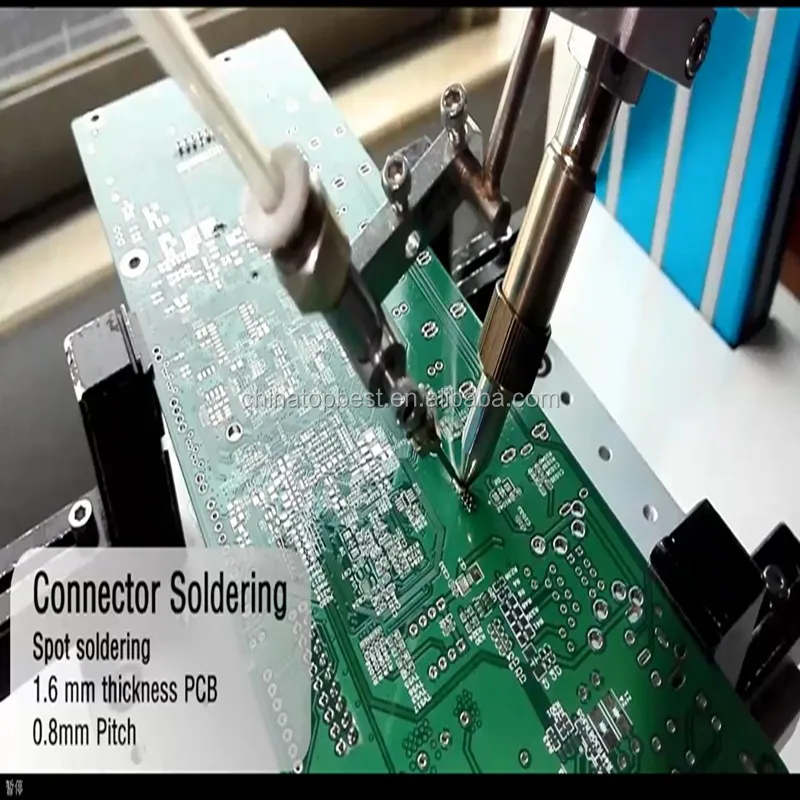

Build -in computer & touch screen, mouse & keyboard, 5 axle with 5 stepping motors, real time monitoring & camera, solder temperature controller, vacuum, self-diagnosis function, iron tip cleaner & solder collector, etc.
Functions & Advantages
Touch Screen
Teaching and programming more easier
Camera
&
Computer
Real time monitoring
&
Locate datum points
High efficiency
Two products' fixtures to alternately work

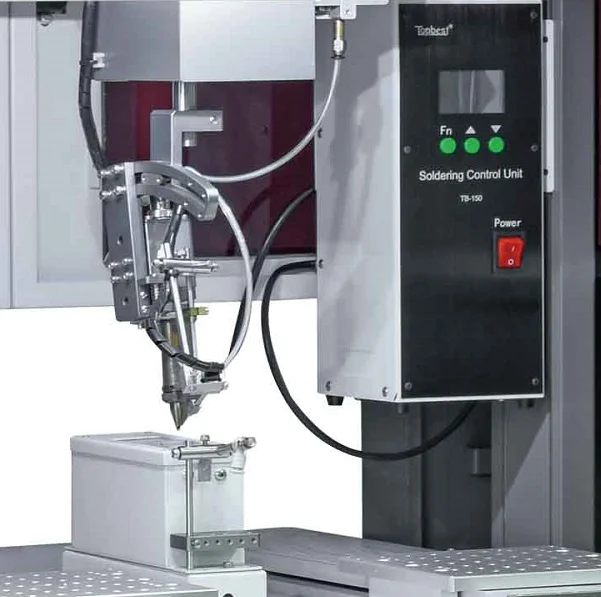

Soldering Motor

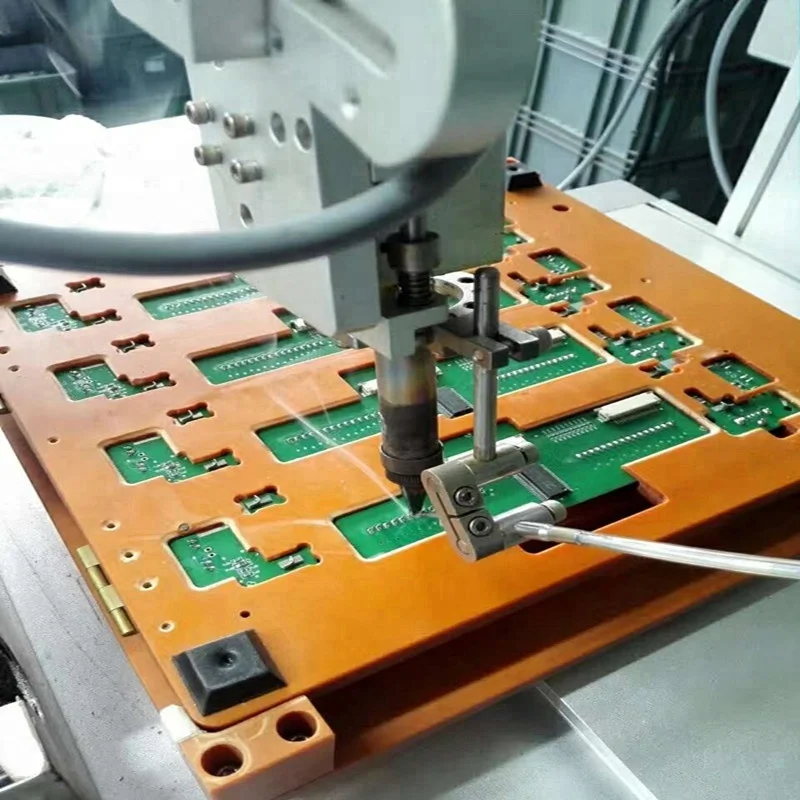

Dip soldering & Drag soldering
Self-diagnosis function
Run simply & serve MEC

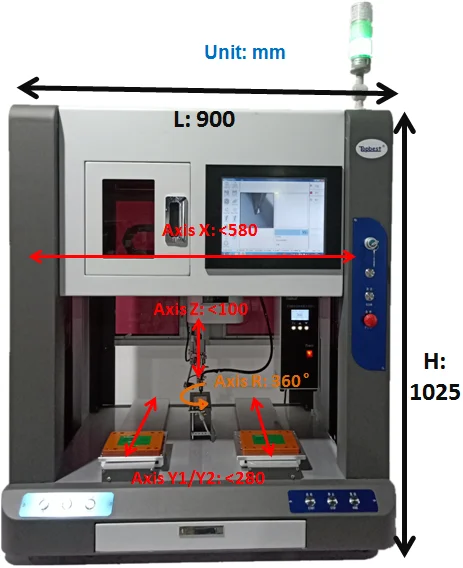

Size Information
Size Chart of This Design
Unit= MM
Desktop
Floor Type
Height
1295
1700
Width
630
630
Length
900
900
SPEED: (mm/sec)
Axle X & Y1 & Y2
<600 mm/sec
<600 mm/sec
Axis Z
<400 mm/sec
<400 mm/sec
Axis R
<300° /sec
<300° /sec
ACCURACY: mm
Axle X & Y1 & Y2
±0.02mm
±0.02mm
Axis Z
±0.02mm
±0.02mm
Axis R
±0.05°
±0.05°
Other
Memory Files
1000
Accuracy of wire feeding
±0.1 mm
Range of heating
0~550 ℃
Accuracy of heating
±5 ℃
CCD camera
300 K
Alarm system
Wire refill warning/ wire jam warning
Power output of heater
150 W

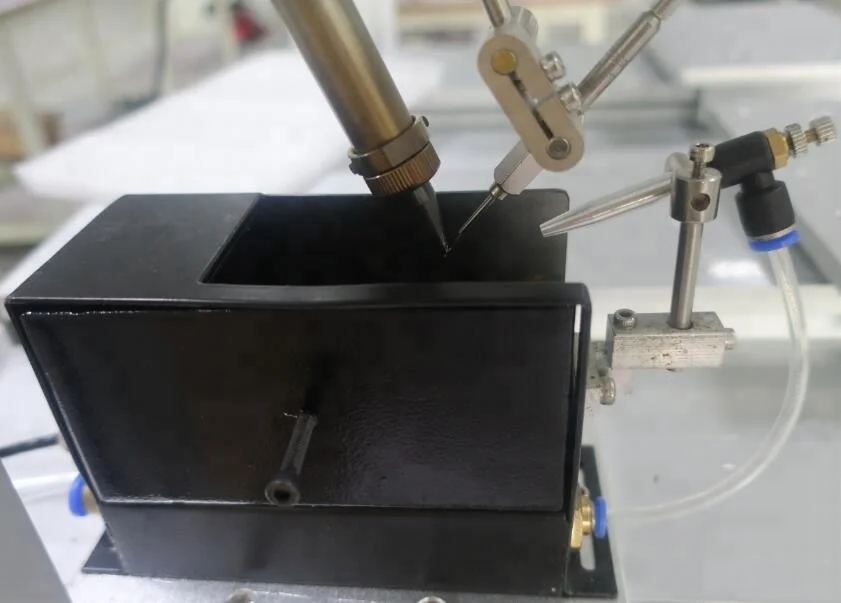

Iron tip cleaning
Air blowing/ sponge
Machine output
500 W
Machine input
220V 50Hz/ 110V 60Hz
Vacuum
Available
Max. loading weight
15 KG
Related Products

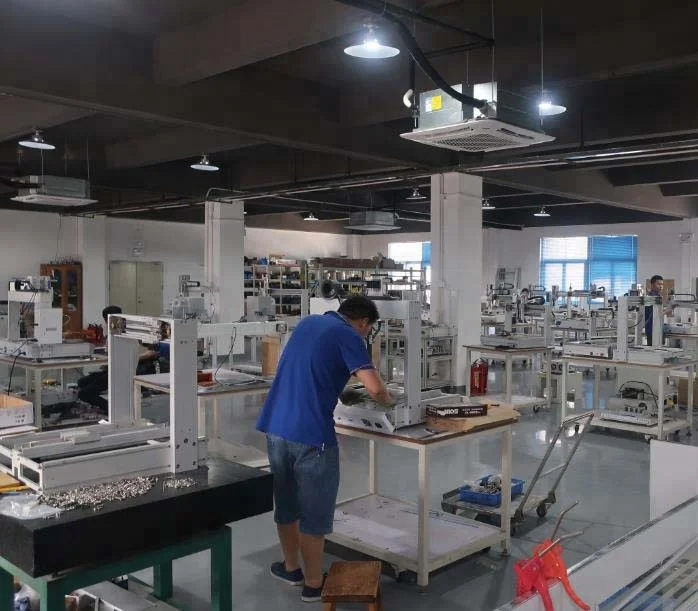

Company Profile
Certifications
Packing&Shipping
After Sales Service
ONE YEAR WARRANTY
1.Except consumables' components, such as solder iron
2. Operrations training at our site, video guidance
FAQ
1.Q Are you manufacture or trading company? We are factory, we have our own design team and own workshop.
2.Q What kind of payment terms do you accept? We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
3.Q How much is the transportation freight? The freight depends on the quantity, weight and size ,also the destination port.
4.Q How about the working life of machine? Our machine can be used for over 5 years.
5.Q How can I trust your company and ensure to get the goods if order from you? We are Alibaba legitimate certification company(VIP).
6.Q How about the package? Is it safe during the delivery? All machine is packed by standard strong wooden carton with foam inside.
7.Q What's your delivery time? 15-20 working days according to your quantity.
8.Q This machine is easy to use? If I have no experience, can i also operate it well? Do you provide the user manual and operating videos to support us? Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available if you still have problems, we will arrange our engineers go to your place for installation guiding.
9.Q If we come to your factory, will you provide the free training? Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
