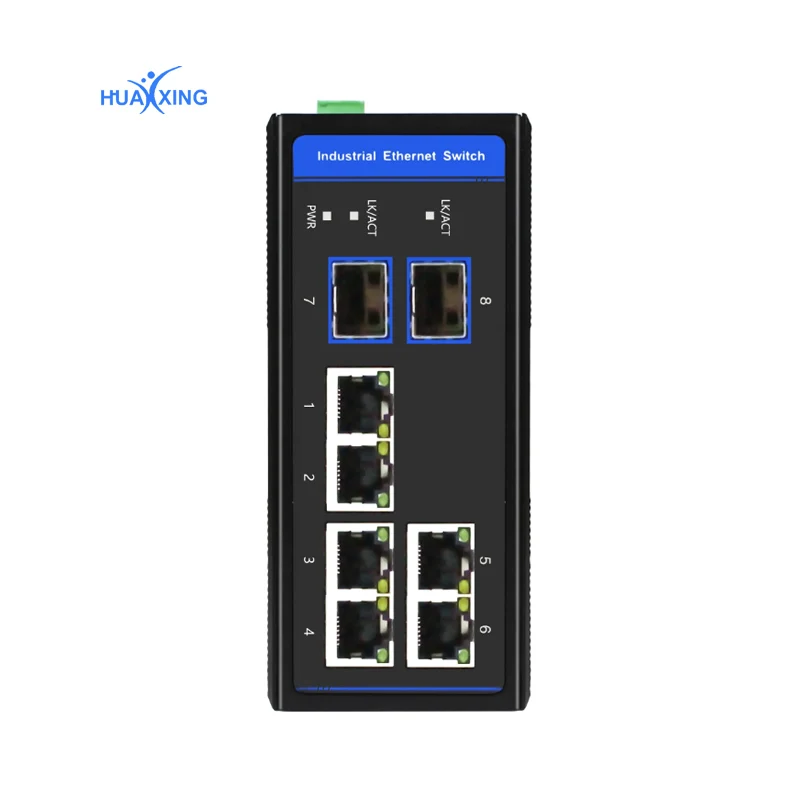

10/100M Fiber Ethernet Switch 2 Fx 6 Tx Industrial 6 Port POE Ethernet Switch Din Rail Mount
- Category: >>>
- Supplier: Shenzhen,Huaxing,Technology,Co.,Ltd.
Share on:
Product Overview
Description
10/100M Fiber Ethernet Switch 2 Fx 6 Tx Industrial 6 Port POE Ethernet Switch Din Rail Mount
Features
6-Port 10/100Base-TX-2-Port 10/100Base-FX Fast SFP
a Support Auto-MDIX, and full/half duplex self-negotiation mode
> Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
> Support 10Kbytes giant frame, compatible with various extension protocol
> 4K MAC address table
> Support IEEE802.3az energy efficient Ethernet technology
> Support IPv6 Protocol
> Electric 8KV surge protection, easy to use in outdoor environment
> Complete status indicator, working state at a glance
> Power input polarity protection design, no worry about wrong operation
> Metal case, no fan design
> Installation method: DIN trail /Wall mounting
Specification
| RJ45 Port and Speed | 6-Port 10/100Base-TX |
| Fiber Rort and speed | 2-Port 10/100Base-FX SFP |
Parameters | |
Ethernet Standards | IEEE802.3 IEEE802.3U IEEE802.3X IEEE802.3az IEEE802.1X |
Packet Buffer | 1M |
Maximum Packet Length | Upto lOKBytes |
MAC Address Table | 4K |
Transmission Mode | Store and Forward (full/half duplex mode) |
Exchange Property | Delay time: < 7ps Backplane bandwidth: 1.6Gbps; Packet forwarding rate: 1.1904Mpps |
PoE (Optional) | |
PoE Standard | 6x IEEE 802.3af/IEEE 802.3at PoE |
Power Budget | Max. PoE output power budget 30W |
LED Indicator | |
Power | Connect-always |
RJ45 | Link/Act:(x)nnect-always; data exchange-twinkle |
Fiber | Link/Act: connect-always; data exchange-twinkle |
Power Information | |
Power Access Mode | Phoenix terminal, DC seat |
Redundant Power Input | DC 9-56V |
Overload Protection | Yes |
Power Reverse | Support |
Power Consumption | Full-load<5W |
Physical Property | |
Protection Grade | IP40 aluminum case |
Cooling Mode | Natural cooling, no fan design |
Dimensions | 140mm x 110mm x40mm (Lx Wx H) |
Installation Mode | DIN trail/wall-mountable |
Weight | 550g (With PoE : 600g) |
Working Environment | |
Operating Temperature | -40°C~75°C |
Operating Humidity | 5%~90% non-cx)ndensing |
Storage Temperature | -40°C~85°C |
Warranty | |
MTBF | 500,000 hours |
Defects Liability Period | 5 year warranty, lifetime technical support |
