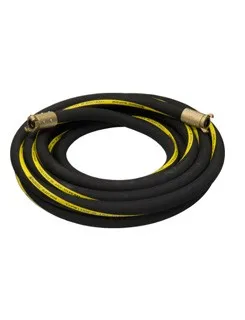

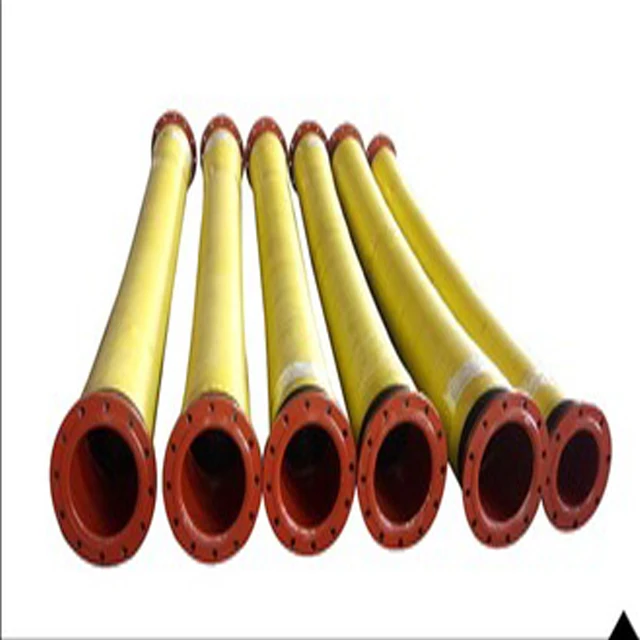

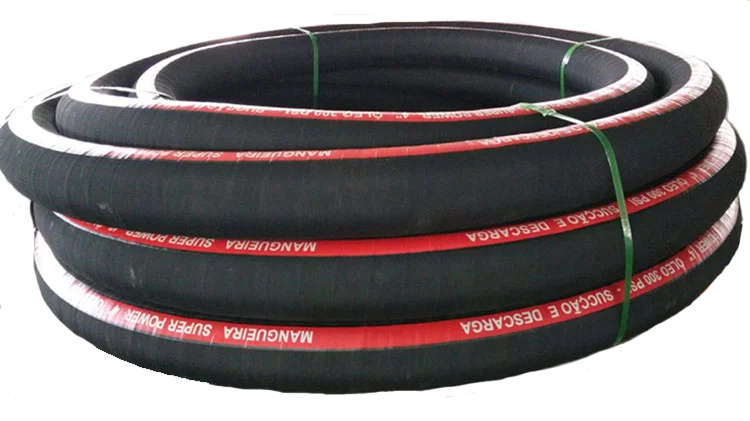

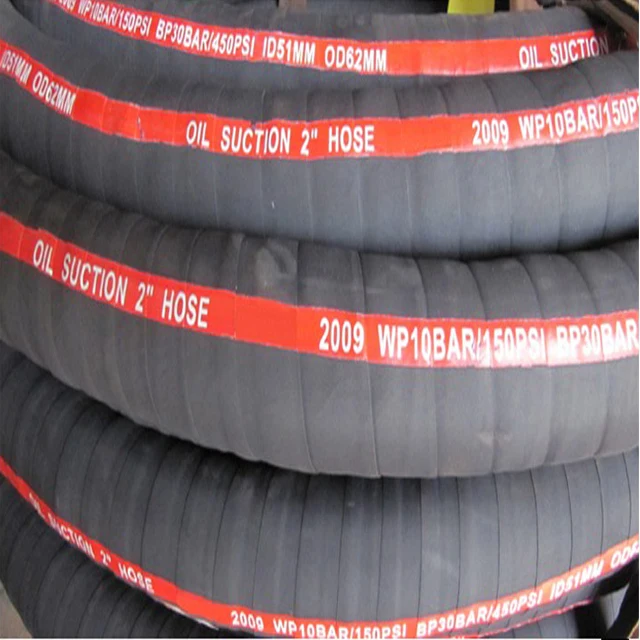

NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar
NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar
NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar
NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar
NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar
NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar
NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar

NBR Material and High Tensile helix Steel Wire Reinforcement Oil suction and discharge hose 10bar

Share on (62403468361):


Price:

Quantity:


Product Overview

Description


Product Description

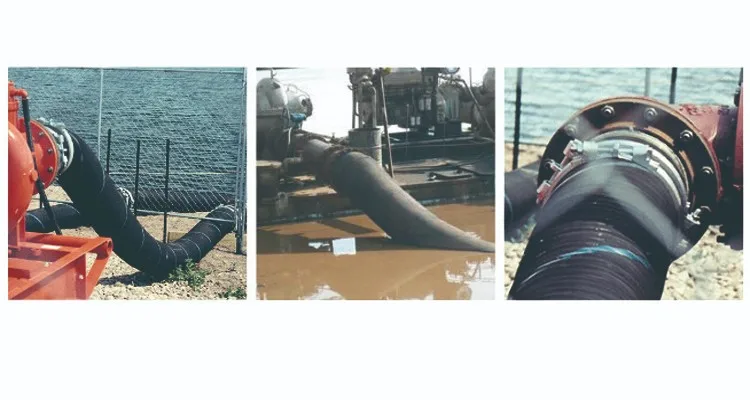

1.Designed for full suction and discharge pressure, It handles sewage, waste water,etc.
2.Tube:Black, SBR compound synthetic rubber.

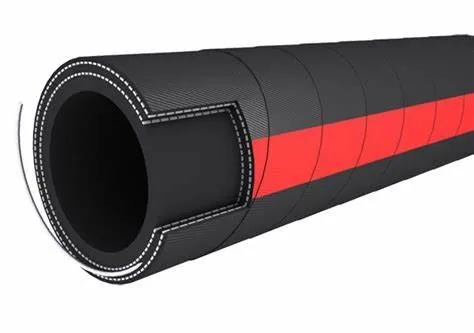

3.Reinforcement: High tensile textile cord with helix steel wire.
4.Cover:Black,wrapped finish,SBR rubber,weather and abrasion resistant.
5.Temperature Available:From -20℃ To 80℃.
6.Reference Standard:HG/T 3035-1999.
7.Safety Factor: 3:1
I.D
O.D
LAYERS
W.P
M/ROLL
KG/M
3/4"
19
30.4
2
10
60
0.67
1"
25
36.4
2
10
60
0.84
1-1/4"
32
44.8
2
10
60
1.2
1-1/2"
38
51.4
2
10
60
1.5
1-3/4"
45
58.4
2
10
60
1.73
2"
51
64.4
2
10
60
1.93
2-1/2"
64
78.4
2
10
60
2.55
3"
76
90.8
2
10
60
3.08
3-1/2"
89
106.2
4
10
60
4.37
4"
102
119.6
4
10
60
4.97
5"
127
146.2
4
10
60
6.77
6"
152
171.6
4
10
60
8.17
8"
203
224.8
4
10
60
12.45
10''
254
280
4
10
10
19.53
12''
304
332.6
4
10
10
26.47

Main Features

SUCTION & DISCHARGE HOSE

Our factory purchase good  quality materials make our hose steady performance.

Production lead time , delivery and competative price.


We support customers to get satisfying high quality products and serve our technical supports professional.

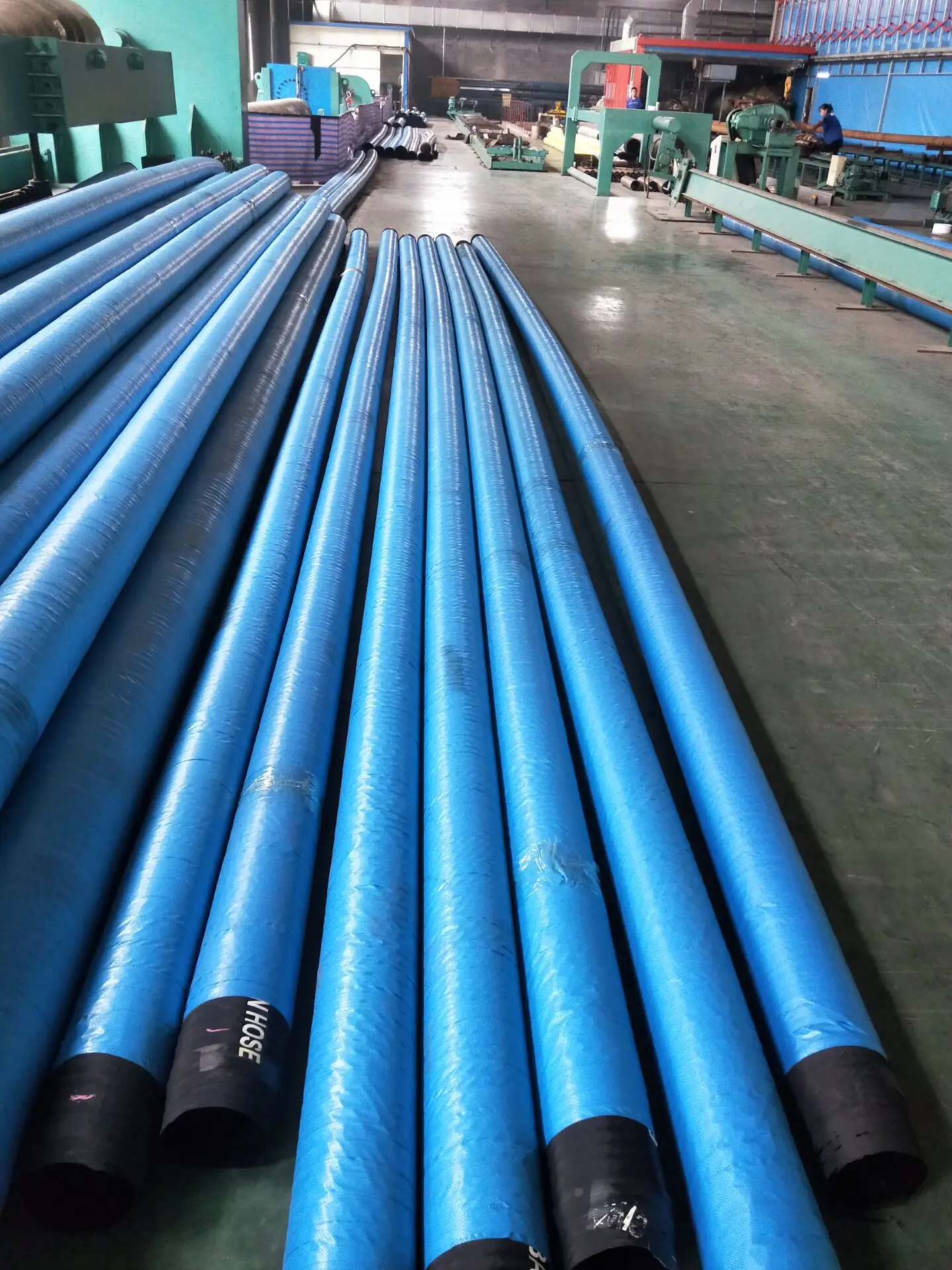

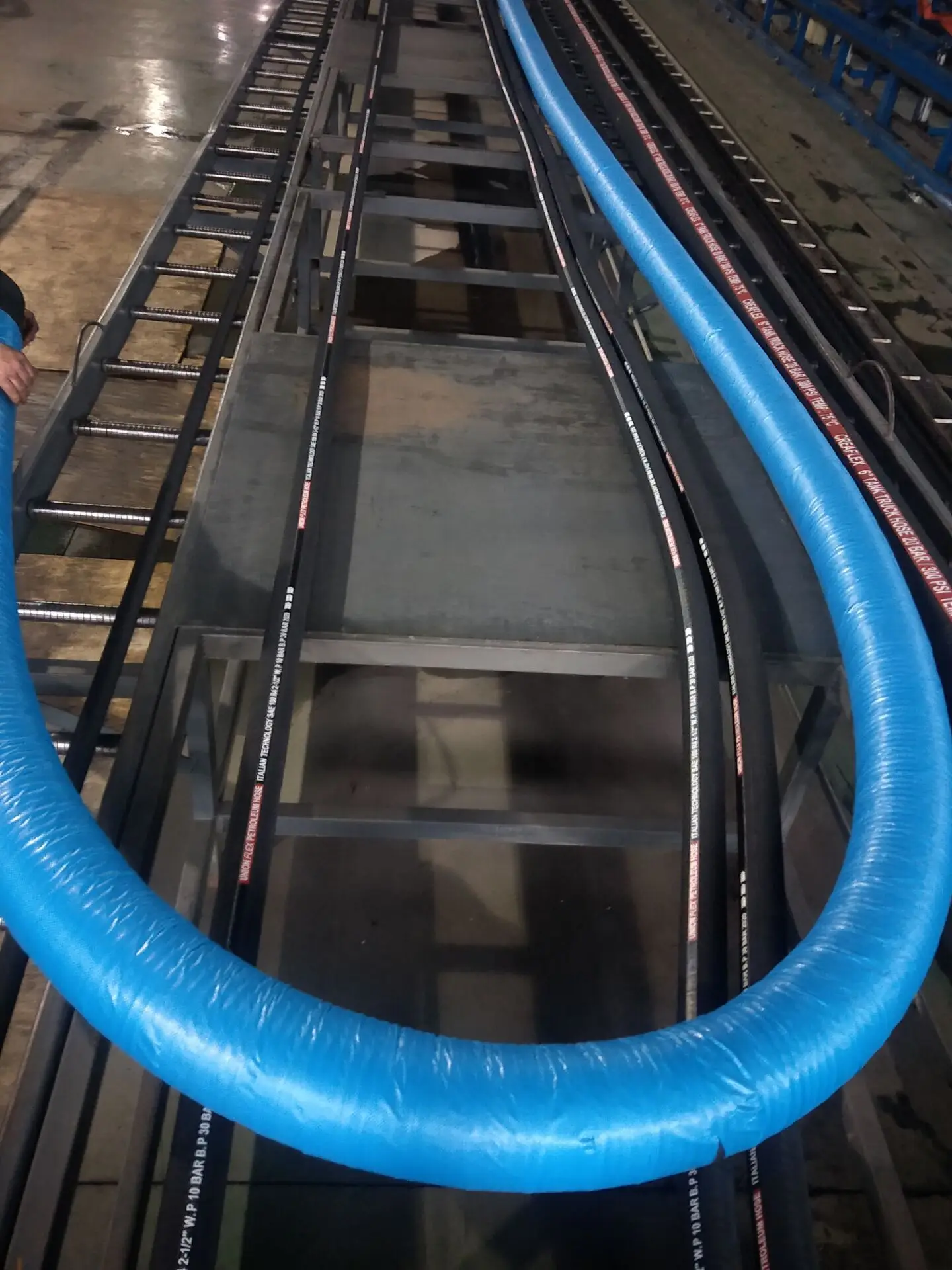

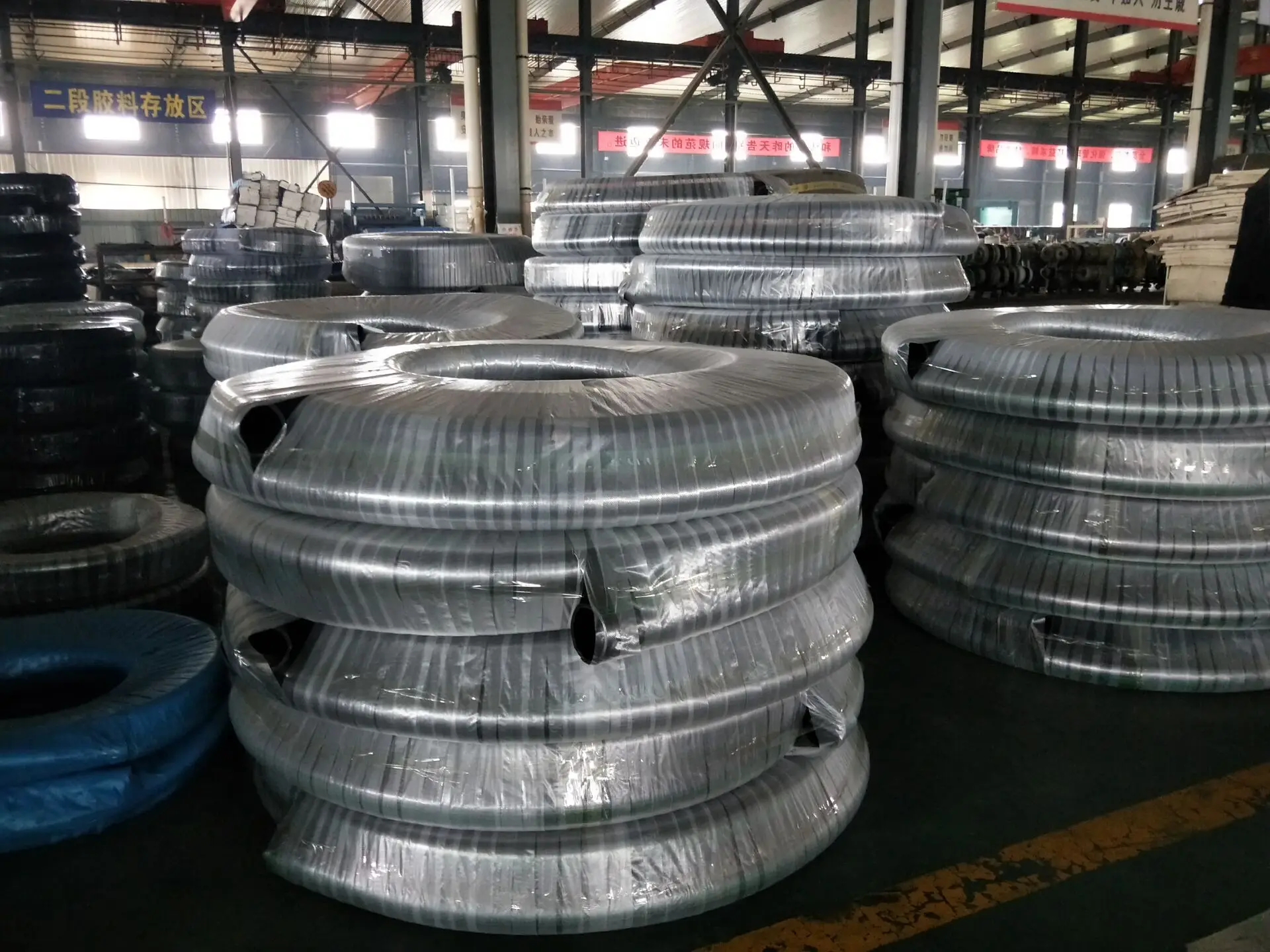

Workshop
Packing & Delivery

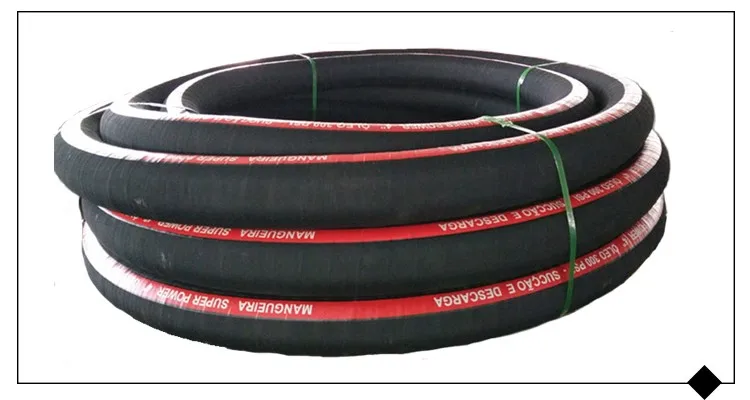

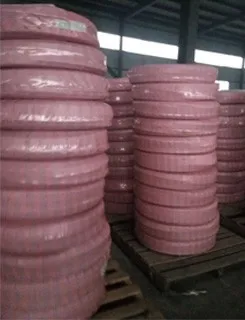

Packing
1. Colorful nylon tape wrapped coils
2. Transparent PVC sea worthy tape wrapped coils
3. Wooden case
Delivery
1. If order quantity are less than 1000 meters per size, the delivry time need about 20 days.
2. If the order quantity are more than 10000 meters per size, the delivery time need about 40 days.
Certifications
Exbition
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Relate product

Oxygen & Acetylene Double line welding hose

91.8% Response Rate

Chemical suction and discharge hose

91.8% Response Rate

Food grade delivery hose

91.8% Response Rate

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us!
