CSC905 Beef And Sauce Tin Can Filling Seaming Machine
- Category: >>>
- Supplier: Wuhan Global Exchange Import And Export Limited
Share on (62403511463):
Product Overview
Description
CSC905 Beef And Sauce Tin Can Filling Seaming Machine
Project Summary
Project Code: CSC905
Project Location:Germany
Product:Beef +sauce

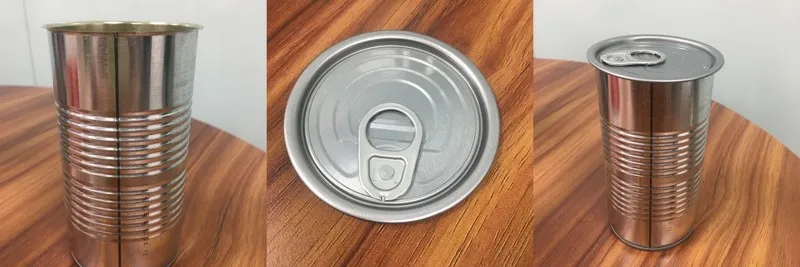

Packaging: Tin can
System Overview
3 sets of Can Seamers

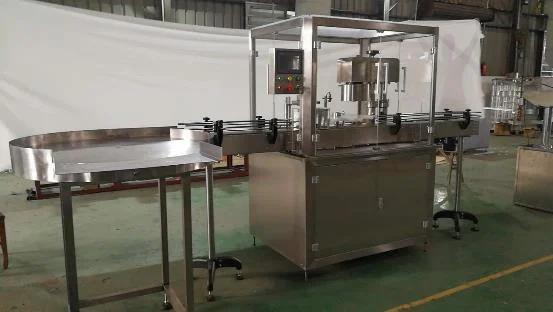

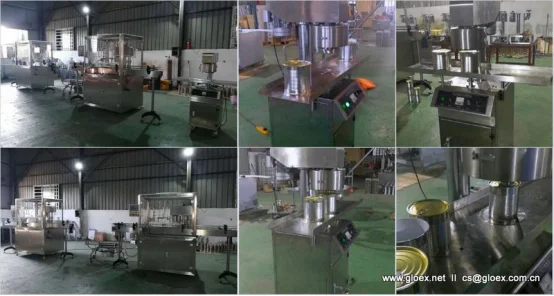

The following photo indicates that 2 sets of automatic can seamer and 1 sets of semi-automatic can seam are ready
Remark: configure with safety shield and operation table

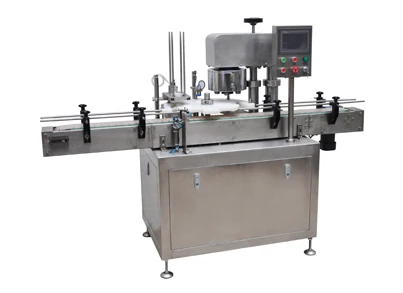

Automatic 8 station can seamer

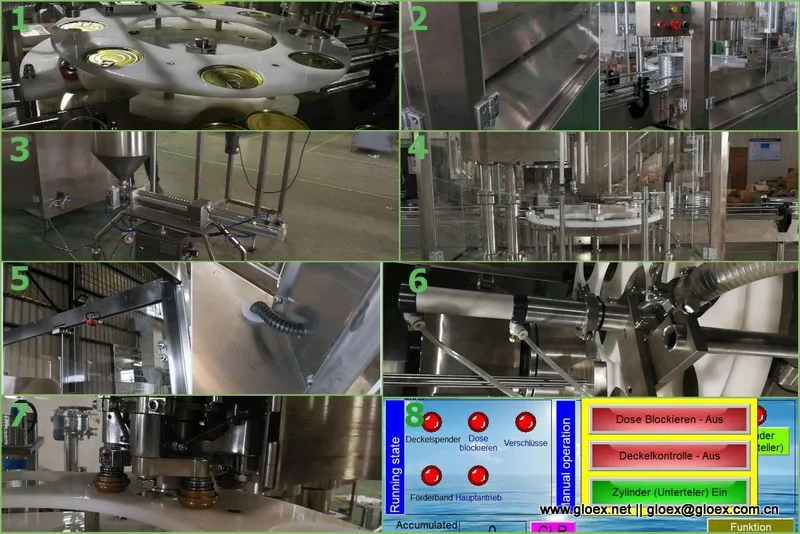

Machine Details
1) Double rotating star to ensure accurate lid positioning
2) Integrated with filling nozzle which connect to liquid filling machine
3) Drainage groove to collect the liquid may spilling out
4) Conveyor mounted on top of the control box to minimize the liquid leak into
5) Protection shield with “ door open and machine stop “ interlock
6) Titanium coating seaming rollers enable long life cycle and reliable seaming quality
7) Integrated filler to achieve filling and seaming in one machine
8) Configure with Chinese , English and German Language
Related Videos
2) 99mm run with 400gram water filling and seaming 22CPM
4) 99mm can seaming quality check
6) Seaming test
8) 153mm diameter tin can with water filling process
9) Seaming cross-section check of 153mm diameter can
10) 153mm diameter tin can seaming aspect check
Product Description

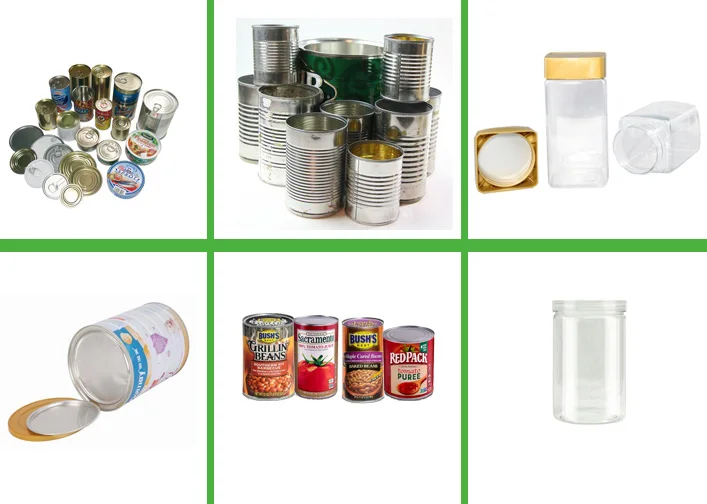

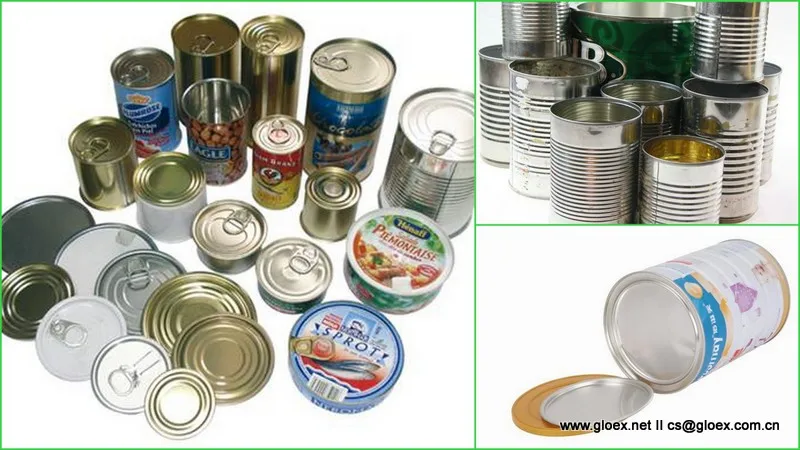

Apply for various size of round shaped can seaming, like tinplate , aluminum, PET or other plastic cans.
Standard Features
1) Material of shell: Stainless Steel 304
2) 4 seaming rollers , more reliable seaming quality
3) Can lifting ,fixing and seaming , enable stable seaming quality
4) By changing of different size kits, able to seaming different size cans
5) PLC and Touch Screen control , easy for adjustment , parameter setting up and trouble shooting
6) No can no lidding
7) No lidding no running , avoid to damage the seaming heads
8) Configure with separate frequency conversion motor
9) Apply synchronization belt other than direct motor driving , minimize the vibration of operation , and enable more stable seaming performance
1) Type: Rotary
2) Rotating Type:Can Non-Rotating
3) Control Method:Automatic, PLC & Touch Screen
4) Number of Seaming Head:1
5) Container Moving Method: Automatic Feeding
6) Height of Container(mm):60-190mm
7) Diameter of Lid (mm):52.5-105mm
8) Lidding Speed:30-35 cans/ Min
9) Power Requirement(V/Hz):AC 380V 50/60HZ
10) Electricity Consumption(kW):1.2
11) Lid Auto-Pre-capping:Yes
12) Approximate Weight(Net)(kg):500
13) Dimension(mm):2000*650*1500
Related Products
Summary of can seaming machine options
Product Code | Standard Feature | Optional Feature | Driving Method | Size Range (mm) | Speed (cans/minute) | Remarks | |

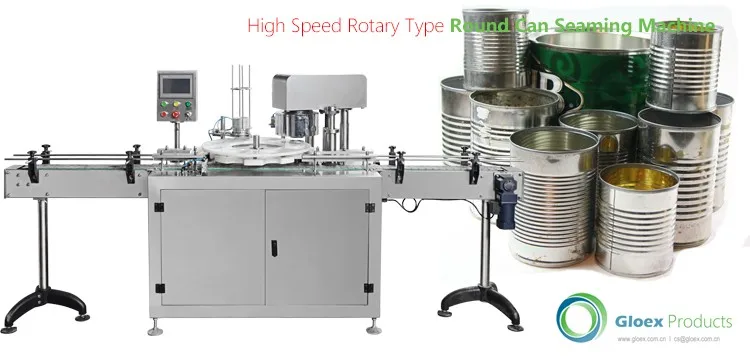

PP172 | Seam only | Fill & Seam Integrated | Electrical & Pneumatic | 52.5-130 | 30-60 | Mainly apply for power, granule products; Easier for can size changing over | |

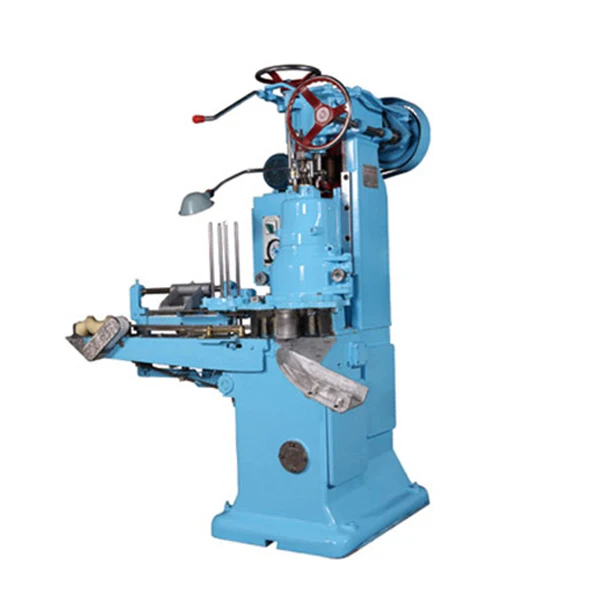

PP170 | Vacuum & Seam | Seam only; Vacuum, gas flush and seam | Electrical & Mechanical | GT4B2 series Diameter: 52-108 Height: 46-135 | Vacuum or No Vacuum: 42 | Easier for cleaning by water, less controlling parts; Vacuum value: 0.04-0.06Mpa; Residual Oxygen: 9-14%; | |
Vacuum and Gas flush: 15-17 | |||||||
GT4C3B series Diameter: 99-159 Height: 60-270 | Vacuum or No Vacuum: 28 | ||||||
Vacuum and Gas flush: 10-12 | |||||||
CT4C280 series Diameter: 100-280 Height: 100-360 | 30-40 | ||||||
PP169 | Vacuum, gas flush and seam | Seam only; Vacuum& seam | Electrical & Pneumatic | Diameter: 70-127 Height: 80-190 | Automatic | 6-7 | Able to change diameter by change the turntable and other accessary; Vacuum value: 0.085Mpa; Residual oxygen content: <=5% |
Manual can feeding and lidding | 5-6 | ||||||
PP222 | Vacuum, gas flush and seam | Seam only; Vacuum& seam | Electrical, Mechanical & Pneumatic | Diameter: 90-127 Height: 100-200 | 30-35 | Vacuum value: 0.01-0.015Mpa; Residual Oxygen: 2-4%; Can seaming intermittently, vacuum and gas flush continuously | |
PP270 PP169
PP170 PP222
