7 inch LCD Display Touch Screen LCD 1024*600 HDMI TFT LCD display Monitor with Holder Case for Raspberry Pi 3
Introduction :
This is the 7 inch capacitive touchscreen for Raspberry Pi , support Raspberry Pi 3 Model B+ , because of making touch funtion , you can't use the Raspberry Pi system directly , you need to configure it. We have put the configure way in following description , it is quite easy. There are 1024*600
Feature :
1. Resolution: 1024*600
2. USB interface capacitive touch , more convenient
3. Support the backlight control by ON/OFF button , saves the electricity
4. Support the Raspberry Pi system , provide Raspbian , Ubuntu , Win 10 system image in the CD
5. General HDMI display , can be used as a computer monitor ( touch function cannot be used in this situation )

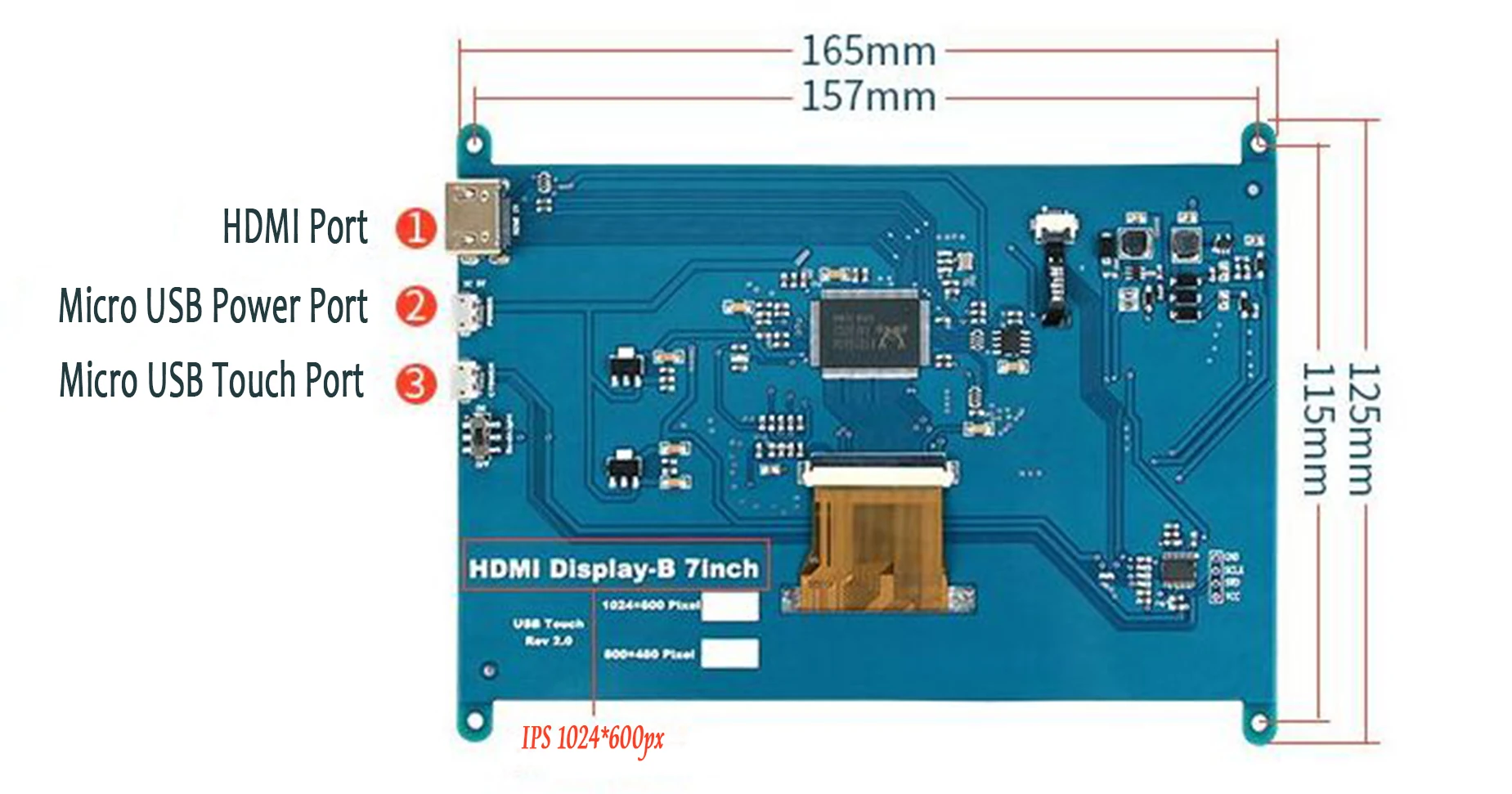

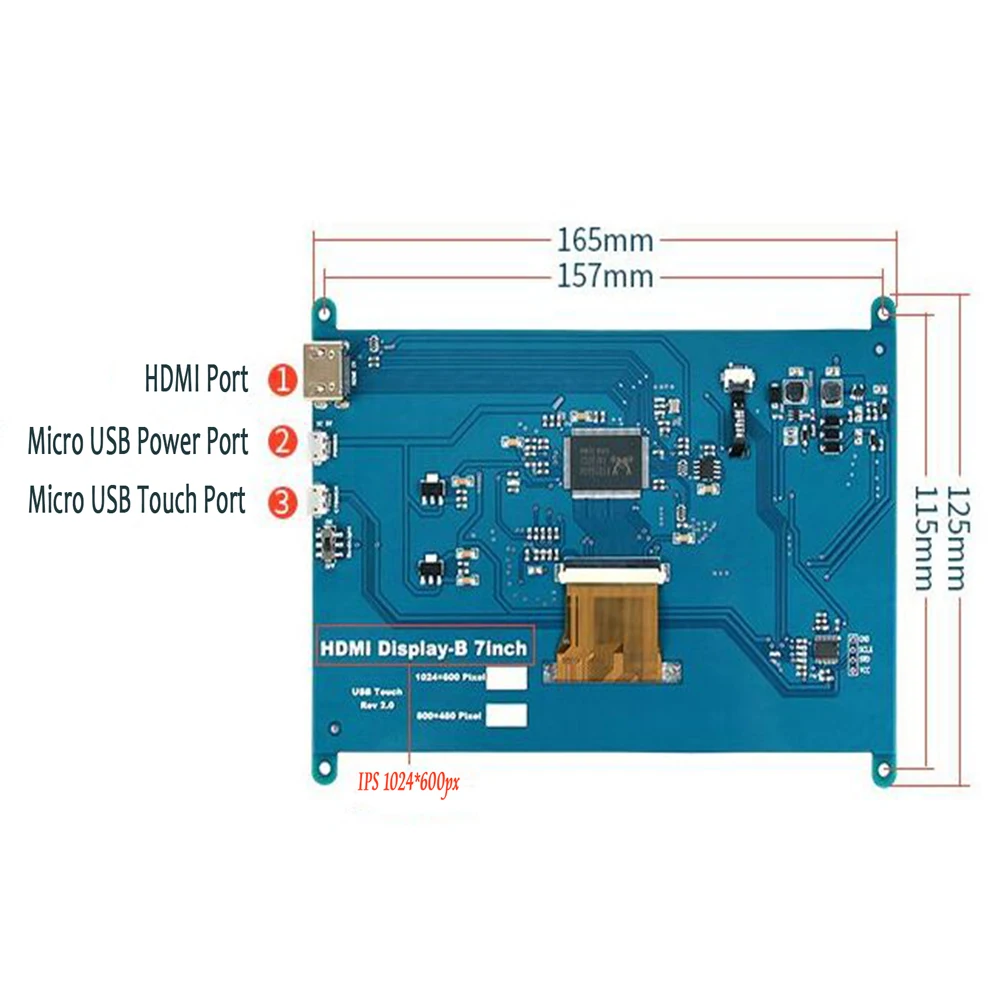

6. HDMI interface is used to display , one USB interface is used to touch function and power supply.

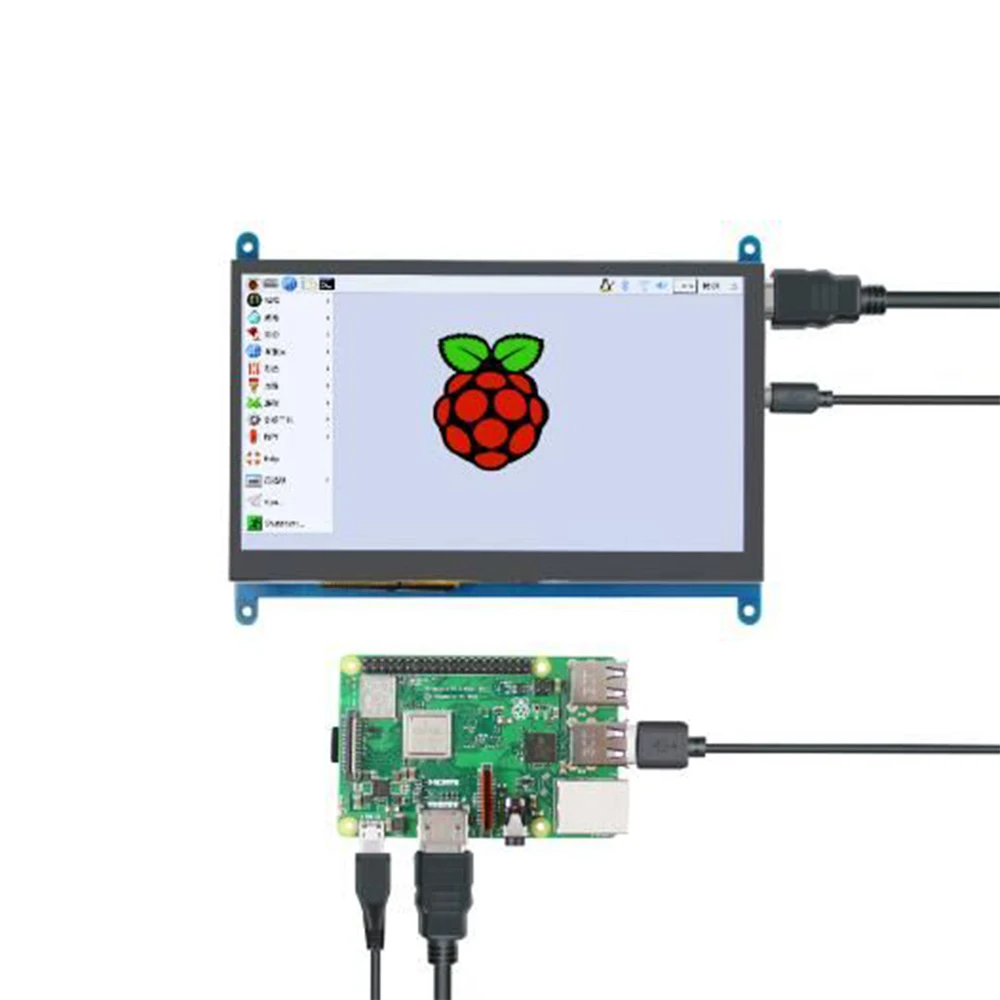

7. This 7 inch touch screen module is designed especially for Raspberry Pi 3 Model B+/3B/2B, support the portable power , convenient for DIY.

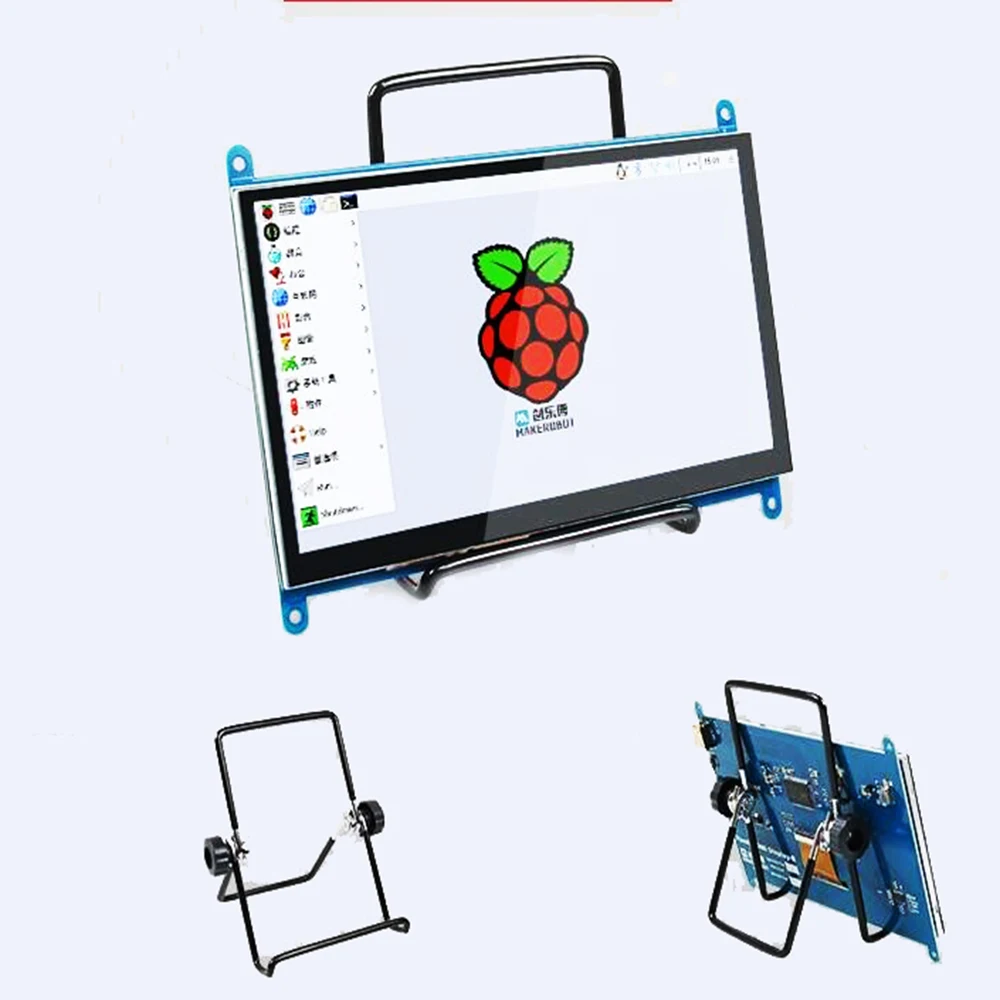

8. You can install the Raspberry Pi on the back of holder , save space and more easy to use .
About the system image :
1. You can use the system images for this touchscreen in the CD directly.
2. Configure the Raspbian system :
1). Install the Raspbian system to your sd card , open the sd card on your computer .
2). Open the config.txt file in the root directory of sd card , add the following code at the end of the file, save it and safely eject the sd card .
Code for 1024*600 7 inch toucscreen:
max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0
Note :
The LCD just support Raspbian , Ubuntu and Win 10 system , if you want to use the other system image your own , you need to configure the driver to your system by yourself .
If you need to use the touch function, USB line must be connected to the Raspberry Pi , don't need a separate power supply.

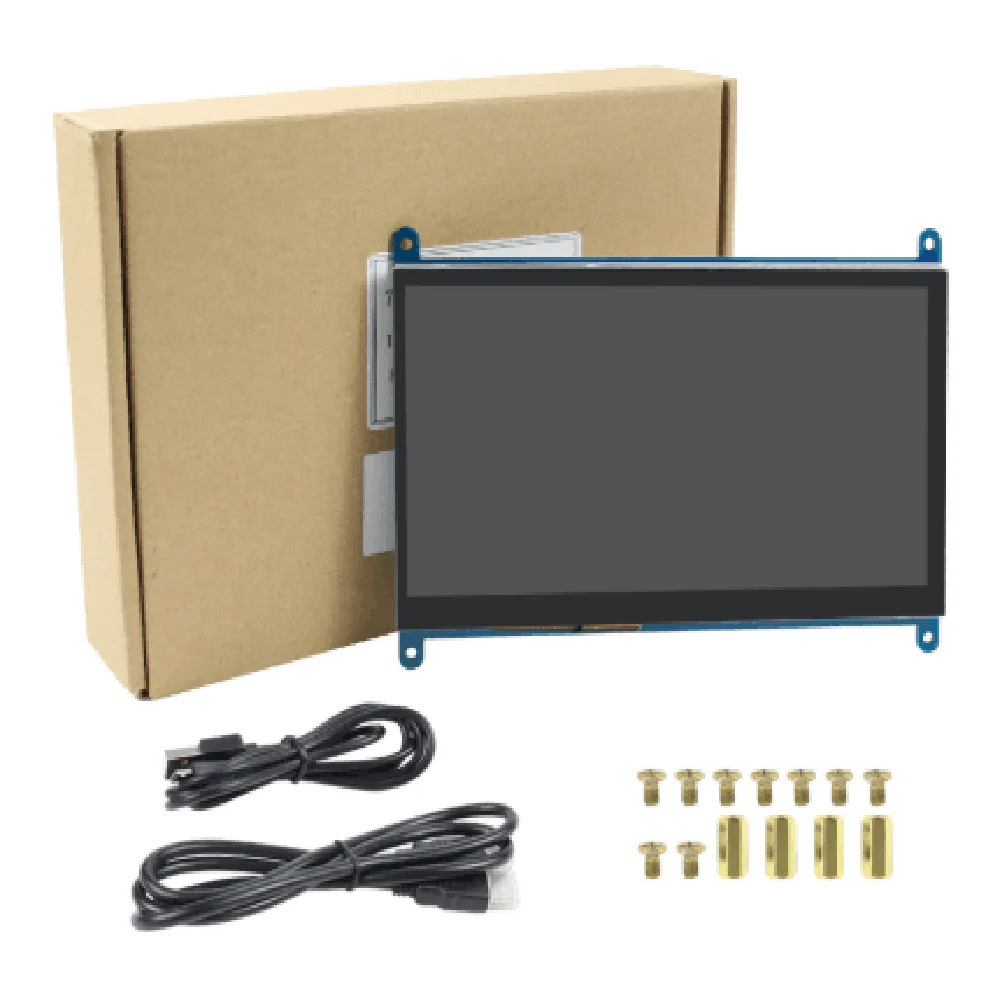

Packing List:
1 x 1024*600 Touchscreen
1 x HDMI Cable
1 x CD
1 x USB Cable
1 set x Screws and Nuts
