Литий полимерная аккумуляторная батарея глубокого цикла DTP 407090 3,7 в 3000 мАч, литий полимерные батареи, аккумулятор для лампы

Product Overview

Description

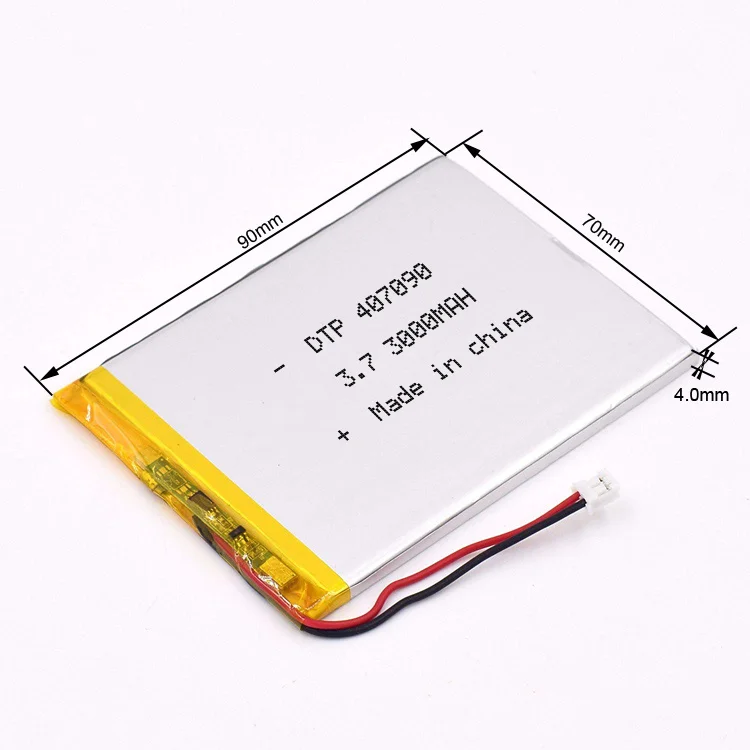

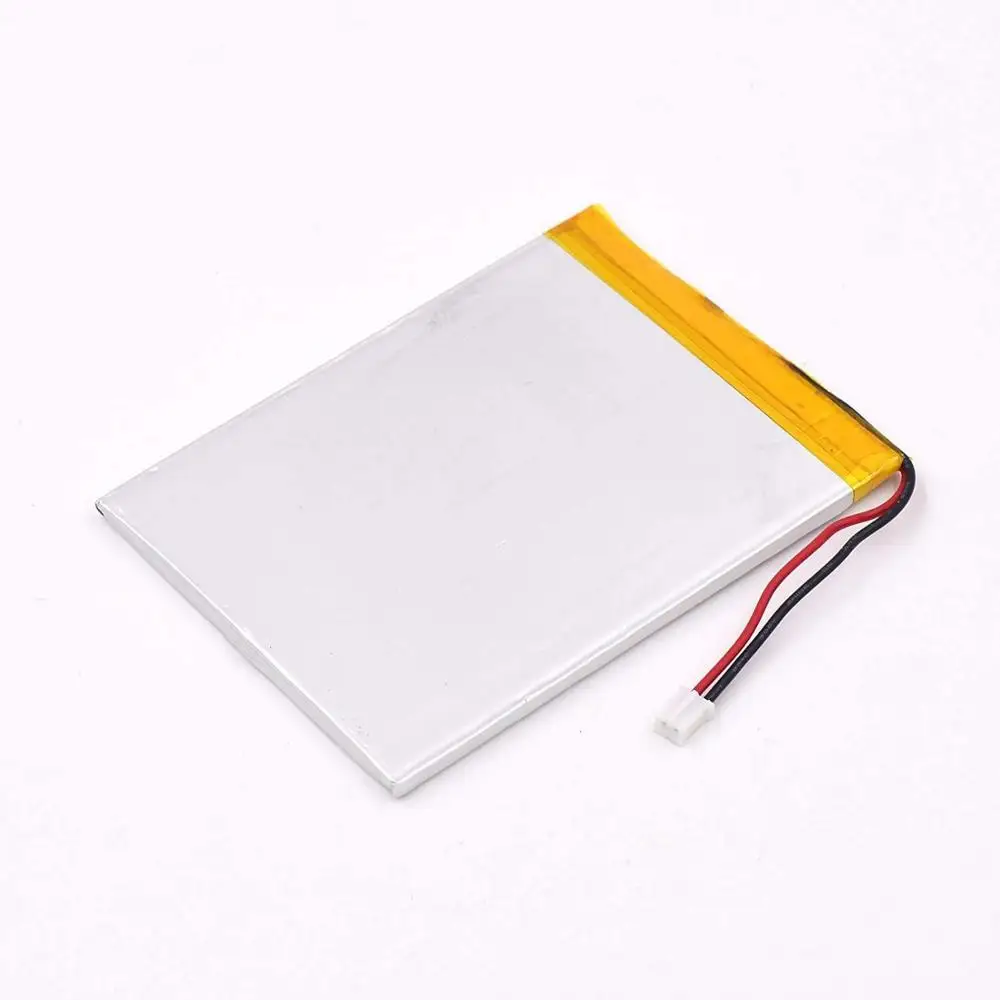

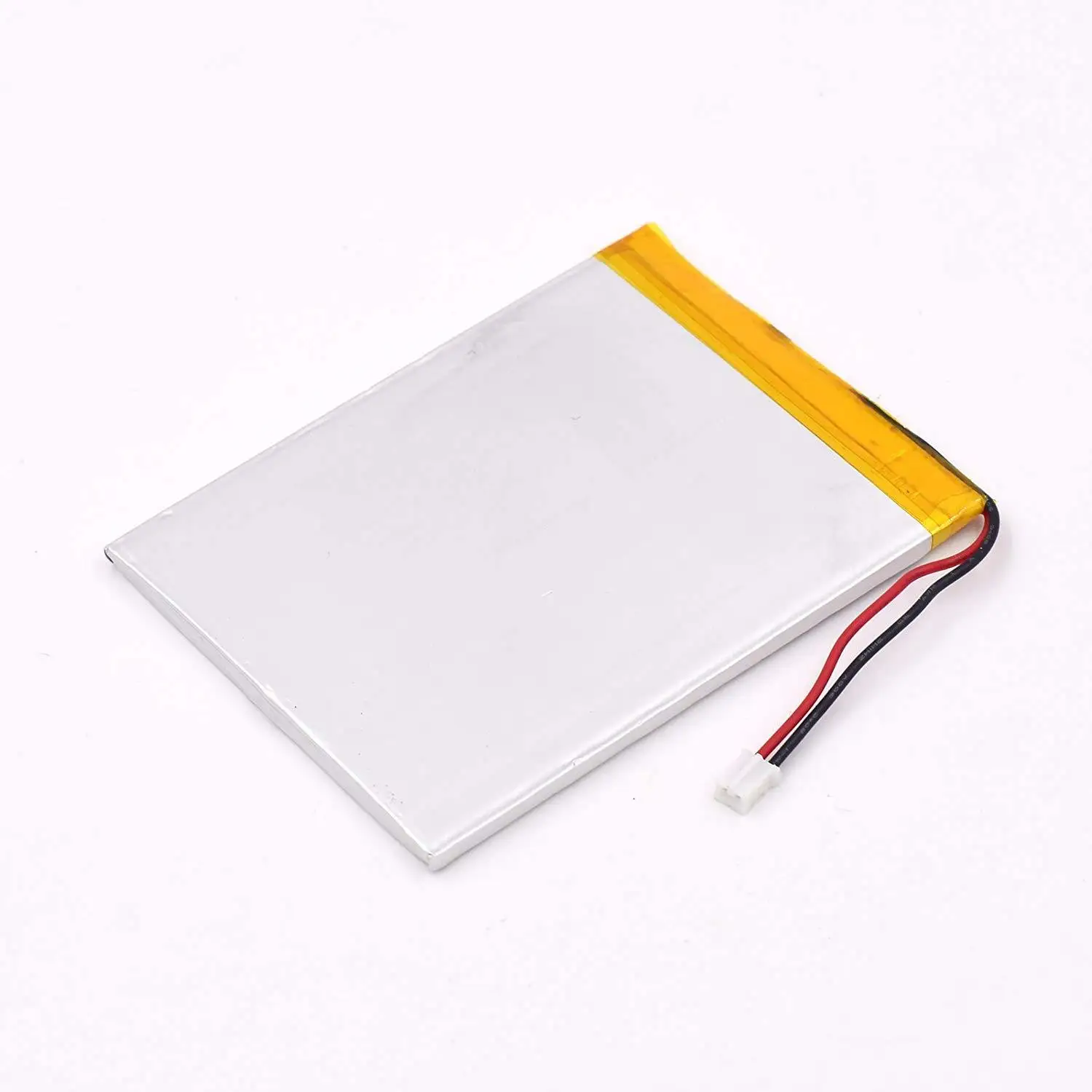

Deep cycle li polymer rechargeable battery DTP 407090 3.7v 3000mah lipo batteries battery for lamp

Name	Deep cycle li polymer rechargeable battery DTP 407090 3.7v 3000mah lipo batteries battery for lamp
Model	DTP407090
Dimension	4.2*70.5*92mm=thickness*width*length
Voltage	3.7V
Capacity	3000mAh
Impedance	<200mΩ
Discharge cut-off voltage	2.4V/3.0V
Maximum Charge voltage	4.2V
Standard charge current	0.5C
Standard discharge current	0.5C
Charging method	CC/CV
Weight	≤ 60g
Working temperature	Charge:0-60 degree
	Discharge:10-45 degree
Storage temperature	minus 20 - 55 degree







Applications:

Mp3,Mp4,Gps,E-book,Notebook,DVD,Ipad, Net book,Notebook,PPCLaptops,

Tablet PC,PDA,bank card,smart card,Tablet  personal computer,flat computer,Telephones,

Cameras,Romote control helicopters,Electronic toys etc

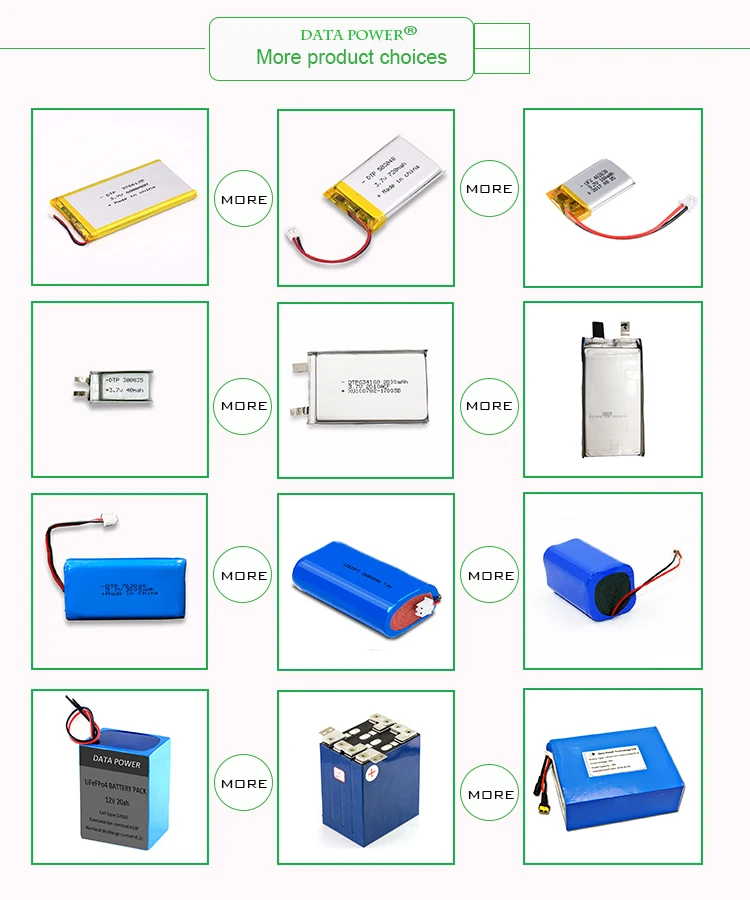

Our model:

Model	Voltage	capacity	certificate	Discharge current	MAX size
DTP401430	3.7v	130mAH	KC,UL,CE,MSDS	1C	4.2*14.5*32mm(T*W*L)
DTP452030	3.7v	200mAH	KC,UL,CE,MSDS,UN38.3	1C	4.7*20.5*32mm(T*W*L)
DTP502030	3.7v	250mAH	KC,UL,CE,MSDS,UN38.3	1C	5.2*20.5*32mm(T*W*L)
DTP502535	3.7v	400mAH	KC,UL,CE,MSDS,UN38.3	1C	5.2*20.5*37mm(T*W*L)
DTP503030	3.7v	400mAH	KC,CB,UL,CE,MSDS,UN38.3	1C	5.2*30.5*32mm(T*W*L)
DTP403040	3.7v	450mAH	KC,UL,CE,MSDS	1C	4.2*30.5*42mm(T*W*L)
DTP652533	3.7v	500mAH	KC,UL,CE,MSDS,UN38.3	1C	6.7*25.5*35mm(T*W*L)
DTP503040	3.7V	550mAH	KC,UL,CE,MSDS,UN38.3	1C	5.2*30.5*42mm(T*W*L)
DTP702248	3.7v	700mAH	KC,UL,CE,MSDS,UN38.3	1C	7.2*30.5*50mm(T*W*L)
DTP503048	3.7V	720mAH	KC,CB,UL,CE,MSDS,UN38.3	1C	5.2*30.5*50mm(T*W*L)
DTP603048	3.7v	900mAH	KC,UL,CE,MSDS,UN38.3	1C	6.2*30.5*50mm(T*W*L)
DTP703048	3.7V	1000mAH	KC,UL,CE,MSDS,UN38.3	1C	7.2*30.5*50mm(T*W*L)
DTP803040	3.7V	1000mAH	KC,UL,CE,MSDS,UN38.3	1C	8.2*30.5*50mm(T*W*L)
DTP523455	3.7v	1000mAH	KC,UL,CE,MSDS,UN38.3	1C	5.4*34.5*57mm(T*W*L)
DTP503759	3.7v	1200mAH	KC,UL,CE,MSDS,UN38.3	1C	5.2*37*61mm(T*W*L)
DTP103040	3.7v	1200mAH	KC,UL,CE,MSDS,UN38.3	1C	10.2*30.5*42mm(T*W*L)
DTP903450	3.7v	1500mAH	KC,UL,CE,MSDS,UN38.3	1C	9.2*34.5*52mm(T*W*l)
DTP505060	3.7v	1700mAH	KC,UL,CE,MSDS,UN38.3	1C	5.2*50.5*62mm(T*W*L)
DTP103450	3.7V	1800mAH	KC,UL,CE,MSDS,UN38.3	1C	10.2*30.5*52mm(T*W*L)
DTP634169	3.7v	2000mAH	KC,UL,CE,MSDS,UN38.3	1C	6.5*41.5*71mm(T*W*L)
DTP555075	3.7v	2500mAH	KC,UL,CE,MSDS,UN38.3	1C	5.7*50.5*77mm(T*W*L)
DTP655565	3.7v	2800mAH	KC,UL,CE,MSDS,UN38.3	1C	6.7*55.5*67mm(T*W*L)
DTP554499	3.7v	3000mAH	KC,UL,CE,MSDS,UN38.3	1C	5.5*44.5*99mm(T*W*L)
DTP105050	3.7v	3000mAH	KC,UL,CE,MSDS,UN38.3	1C	10.2*50.5*52mm(T*W*L)
DTP104065	3.7v	3000mAH	KC,UL,CE,MSDS,UN38.3	1C	10.2*40.5*67mm(T*W*L)
DTP894472	3.7v	3200mAH	KC,UL,CE,MSDS,UN38.3	1C	9.1*44.5*74mm(T*W*L)
DTP656294	3.7v	4000mAH	KC,UL,CE,MSDS,UN38.3	1C	6.5*62.5*96mm(T*W*L)
DTP105565	3.7v	4200mAH	KC,UL,CE,MSDS,UN38.3	1C	10.2*55.5*67mm(T*W*L)
DTP105085	3.7v	5000mAH	KC,UL,CE,MSDS,UN38.3	1C	10.2*50.5*87mm(T*W*L)
DTP401220	3.7v	60mAH	CB	1C	4.2*12.5*22mm(T*W*L)
DTP452025	3.7v	150mAH	CB,UN38.3	1C	4.7*20.5*27mm(T*W*L)



Featrue:

1. Long service life and economical

The cell can provide more than 500 charge and discharge cycles. This makes it extremely economical, and provides an expected life similar to that of the device in which it is used.

2. Excellent discharge characteristics

have low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.

3. Long shelf life

provide long storage life with few limiting conditions. It offers problem-free charge after long storage, permitting to use in a wide range of applications.





Others:

1, OEM orders are available

2, Superior quality and cost-performance ratio

3, Tags, plugs and connectors are available

4, We could design and produce the battery pack with plastic shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure apprearance)





Standard Export Package



Payment:
We accept T/T, Western Union, Cash and so on.

Shipping:
1. We will ship the products within 15 work days after receipt of payment.
2. We can ship to you by FEDEX/UPS/TNT,other shipping terms can be arranged according to requirements.



High Energy Density

High Output Voltage

Excellent Security

Long Cycle Life: More than 500 repeated charge/discharge cycles

Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell

Environmental-friendly: No Pb, Cd added

Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload

Injection Technology to make battery more stable

With short-circuit production function, safe and reliable

Factory mastered technology and competitive price

CE, ROHS, FCC, UL, IEC62133, UN38.3 and MSDS







FAQ

1. Q: What's your MOQ(minimum order quantity)?

      A: 1000PCS.

2. Q: What's your packing methods?
    A:  Industrial packing (can be as customer's requirements)

3. Q: What's your payment terms?
    A: T/T 30% in advance & T/T 70% upon sending the goods, L/C 100%, or negotiate according to the order status.

4. Q: What's your delivery time?
    A: 4 weeks after received the advance payment or L/C.

5. Q: Can we visit your factory?
     A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.



6. Q: What about your warranty?

A: We offer 1-2 years warranty for our products





Welcome to contact us for more detailed information:

Shenzhen Data Power Technology Ltd.

Contact: Milly Wu
Tel: +86-755-23460581
Mobile/Whatsapp/skype: +86 13727732082
Website: http: //www.dtpbattery.com
