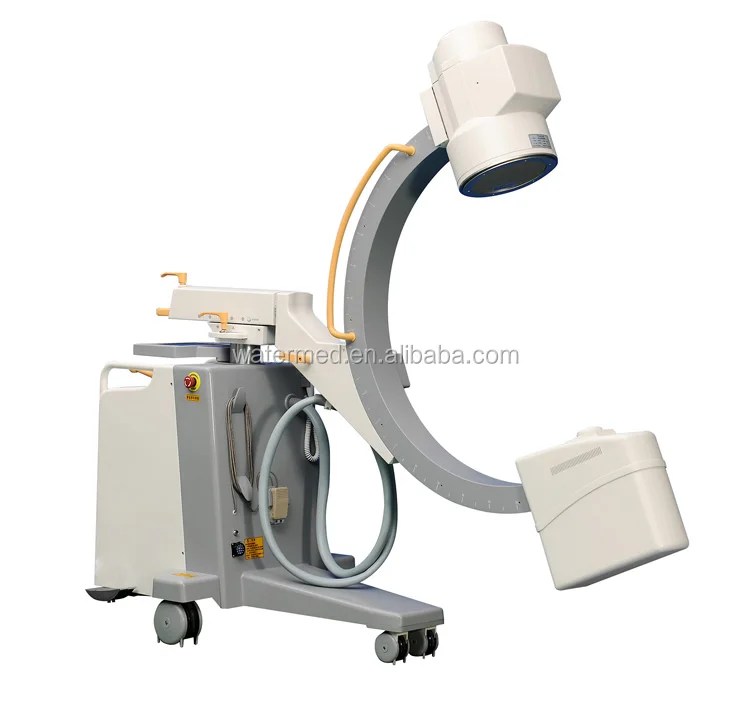

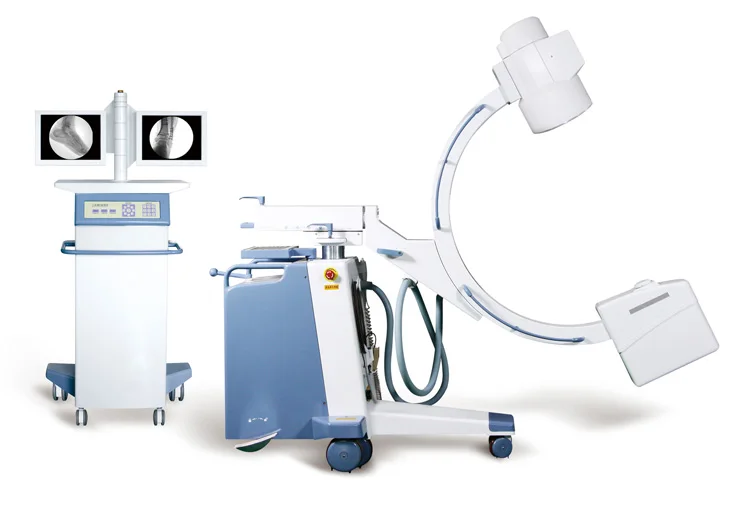

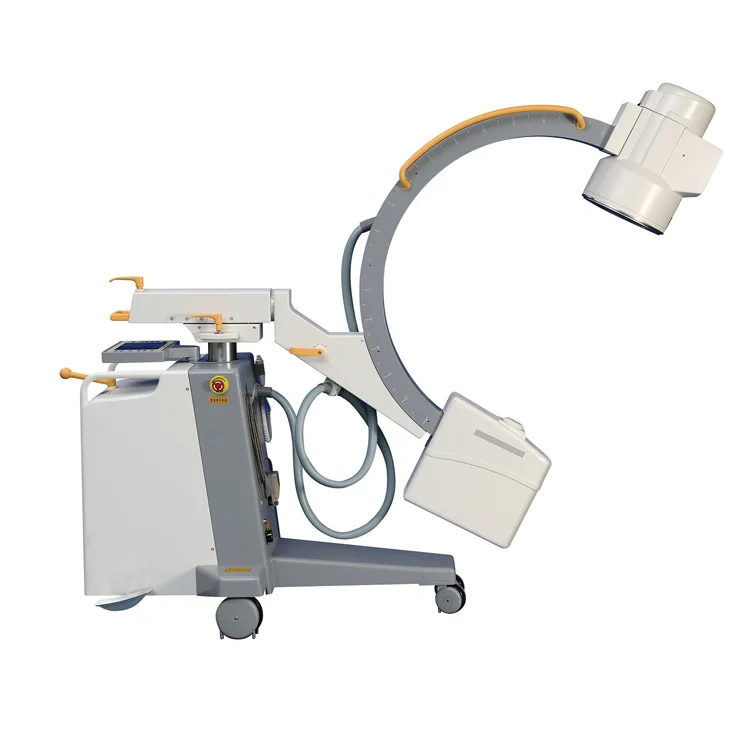

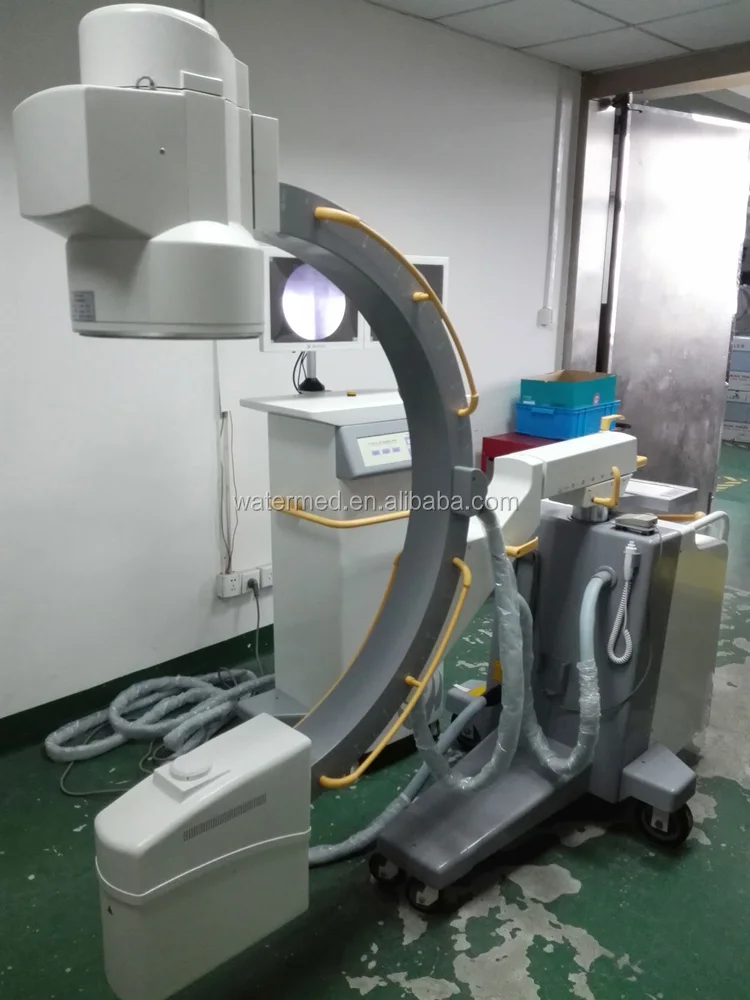

MSLCX34 High Frequency Mobile C-arm X-ray Imaging System
Features
Advantages more than 20 yeas R&D, the first factory in China for C-arm X-ray machine (with patent), most stable quality most competitve price in China, your most reliable partner large production capacity, fast delivery time

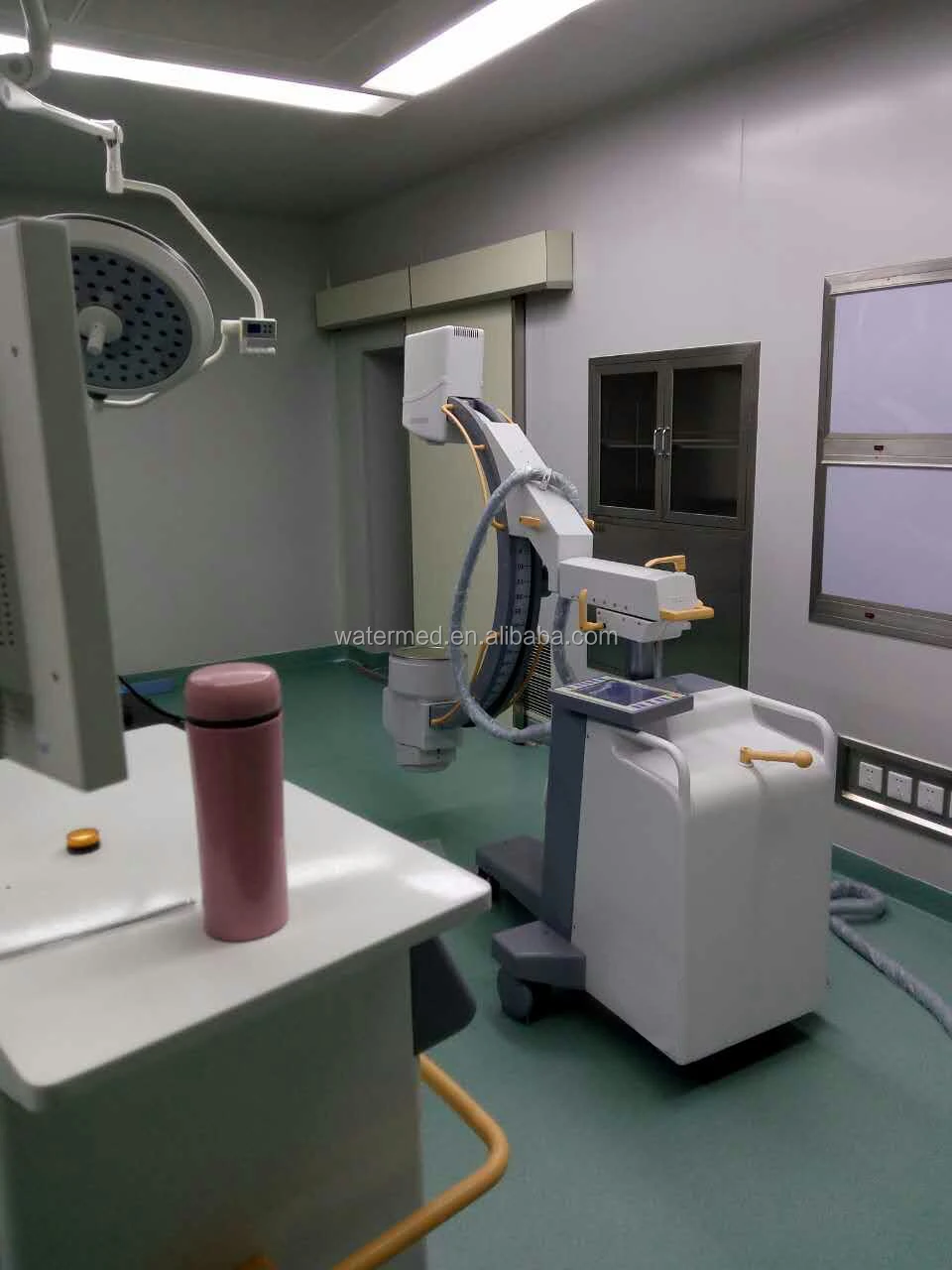

Application Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography. General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty .

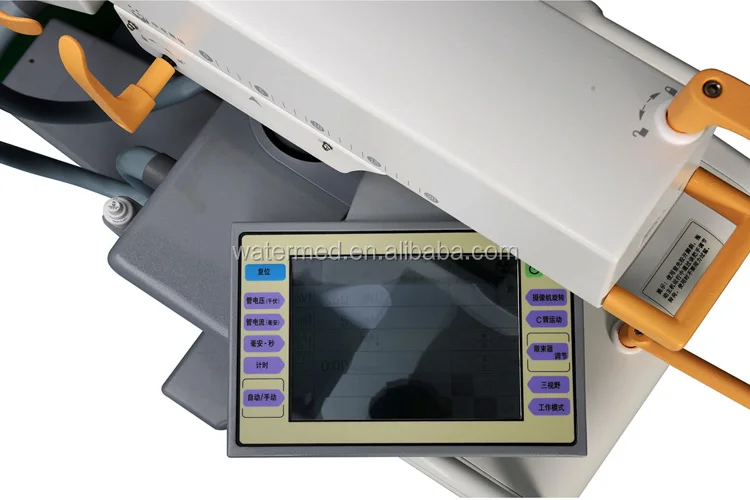

Key features 1)With HF & HV generator, inverter, and High quality image intensifier, the X-ray generator can work stably.It also reduces the damage for the doctors caused by radiation. 2)10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in English, which will improve the efficiency of fault diagnosis. 3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis. 4)With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available. 5) Equipped with unique block line wheels, it can avoid accident when the machine moves. 6)Large free space in arc: the space can reach 800mm,which is convenient for operation.
7)9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement.
8)CCD camera with rotation function:range of camera rotation:360°.
9)Original Korean linear slide rail can make the the movement of the machine flexibly.
10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.

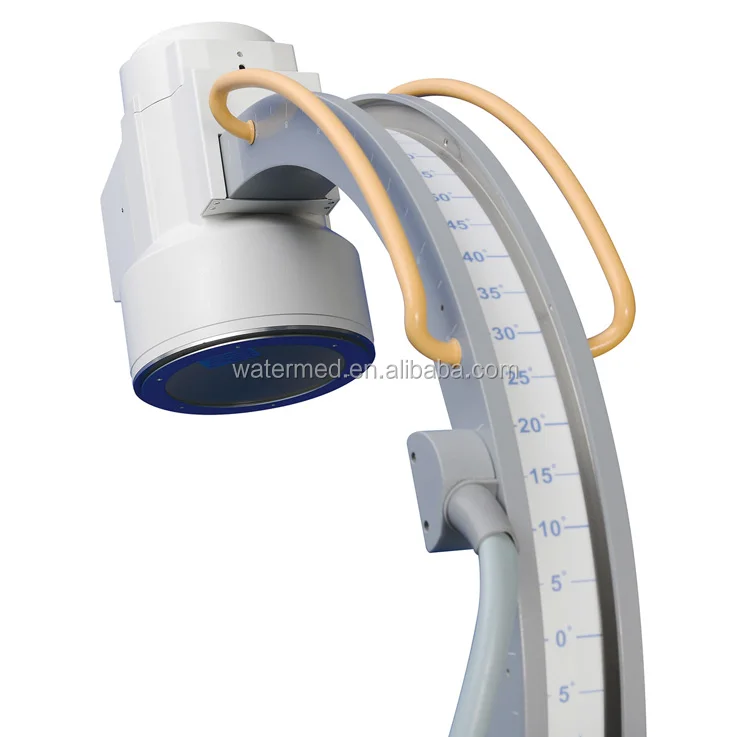

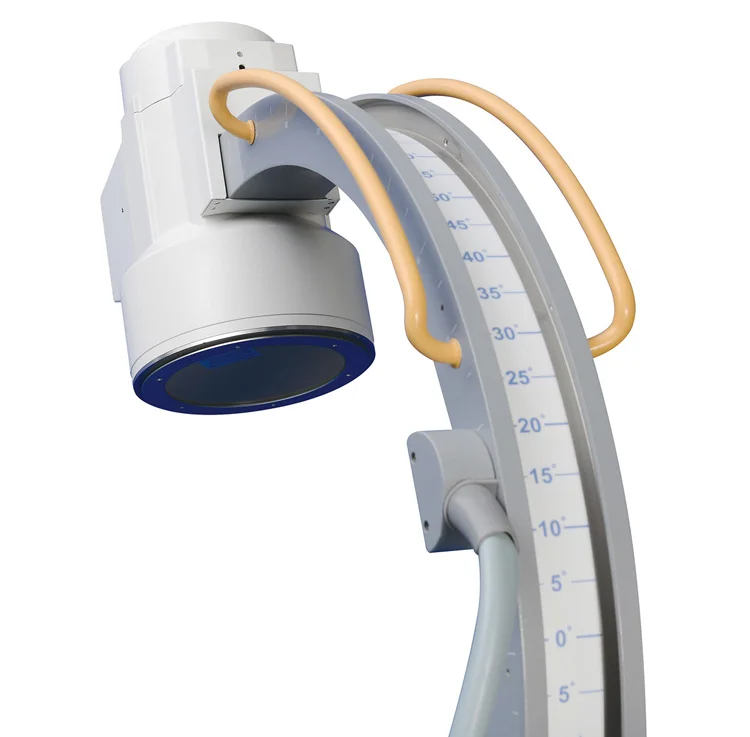

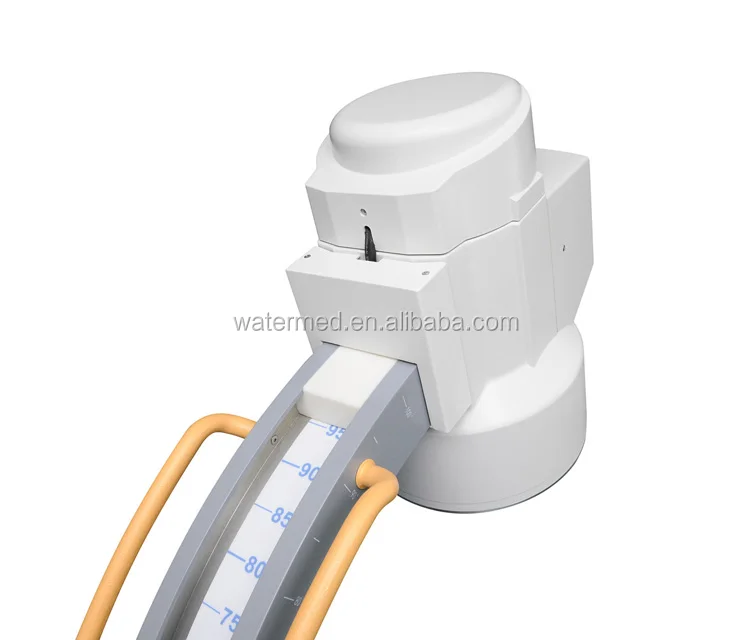

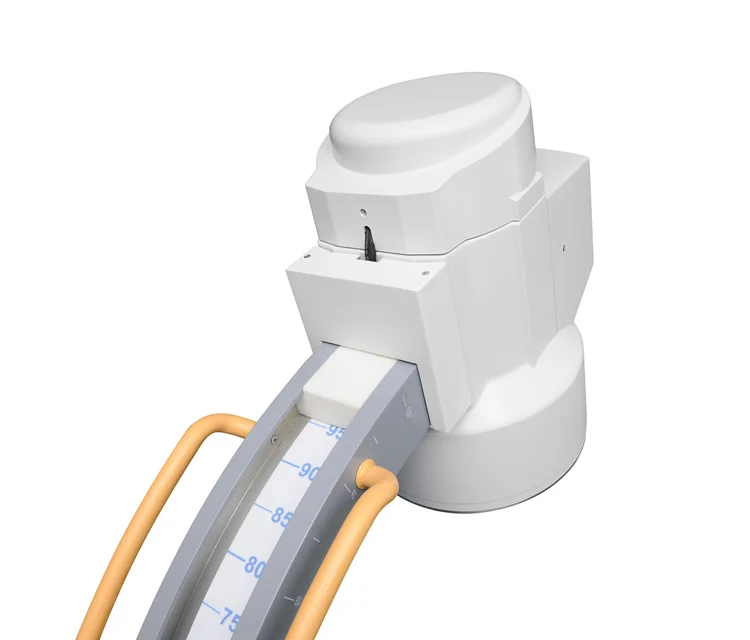

Three fields of vision 9, 6, 4.5 French Thales Brand
CCD camera
CCD camera, Japanese Watt Brand, 360° rotation
Image system
Recursive Noise Reduction Frame freezing Multi frame image storage Image conversing and rotating Screen display with image comparison
Mechanical motion specifications
Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180°
C-arm dimension
Distance of focal spot to image generator(SID):1000mm Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm
Standard configuration
High resolution CCD camera:1set x-ray generator:1set 9” image intensifier:1set image processing system: 1set LCD high definition display: 2 sets Mobile stand :1 set
