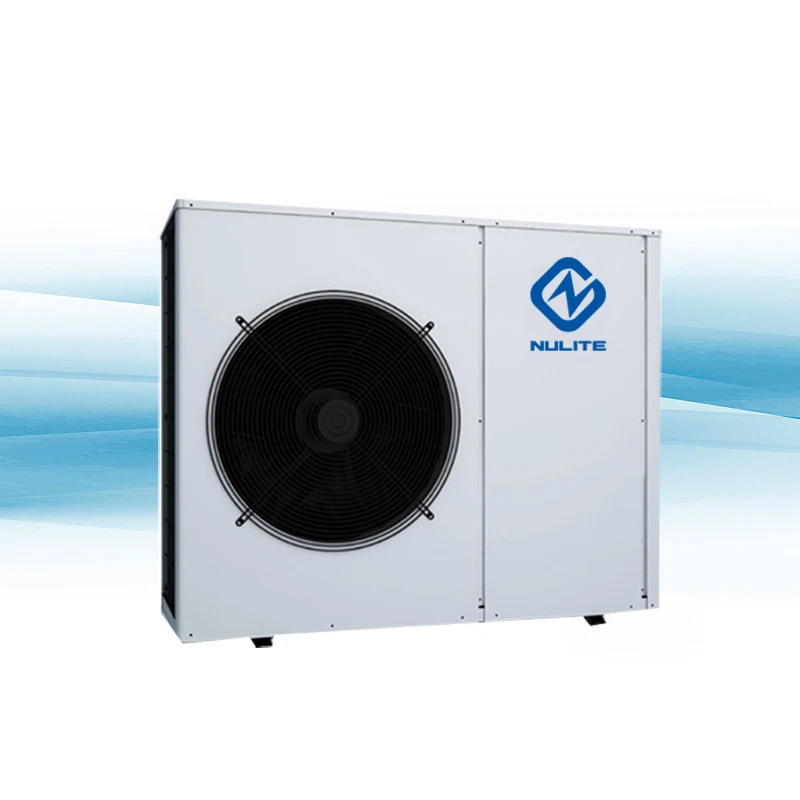

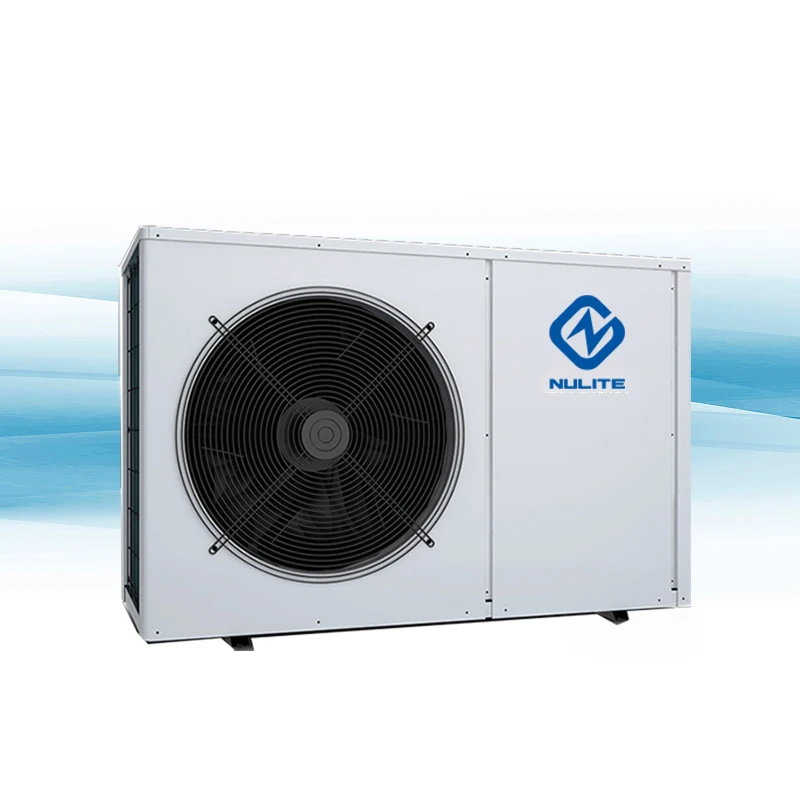

High quality 10kw swim poo heat pump cheap price Vietnam heatpumps for cooling water
- Category: Water Heaters >>>
- Supplier: Nulite New Energy (guangzhou) Co. Ltd.
Share on (62403737233):
Product Overview
Description
Product Paramenters
Item | NERS- | B/1.5Y | B/2.5Y | B/3Y | B/5Y | B/6Y | ||||||
Rated heating capicity | KW | 6.5 | 10.5 | 12.8 | 22.5 | 26.2 | ||||||
Rated cooling capicity | KW | 4.55 | 7.35 | 8.96 | 15.7 | 18.3 | ||||||
Input power | KW | 1.2 | 1.95 | 2.43 | 4.24 | 5.12 | ||||||
COP | W/W | 5.42 | 5.38 | 5.27 | 5.31 | 5.12 | ||||||
Voltage | V/Hz | 220V-240V 50Hz / 1phase | 380V-400V / 50HZ / 3phase | |||||||||
Rated output water temperature | °C | Rated temperature : 26℃~30℃ , Max temperature : 40℃ | ||||||||||
Water flow | m3/h | 2.5 | 4.3 | 5 | 8.7 | 13 | ||||||
Refrigeration | R410A | |||||||||||
Control mode | Microcomputer central processor (line control) | |||||||||||
Compressor | Form | Rotate type | Scroll type | |||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | |||||||
Brand | Mitsubishi | Copeland | ||||||||||
Unit | Net size | mm | 894*402*538 | 942*372*548 | 1108×518×904 | 1108x518x1257 | 1108x518x1257 | |||||
Weight | Kg | 60 | 80 | 100 | 155 | 165 | ||||||
Nosie level | dB(A) | <48 | <48 | <50 | <55 | <58 | ||||||
Fan | Form | internal rotor motor, plastic leaves | internal rotor motor | |||||||||
Ambient temperature | °C | （-10℃ -- 50℃） | ||||||||||
Inlet pipe diameter | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | |||||||
Outlet pipe diameter | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | |||||||
Products Description
Advantages of swimming pool heat pump
1.Patented Efficient Heat Exchanger
The patented high efficiency heat exchangers have a strong counter current design, and are helpful for refrigerant
super-cooling.Because the inter-space between the shell and tubes is small this leads to a larger flow, which makes oil return easy. Additionally, the large tube diameter prevents tubes from deposits and blocking
super-cooling.Because the inter-space between the shell and tubes is small this leads to a larger flow, which makes oil return easy. Additionally, the large tube diameter prevents tubes from deposits and blocking
2. Temperature Compensation Technology
Automatic compensation technology can adjust water temperature according to the ambient temperature, which means you always feel comfortable. whether in winter or summer.
3. Compressor Interchange Control Logic
Compressor interchange control logic ensures only the energy required is delivered to the terminals with up to three compressors on or off, which provides you both comfortable temperatures and a longer service life of the units, while consuming less energy.

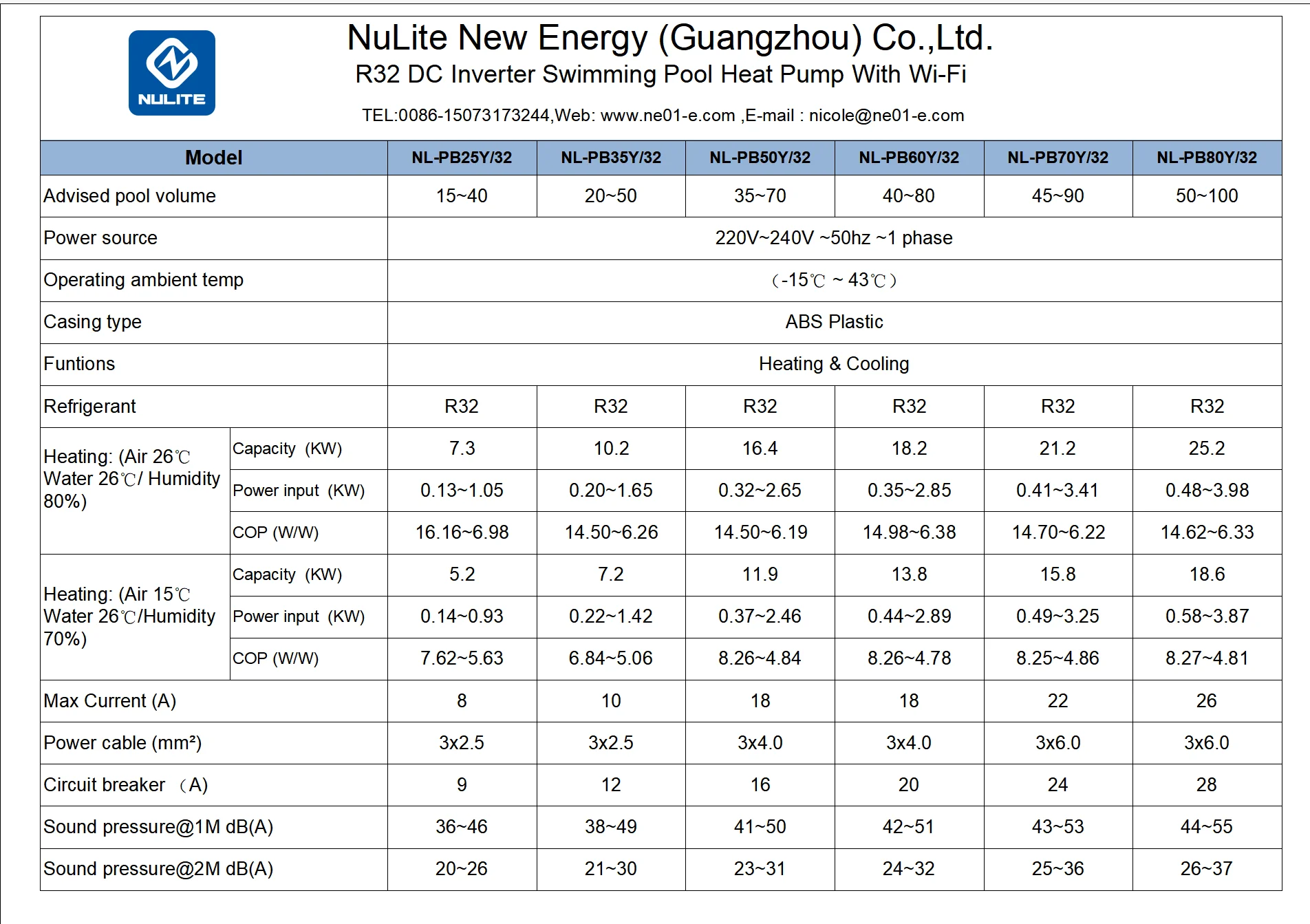

Product Paramenters
Details Images

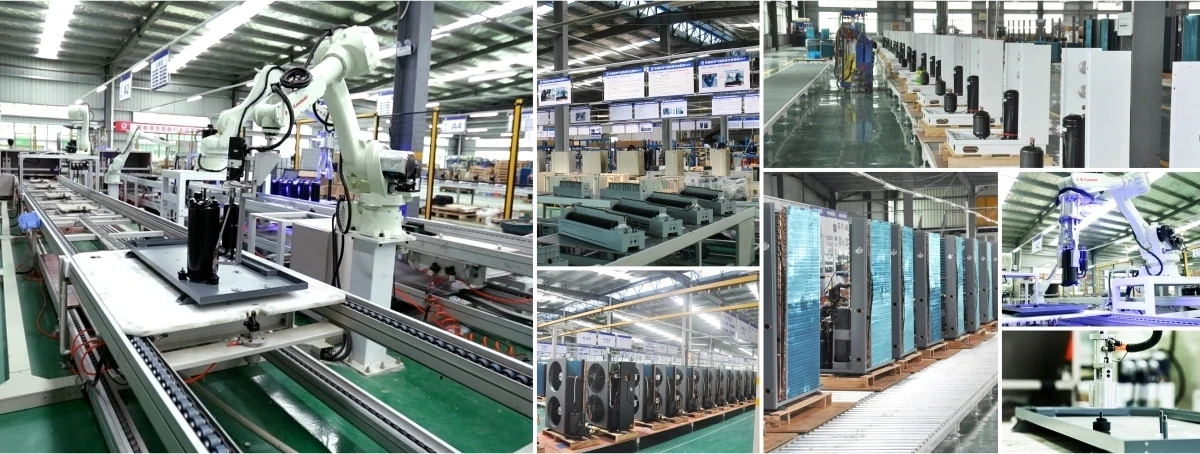

Factory production
Nulite Professional team

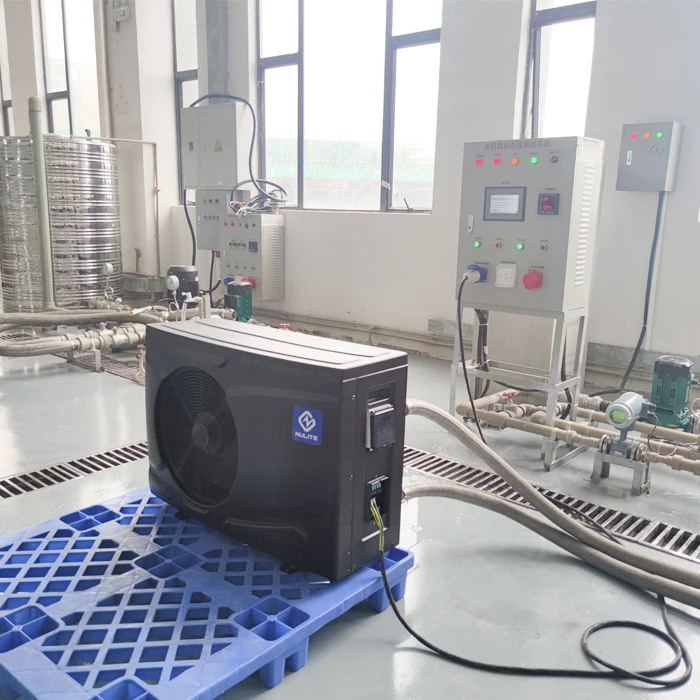

Testing preparing
Nulite Certificated Labs

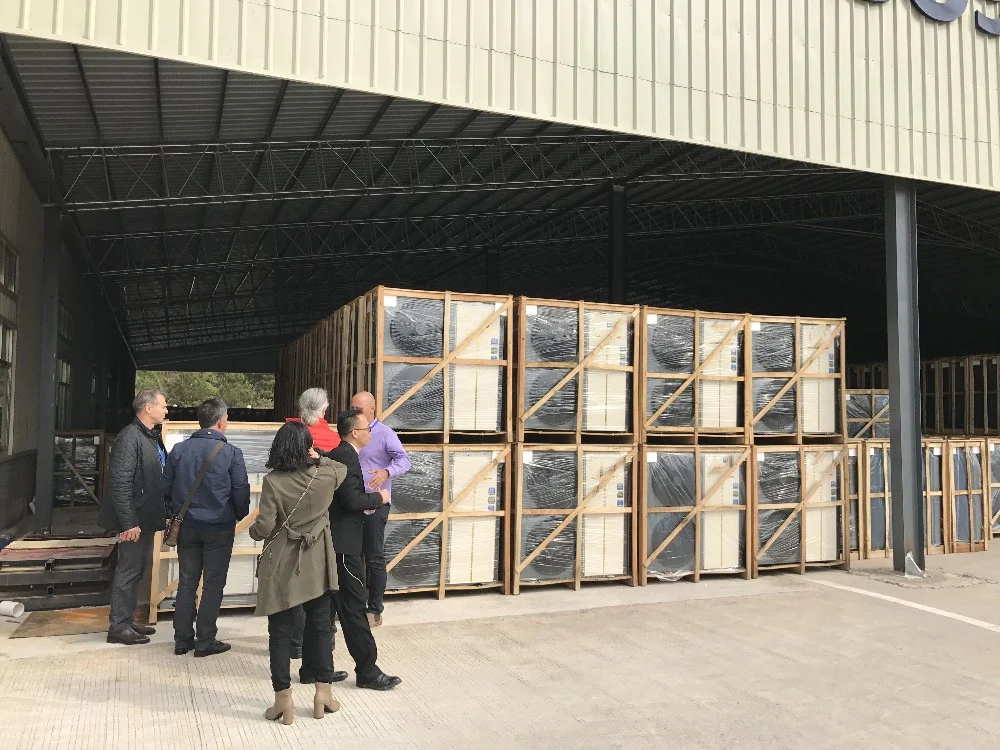

Packaging for Swim Pool heat pump
Nulite Super Carton Box
1.EEV :The world famous EEV(electronic expansion valve) is critical to PID control the volume of the refrigerant accurately and reduces energy consumption.
2. Compressors :The compressors can be on or off according to the actual energy need. So the units are reliable and easy to control.
3. Evaporater:Air exchangers (fins-coil) with hydrophilic coating are strongly anti-corrosive and perform at high efficiency.
Company Profile
A Brief Introduction of Nulite New Energy Group
Nulite established in 2003, with three main modern manufacturing factory covering 580,000 square meters, 1,200,000 units production ability and over 1,500 employees.
We are dedicated to supplying high efficiency energy-saving solution for household & commercial applications.
Nulite has developed advanced & unique technology and takes the leads of floor heating EVI & Inverter heat pump, swim pool heat pump, central hot water heat pump, fan coil unit and geothermal heat pump,water tank,FCU. ect

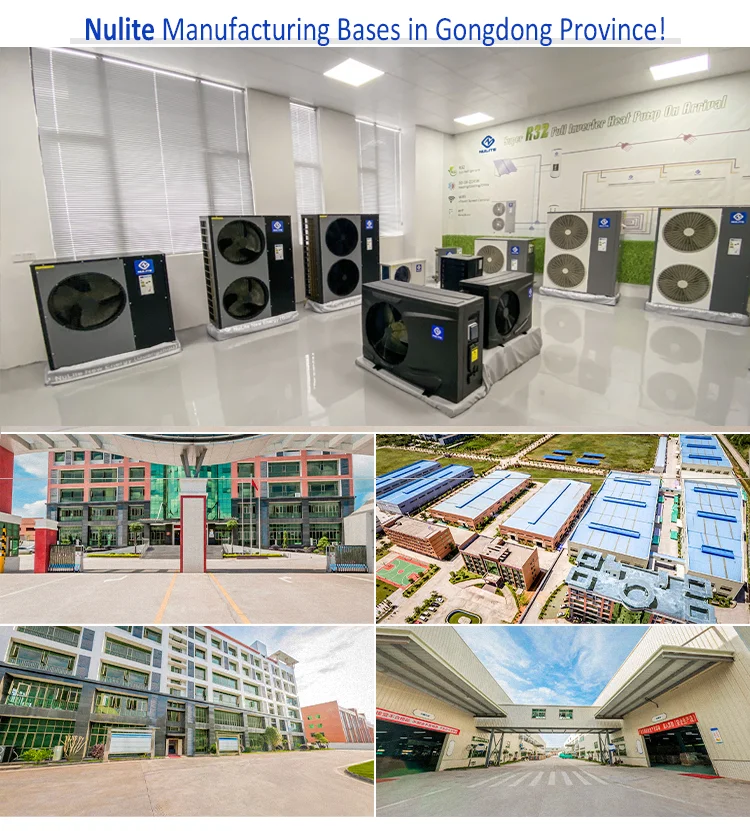

Manufacturing Factory Bases of Nulite New Energy Group
Nulite New Energy Headquarter have 5 main professional installation teams, which are full of efficiency and ability.Every team member is devote to work and provide the best quality of our product.With more than 300 kinds of popular modern designs. Nulite New Energy Heat Pump has exquisite appearance,unique design that winning warm praise from customers.
Nulite New Energy Certificates
Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, erP, CB certificated. And also with customized OEM/ODM services for distributors all over the world.Now NuLite brand heat pump has been exported to more than 100 countries, even well installed.

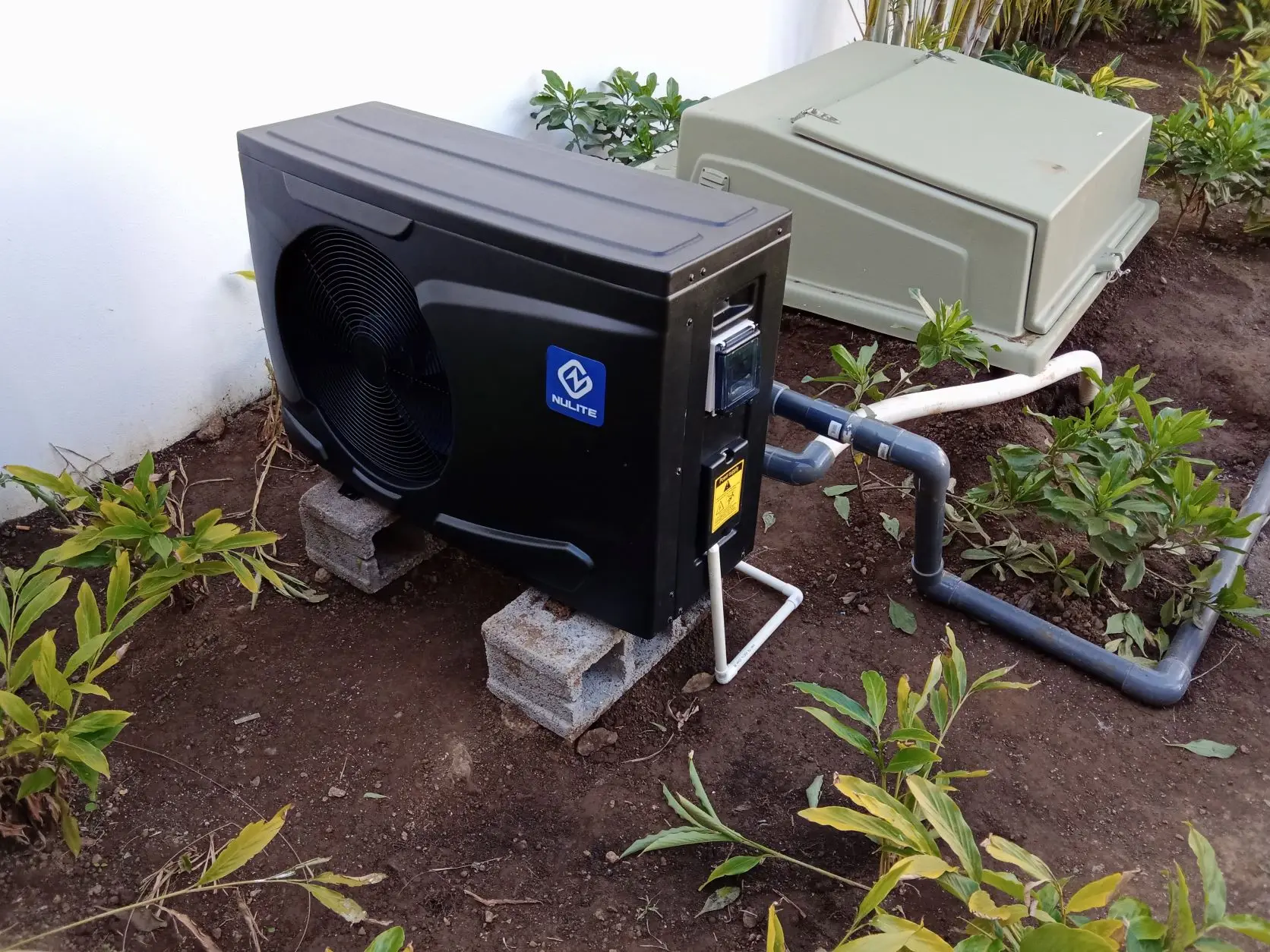

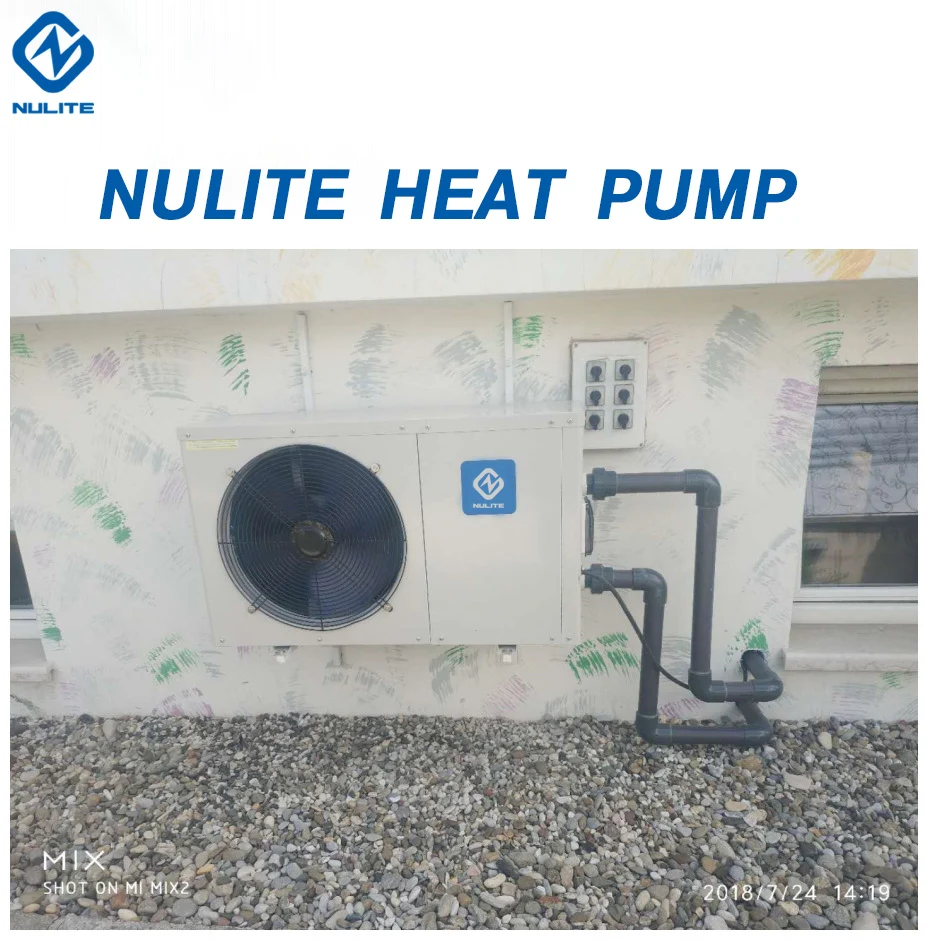

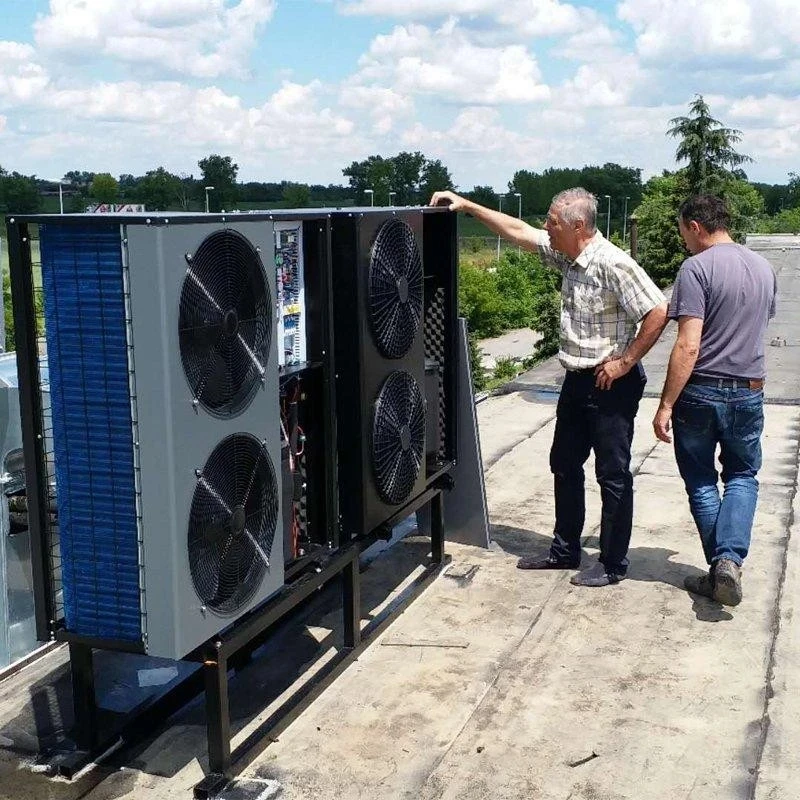

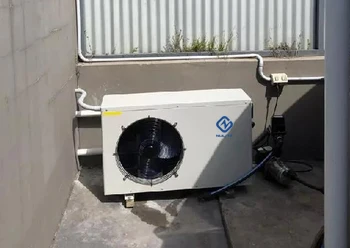

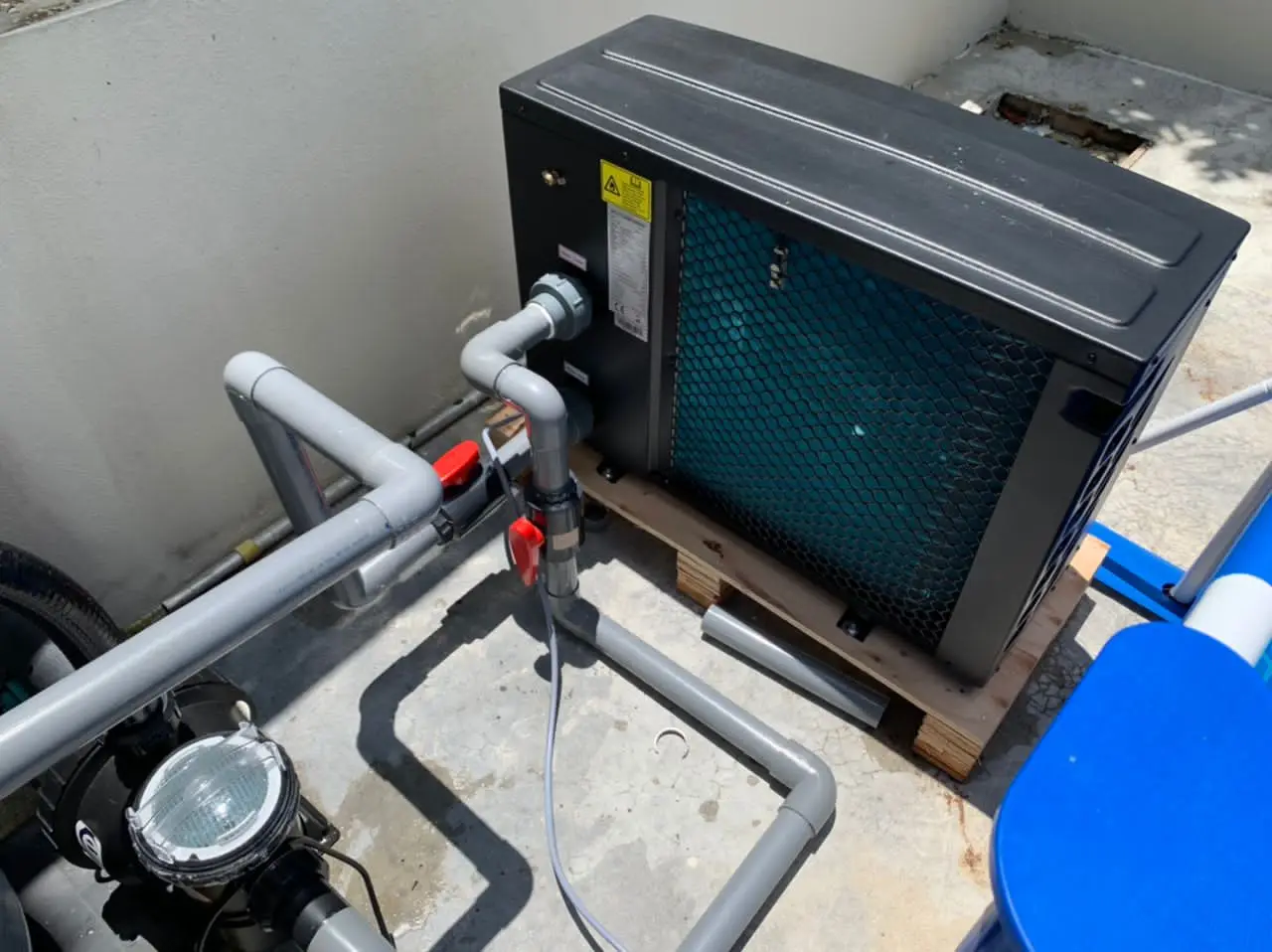

Customer Photos
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
Q: How long for your heat pump delivery time?
A:Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kinds of heat pump?
A:1. Apartment/Villa Inverter Heating/CoolingSeries (3-38KW, 30-350m2)
2. -25°C EVI Heating Series (9-210KW)
3. Sanitary All in One Series (80-300L)
4. Swim Pool Series (3-150KW)
5. Commercial Central HVAC Series (10-180KW)
6. Fan Coil Unit & Water Tank (50L-10T)
7. Mini Hot Water Geyser Series (3-10KW)
A: We are R&D and manufacturer factory. With 3 main manufacturing bases in Guangdong province!with OEM /ODM service provided, MOQ> 20 Units.
Q: How long for your heat pump delivery time?
A:Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kinds of heat pump?
A:1. Apartment/Villa Inverter Heating/CoolingSeries (3-38KW, 30-350m2)
2. -25°C EVI Heating Series (9-210KW)
3. Sanitary All in One Series (80-300L)
4. Swim Pool Series (3-150KW)
5. Commercial Central HVAC Series (10-180KW)
6. Fan Coil Unit & Water Tank (50L-10T)
7. Mini Hot Water Geyser Series (3-10KW)
Q: What is your terms of payment for heat pump ?
A: T/T ,balance before shipment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
A: T/T ,balance before shipment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
We are professional,international and innovational heat pump manufacturer!
1.Response in 2 hours,Solution in 24 hours.send us message,and we will answer you quickly!
2.Free design for your house/project case,providing professional suggestion!
3.Long warranty terms and provide after-sale service quickly and free spare parts!
4.Marketing experience in HVAC industry,welcome to become our distributors!Do the heat pump business!
Please feel free to contact us right now!
