5SP15 Series solar submersible water pump with 15 m3/h water flow and 110m head for agricultural irrigation
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62403775633):
Product Overview
Description
5SP15 Series solar submersible water pump with 15 m3/h water flow and 110m head
Solar water pump
Pump Introduction
solar water pump lorentz

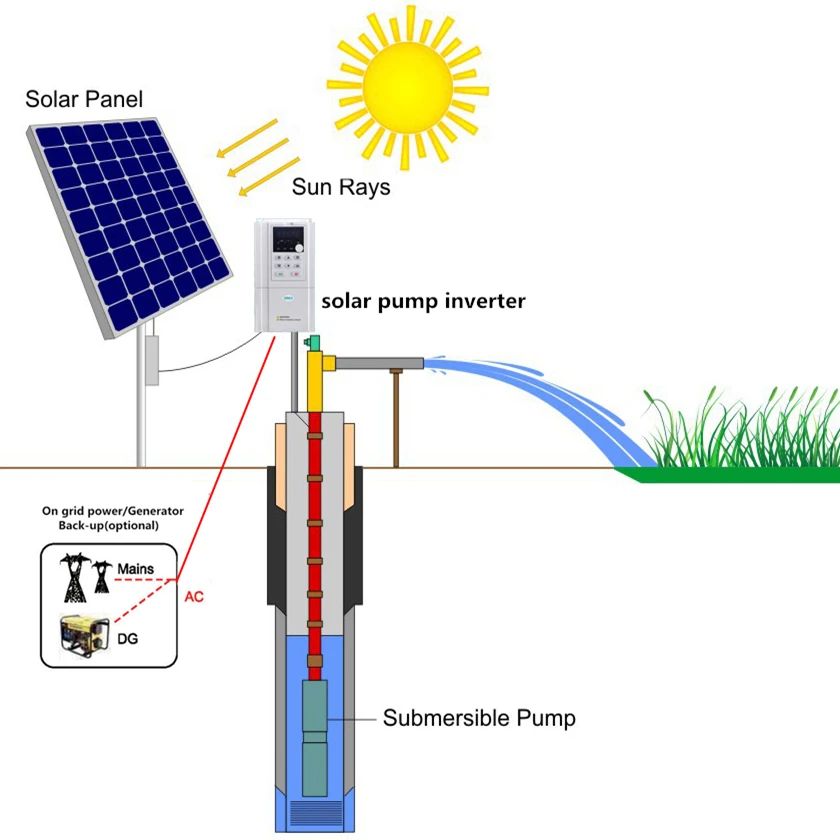

The water pumps used in the solar pump system is mainly deep well pump, submersible pump, horizontal or vertical multi-stage centrifugal pump, etc., which pump water from deep well, river and lake, etc., into a reservoir or tank, or directly used for domestic water supply, agricultural irrigation and other systems. No matter to build new solar pump systems or transform the old utility (or diesel generator) into solar, the SINCREA solar pump inverter can be applied to drive those water pump with solar.
Pump Featuresll
Material: stainless steel 304, 316, iron casting, etc.
Type: deep well pump, submersible pump, surface pump, horizontal centrifugal pump, vertical multistage centrifugal pump, etc.
Voltage: single phase 110V/220V, three phase 220V/380V.
Frequency: 50/60HZ.
Maximum depth: 70m.
Application: Domestic water supply, Agricultural irrigation, Desert greening, fountains and various industrial use.
Head & Flow Curve
Model Definition
solar water pump lorentzfor deep well
Note: 1 m³=1,000 litres

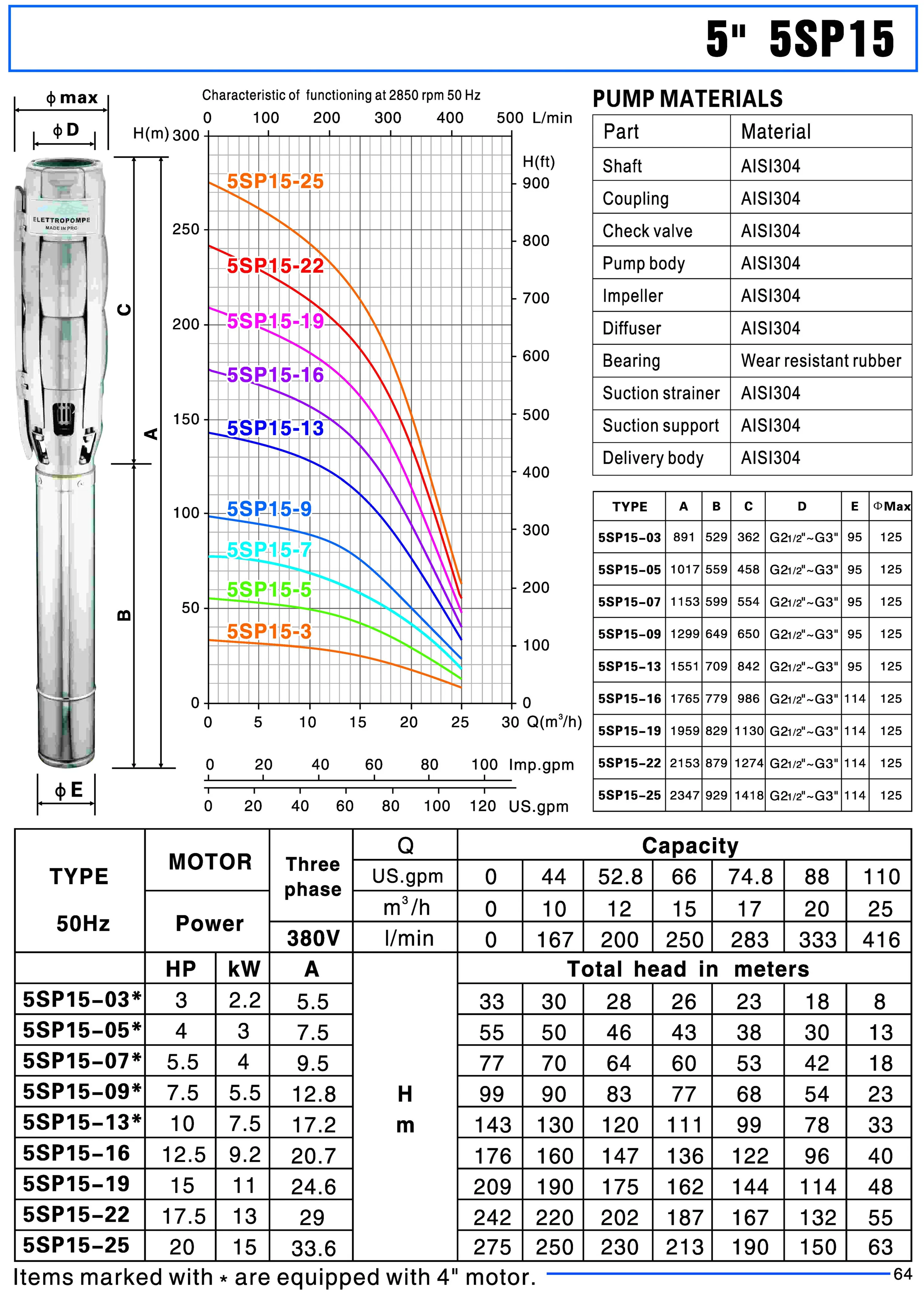

5SP series Head & Flow performance curve
Product Details
 | Solar panels> 25 years Warranty. > High Efficiency PV Module of 17% - 20%. > Highest quality with TUV, ETL, CE, ISO certificates. > PID Resistant,High salt and ammonia resistance. |
Solar pump inverter> 1 Phase 220~240V AC, 3 Phase 380~480V AC. > Mppt voltage range 250~350V, 500~700 DC. > Out put power 0.75~630KW. > 2 years Warranty. solar water pump system for deep well |  |
 | Water pump> Stainless steel 304, 316, iron casting, etc. > single phase 110V/220V, three phase 220V/380V. > 50/60HZ. > Maximum depth 70m. |
PV Combiner Box> IP65 protection class,suitable for outdoor installation uses. > High voltage lightning proection(SPD) special for PV. > With DC fuse protection and anti-reverse proection. > Max open circuit voltage(VOC) can reach 1000V. solar water pump system for deep well Note: can be customized according to requirements. |  |
 | Accessories> Various AC/DC cables for the system. > AC /DC breaker. > Water level sensor. >Output reactor and filter. |
Mounting Bracket for solar panel
> Material: Standard hot-dip galvanized steel bracket, can customized stainless steel, aluminum alloy. > Solar modules: Used for various size of solar panel. > Installation angle: any fixed angle which can be customized. > Wind pressure: 60 m/s. Snow pressure: 1.4 KN/m2.
|

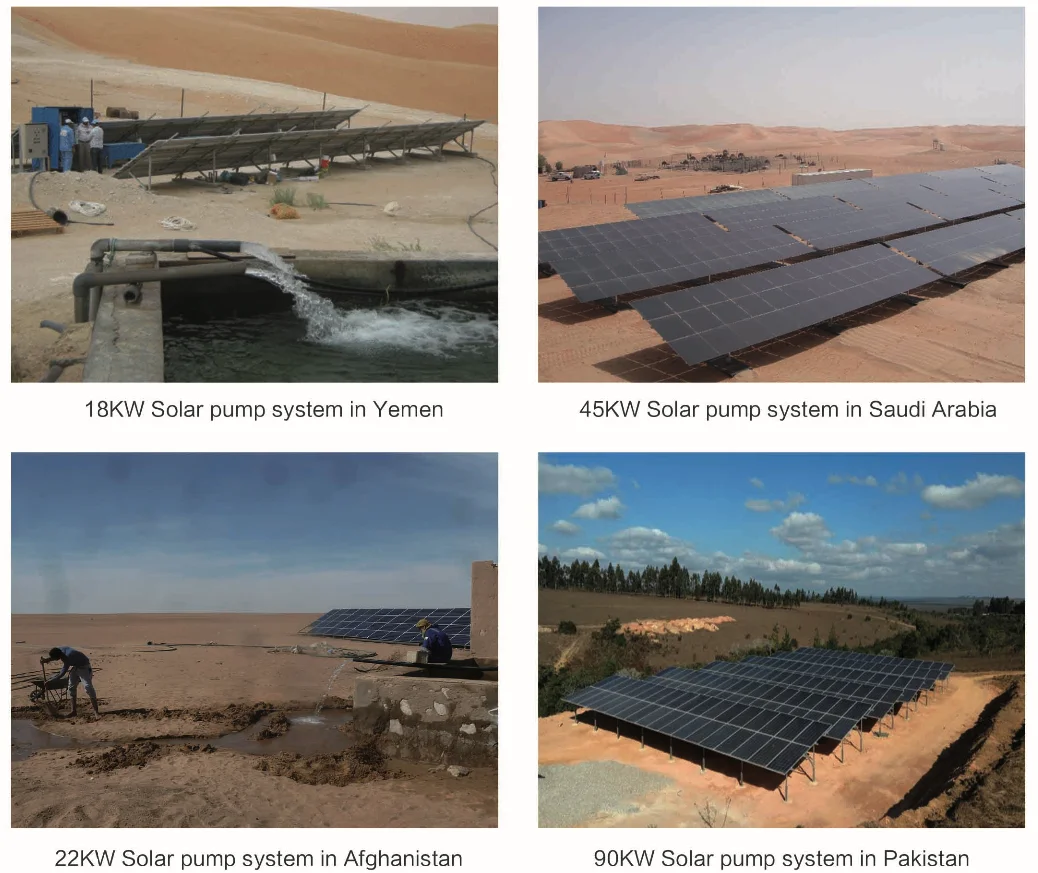

Product Application
Pakistan 3KW solar agriculture irrigation system 4kw solar submersible water pump for deep well
| Location | Sindh-Pakistan | |
| Purpose | Agriculture irrigation | |
| Water source | River. water depth 8-10m, 2m from river to tank | |
| Requiredments | Pakistan is a large country with traditional agricultural production. Due to the shortage of electricity, when agricultural irrigation requires water, it often loses power, which will have a great impact and loss on the cultivation of local farmers. In order to solve the actual pumping difficulties, SINCREA solar pump irrigation system was introduced to meet the needs of agricultural irrigation. | |
| Solutions | Water pump | 3KW AISI304 submersible pump,3phase,380V Rated water flow:20 m³/h;Rated lift head:10m |
| Solar panel | 4.8KW,15pcs 320W Mono solar panel in series | |
| Solar pump inverter | SINCREA,Model:SV500-004-4TB 4KW Solar pump inverter,3phase 380V | |
| Mounting bracket | Ground fixed Q235 hot galvanizing steel mounting bracket | |
| Accessoires | DC/AC cables,MC4 connector,water level sensor,DC/AC multi-meter,installation tool.etc | |
| Benefits | Adopting SINREA 3KW solar pump system, the 4.8KW solar panel drive the 3KW pump by the 4KW solar pump inverter. The system pump water from the 8m depth river to the tank, and then flows to each farmland through the channel, working 6-8 hours a day, 100~150 cubic meters of water can be pumped for farmland irrigation, solving the water shortage due to power outage and water shortage, fully automatic operation, and no manual operation. | |
Company Information
Company Introduction
4kw solar submersible water pump for deep well
Shenzhen SINCREA Electrical Technology Co., Ltd. is a professional enterprise on frequency inverter technology development and application . Our company is located in Shenzhen, which is the best innovation city in China. We integrate research, production and sales, with independent intellectual property rights and proprietary trademarks. Take cohesion, innovation and competitiveness as our core, advanced technology, excellent management concept and high-quality products make us popular with our customers.
Company Honor
- Full Cetificate Patents
- ISO9001 & ISO14001
solar water pump lorentz
FAQ
Q 1: Are you trading company or manufacturer ?
A. We are factory.
Q 2: How long is your lead time?
A. Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q 3: Is there any discount ?
A. The discount will depend on the quanlity you purchase.
Q 4: What is your supply capacity?
A. The week output of the factory exceeds 800 PCS.
Q 5: Do you provide warranty for the goods?
A. Yes, we provide more than 2years of warranty for all the goods from us.
Q 6: Could SINCR provide technical support?
A.We' have more than 15 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
